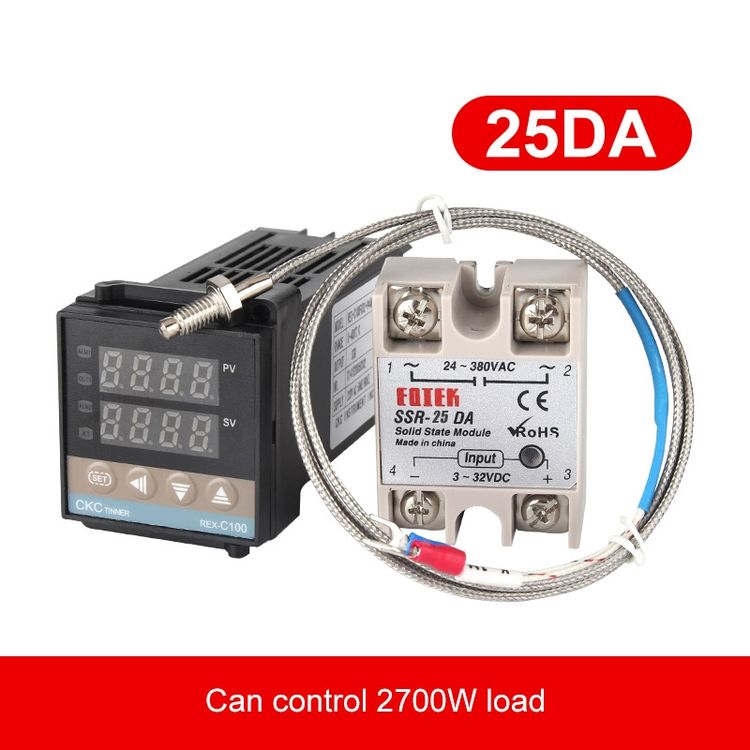

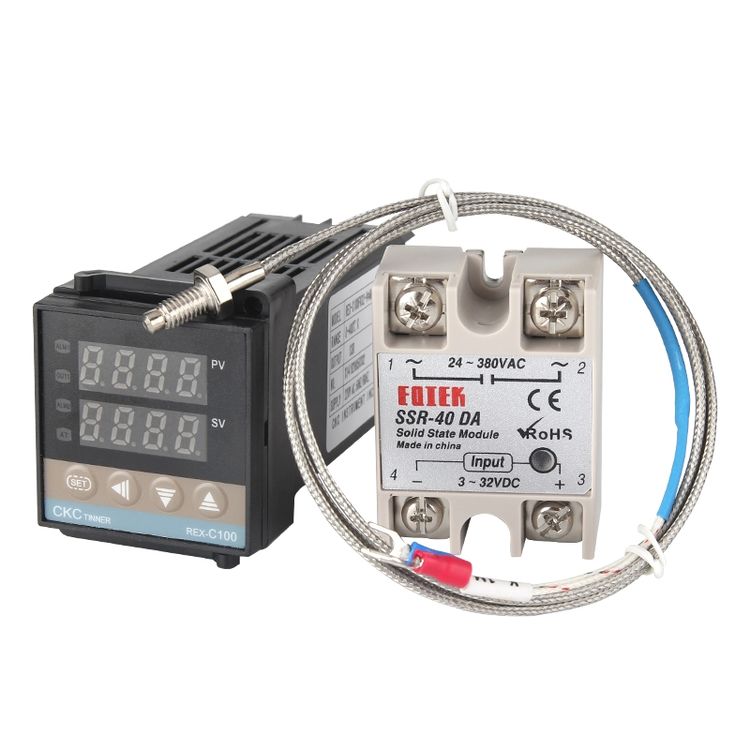

REX-C100 Thermostat + Thermocouple + SSR-25 DA Solid State Module Intelligent Temperature Control Kit


R470

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

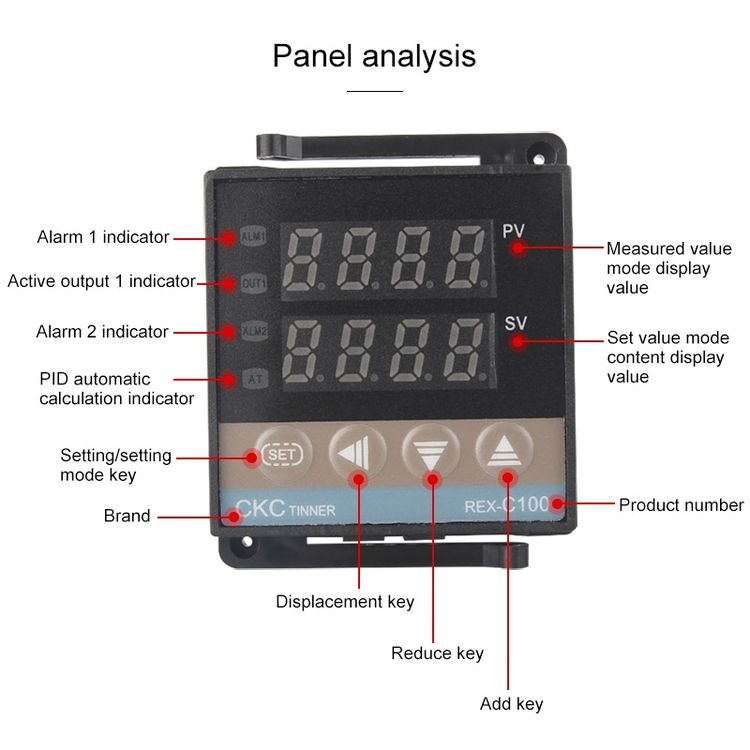

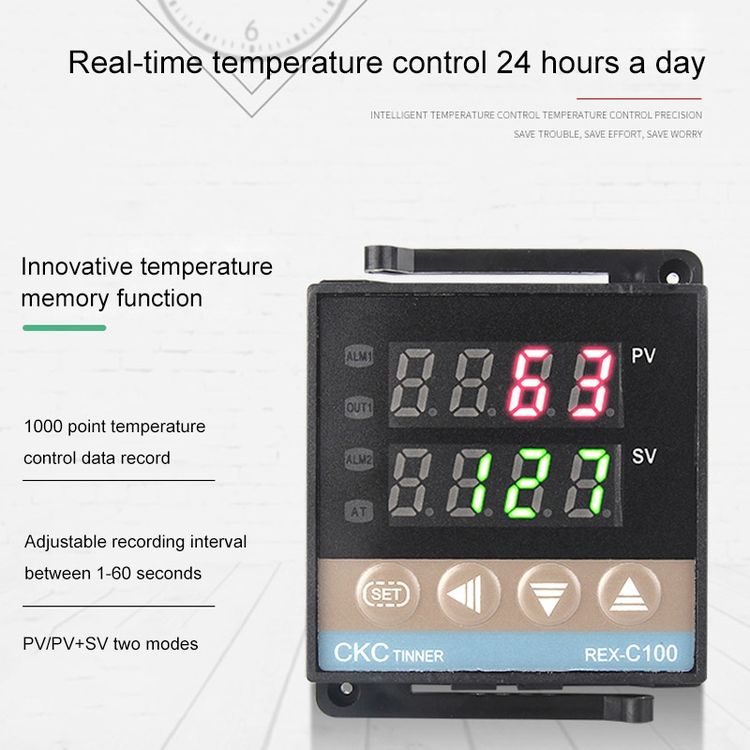

Thermostat parameters:
1. Voltage: 220V
2. Opening size: 45x45mm
3. Control method: PID control
4. Input method: K/EPT100 (optional)
5. Output mode: SSR solid state relay

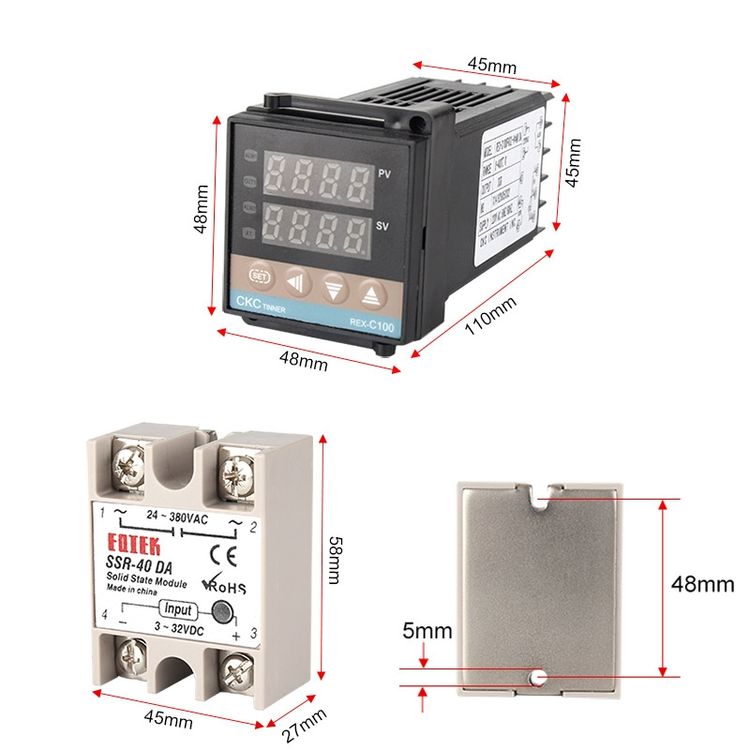

6. Product size: 48x48x110mm

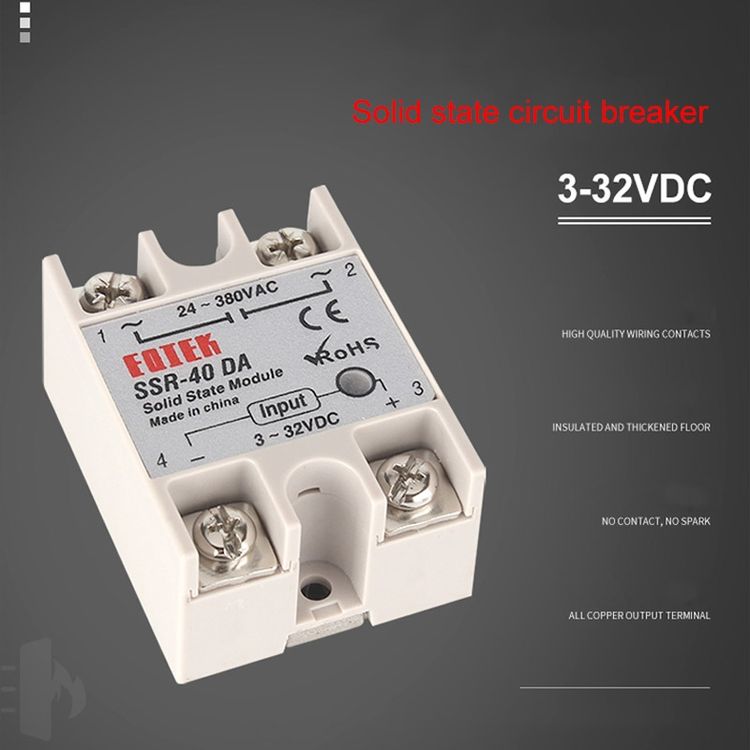

Solid state module parameters:
1. Control method: DC control AC
2. Input voltage: 3-32V DC
3. Ambient temperature: -30 degrees Celsius to +70 degrees Celsius
4. Working frequency: 50-60Hz
5. Control current: 3-35mADC
6. Product size: 45x27x58mm
7. Product weight: 81g

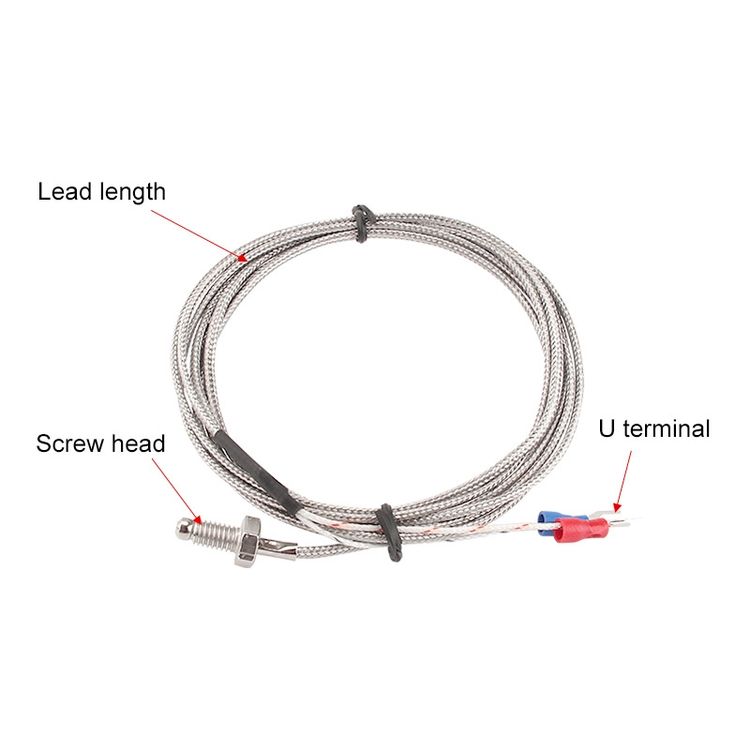

Screw type thermocouple parameters:
1. Model: K type
2. Screw specification: M6 inch
3. Lead length: 1 meter
4. Measuring range: 0-400 degrees Celsius
5. Wiring terminal: U-shaped terminal
6. Product weight: 16g

Additional Information

Weight & Size

Weight: 0.351kg
Size: 13cm x 9cm x 6cm

SKU: B0100024790 Category: Tag: Condition: New
