REL010 HDMI Game Capture 1080P HD Video Capture, Support YPBPR & HDMI Input


R1498

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Introduction

With this REL010 (M) HD Video Capture, you can capture 1080P video from HDMI or YPbPr(Component Video) port, such as blue ray, set-top-box, computer, game box, etc.

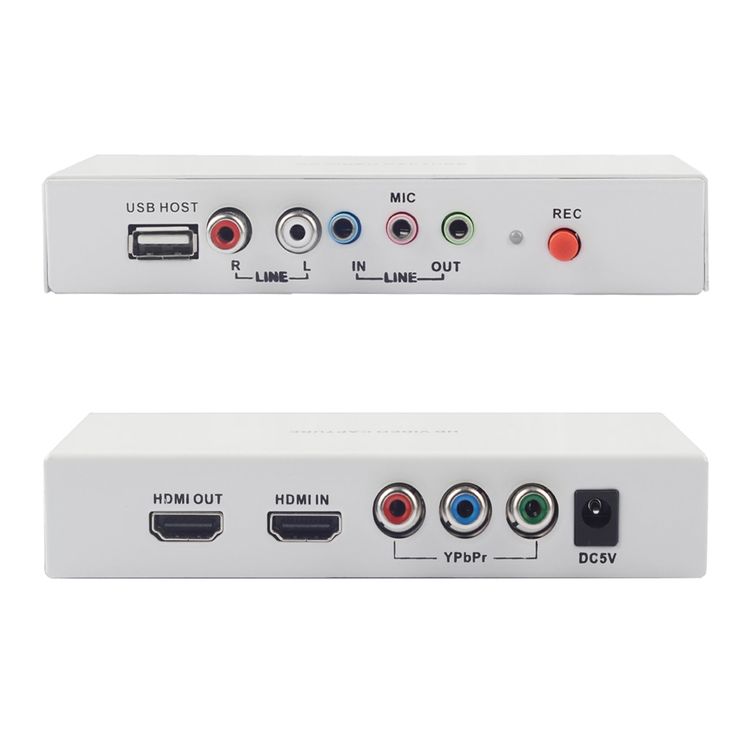

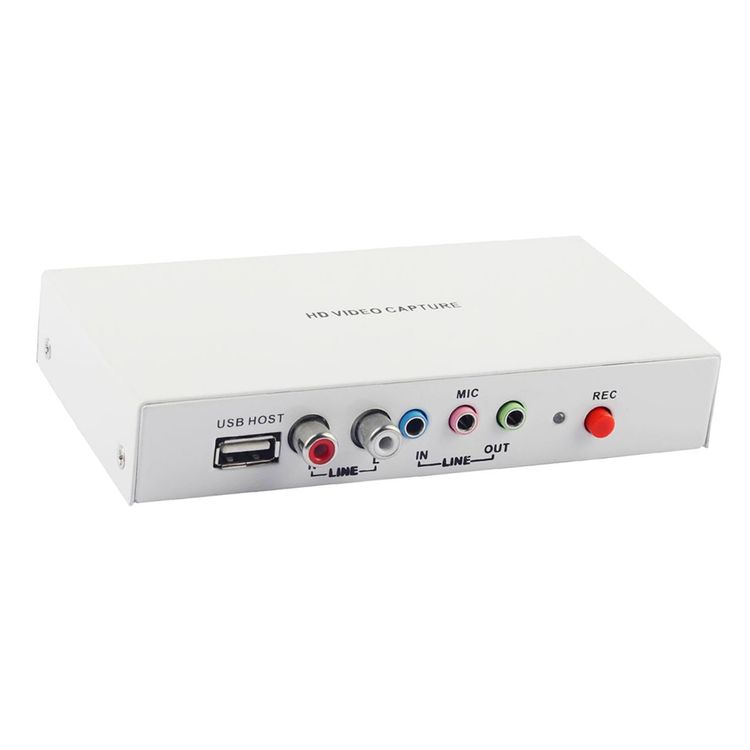

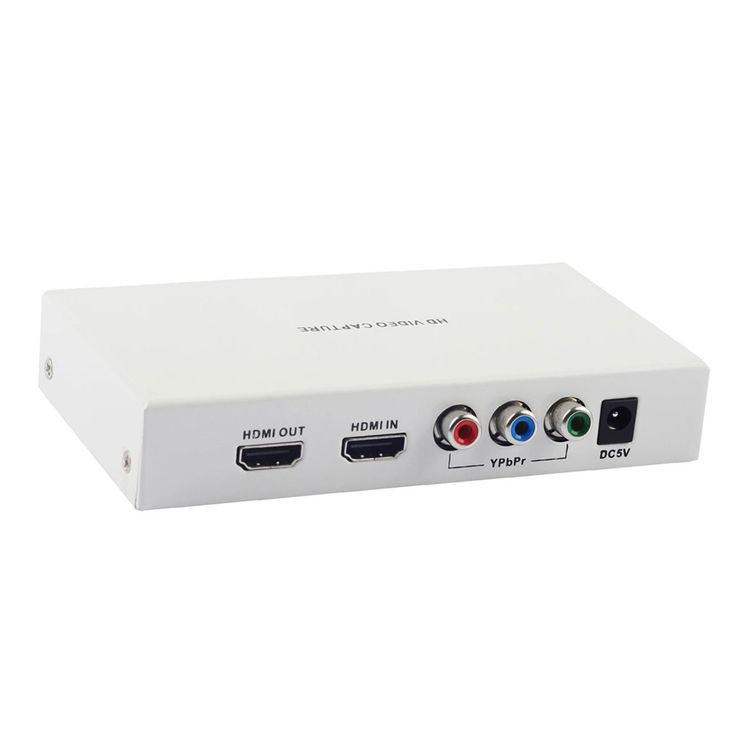

Features/ports and buttons

1. OUTPUT: HDMI output, pass through display HDMI or YPbPr video.
2. INPUT: HDMI input.
3. YPBPR INPUT: YPbPr component input.
4. PWR: DC 5V power supply.
5. USB HOST: For plug USB flash drive or USB HDD for saving record files.
6. LINE IN: Work with YPbPr input only.
7. MIC: For connect a microphone and record voice comments when play game ( REL010 only work with YPbPr component input.)
8. LINE OUT: Audio output.
9. LED indicator: Color be green when standby, be red when recording.
10. REC button: Press to record/stop.

Additional Information

General

Model: REL010
Interface: 1 x USB 2.0, DC 5V, YPbPr, 1 x HDMI In, 1 x HDMI Out, 3 x LINE (IN & OUT & MIC), 2 x LINE (R & L)
Power: DC 5V 2A
Size: 26x14x9cm
Weight: 260g

Hardware

Record File: Max 2GB/per file
Record Place: Max 140MB/minute, 8.4GB/hour

Multimedia

Audio Format: AAC
Video Format: AVI, MPEG-4
Decoder Format: MPEG4
Resolution Input / Output: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x, 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x, 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x, 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x, 1080 (30p)
Record Quality: Max 18Mbps@1080P 30fps

Package Include

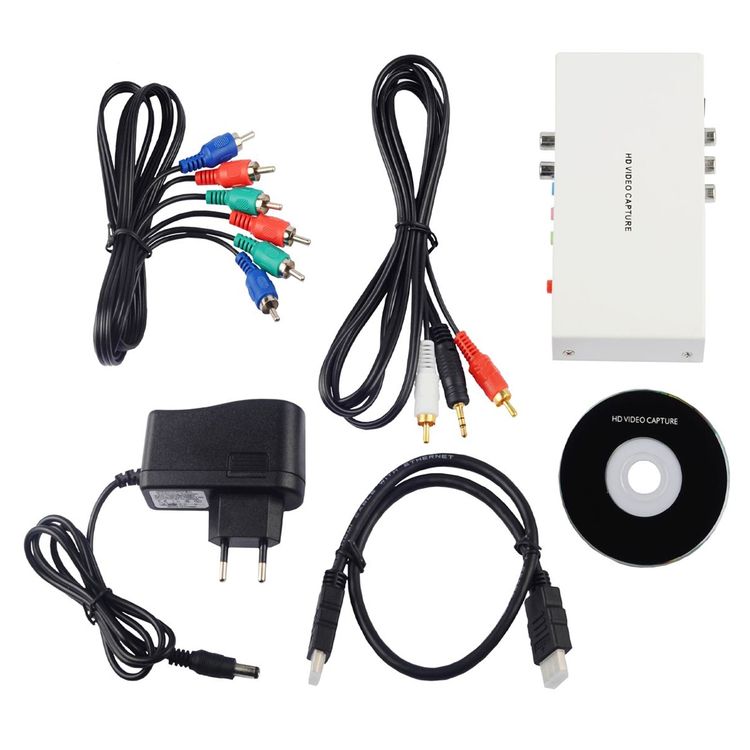

Package Contents: 1 x HDMI cable, 1 x User manual, 1 x Power Adapter, 1 x Video Cable, 1 x CD, 1 x Video Capture

Weight & Size

Weight: 0.620kg
Size: 16cm x 10cm x 8cm

SKU: B0100033981 Category: Condition: New
