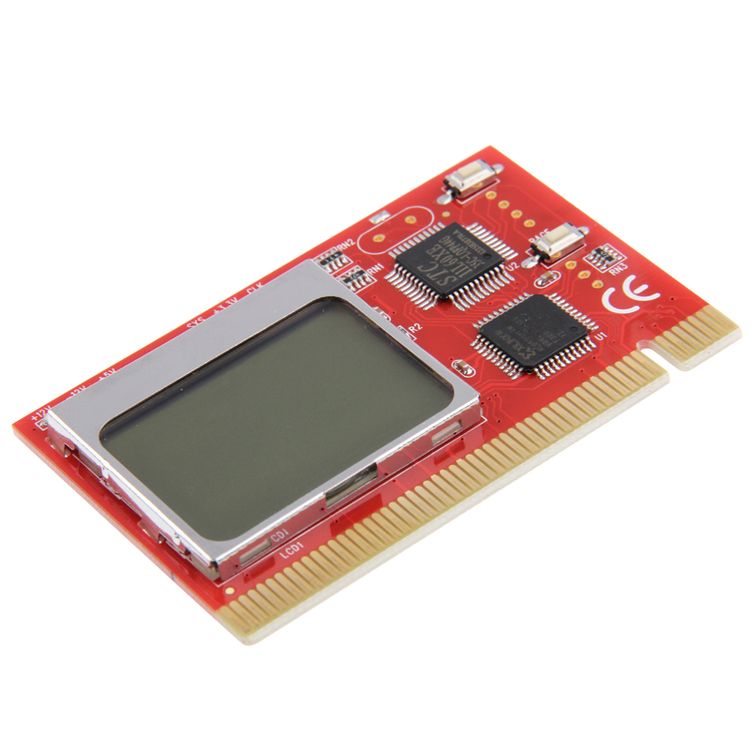

PCI Interface / LCD Showing Intelligent Debug Card


R159

In Stock at Supplier

Get 10% off your order by using the promo code YOINK10 at checkout!

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Automatic scroll information, automatic jump to new code / info, needn’t press any key
2) Remember the BIOS selection when power off
3) Quickly search code records, long time hit PAGE will jump -5th step
4) This card use database compress technologies, so we can store all debug error information to MCU
5) The MCU can analysis debug code and show error information, thus you can repair your main-board quickly. It shows on graphic LCD. It shows information in English, simplified / traditional Chinese.
6) 18 codes in total, current 05th, CODE= C3, PAGE1
7) This card cannot support hot plug in / out, please do not plug in / out when the main board is power on
8) Please check power + 3.3V if there is nothing display
9) Display “no debug code” means the main-board not running. Please check the CPU and power supply
10) Size: 74mm x 50mm x 5mm

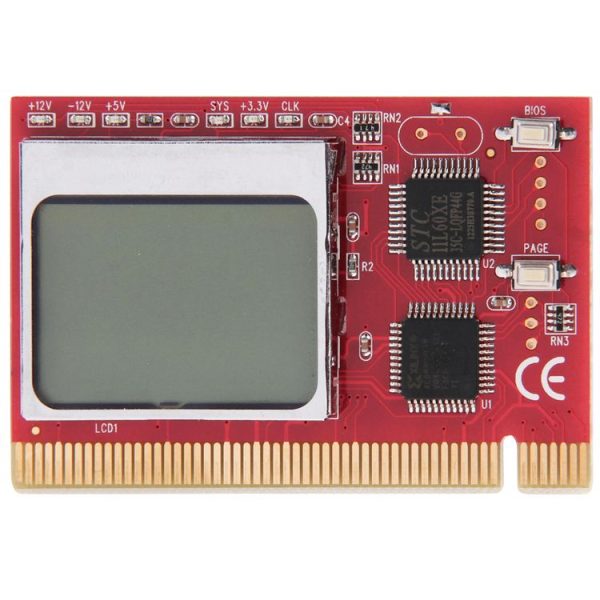

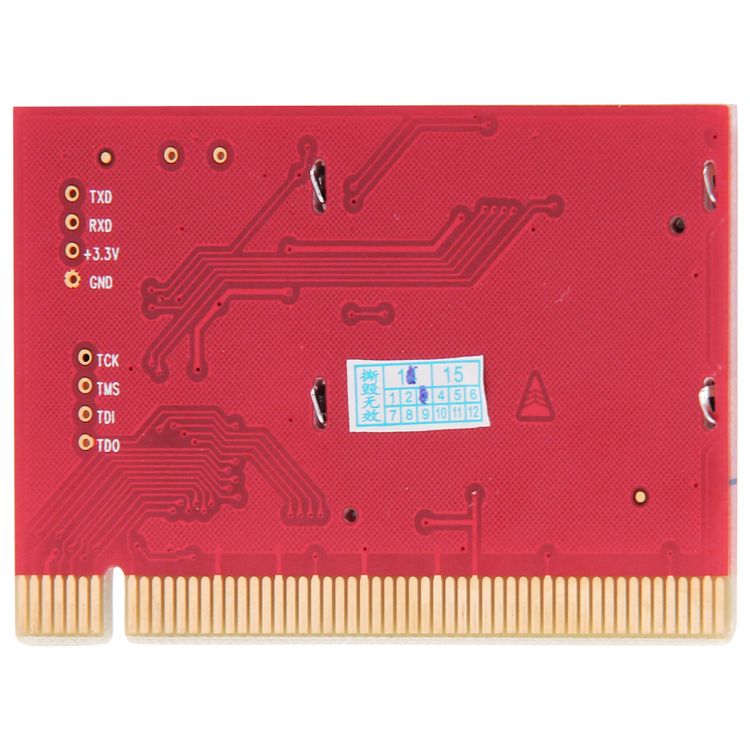

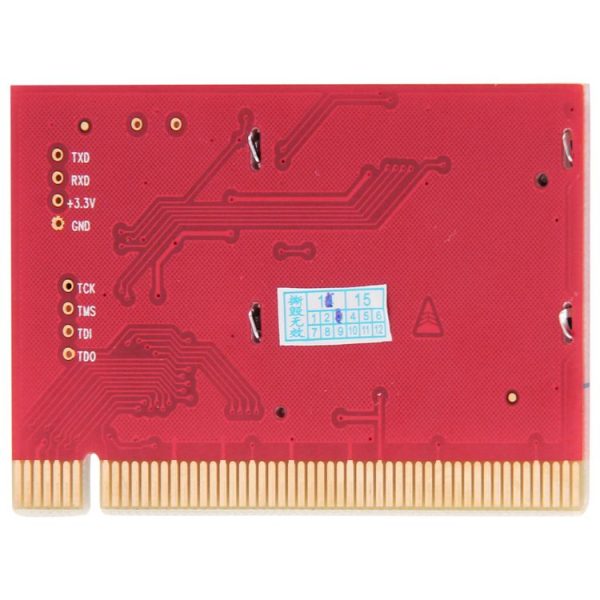

11) Keys and LED indicators:
1. Bios key: short time hit to change Bios. Long time hit stores current selection
2. Page key: short time hit show previous code. Long time hit show 5th previous code from current
3. +12V LED: PCI slots + 12V power indicator
4. -12V LED: PCI slots -12V power indicator
5. +5V LED: PCI slots + 5V power indicator
6. +3.3V LED: PCI slots +3.3V power indicator
7. CLK LED: PCICLK signal indicator
8. SYS LED: MCU running indicator, normally flashing

Additional Information

Weight & Size

Weight: 0.072kg
Size: 14cm x 11cm x 1cm

SKU: A0100112064 Category: Condition: NewOrigin: CN
