OCDAY Deluxe SP3 Racing F3 Flight Controller Board for Aircraft QAV250 Quadcopter


R479

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. Brand new and high quality
2. Deluxe, high capacity flash
3. Designed to give awesome flight performance based on tried and tested sensors
4. Whilst also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU
5. Flight performance: The SP Racing F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it’s on rails
6. The SP Racing F3 runs clean flight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux)
7. Flight logging: On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork
8. Developer select friendly debugging port (SWD) and boot mode, UnBrickable bootloader
9. Broad RC receiver support. Support SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers
10. Battery monitoring: Battery monitoring ports for voltage and current
11. I2C port always powered, perfect for external sensors or always-on OLED Screen
12. No compromise I/O. Use all the features all the time
13. Monitoring + Sonar + 8 motors, all at the same time
14. The SP Racing F3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time
15. Loop times are up to 2x as fast as previous-generation STM32F1 based boards. One Shot ESC. Full support for OneShot ESCs for easy PID tuning and a sharper response
16. Sonar support for precision low-altitude hold
17. Buzzer port for audible warnings and notifications
18. The SP Racing F3 gives you all the features you need for the heart of your aircraft, whether you’re into FPV racing, acrobatic flying or aerial photography it’s perfect
19. Support a variety of aircraft

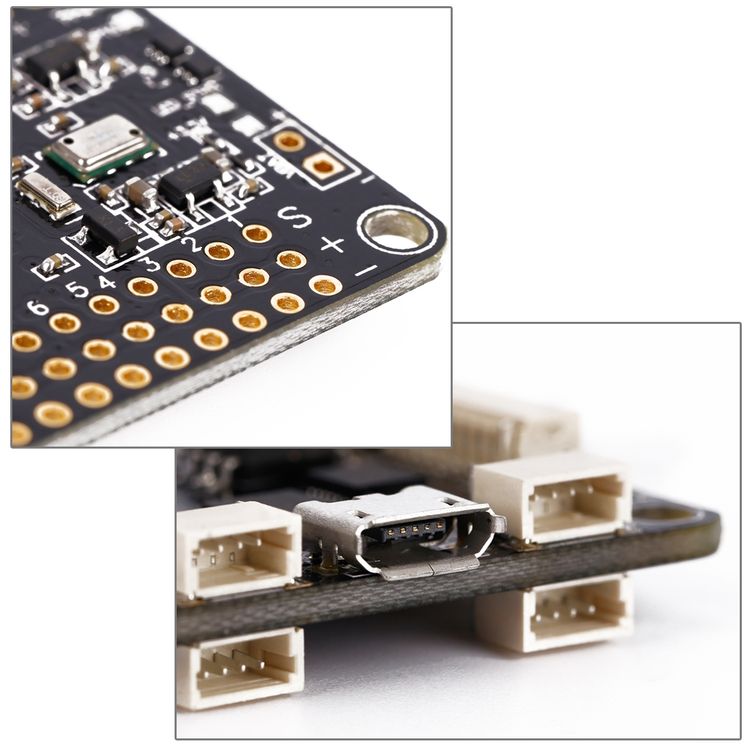

20. Practical: Easy to access connectors and solder pads
21. Configurable: Choose to use connectors, solder pads or pins
22. Stackable, compact, professional, neat and tidy
23. Tiny and light weight.

Software

1. 3 primary flight modes: Acrobatic, Angle and Horizon
2. Extensive control and switch configuration
3. Telemetry Support (HoTT, FrSky, SmartPort, etc)
4. Battery monitoring and warnings
5. Signal strength monitoring (RSSI)
6. Failsafe system
7. Altitude hold mode (requires barometer sensor)
8. Heading hold mode (requires compass sensor)
9. In flight tuning
10. Customizable LED colors
11. Support Android phone (via EZ-GUI GCS)

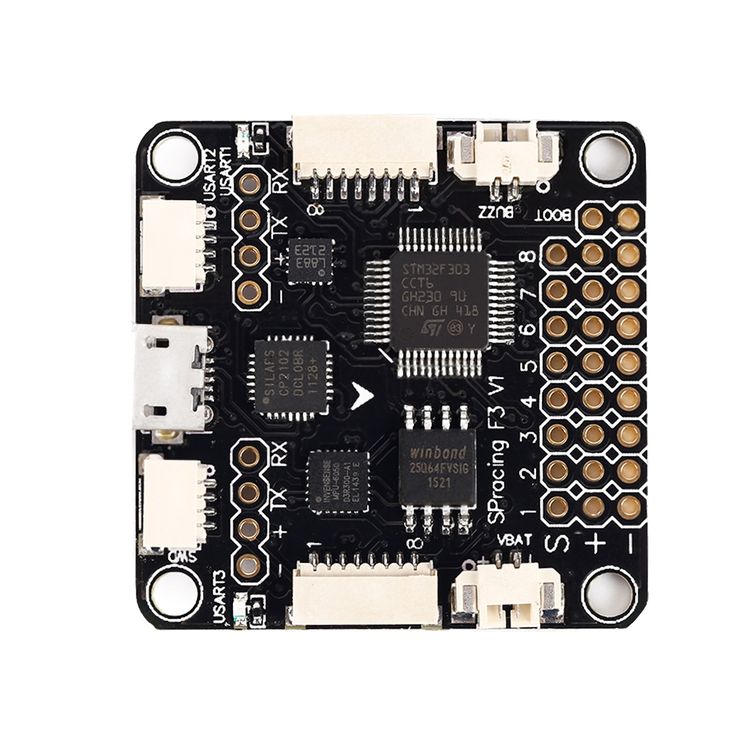

12. STM32F303 CPU, 72Mhz inc FPU
13. MPU6050 acceleromete

Warnings

1. Follow the advice below for best performance and long-life of your flight controller
2. Apply resin/glue to reinforce JST-SH connectors helps if you crash your aircraft.
3. Using an enclosure / box for the flight controller is recommended.
4. Install open-cell foam under the pressure sensor – sandwich some between the FC and frame.
5. Route motor/battery wires as far away from the compass sensor (magnetometer) as possible.
6. Only install the BOOT jumper pins if you need them.
7. Using color coded pin headers is recommended (not supplied), especially for VBAT headers.
8. Do everything you can to prevent vibrations reaching the accelerometer sensor.

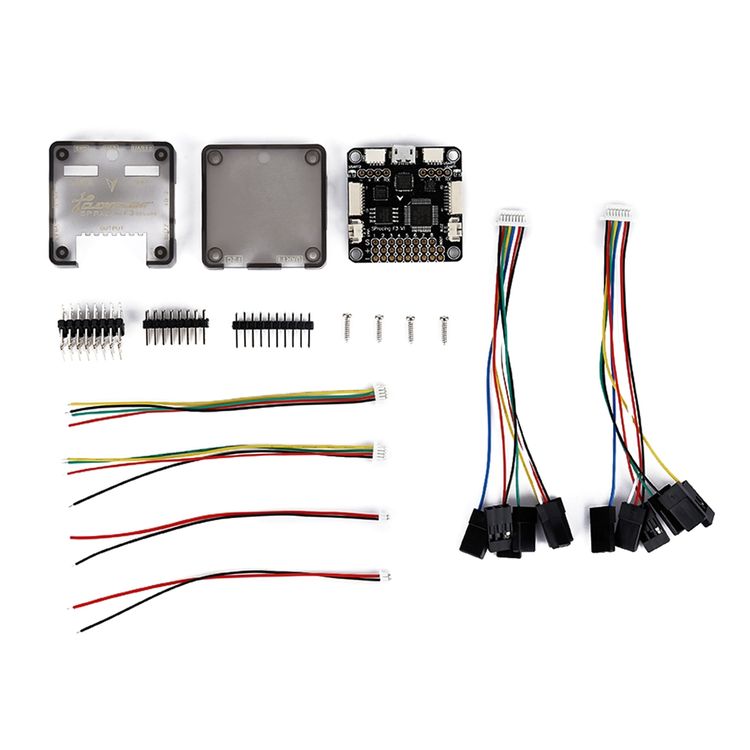

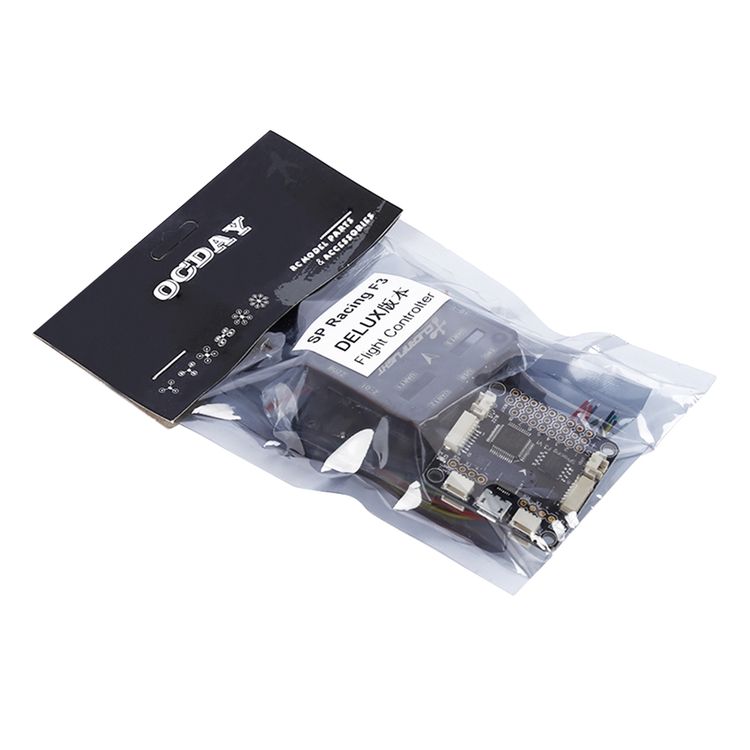

Package Including

1. 1 x SP Racing flight controller
2. 1 x Straight pin header connector
3. 1 x Looper Header connector
4. 1 x Row Pin Header connector

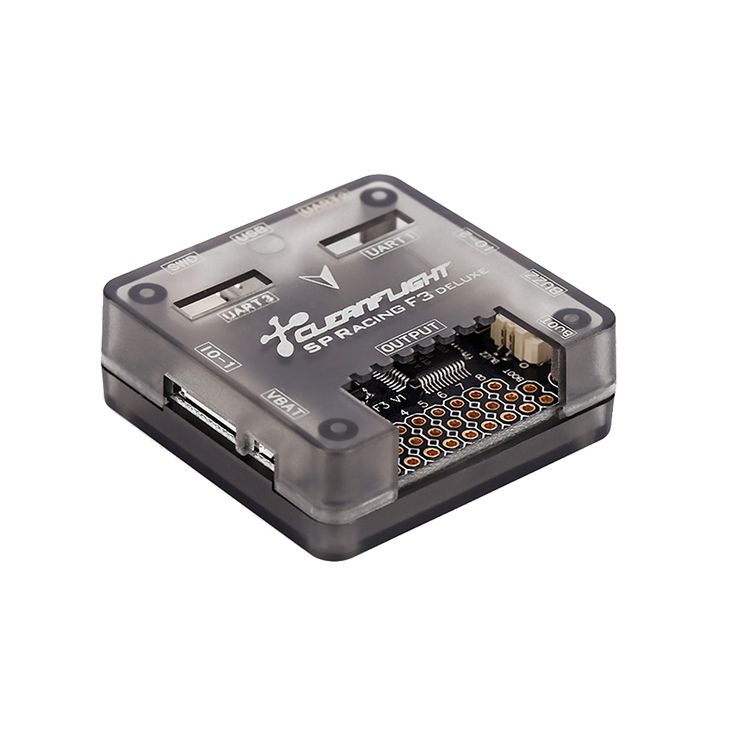

5. 1 x Shell case with some lines and screws

Additional Information

General

Material: ABS, PCB

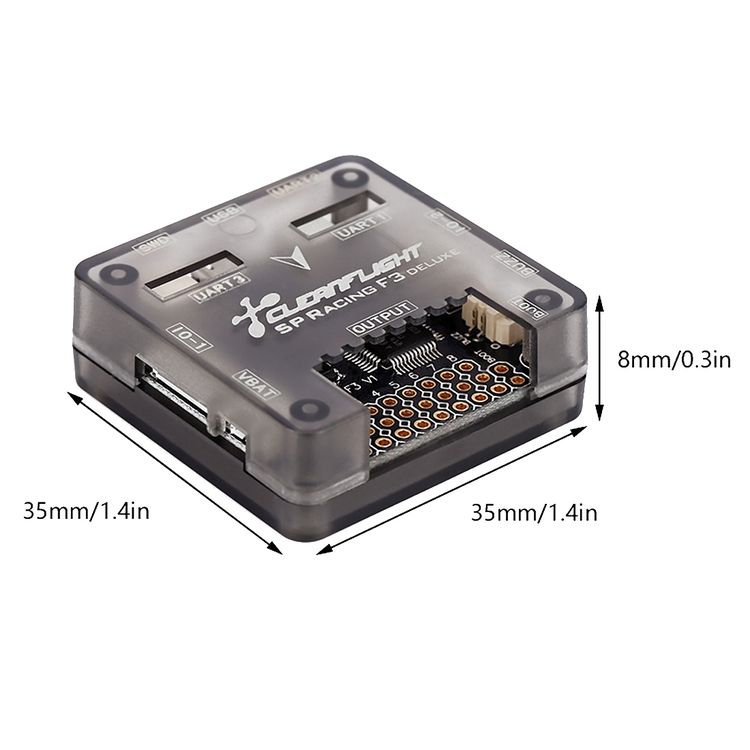

Product Size: 35*35*8mm
Weight: 23g

Package Include

Package Contents: 1 x Main Controller

Weight & Size

Weight: 0.048kg
Size: 15cm x 9cm x 1cm

SKU: A0100132348 Category: Tag: Condition: New
