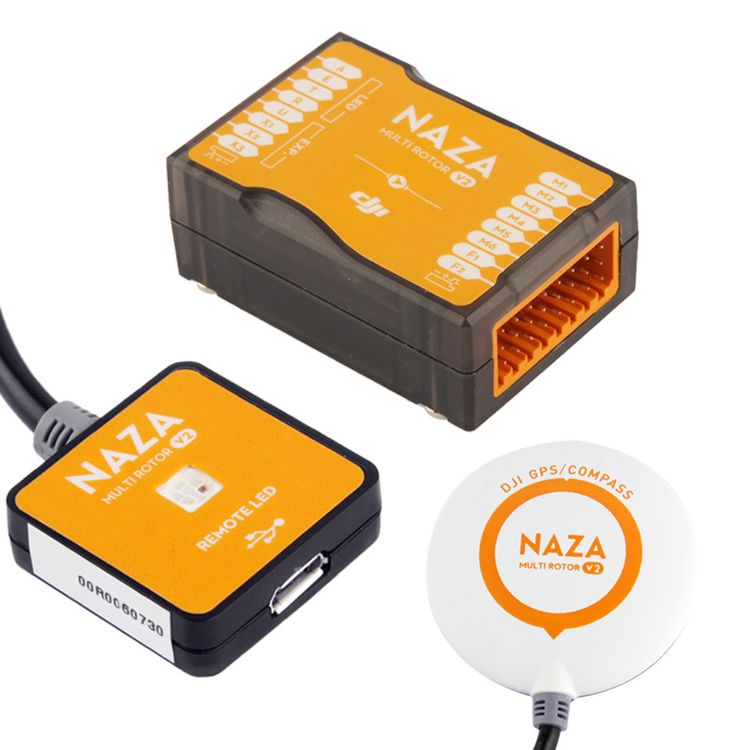

Naza-M V2 Flight Controller with GPS All-in-one Design for DJI
R6638
In Stock at Supplier
 |  |  |  |  |  |  |  |
| Didn't find what you're looking for? Take a look at these Similar Products | |
| Got questions or need assistance? Please take a look at our Frequently Asked Questions or Contact Us |
Overview

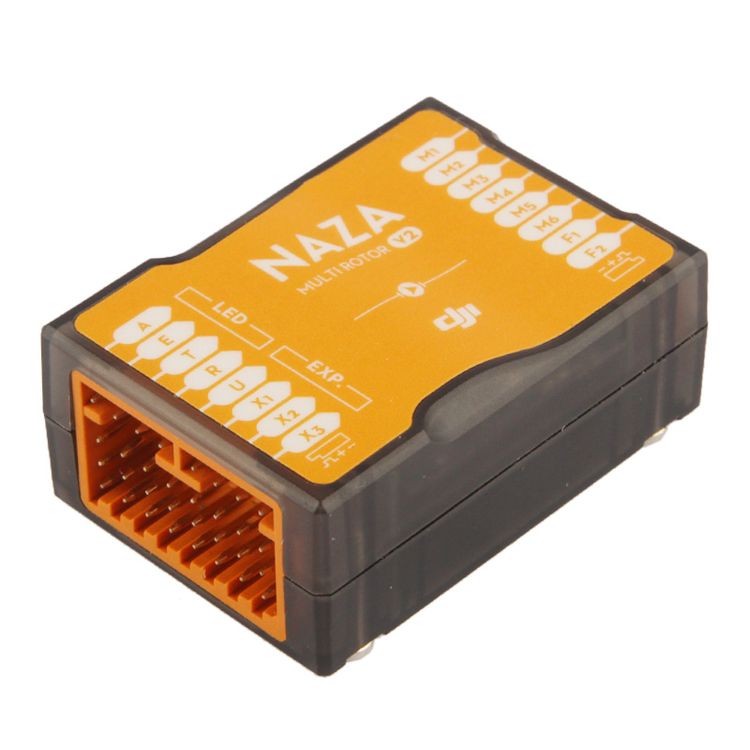

1) Naza-M V2 is a lightweight all-in-one multi-axis control platform, designed for aero model hobbyists.
2) Have continued improving the Naza Flight Controller, the latest is the Naza M V2 which is the next exciting product to the market with the latest technology being integrated in to the new NAZA M V2. The basic functionality will remain the same as NAZA V1, however there are a few new features.
3) The main controller hardware structure has been optimized and the expand-ability and performance of the flight control system has been enhanced further with new attitude stabilization algorithms, these provide better flight performance and a new level of flight control performance which provides a better flight experience; (flight control is smoother, take-off is easier). The Naza M V2 has support for OctoCopter and has the added safety feature on HexaCopter and OctoCopter should a motor stop working it can still be landed safely.
4) The Naza M V2 has automatic course deviation compensation, this reduces the effects of magnetic disturbance and interference around the compass, there is a warning on detection of magnetic disturbance. The IMU advanced calibration; error identification and warning reduce the impact of sensor errors in flight so increasing the overall performance.

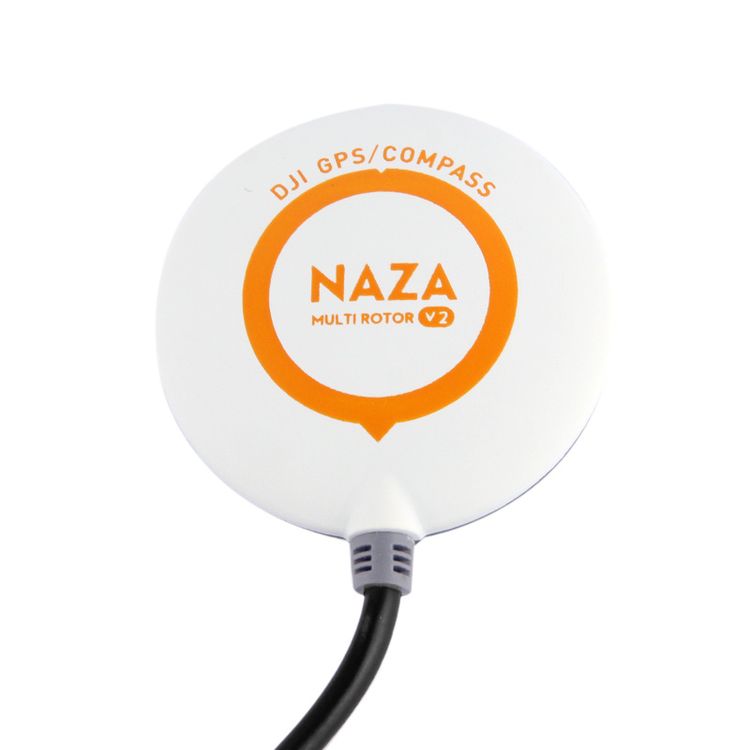

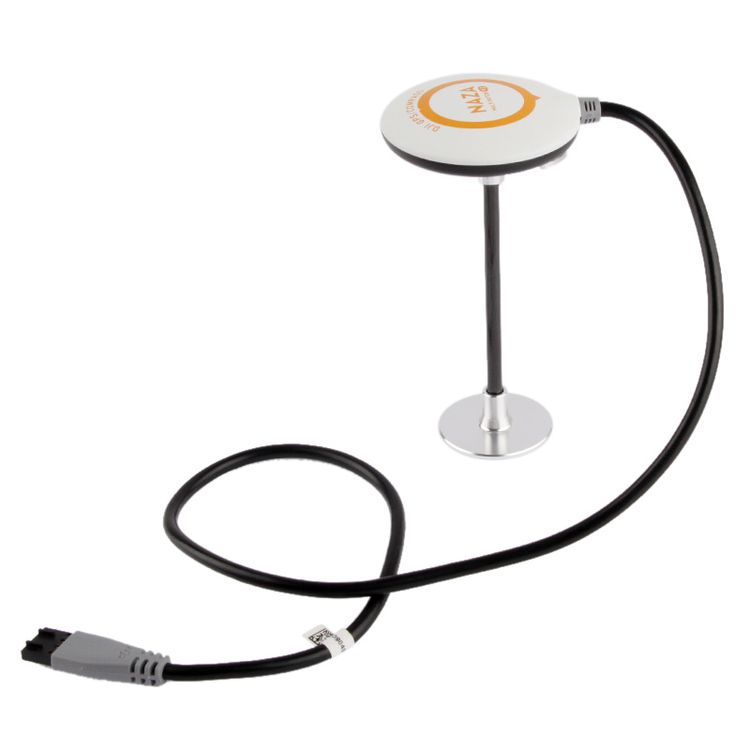

5) The GPS unit added to the Naza M V2 will see great position holding and RTL features for additional safety. The V2 NAZA with the GPS unit will have IOC to help new and experienced pilots gain the most from their systems with easy orientation assistance while flying at greater distances.
Supported Multi-rotor: Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6 / Octo-rotor I8, V8, X
6) Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
7) Working Voltage Range: MC: 4.8V~5.5V / VU Input: 7.4V ~ 26.0 V (recommend 2S ~ 6S LiPo) Output (V-SEN port red wire): 3A@5V (burst current:7.5A)
8) Power Consumption: MAX: 3.15W (0.25A@12.6V) / Normal: 1.638W(0.13A@12.6V)
9) Operating Temperature: -10 degree C ~ 50 degree C
10) Assistant Software System Requirement: Windows XP sp3 / Windows 7 / Windows 8
11) Hovering Accuracy (GPS Mode): Vertical +/-0.8m / Horizontal +/-2.5m
12) Max Yaw Angular Velocity: 200 degree / s
13) Max Tilt Angle: 35 degree
14) Ascent / Descent: 6m/s, 4.5m/s

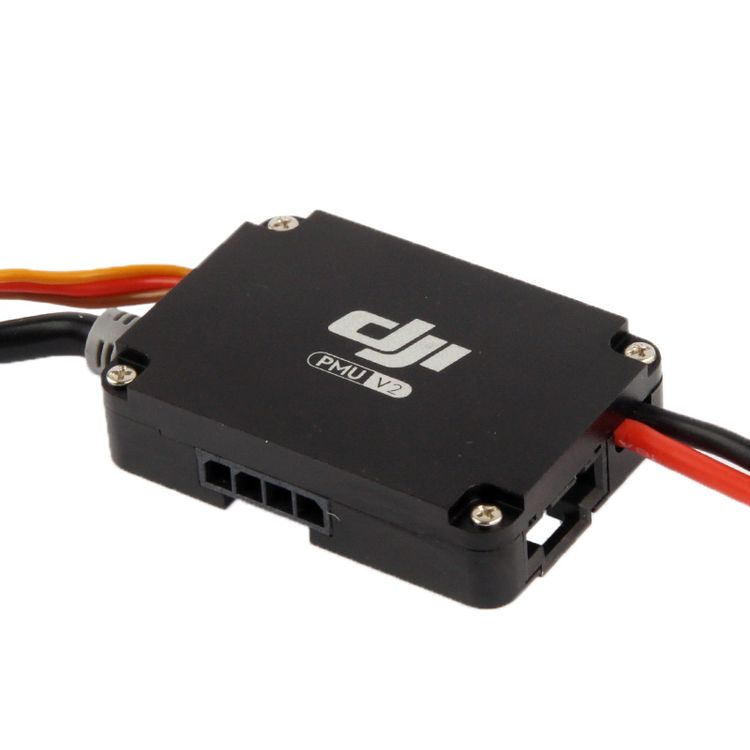

15) Built-In Functions: Multiple Autopilot Control Mode / Enhanced Fail-safe / Low Voltage Protection / S-Bus Receiver Support / PPM Receiver Support / Independent PMU Module / 2-axle Gimbal Support
Additional Information
Weight: 0.380kg
Size: 13cm x 9cm x 8cm
