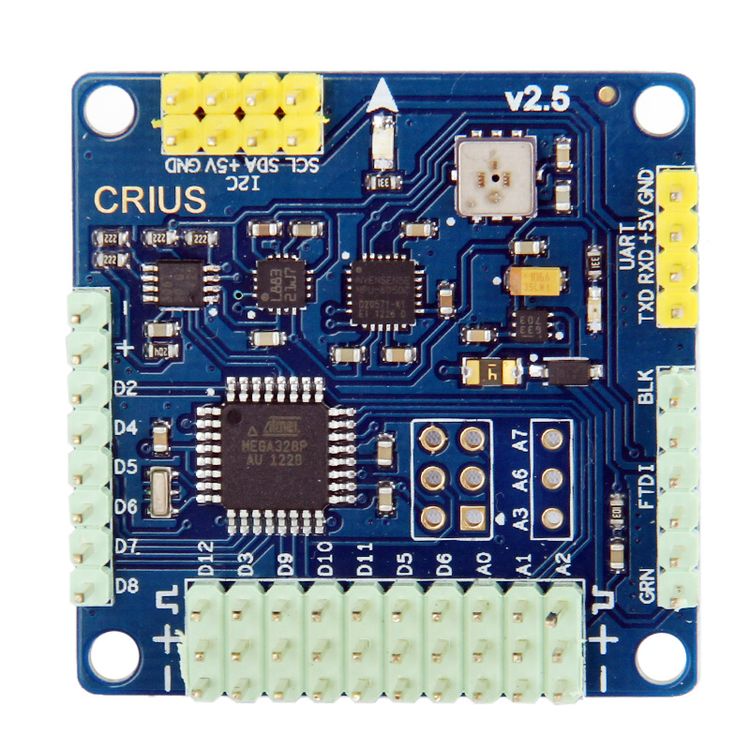

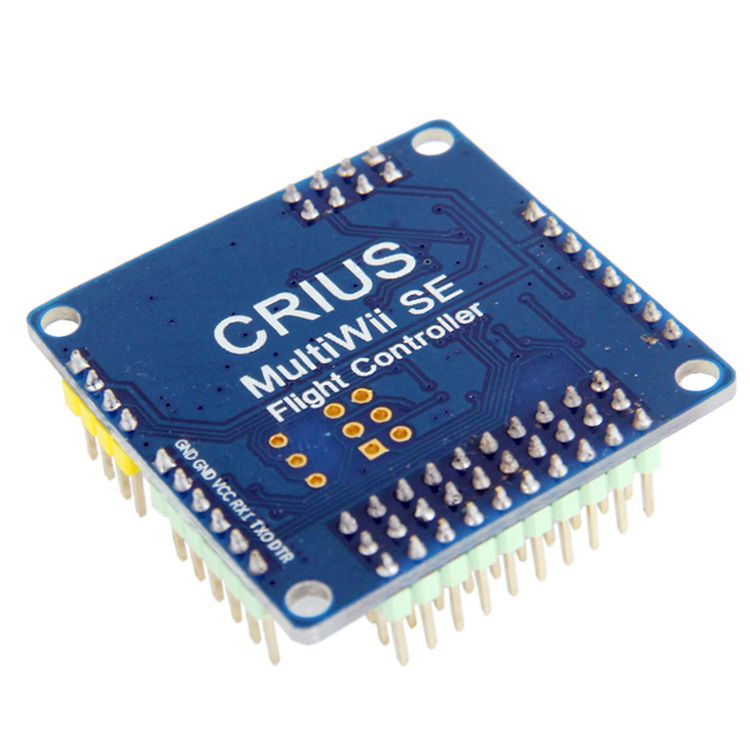

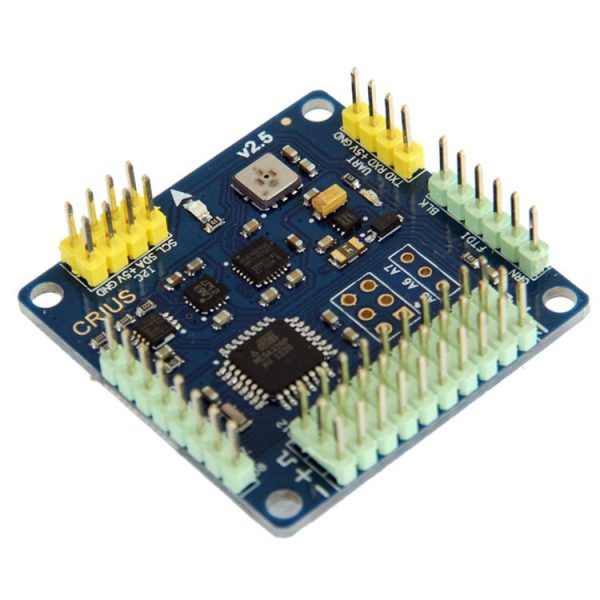

MWC MultiWii SE V2.5 version Multi Copter 4-axis Main flight control board GIMBAL QUAD HEX6 BICOPTER UFO


R363

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Features:
-Small size,35x35mm mounting holes
-6 PWM input channels for standard receiver or PPM SUM receiver
-Up to 8-axis motor output
-Supported 2-axis gimbal and auto trigger controll
-FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display
-I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar
-Ultra low noise 3.3V LDO voltage regulator
-ATMega 328P Microcontroller
-MPU6050C 6 axis gyro/accel with Motion Processing Unit
-HMC5883L 3-axis digital magnetometer
-BMP085 digital pressure sensor
-PCA9306DP1 logic level converter
2) Other
-Dimension: 40mmX40mm
-Height: 11.6mm
-Weight: 9.3g
-Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)
-Hole diameter: 3.1mm

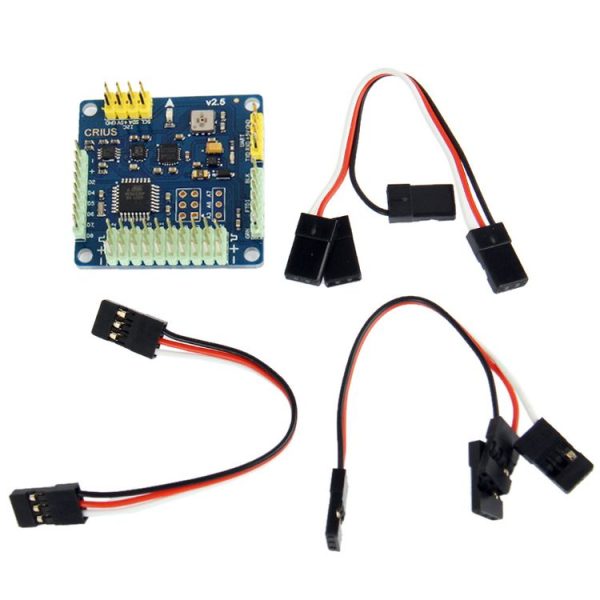

3) Package content
-SE FC x 1
-3Pin to 1Pinx3 cable 100mm x 2
-3Pin to 3Pin cable 100mm x 1

Additional Information

Weight & Size

Weight: 0.040kg
Size: 10cm x 8cm x 2cm

SKU: A0100132716 Category: Condition: New
