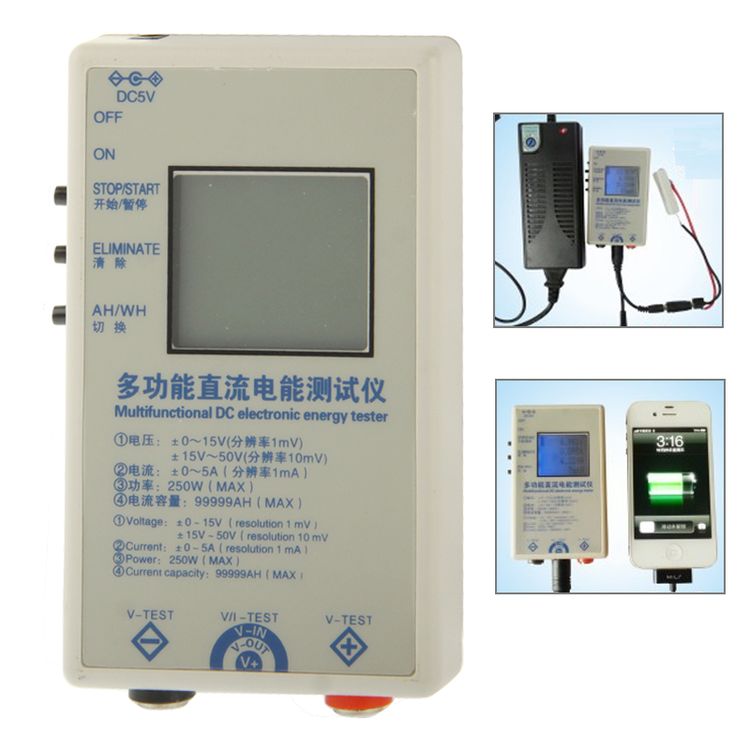

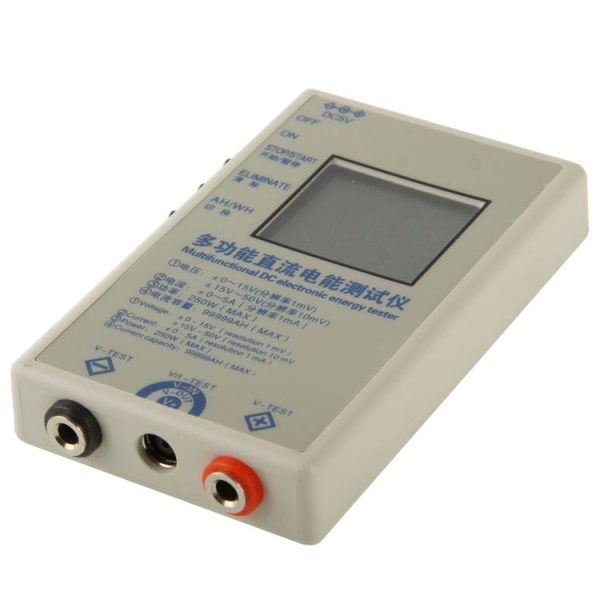

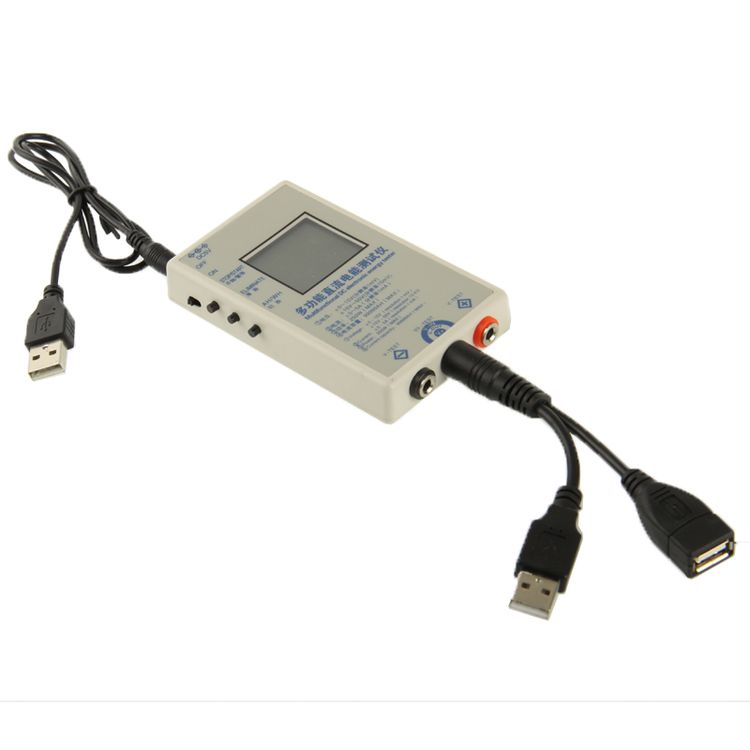

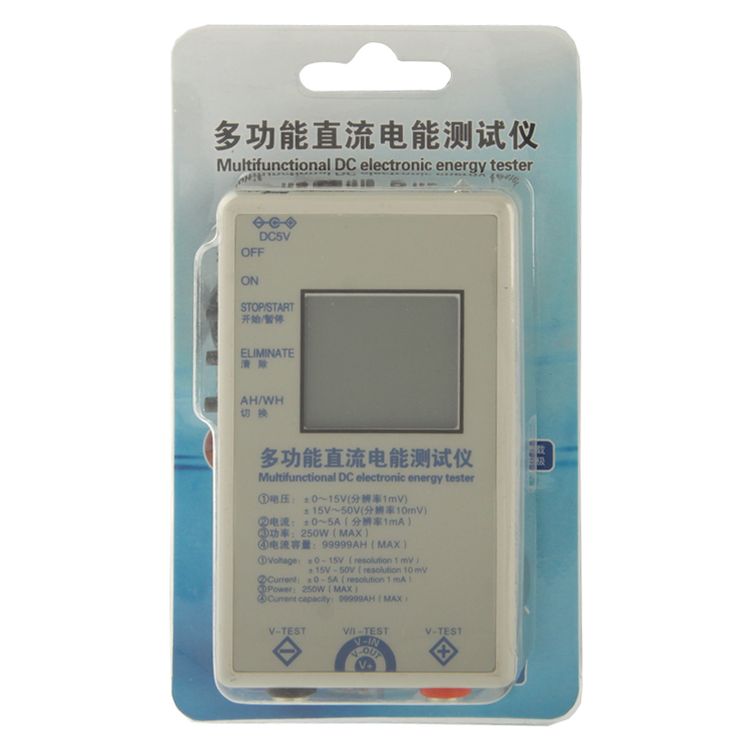

Multifunctional DC Electric Energy Tester (DC505AVW)

R779

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Voltage: ±0 ~ 15V(resolution 1mV) / ±15 ~ 50V(resolution 10mV)
2) Current: ±0 ~ 5A (resolution 1mA)
3) Power: 250W(MAX)
4) Current capacity: 9999Ah(MAX)
**Multifunction DC tester can be achieved:
1) DC voltage, current, two indicators of precision measurement;
2) measured by the value of the tester’s power to determine the output power supply products are qualified;
3) can accurately test the battery or mobile power input and output capacity (mAH or WH).
**Machine specifications and descriptions:
1) Maximum input voltage: ± 50V, ± 50V V exceeds displayed indicates over range;
2) Display digits: 0.000 ~ 14.999V and 15.00 ~ 49.99V;
3) DC voltage measurement accuracy: better than 1%;
4) test error: ± 5 number;
5) Resolution: 1mV (0 ~ 14.999V) and 10mV (15-50V)
6) DC voltage range: 0 ~ 15V and 15 ~ 50V two tranches automatic switching;
**Power file:
1) shown in the current product of voltage and current;
2) Display digits: 999.999W and 999mW;
3) can be key to switch W (instant power) and WH (energy) is displayed.
**Current capacity file:
1) Display the current capacity by the tester (mAH or AH), that is, the cumulative current time;
2) Display digits: 999mAH or 99999.999AH;
3) Test accuracy: better than 2%;
4) You can set the stall button to start, pause (double-click to start the pause button twice), Clear (Clear button press 2S);
5) As long as there is a current display, the current capacity will automatically start counting, the current becomes zero jump automatically stops at the last value.
**DC Current file:
1) Display digits: 0.000 ~ 4.999A;
2) DC current measurement accuracy: better than 2% full file (1000mA less than 1%);
3) Test Error: ± 10 number (full file approximately ± 10mA);
4) Resolution: 1mA;
5) exceeds ± 4.999A A display indicates over range.
**Each test gear drift indicators:
1) DC voltage range: better than 50ppm / ℃
2) DC Current file: better than 120ppm / ℃.
**Index test resistance class:
1) DC 0 ~ 15V voltage divider resistors built-equivalent impedance: 100K ohms;
2) DC 15 ~ 50V built-divider resistors equivalent impedance: 91K ohms;
3) DC current series impedance: 0.01 ohms (excluding test the connection line impedance and contact resistance, etc.).
**Machine operating current:
1) Background lights: about 40mA;
2) When the backlight is off: about 33mA.

Additional Information

Weight & Size

Weight: 0.200kg
Size: 15cm x 8cm x 4cm

SKU: A0100095450 Category: Condition: New
