MJPT002 Door Access Control System Kits + Strike Door Lock + 10 ID Keyfobs + Power Supply + Exit Button + Remote Controller


R2225

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. New touch-button;Configure external doorbell button; Improve the function of the configuration to make your installation easier.
2. Directly external standard WG26 reader, low cost single-sided and out door access control functions.
3. Flexible operation, no need to enter a user ID can directly continuous increase user card, perfect set of features to make your installation easier.
4. Wide input voltage range, small size, high reliability, electromagnetic compatibility, and high efficiency, perfect protection, with remote control to open the door, the temperature rise of electric locking (when compared with power-frequency) greatly reduced

Application

Access control and safety management system is a new modern safety management system, it is an effective measure to solve the inward and outward safety management. Apply to all kinds of confidential departments, such as bank, hotel, office, computer room, the armory, confidential room, intelligent community, factory, etc.

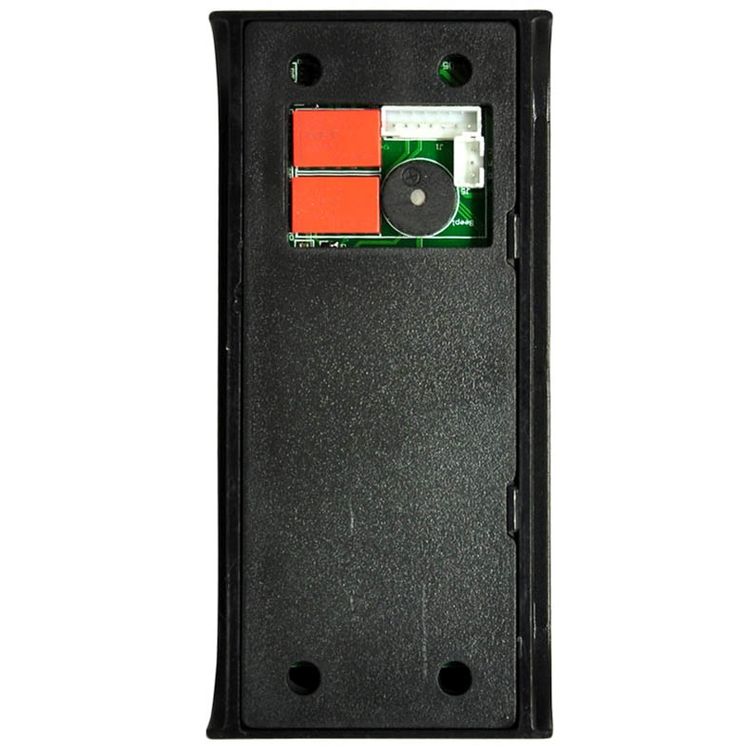

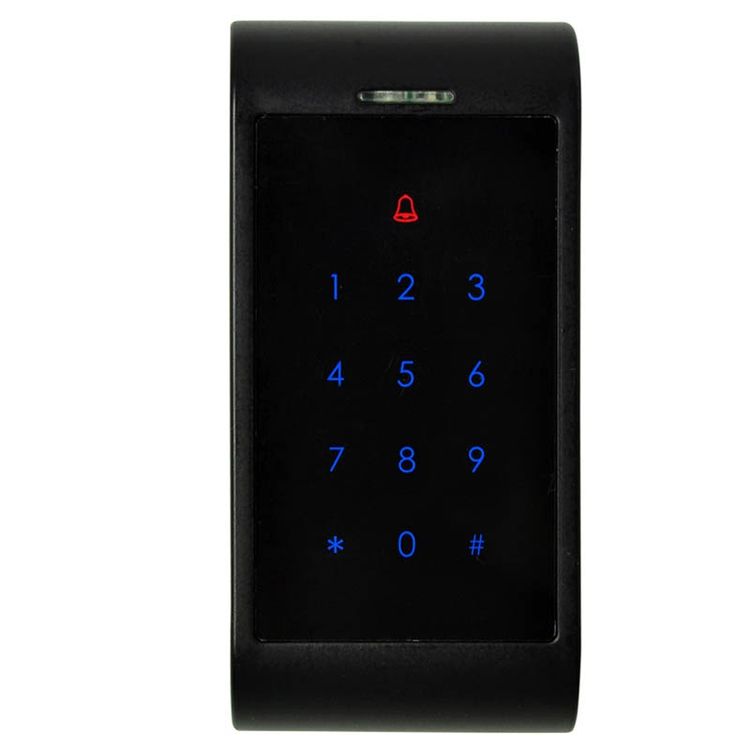

About door machine

1. A built-in reading head controller itself, can be an external a redhead W26
2. The password can be set up management to control the card number add and remove the card number

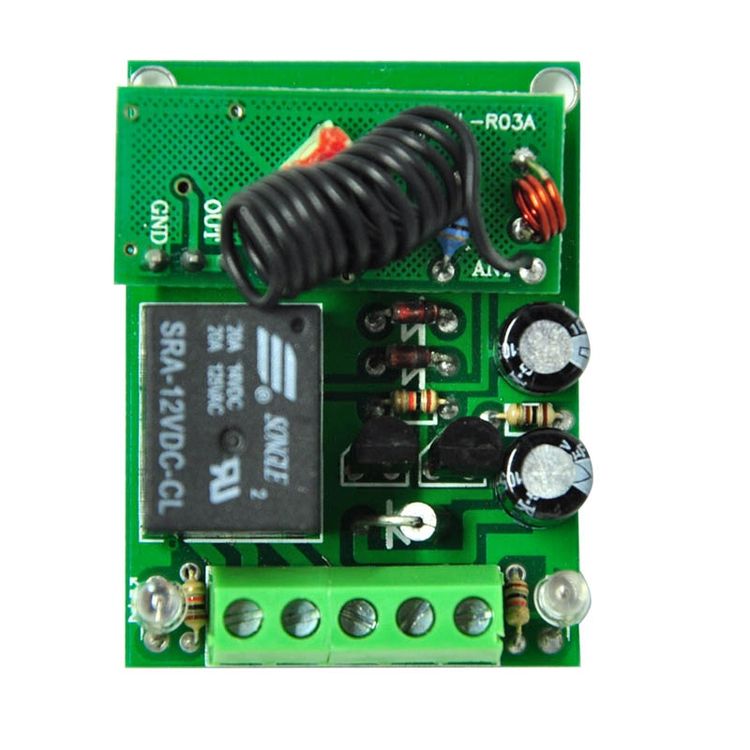

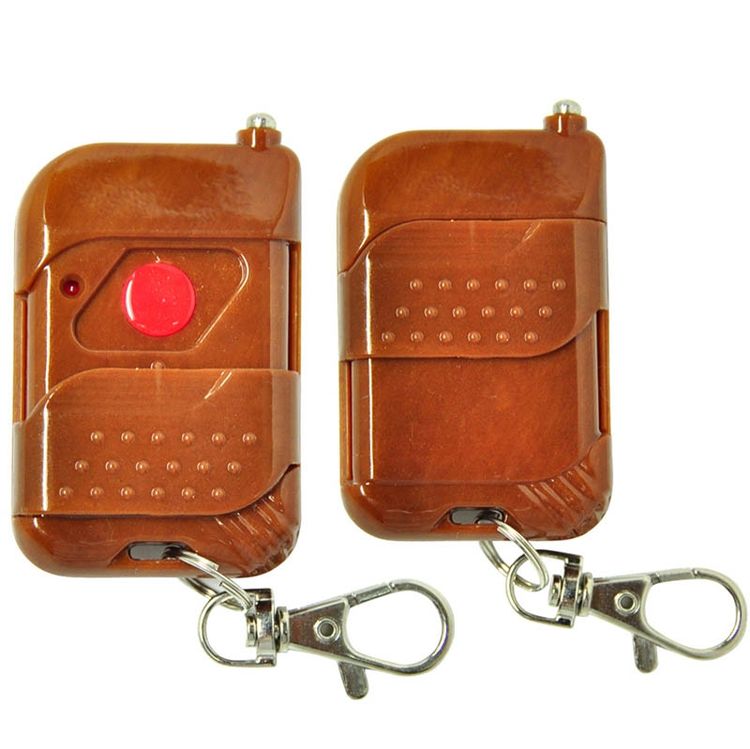

About remote control

1. The wireless remote control switch is divided into the receiver and transmitter
2. The receiving end of DC 12V power supply
3. NO/NC/COM dry contact signal
4. Can directly pick out of access control host switch interface
5. Can also pick up PUSH & gnd dedicated power supply

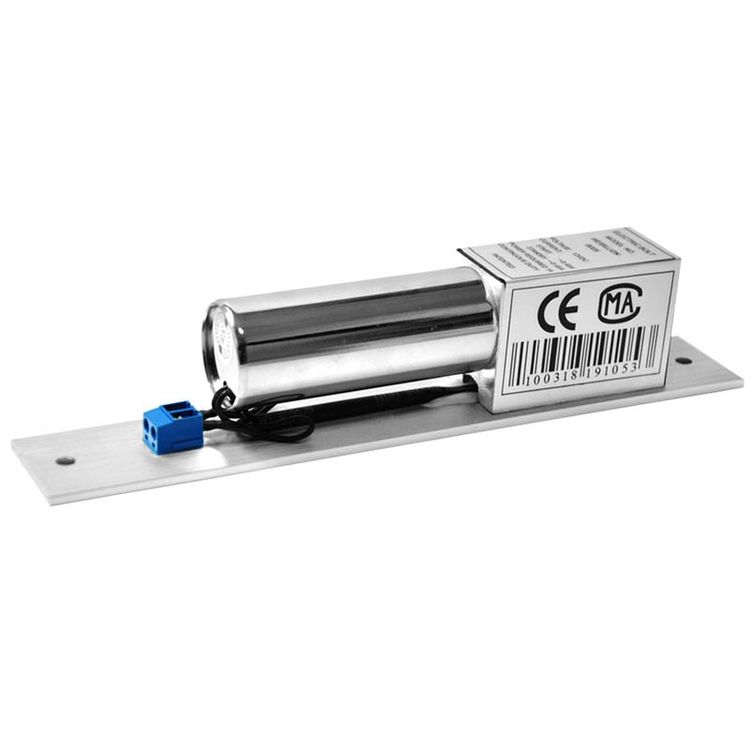

About electric lock

1. Voltage: DC12V
2. Working current: 150mA
3. Bear holding power: 1000kg
4. Apply any box, open the door of the 90/180 degrees
6. Weight: 0.62kg
7. Size: 204mm x 34mm x 34mm

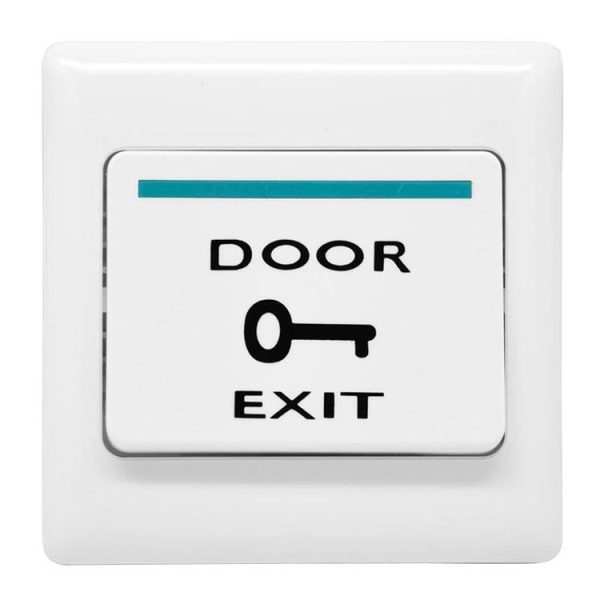

About door switch

1. Standard structure: Fireproof material mixed resin
2. Panel processing: Fire prevention materials off surface treatment
3. Behavior of electricity: Most durable current 3A DC 36V
4. OWNA: NOCOM
5. Durability test: One hundred thousand times aging test qualified
6. Application type: Apply the hollow frame and embedded type electric appliance box use
7. Applicable temperature: -10 to +55C (14 to 131F)
8. Operating Humidity: 0 to 95%
9. Boundary dimension: 86mm x 86mm x 20mm

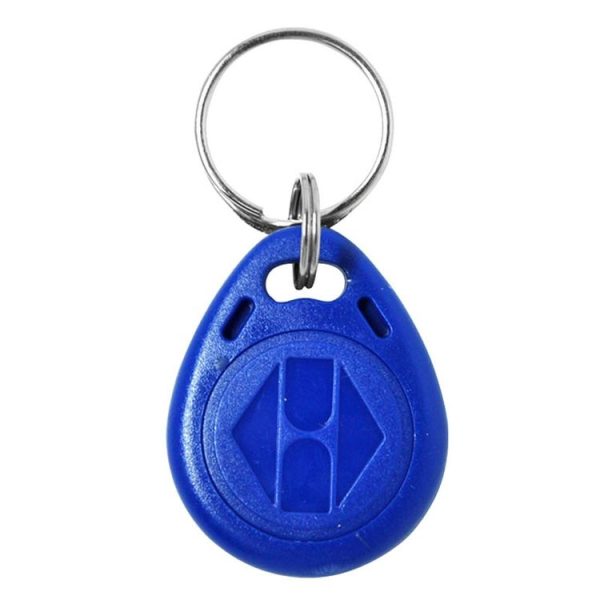

About ID Keyfobs

Big coil, TK4100 chip, than an ordinary card from 1 to 3 cm, no bad card

Additional Information

General

Model: MJPT002
Material: Metal, Plastic, Fireproof material mixed resin
Types: Entrance Guard Kits
Operating Temperature: -10 to +70 Degree Celsius (single door), -10 to +55 Degree Celsius (door switch)
OWNA: NO, COM
Control Distance: 50-100m

Technical Parameters

Frequency: 125KHz, 50-60Hz (incoming)
Time Delay: 0 to 15s

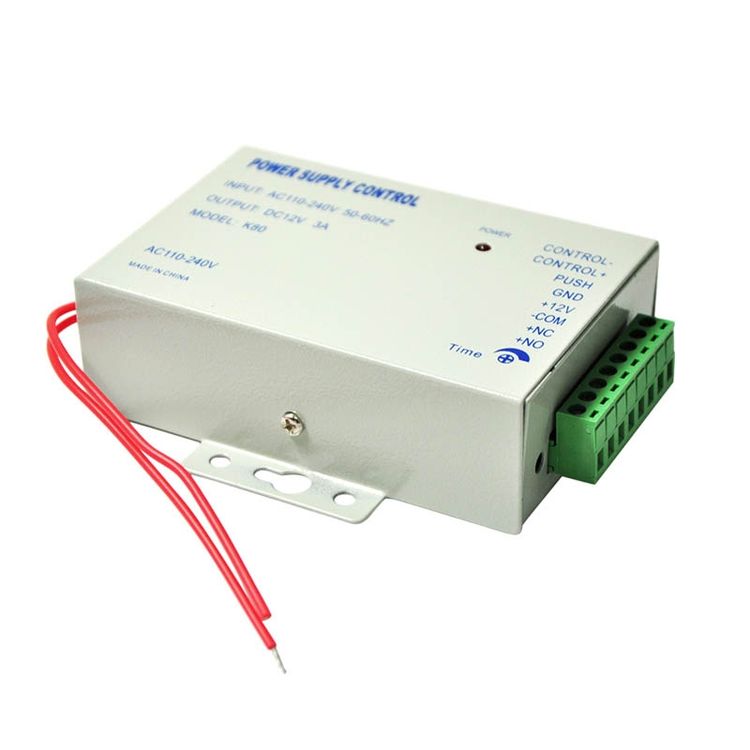

Power Supply

Voltage: 240V (input), DC 8V-15V (single door)

Dimensions

Size:
Weight:

Package Include

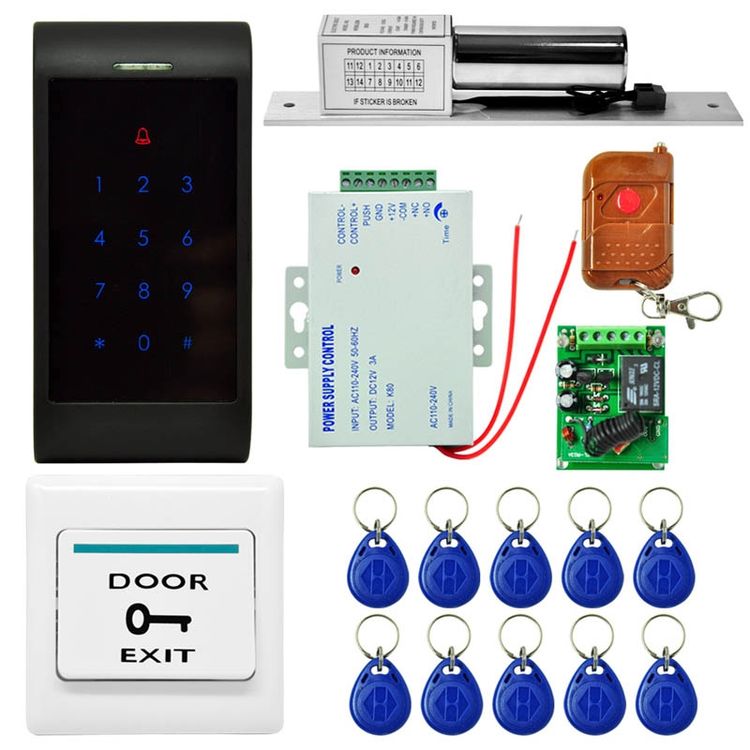

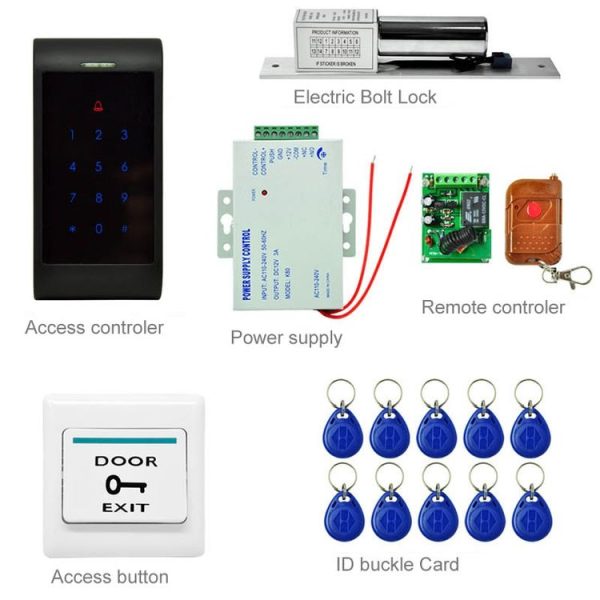

Package Contents: 1 x User Manual, 1 x Access Controller, 1 x Strike lock, 1 x Remote control, 1 x Power supply, 1 x Exit button, 10 x ID Keyfobs

Weight & Size

Weight: 1.700kg
Size: 25cm x 15cm x 10cm

SKU: C0100003292 Category: Tag: Condition: New
