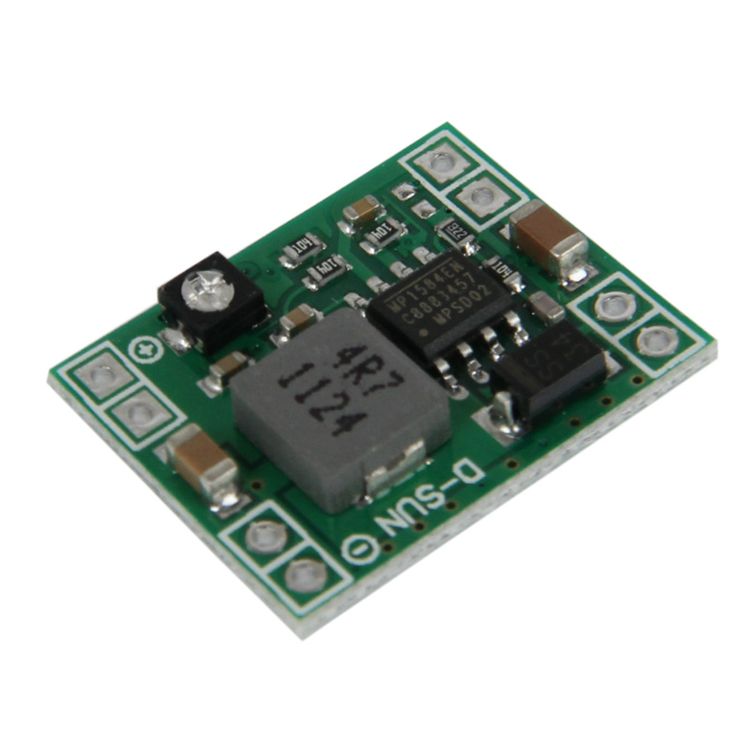

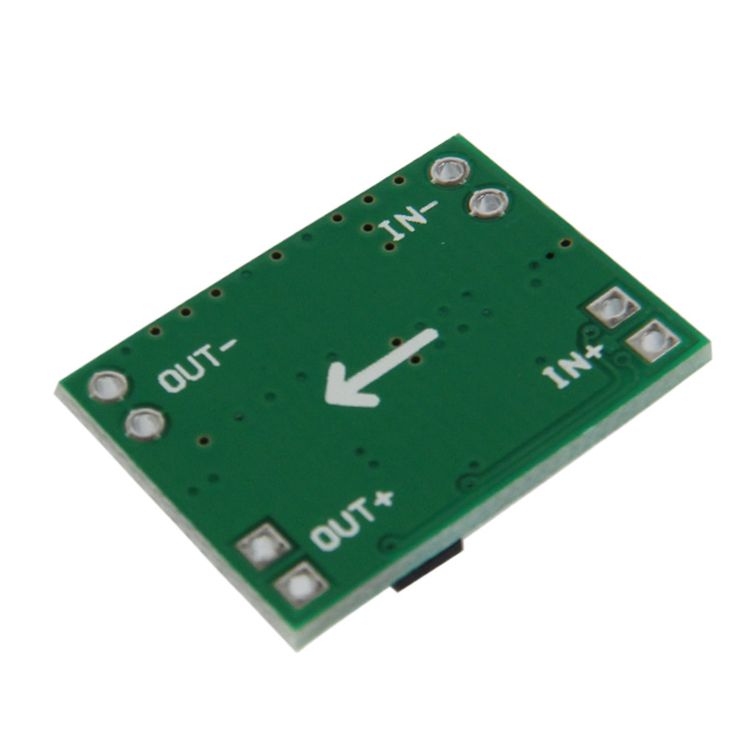

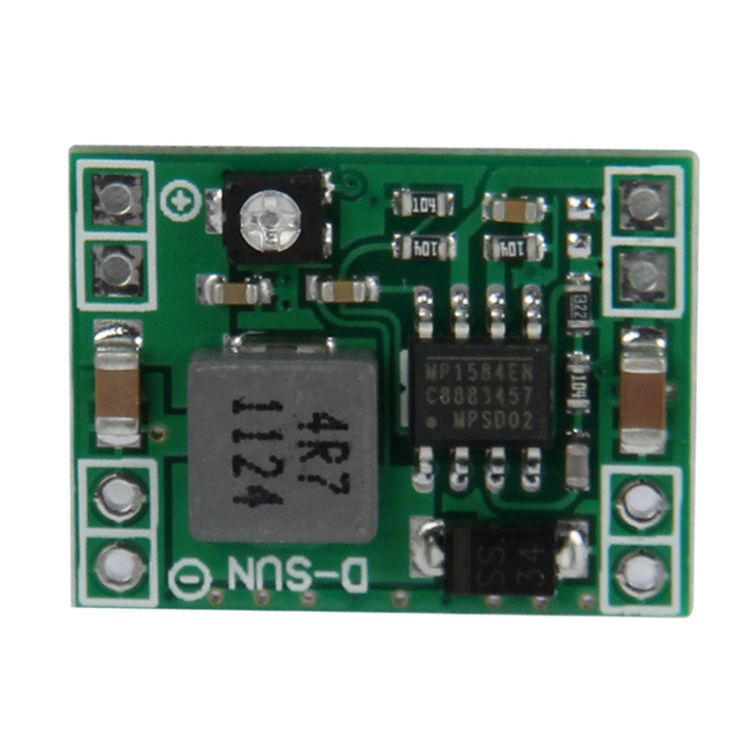

Mini Size 3A 4.5-28V Input 0.8-20V Output Step-down Voltage Regulator


R73

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1)Features:
– Using imported high efficiency conversion chips.
– Imported Panasonic potentiometer.- Super small in size, only 22mm x 17mm in dimension, and 2g in weight.
2) Specifications:
– Input voltage:4.5V~28V
– Output voltage:0.8V~20V adjustable
– Output current: 3A (max)
– Efficiency:Max 96%
– Output ripple:< 30mV
– Dimension: 22mm x 17mm x 4mm
– Weight: 2g
3) Note:
– This device is specially introduced to those experienced DIYers, basic electronic knowledge and DIY/welding skills are required, we are not responsible for damages due to lack of welding skills or wrong wirings etc.
– Check the output voltage and adjust the virable resistor to adjust the voltage if needed before connect to your device.

Additional Information

Weight & Size

Weight: 0.020kg
Size: 3cm x 3cm x 0cm

SKU: A0100112716 Category: Condition: NewOrigin: CN
