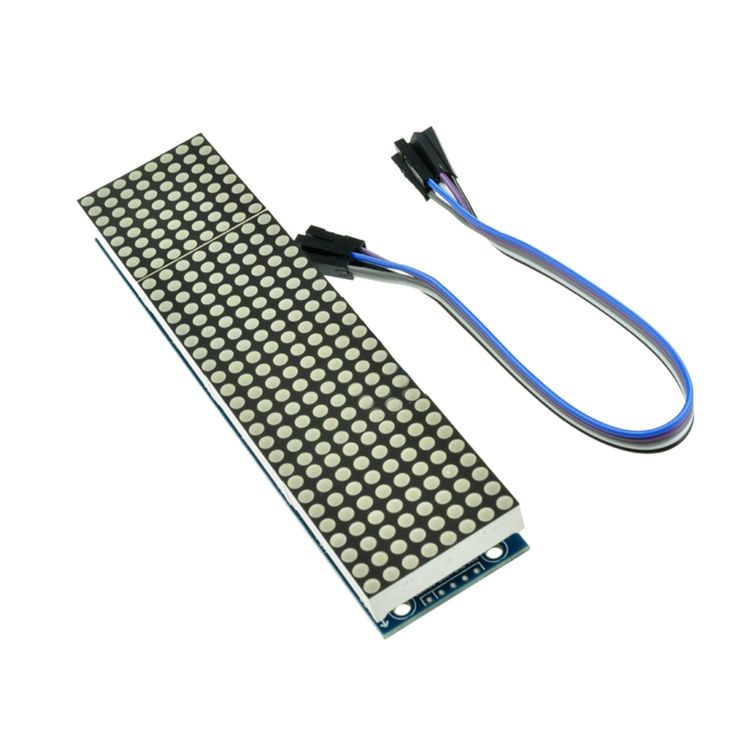

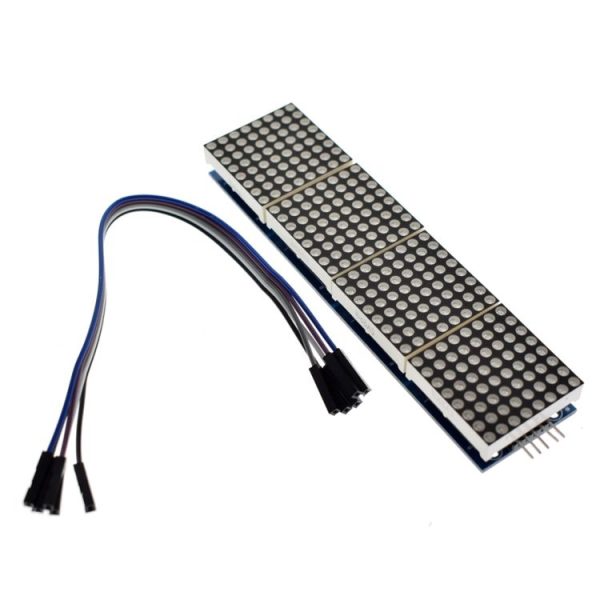

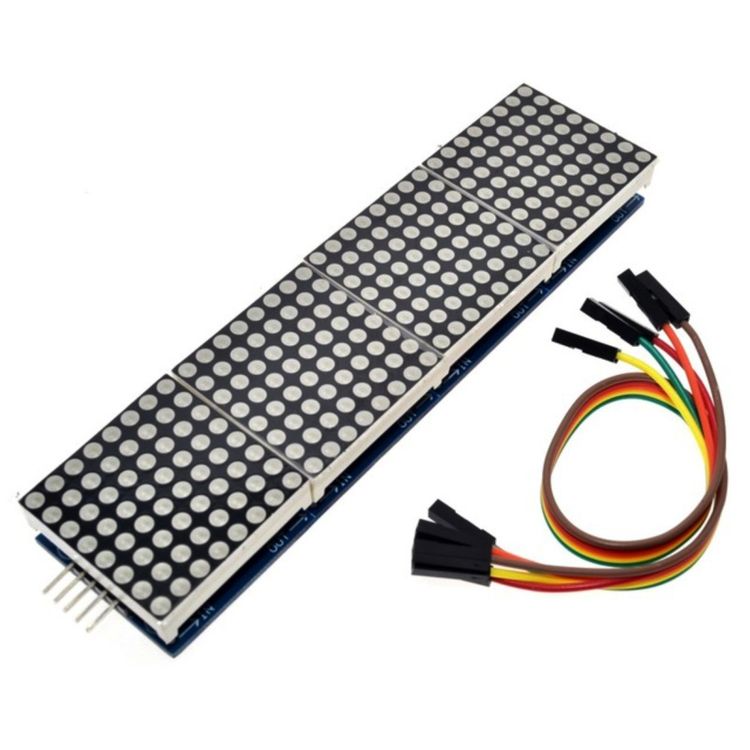

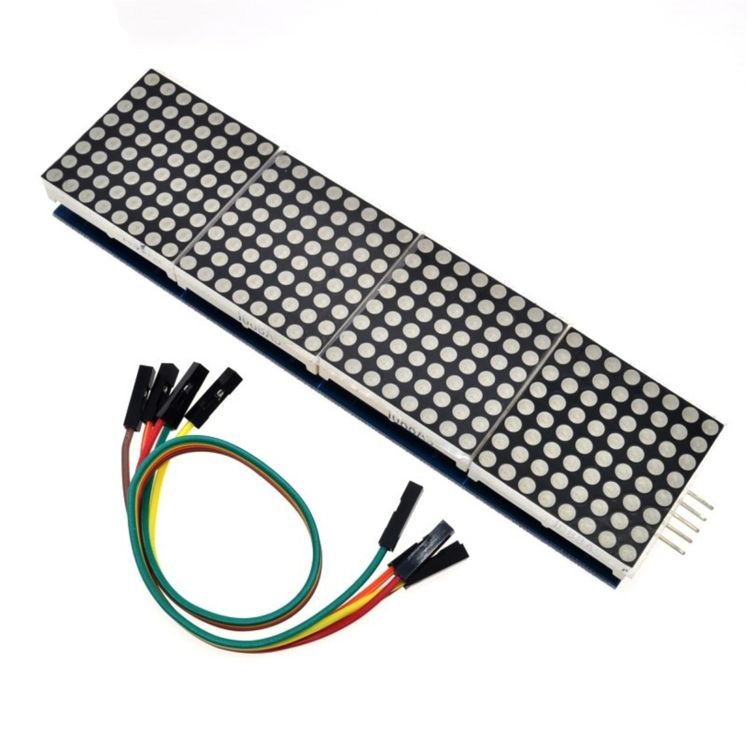

LDTR-WG0221 MAX7219 Microcontroller 4-in-1 Display Dot Matrix Module for Arduino


R160

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Specifications:
1. A single module can drive a 8×8 dot matrix common cathode
2. Working voltage: 5V
3. Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
4. With 64 fixing screw holes, hole diameter: 3mm
5. Module with input and output interfaces, support for cascading multiple modules
Wiring:
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
4. For example: 51 SCM
– VCC→5V
– GND→GND
– DIN→P2.2
– CS →P2.1
– CLK→P2.0
General
1. Brand: Landa tianrui
2. Model: LDTR-WG0221
3. Quantity: 1 piece
4. Frame Color: Blue
5. Material: PCB
6. Dimensions: 12.8 cm x3.2 cm x 1.3cm
7. Weight: 42 g
8. Packing List
– 1 x MAX7219 Dot Matrix Module
– 1 x 5pin Dupont Cable

Additional Information

Weight & Size

Weight: 0.060kg
Size: 13cm x 3cm x 2cm

SKU: A0100113112 Category: Condition: New
