Overview

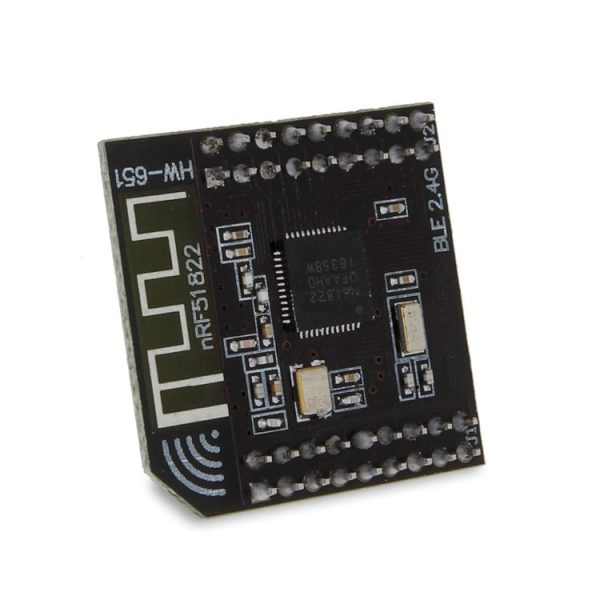

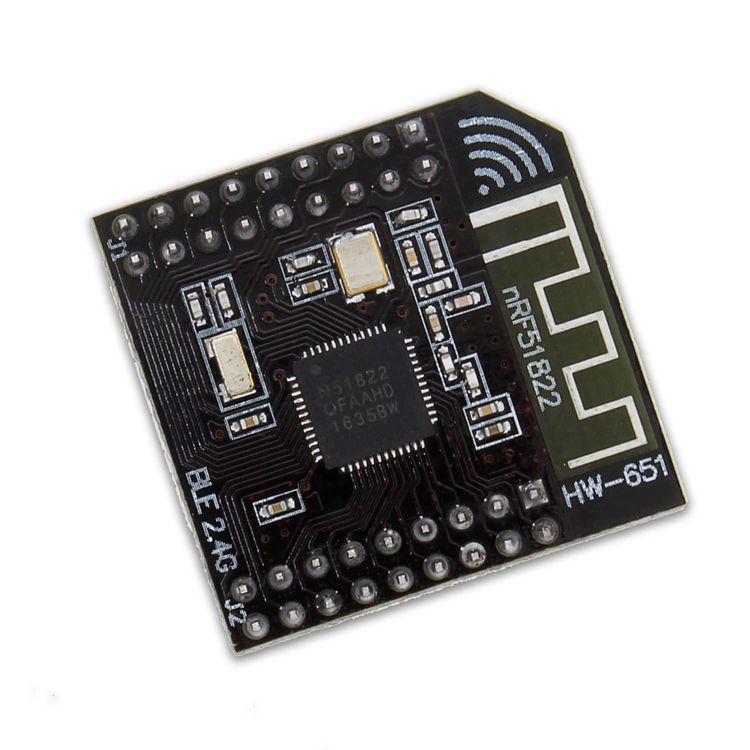

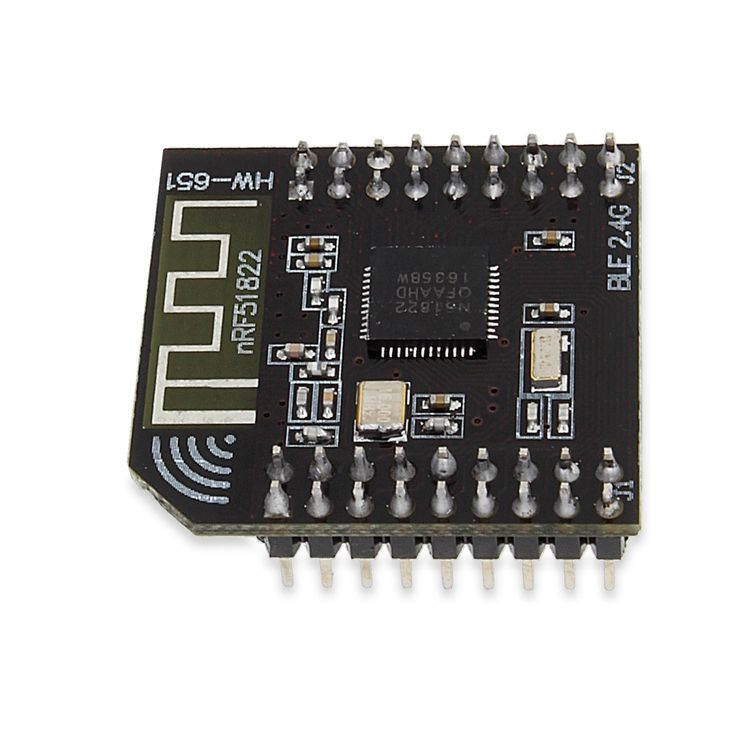

Core51822 is a wireless module based on nRF51822: The Multiprotocol Bluetooth 4.0 low energy/2.4 GHz RF SoC designed for ULP (ultra low power) wirelesss applications.
1. Core51822 Specifications
– Onboard chip: nRF51822
– Communication distance (open outdoor@1M data rate): 30m
– Frequency range: 2.4GHz
– Operating voltage: 2.0V ~ 3.6V
– Operating temperature: -40C ~ 85V
– Dimension (PCB): 26mm x 25mm
– Expansion pinheader: all the I/Os except P0.26 and P0.27
– Pinheader pitch: 2.00mm
– Spacing between pinheaders on the left side and the right side: 18.00mm
– Antenna: Onboard antenna
2. NRF51822 Features
– 2.4 GHz multiprotocol RF transceive
– 128 bit AES HW encryption
– 128kB flash & 16Kb RAM
– Programmable Peripheral Interconnect (PPI)
– Digital interfaces: SPI, I2C, UART
– 10 bit ADC
– Programmable output power: -20 to +4 dBm
– Independent application development and protocol stack
– Fully compatible with NRF24L series
– Pinout compatible with NRF51xxx series
– Global separate power management
– Operating voltage: 1.8 V ~ 3.6 V
3. Applications
– Wearable devices
– Bluetooth intelligent application
– Mobile phone accessories
– RFID labels
– Smart home appliances
– Industry control
– Data acquisition system

Additional Information

Weight & Size

Weight: 0.050kg
Size: 8cm x 6cm x 1cm
