LDTR-WG0151 1 Channel Infrared Switch Relay Module Driver Board 5V Active Remote Controller


R153

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. The output contact rating: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A, which can drive the most of household appliances or industrial control.
2. Standard interface can be directly connected with microcontrollers.
– With the LED indicator light (For connection, disconnection).
– The relay has normally closed contact and normally open contact.
– With the relay coil absorber diode protection.
– Active-low signal input, VCC, GND power supply input terminal.
3. Specifications:
– Material:FR4
– Working voltage: 5V
– Control distance: 8m / 314.96 inch
– Relay module size: Approx. 4.9cm x 1.9cm x 1.7cm
– Remote controller size: Approx. 8.5cm x 3.9cm x 0.6cm / 3.35in x 1.54in x 0.24in

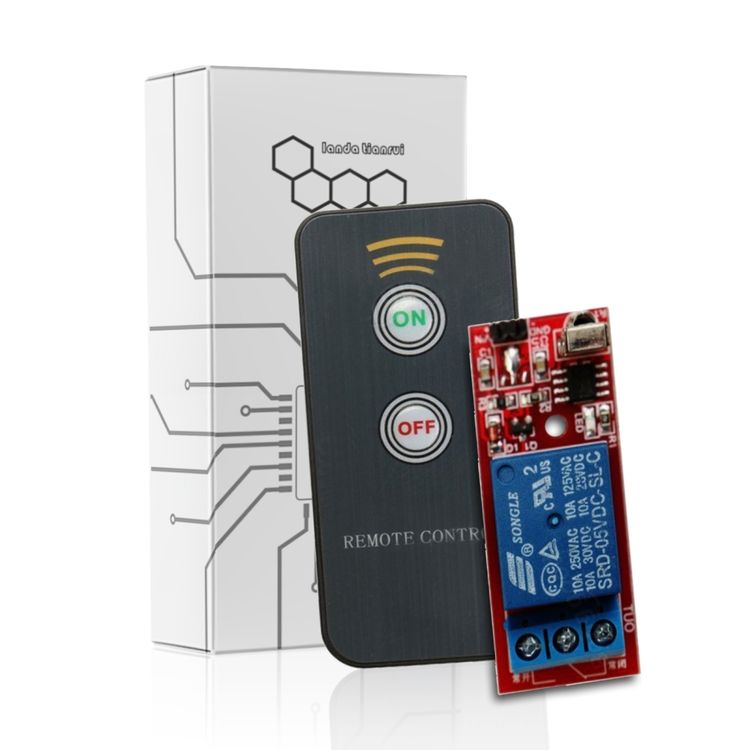

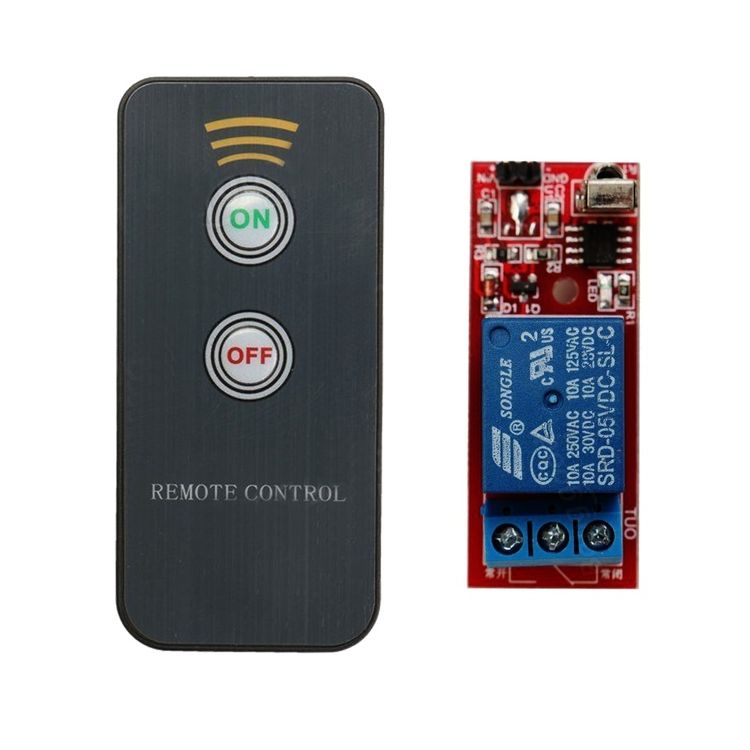

4. Package included:

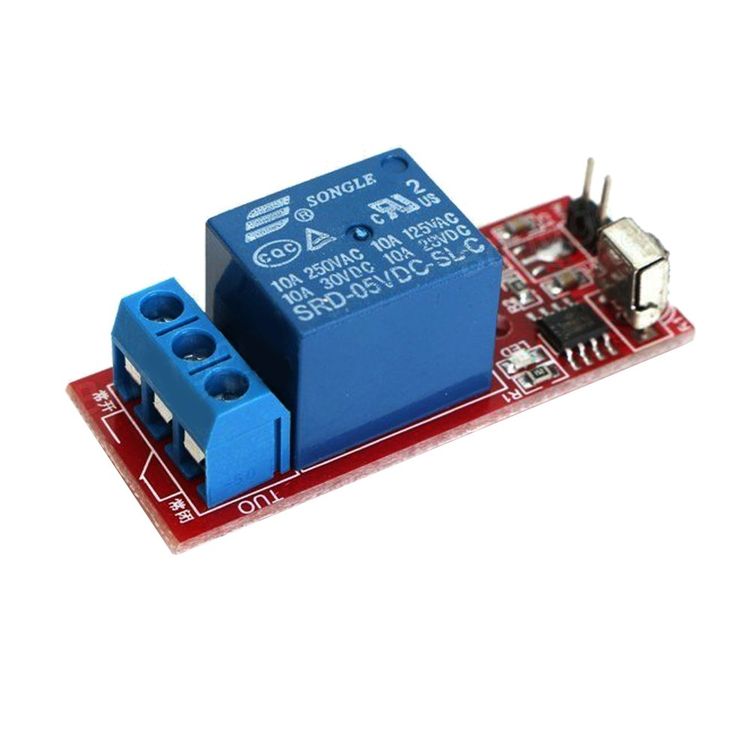

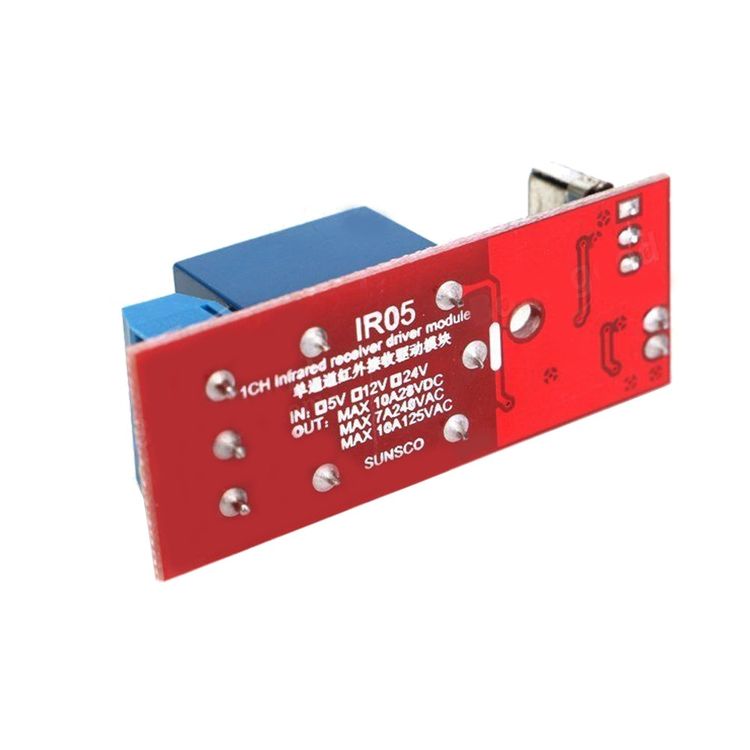

– 1 x One Channel 5V Relay Module

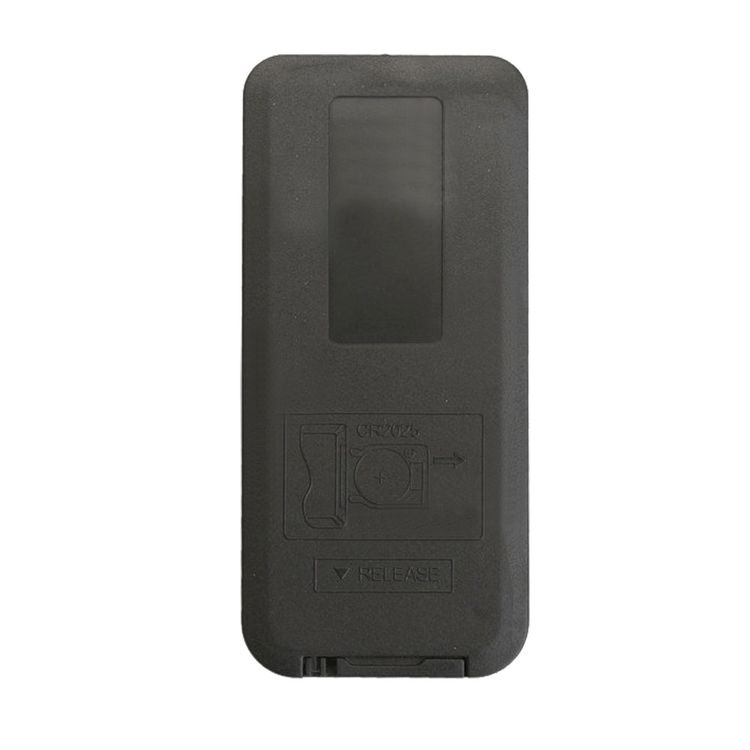

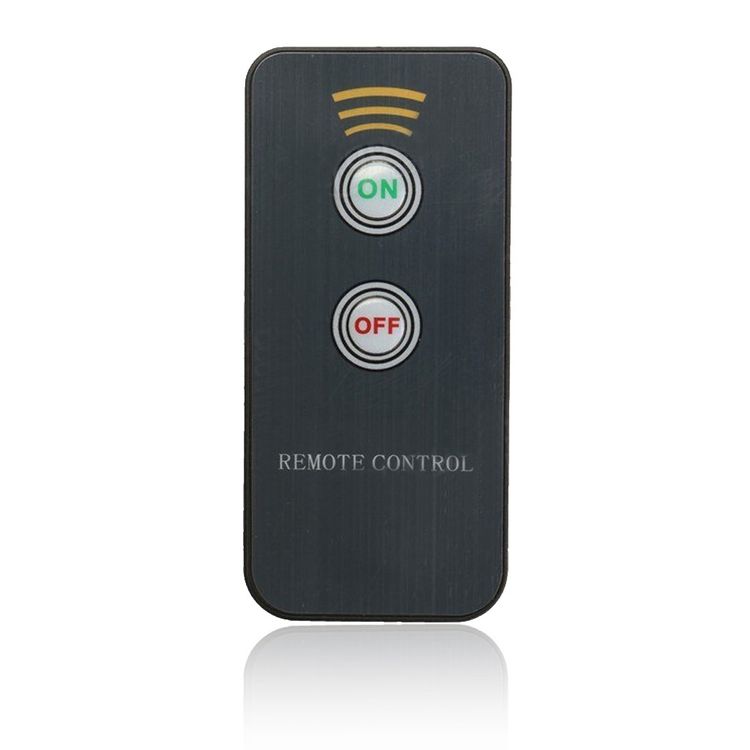

– 1 x Remote Control

Additional Information

Weight & Size

Weight: 0.100kg
Size: 8cm x 4cm x 1cm

SKU: A0100113177 Category: Condition: New
