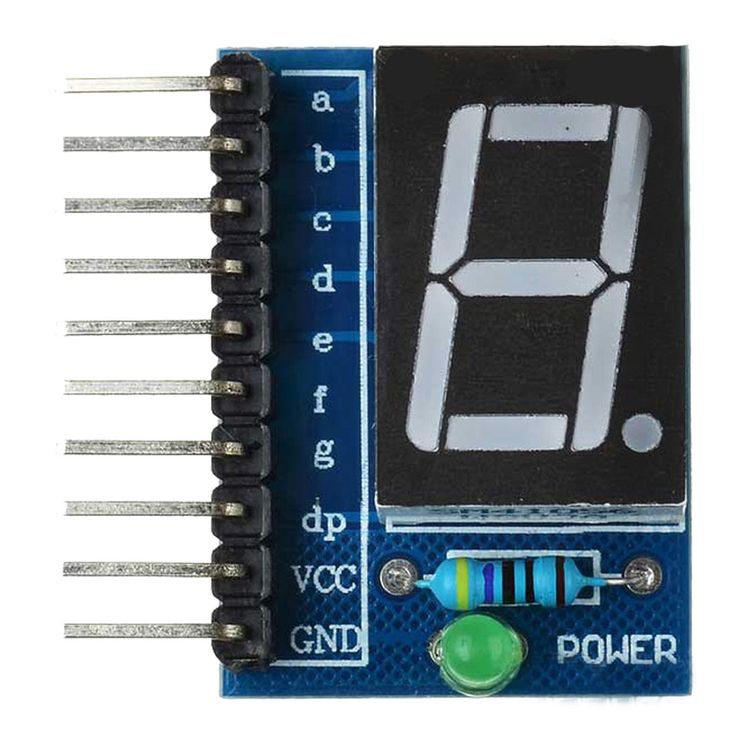

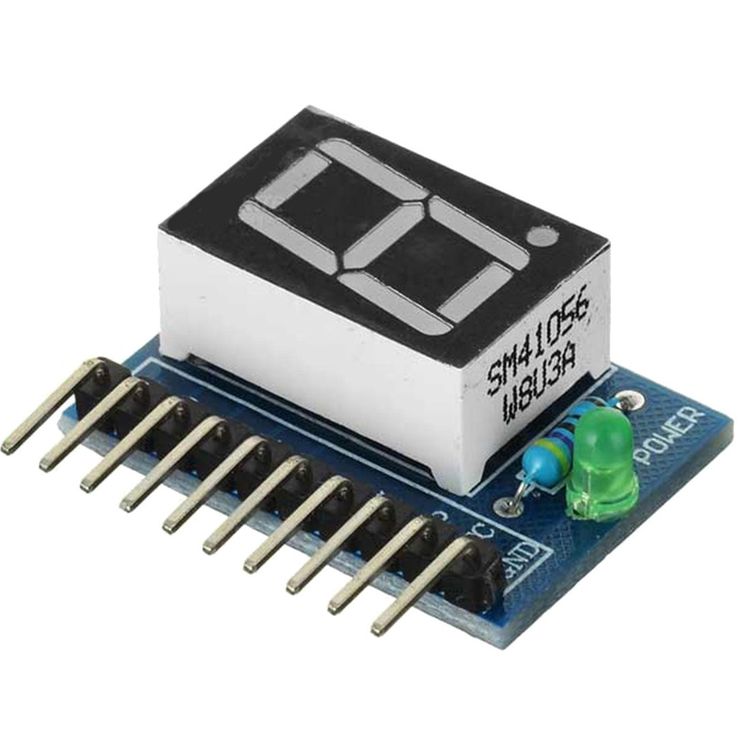

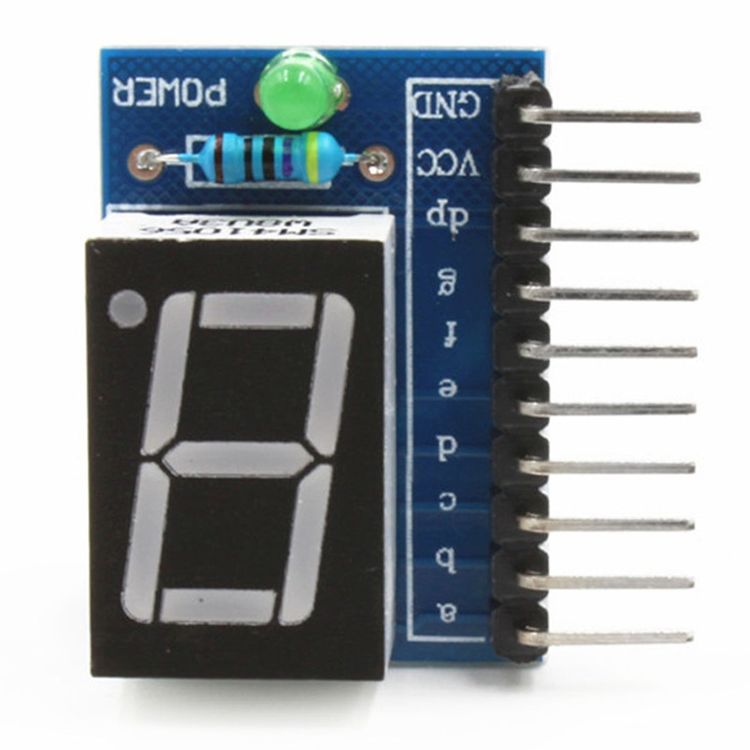

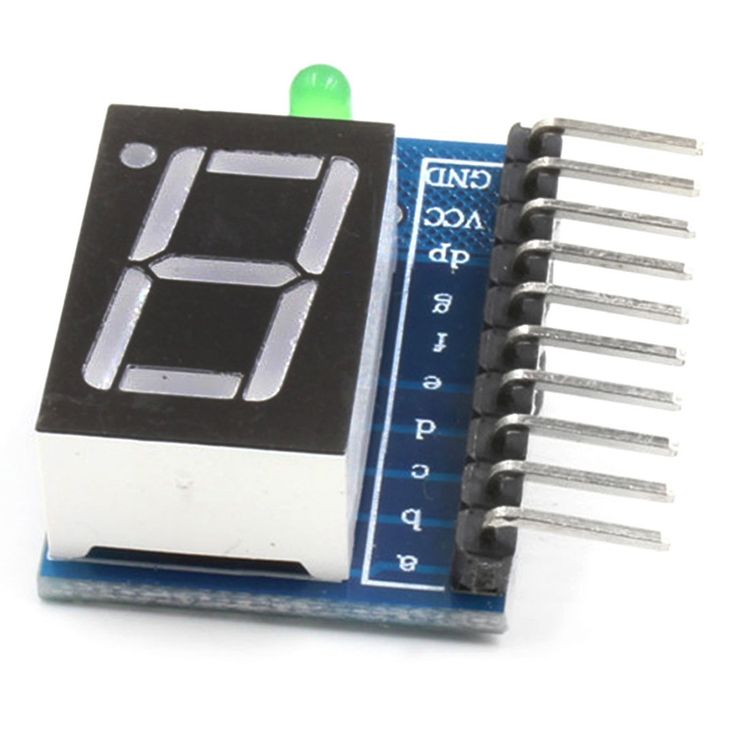

LDTR – SMG1 0.56 inch 1 Bit Digital Tube LED Module for Arduino Lovers


R64

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Main Features:
1. Adopt 0.56 inch 1 digit common anode nixie tube
2. Adopt low-level signal control for nixie tube segment / bit-choice

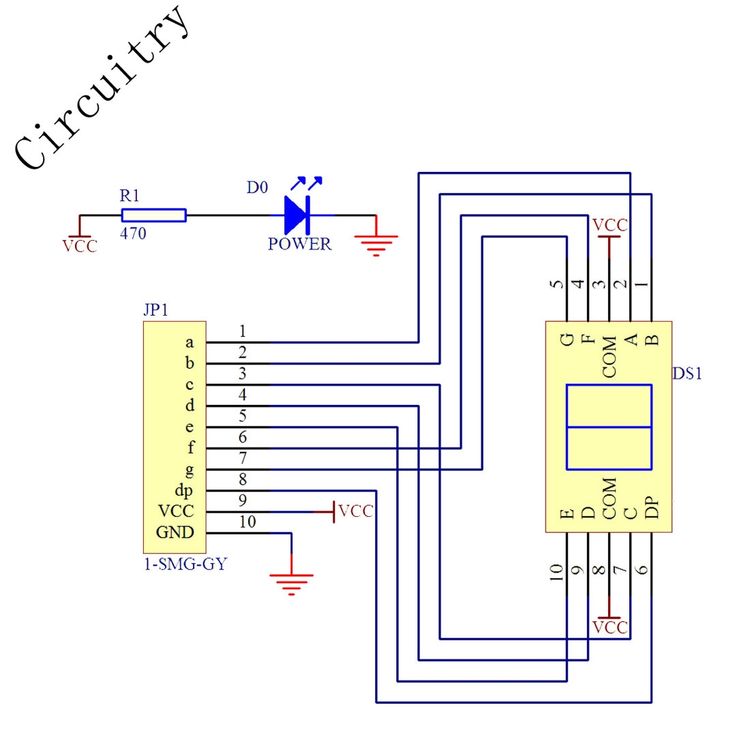

3. Connect VCC to power supply, GND to ground, segment terminal a, b, c, d, e, f, d, dp to single chip I/O port
4. Connect bit-choice terminal to C1 and connect C2 to single chip I/O port
5. With LED indicator, it will be turned on when powered on
6. Notice: Do not connect segment terminal to ground, otherwise, the Nixie tube segment terminal will be destroyed

Additional Information

General

Model: LDTR – SMG1
Types: 0.56 inch Digital Display Module
Size: 7.0*5.0*2.2 cm
Weight: 30 g

Weight & Size

Weight: 0.038kg
Size: 7cm x 5cm x 2cm

SKU: A0100112895 Category: Condition: New
