LDTR – B0006 IR Obstacle Avoidance Sensor Line Tracking Module for Smart Car & Robot – Blue


R84

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

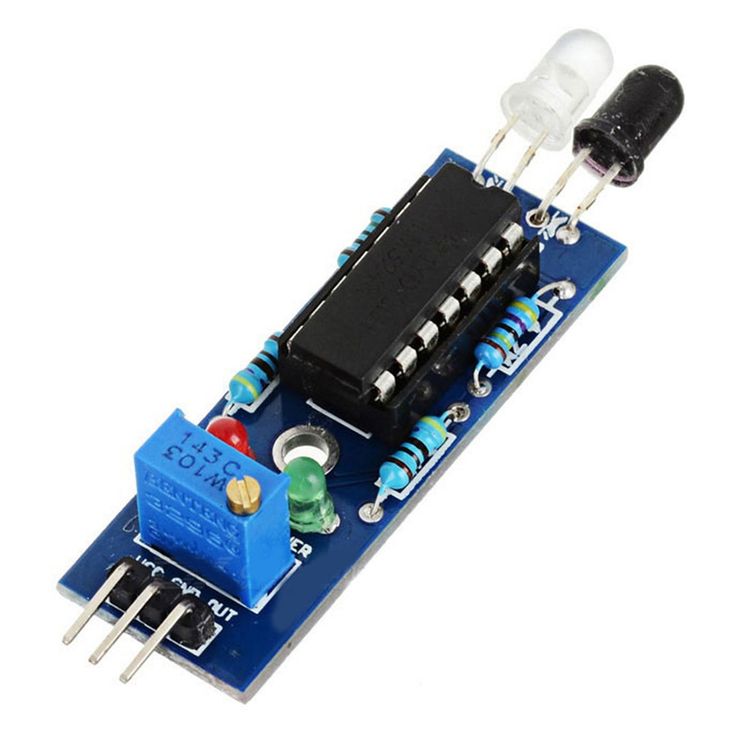

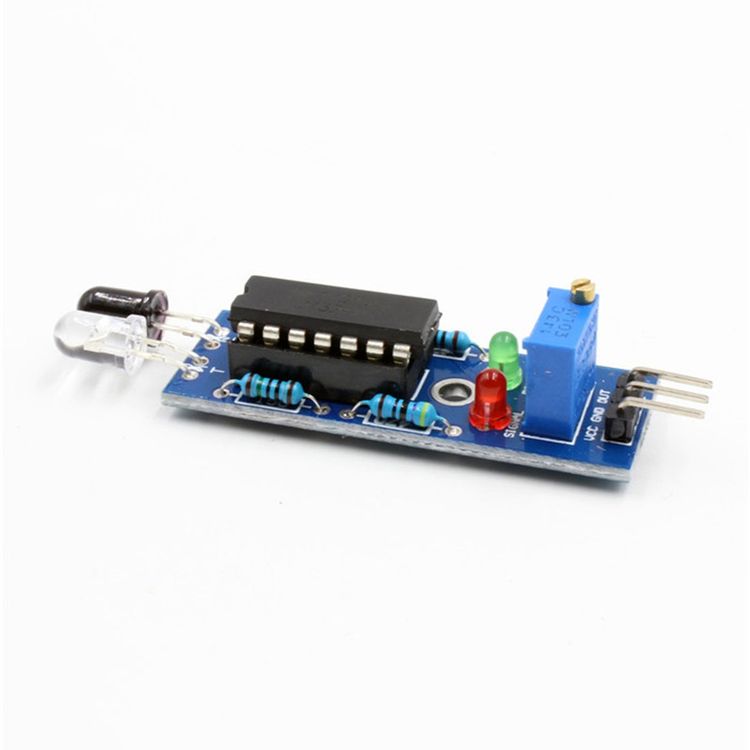

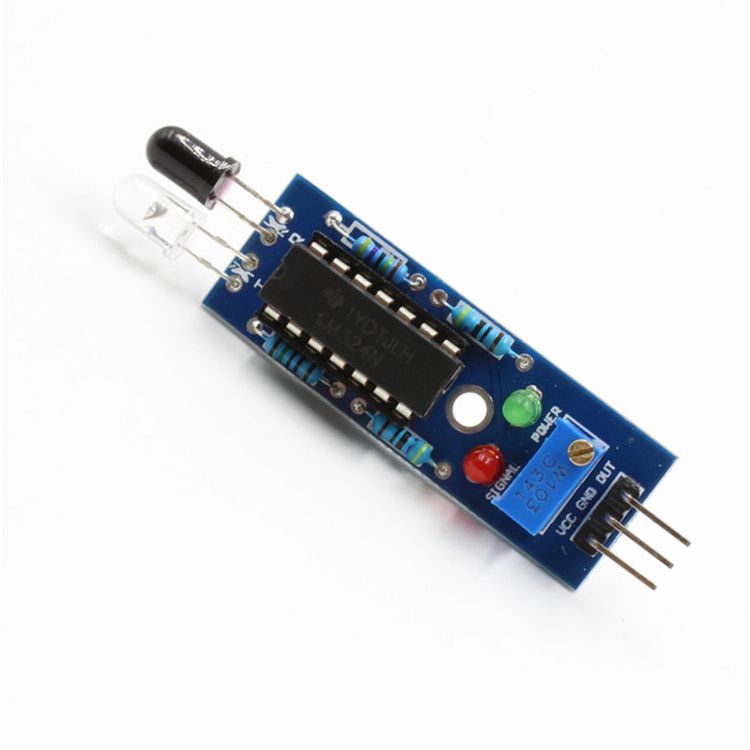

1. Detection distance can be adjusted by potentiometer
2. Effective Detection Distance: 2 – 50cm
3. Detection Angle: 35 degree
4. Working Voltage: 3.3 – 6V
5. Widely used in robot obstacle avoidance, smart car, infrared coconut for assembly line, black and white line tracking, and much more
6. Automatically transmits infrared ray and detects reflection, therefore the reflectivity and shape of the target is the key of detection distance
7. The detection distance of black is minimum, white is maximum
8. The object with small area has short detection distance, large area has long detection distance
9. Red LED indicates power on
10. Green light on when obstacle is detected
11. Clockwise adjust the potentiometer to increase the detection distance, anticlockwise adjust to decrease
12. Usage: connect VCC to power supply, GND to ground, OUT to controller I/O port or external interruption port

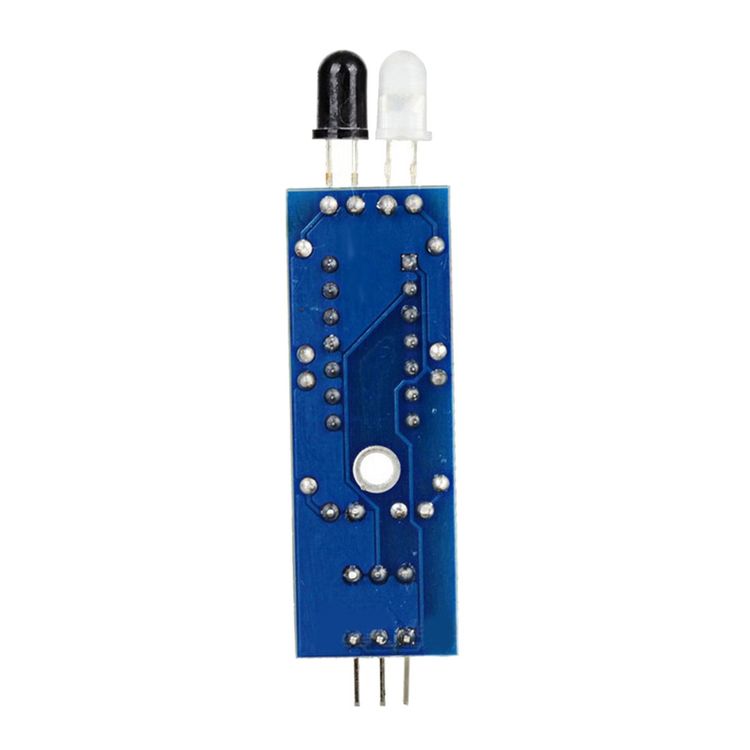

13. PCB double layer plates processing, fine workmanship, reasonable layout, good quality
14. Designed with one M3 screw mounting hole, easy to install

Additional Information

General

Types: IR Infrared Sensor Module
Material: Plastic, Metal
Size: 6.5*1.6*1.5cm
Weight: 6g

Weight & Size

Weight: 0.034kg
Size: 8cm x 5cm x 3cm

SKU: A0100112948 Category: Condition: New
