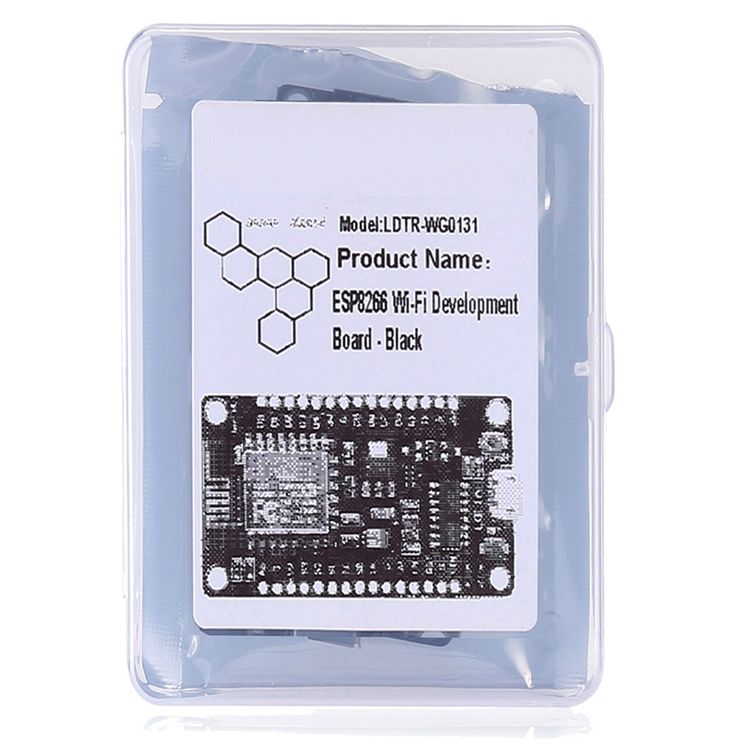

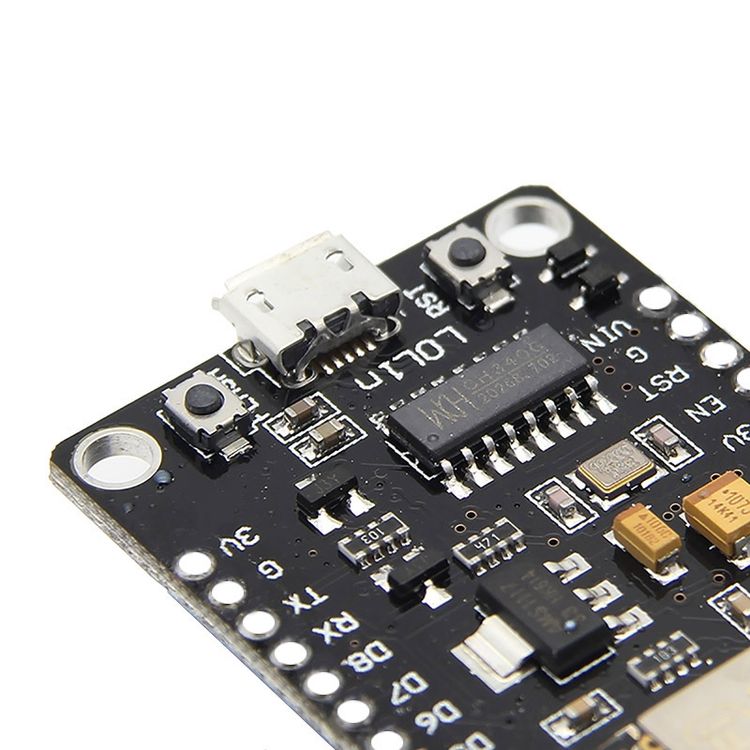

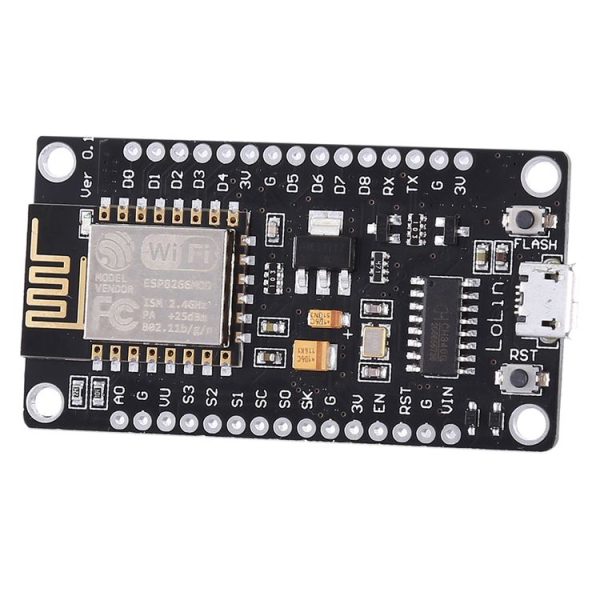

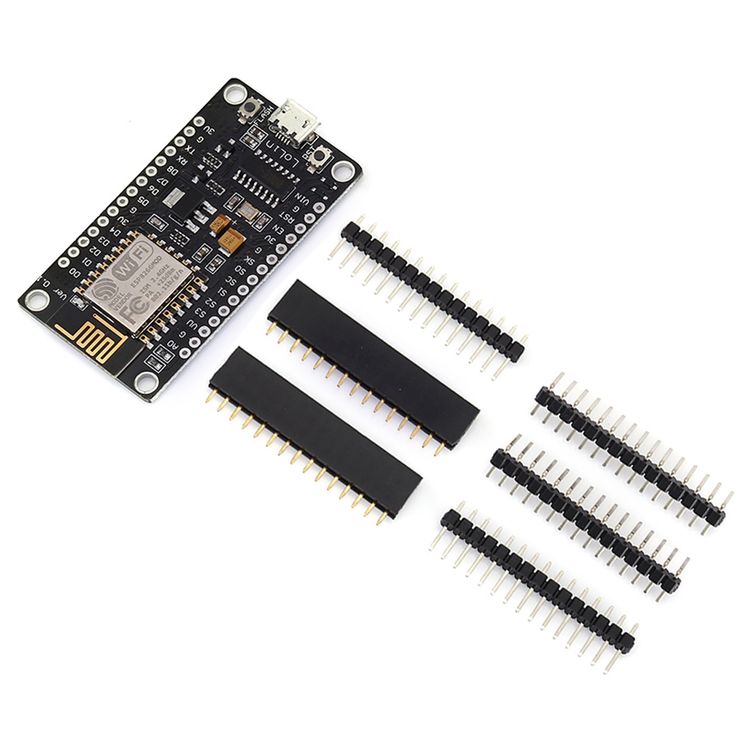

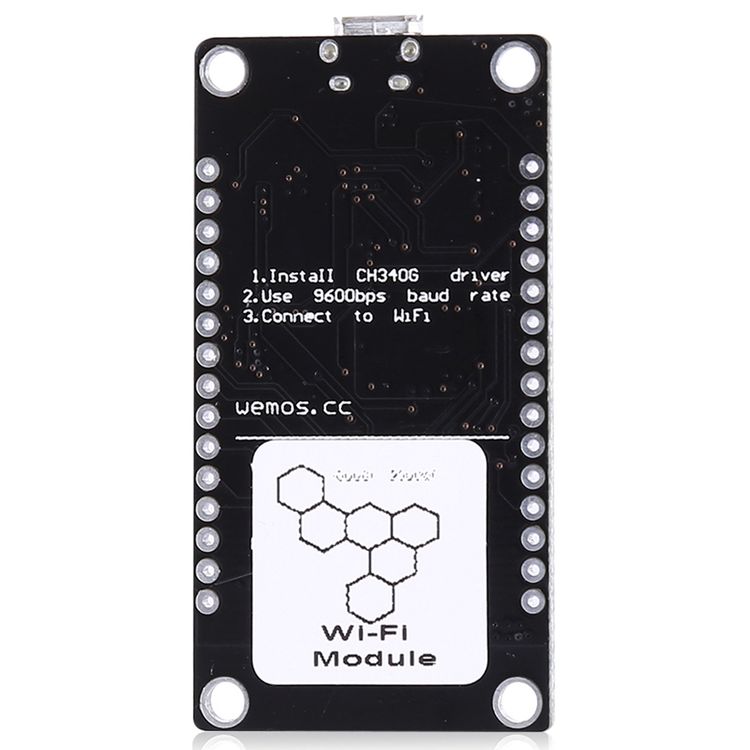

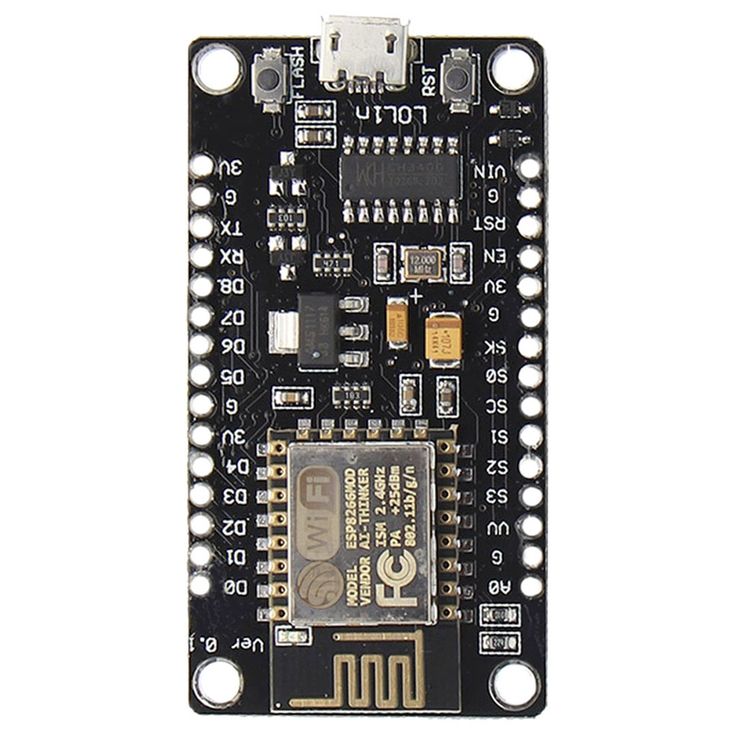

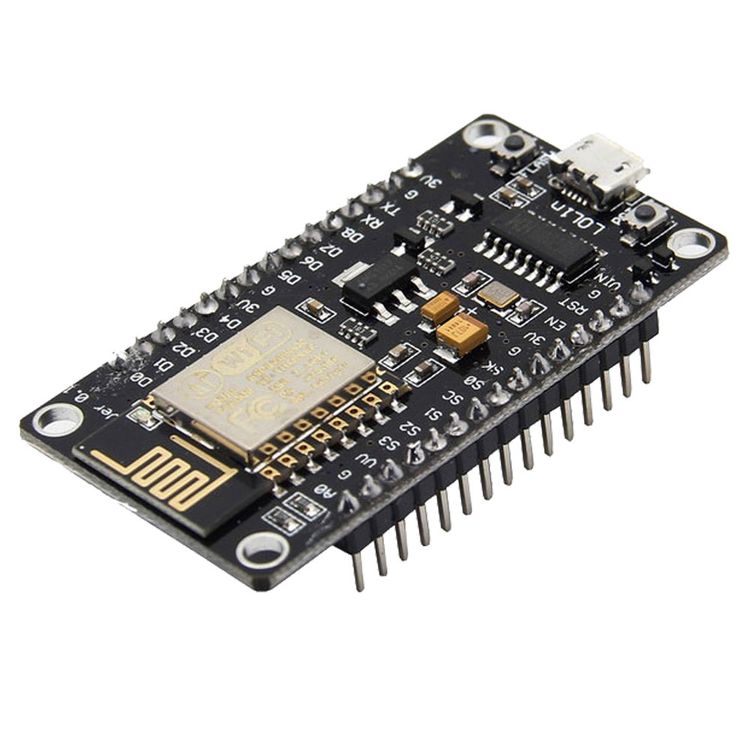

LandaTianrui LDTR-WG0131 ESP8266 Series WiFi Development Board, Compatible with CH340 (Black)


R148

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Support Windows 98 / ME / 2000 / XP / Server 2003 / VISTA / Server 2008 / Win7 / Win8 / Win8.1 32 / 64 bit and Mac system.
2. It contains the serial number and identification CH34X monitoring CH34X equipment swap library.
3. Chipset: CH340.
4. Wireless 802.11 b/g/n standard.
5. Support STA / AP / STA + AP three operating modee.

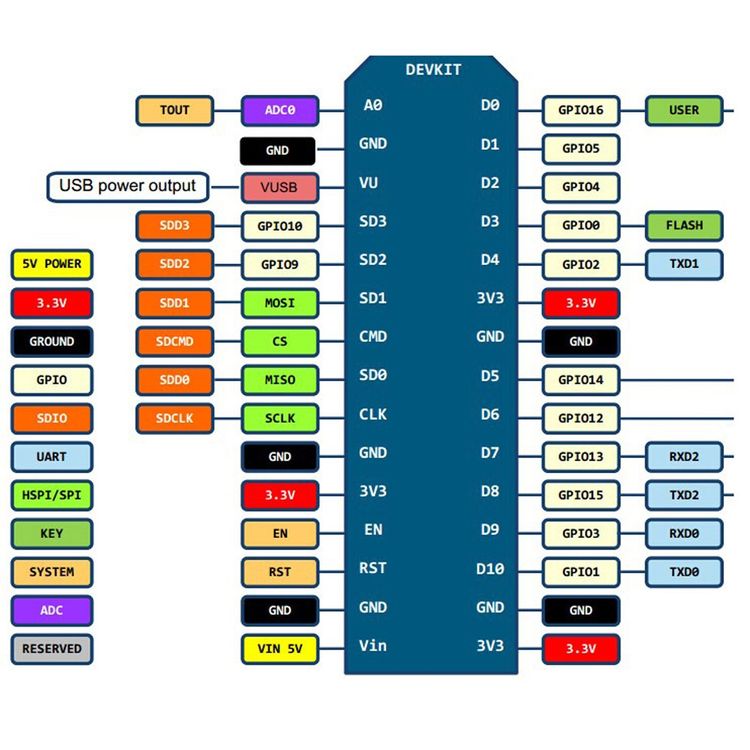

6. Built-in TCP / IP protocol stack to support multiple TCP client connections (5 max.) D0-D8, SD1-SD3 (used as GPIO, PWM, IIC, etc.).
7. Port driver capability: 15mA
8. AD0: 1 channel ADC.
9. Power input: 4.5-9V (10V max.), USB powered.
10. Current: continuous transmission about 70mA (200mA max.), standby less 200uA.
11. Transfer rate: 110 – 460800bps.
12. Support UART / GPIO data communication interface.
13. Remote firmware upgrade (OTA).
14. Support smart link smart networking.
15. Working temperature: -40 – 125 Deg. C.
16. Drive type: dual high-power H-bridge driver.

Additional Information

General

Model: LDTR-WG0131
Types: WiFi Development Board
Material: PCB
Size: 6*3.1*0.5cm / 2.36*1.22*0.2inch
Weight: 9g

Weight & Size

Weight: 0.047kg
Size: 8cm x 6cm x 2cm

SKU: A0100023967 Category: Condition: New
