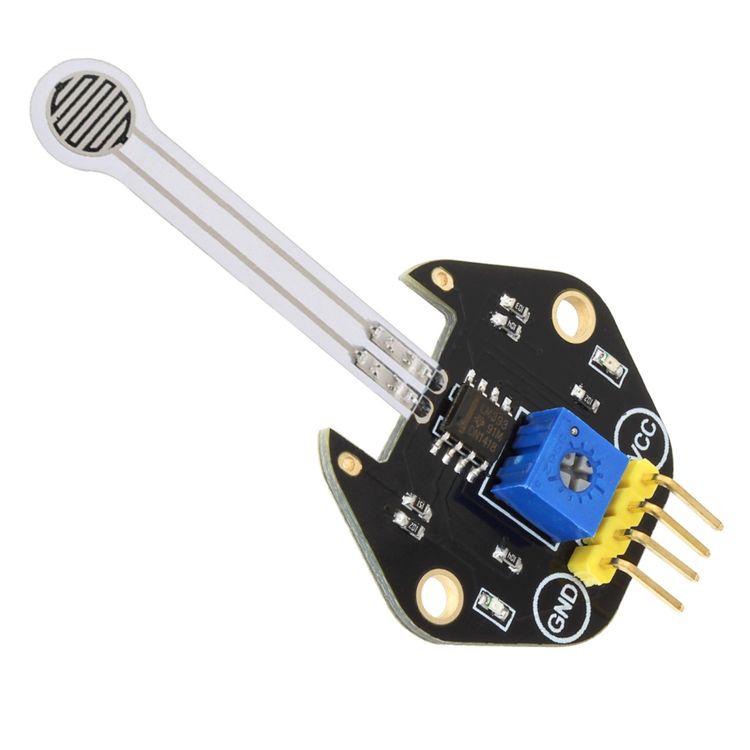

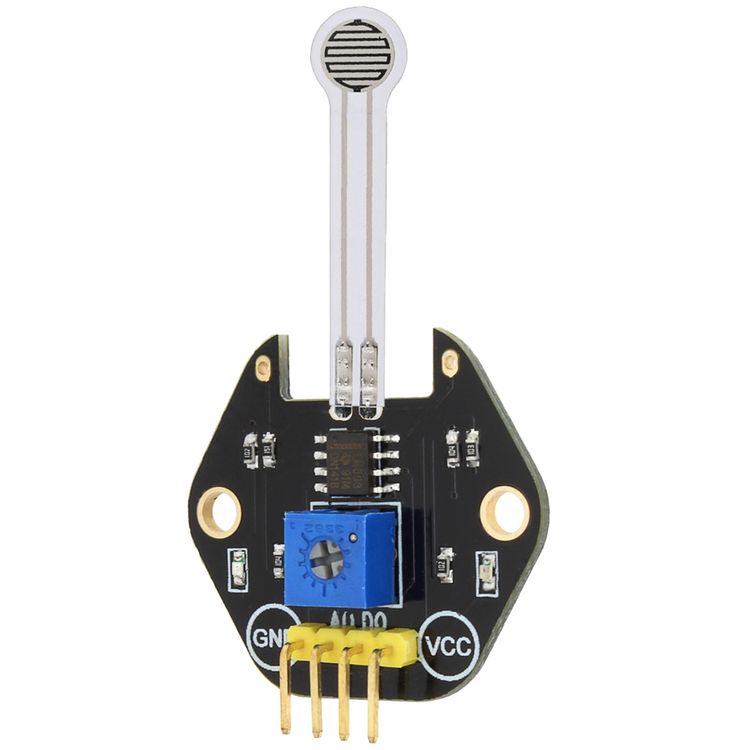

LandaTianrui LDTR-RM037 10kg Thin-film Pressure Sensor Module for Arduino / Raspberry Pi (Black)


R164

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Description
This sensor adopts the new flexible nano pressure sensitive material with ultra thin film pad. It has the functions of water-proof and pressure detection. When the sensor detects the outside pressure, the resistance of sensor will make a change. So using the circuit, it can convert the pressure signal that senses pressure change into the corresponding electric signal output. In this way, we can get the conditions of pressure changes by detecting the signal changes.

Feature
1.Output: 1A 0 analog voltage output. 2 DO digital switching output (0 and 1).
2.Sensitivity is adjustable.
3.Suitable for Detecting the pressure.
4.Output signal can connect IO port of SCM.

Parameters
1.Working Voltage: DC 3.3V – 5V.
2.Range: 0-10kg.
3.Thickness: less than 0.25mm.
4.Response Point: less than 20g.
5.Repeatability: less than positive and negative 5.8 percent(50 percent load).
6.Accuracy: positive and negative 2.5 percent (85 percent range interval).
7.Durability: more than 100 thousand times.
8.Initial Resistance: more than 100M ohm (no load).
9.Response Time: less than 1m / s.
10.Recovery Time: less than 15m / s.
11.Working Temperature: -20 degree celsius to 60 degree celsius.

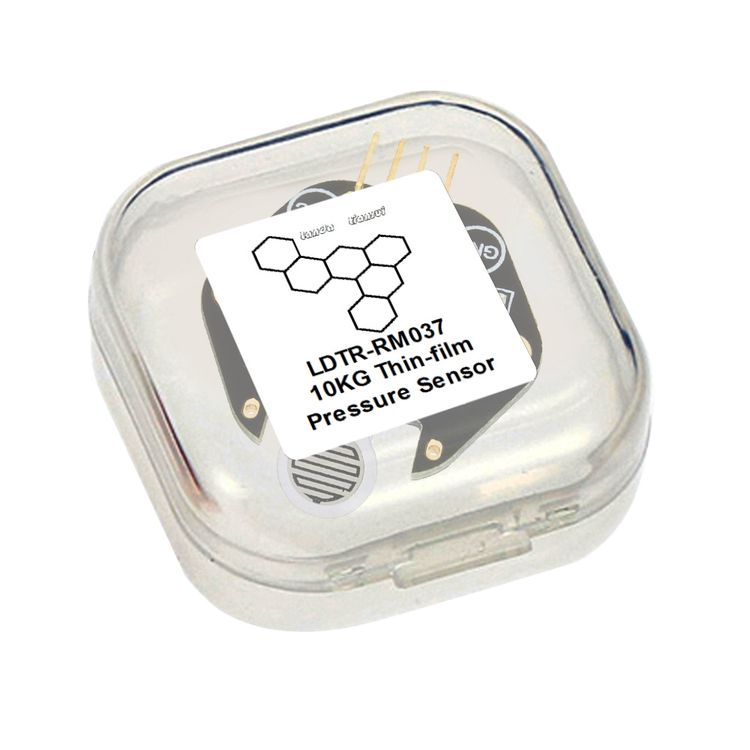

Packing List
10kg Thin-film Pressure Sensor Module x 1
Plastic Box x 1

Additional Information

Weight & Size

Weight: 0.034kg
Size: 7cm x 5cm x 2cm

SKU: A0100112997 Category: Condition: New
