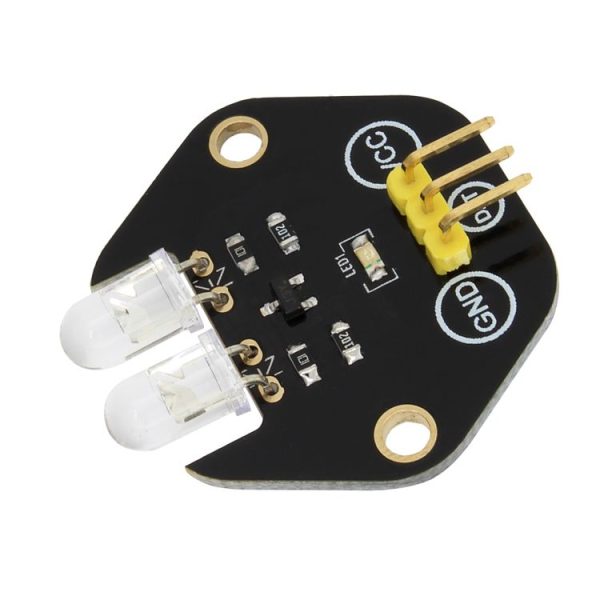

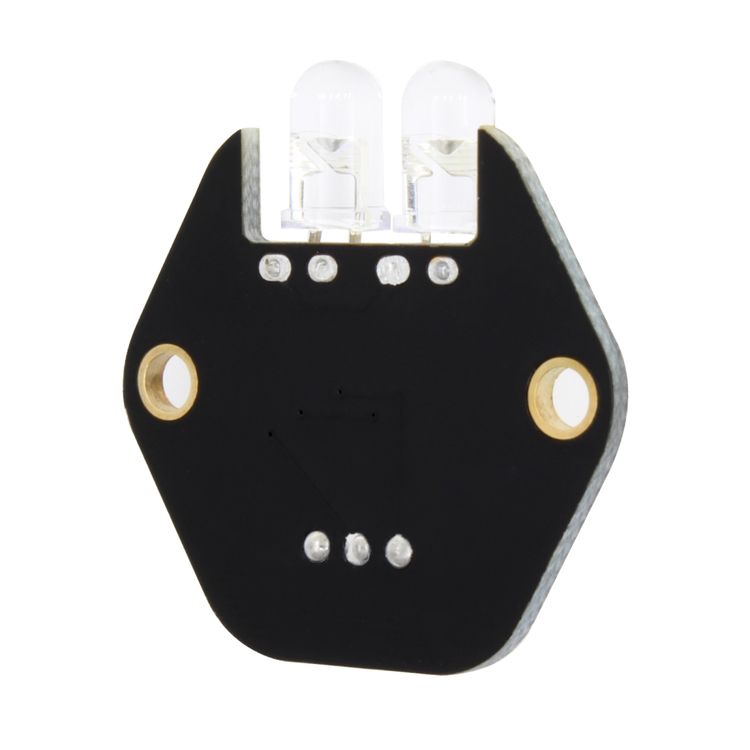

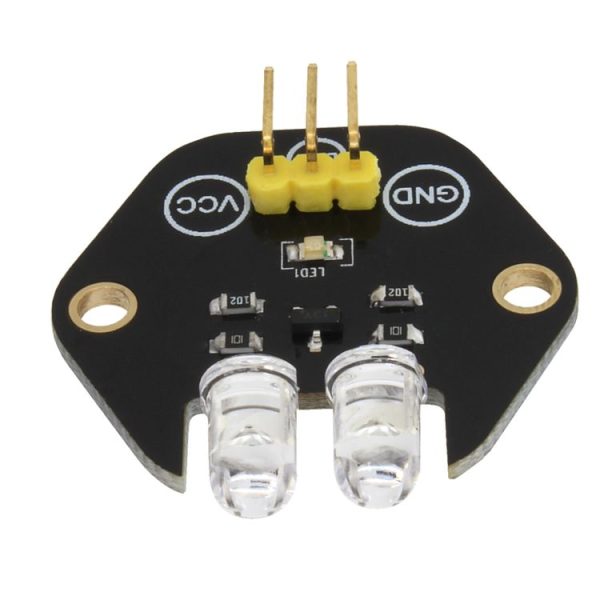

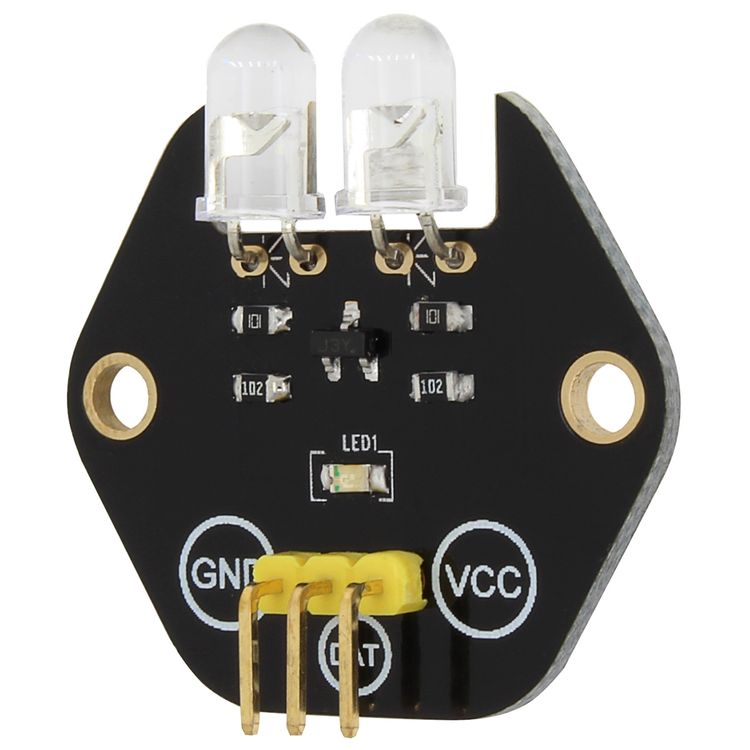

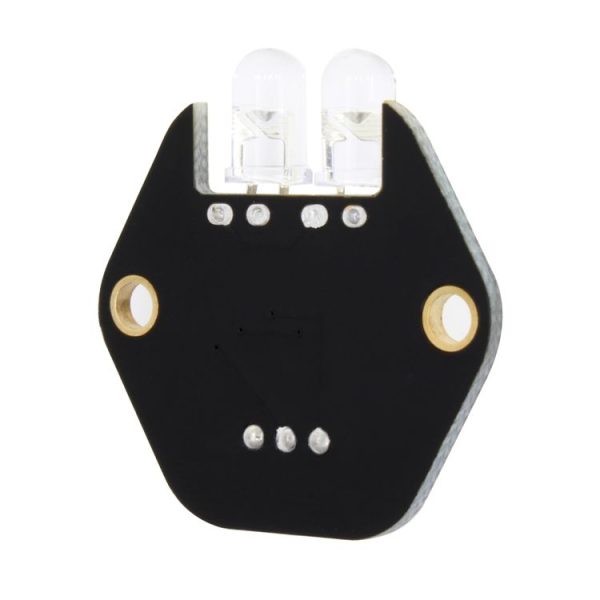

LandaTianrui LDTR-RM024 Double Digital IR Transmitter Module for Arduino (Black)


R122

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Introduction:
IR Transmitter Module is designed for IR communication which is widely used for operating the television device from a short line-of-sight distance. The remote control is usually contracted to remote. Since infrared (IR) remote control uses light, it requires line of sight to operate the destination device. The signal can, however, be reflected by mirrors, just like any other light sources. If operation is required where no line of sight is possible, for instance when controlling equipment in another room or installed in a cabinet, many brands of IR extenders are available for this on the market. Most of these have an IR receiver, picking up the IR signal and relaying it via radio waves to the remote part, which has an IR transmitter mimicking the original IR control. Infrared receivers also tend to have a more or less limited operating angle, which mainly depends on the optical characteristics of the phototransistor. However, it is easy to increase the operating angle using a matte transparent object in front of the receiver.

Specification:
1.Voltage: 3.3 – 5V.
2.Output port: digital signal.
3.Modulation: dual-tube transmit directly without modulation.
4.Consisted of two 940nm transmitting tube.
5.Transmitting distance: 1 – 3m.
6.Wavelength: 940nm.
7.With LED indicator lamp, easy to observe and debug.

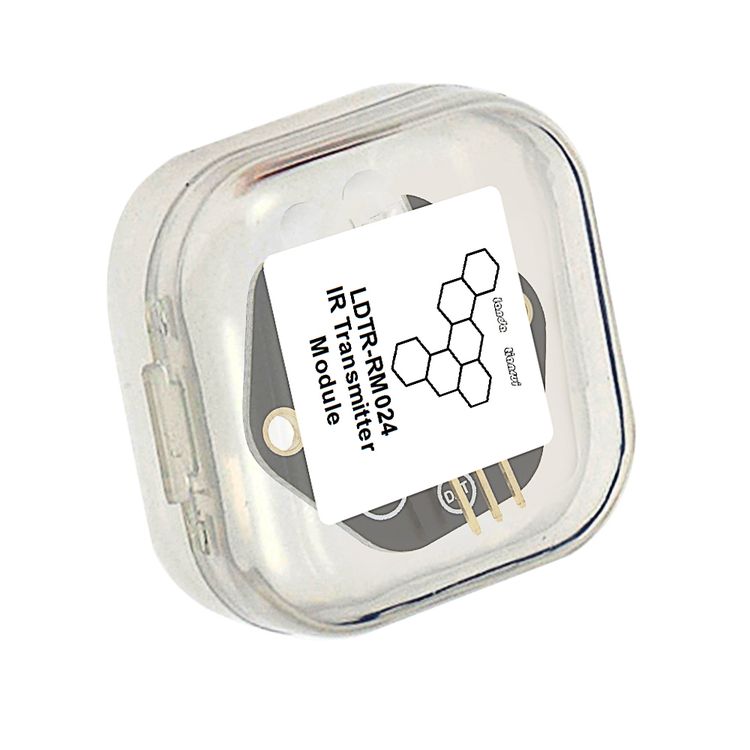

8.Come with a light transparent box for easy carry and store.

Packing List:
Double Digital IR Transmitter Module x 1
Plastic Box x 1

Additional Information

Weight & Size

Weight: 0.034kg
Size: 5cm x 5cm x 2cm

SKU: A0100112870 Category: Condition: New
