Overview

Introduction:
Pyroelectric infrared motion sensor can detect infrared signals from a moving person or moving animal, and outputs switching signals. It has advantages of low power consumption, good concealing, low cost etc. It can be applied to a variety of occasions to detect the movement of human body.

Main Features:
1.Adopts digital integration human thermal emission infrared probe, small volume, high reliability, low power consumption and simple peripheral circuit.
2.Voltage: 3.3 – 5V.
3.Output voltage: 3V ( high level ), 0V ( low level ).
4.Output delay time ( high level ): about 2.3 – 3 seconds.
5.Reaction angle: 100 degree.
6.Reaction distance: 7m(Max).
7.Output indicator: high level lighting.
8.Maximum current of output pins: 100mAh.
9.Detecting the infrared light of moving human or animal
10.Application scope: moving detection, placeholder detection, infrared anti-theft system, etc.

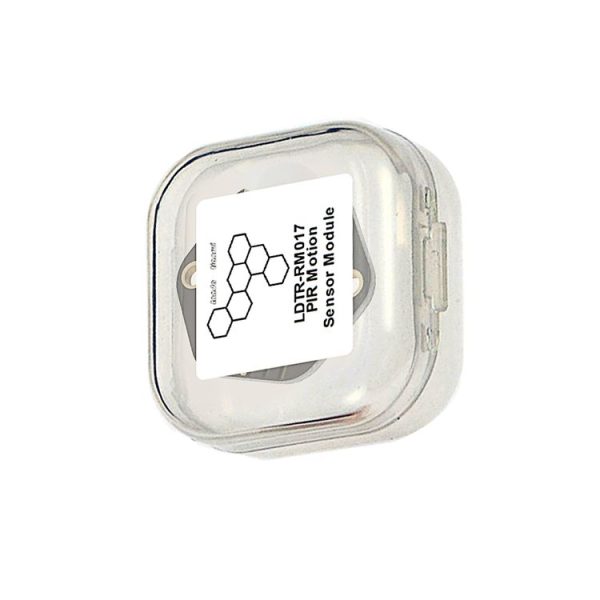

11.Come with a light transparent box for easy carry and store.

Packing List
PIR Motion Sensor Module x 1
Plastic Box x 1

Additional Information

Weight & Size

Weight: 0.037kg
Size: 5cm x 5cm x 3cm
