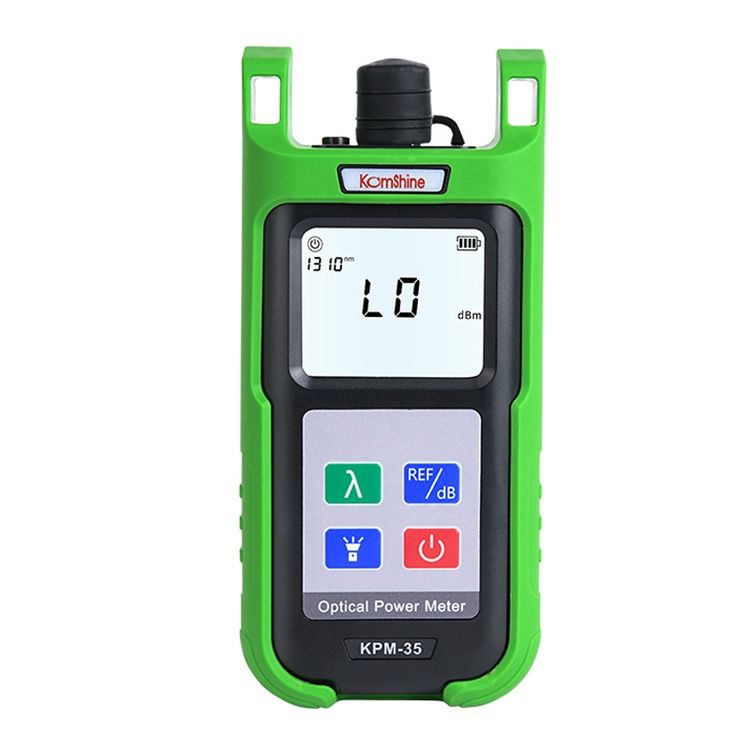

Komshine High-Precision Optical Power Meter Optical Cable Line Tester, Model: KPM-35-A / -70DBM to +6DBM


R686

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Wavelength range: 800~1700nm
2. Probe type: InGaAs
3. Power measurement range: -70 ~ +6 dBm / -50 ~ +26dBm
4. Accuracy: 0.2dB

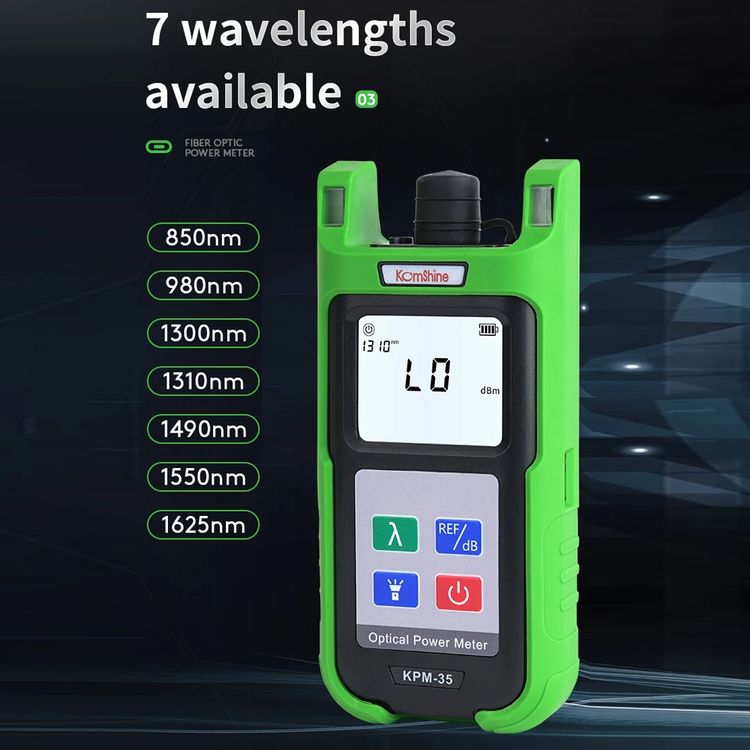

5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
6. Power supply: 3 AA 1.5V batteries (not included)
7. Display resolution: 0.01dB
8. 2.5mm universal interface design
9. Test parameters can be adjusted manually and independently according to actual test requirements.
10. It has a backlight display function and is equipped with LED lights so that the device can work normally in the dark, thereby improving work efficiency.

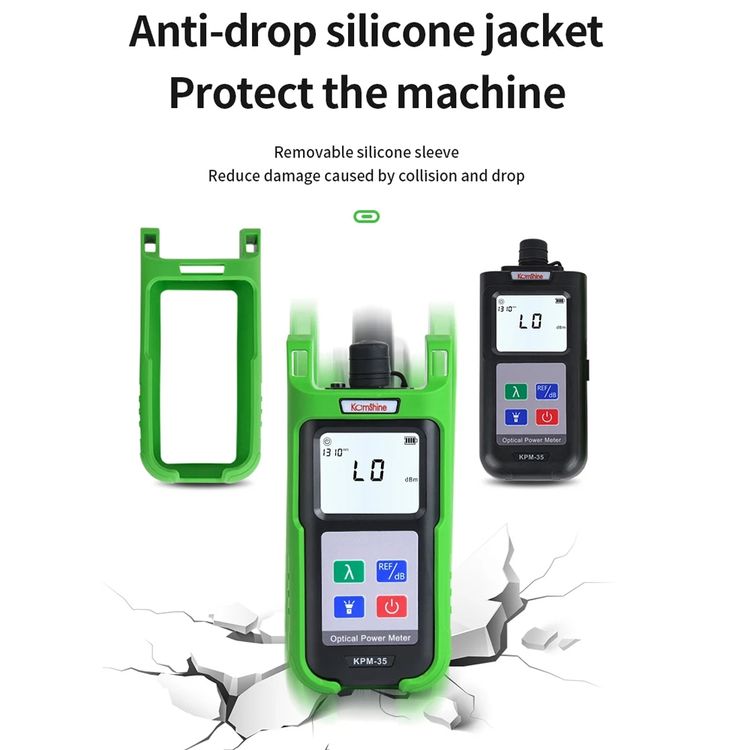

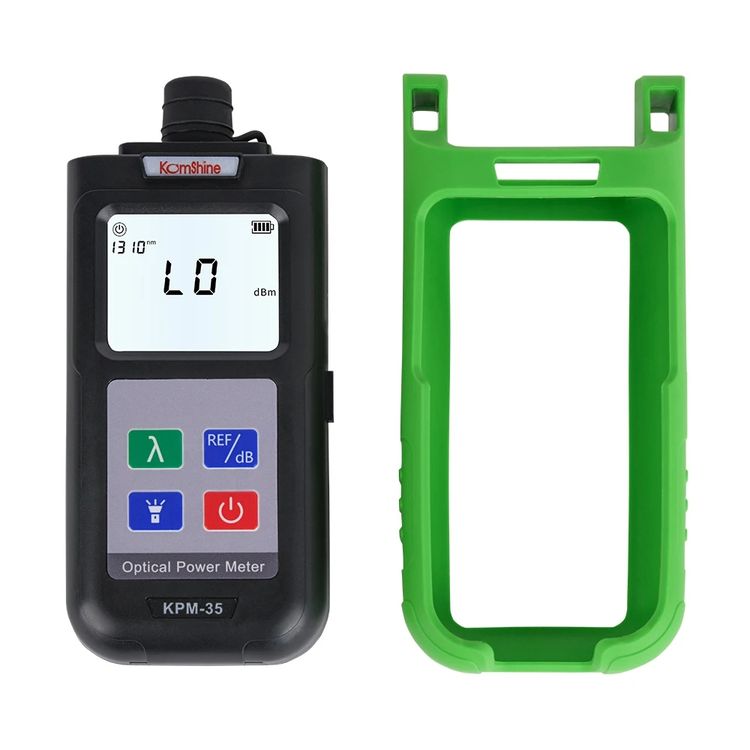

11. Removable silicone cover to reduce injuries caused by collisions and falls
12. Ergonomic design, one-handed operation
13. Type A: -70dBm~+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
14. Type C: -50dBm~+26dBm (mainly used in radio and television, monitoring, etc.)
15. Size: 160x85x45mm
16. Net weight: 220 grams

Additional Information

Weight & Size

Weight: 0.254kg
Size: 18cm x 10cm x 6cm

SKU: A0100049046 Category: Condition: New
