Overview
1. H.264, 4ch 960P/720P/960H / D1 wireless network hard disk DVR.
2. Built-in high performance stability wireless Wi-Fi router module, support 802.11b/g/n protocol, 150Mbps.
3. Automatically access the Wi-Fi network camera through the network cable.
4. Video preview / video / playback / backup.
5. Ease of use (wireless easy pairing, setup wizard, common function menu, easy to view network).
6. Support N1, IPC access protocol.
7. Supported network service functions: P2P, DHCP, DDNS, PPPoE, E-Mail, FTP, etc.

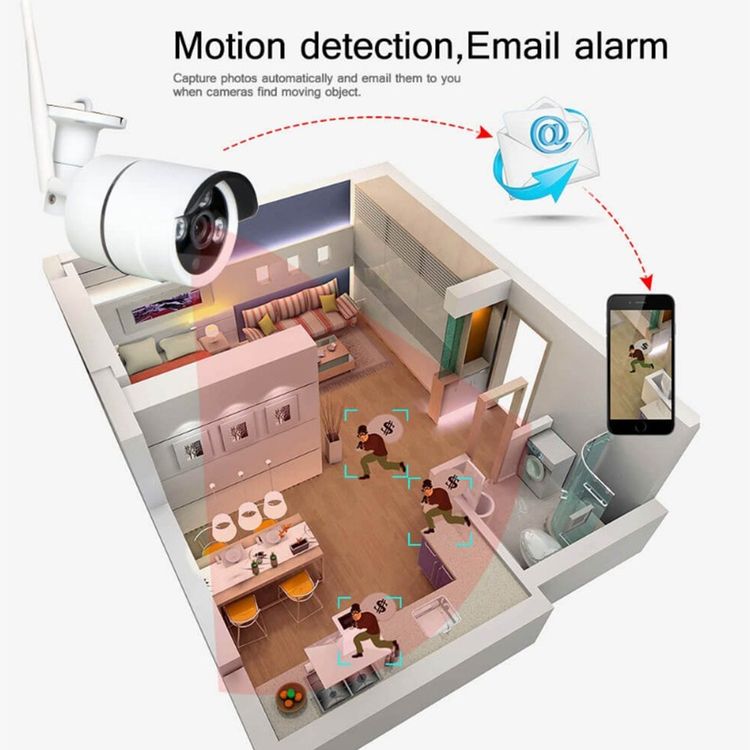

8. Support a variety of alarm trigger (video loss / motion detection, etc.) and alarm output (sound / E-Mail / FTP, etc.).
9. Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control.
10. Support PC (client or browser) remote (local area network and Internet) access and control.
11. Support IPC configuration (encoding control, image adjustment, OSD display, etc.).
12. Support video motion detection with IPC.
13. Support video cover function with IPC.
14. Support user rights management.
1. Network video access bandwidth: 72Mbps.
2. HDMI output: 1 channel, resolution: 1024×768, 1366×768, 1440×900, 1920x1080p, support audio output.
3. Comes with a 10.1 inch high-definition display (1280×1024), which can be rotated by 270 degrees.
1. 4 zone selectable.
2. 1/3 inch Progressive scan sensor, 1280*960 resolution.
3. Streaming: Two streaming at the Same Time:
– H.264 1280×960@15fps or below
– H.264 640×360@15fps or below
Additional Information
Model: K9104E-PE2013C
Shape: Bullet
Power Depletion: <6W(Camera)
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision
Alarm Detection: Screen shield
DNR: Auto
Network Interface: RJ45 10/100MB Ethernet interface
Wireless: WiFi 802.11 b/g/n
Protocol: SMTP, UPNP, DHCP, PPPOE
Mobile Access: Android, iPhone OS, iPad
Sensor Size: 1/3 inch Progressive Scan
Pixels: 1.3MP
Lens: 3.6mm
SNR: > 39.1dB
Day/Night: Auto / Color / BW
Minimum Illumination: B/W: 0.01Lux, Color: 0. 1Lux
White Balance: Auto
Main Stream: 1280 x 960
IR LED: 3 PCS
NVR Model: K9604E
Recording: Recording mode: Manual recording, motion detection recording, time recording, alarm recording, Recording playback: Max support 4ch 960P, Playback mode: Instant playback, regular playback, event playback, Backup mode: Regular backup
Video input: 4ch, D1, 960H, 720P, 960P
HDMI Output Resolution: 1024×768, 1366×768, 1440×900, 1920×1080
Network: RJ45 10/100MB
USB Port: 1 x USB 2.0
HDD: SATA HDD (not included), Max 4TB
Operation temperature: -10 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V 3.0A
Power consumption: <= 5W
Operate Temperature: -10 to 50 Degree Celsius
Size: 205*70*55mm (Camera)
Weight: 500g (Camera)

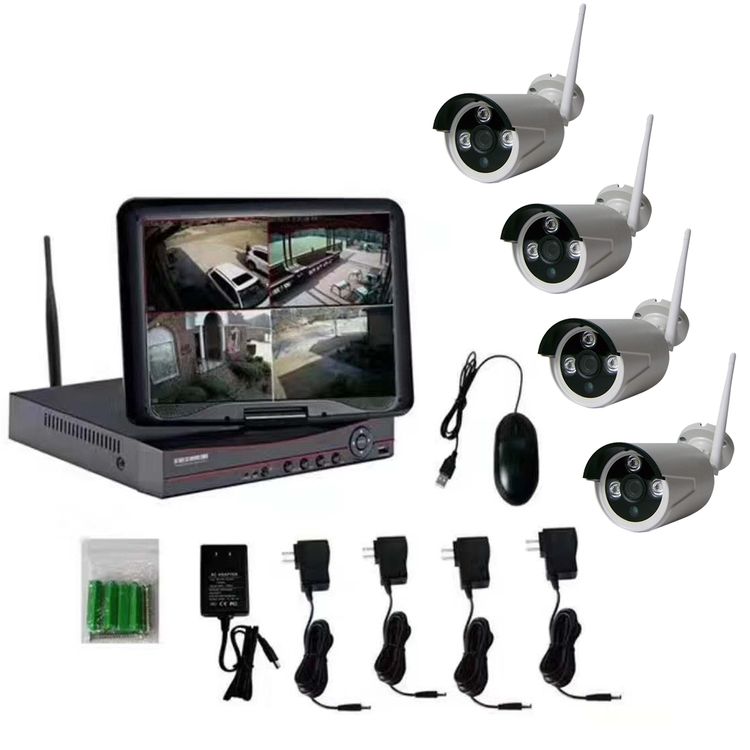

Package Contents: 4 x Cameras, 1 x NVR, 5 x Power Adapter (US, UK, EU, AU Optional)
Weight: 4.700kg
Size: 40cm x 28cm x 20cm
