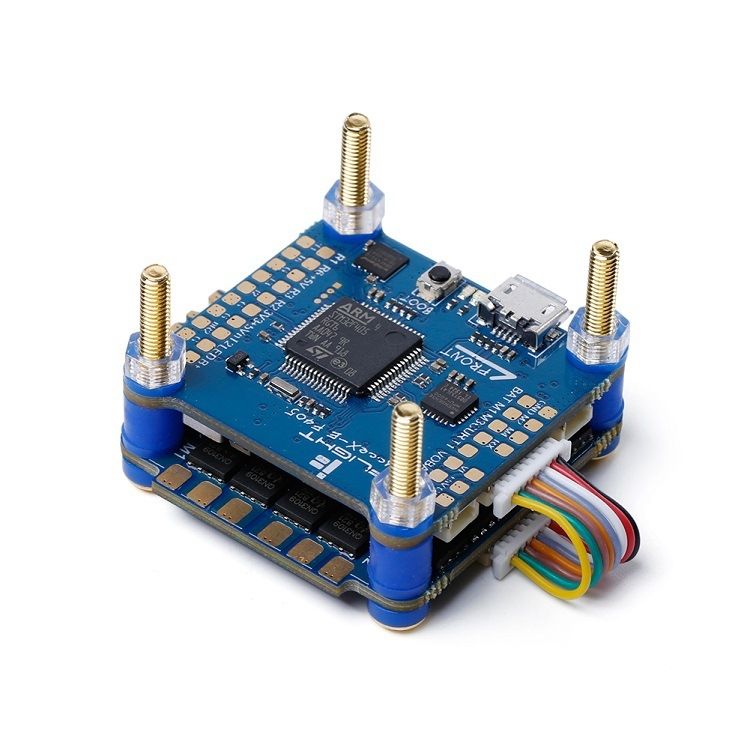

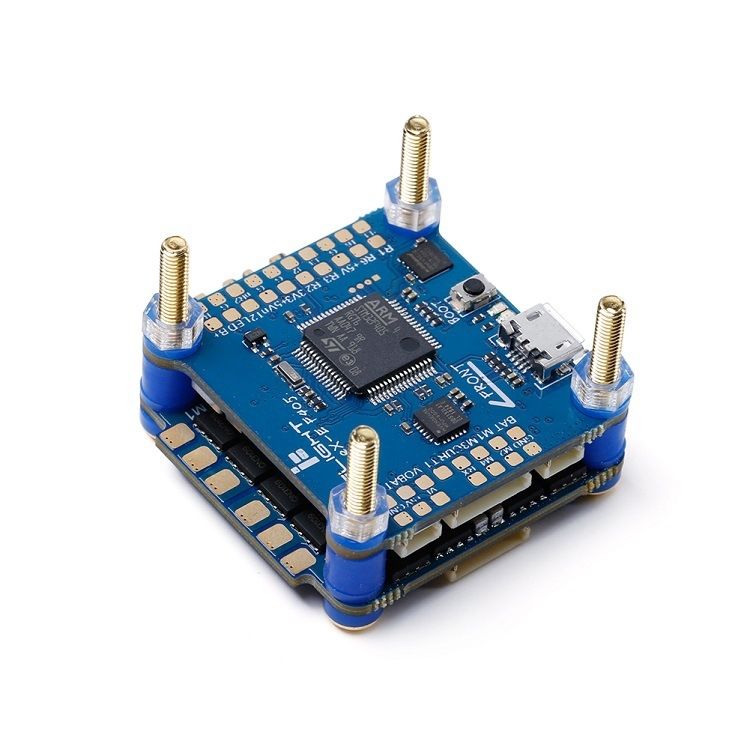

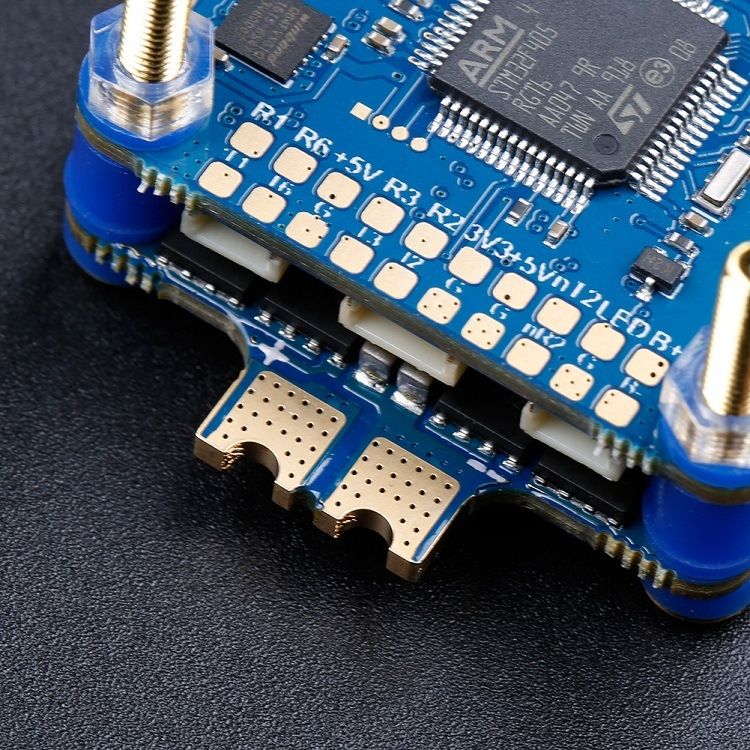

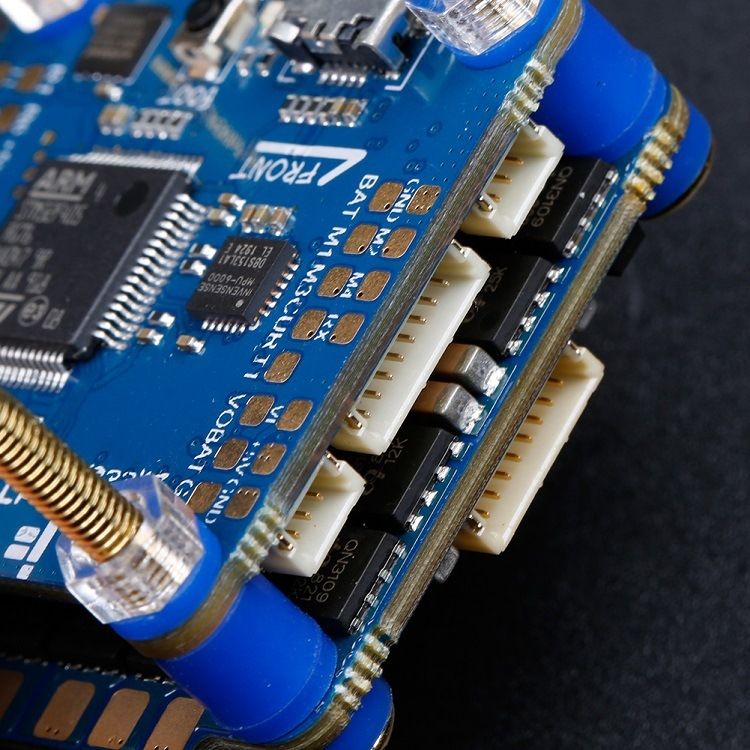

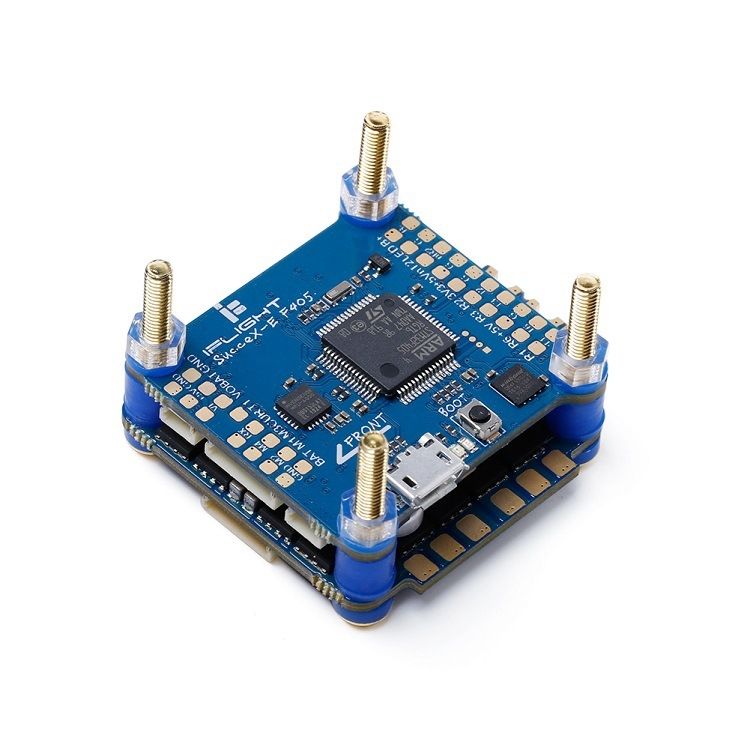

IFlight SucceX-E F4 45A 2-6S Fly Tower Flight Stack (MPU6000)


R1862

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Flight controller

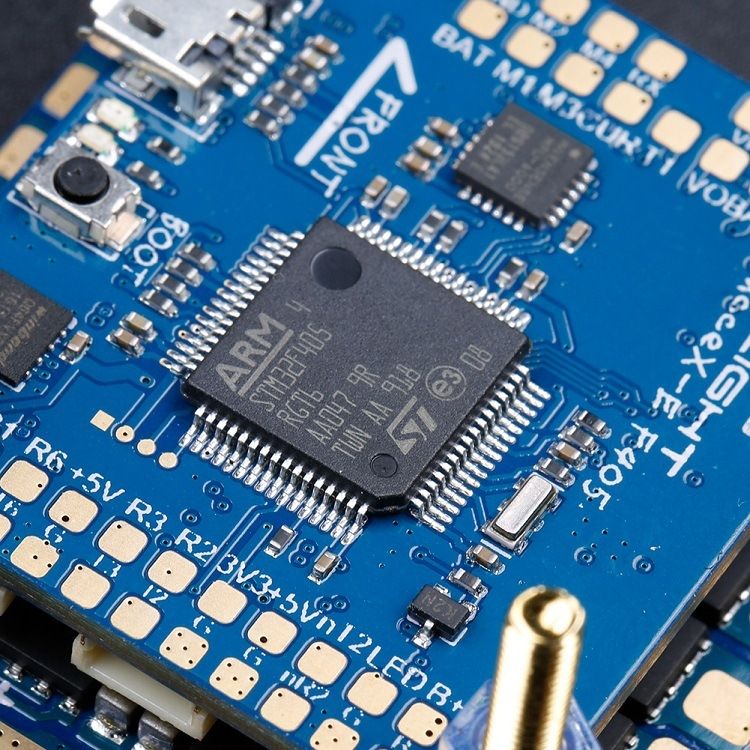

– MCU: STM32F405
– IMU: MPU6000
– Betaflight OSD: YES
– Blackbox: 8MB
– 8 x Dshot/Proshot/Oneshot output
– 8 x individual ESC power / signal pads
– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
– VTX protocol: YES (IRC Tramp)
– WS2812 led Strip: YES
– Baro: No
– Beeper: YES
– Input: 2-6S
– BEC: 5V/2.5A cont
– Firmware: BETAFLIGHTF4
– Mounting: 30.5 x 30.5mm
– Dimensions: 36 x 36mm
2. ESC
– Dimension: 40 x 43mm
– Mounting Holes: 30.5 x 30.5mm
– Weight: 14.4g
– Supports 2-6S Lipo input
– STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
– Supports: DShot DShot150/300/600/MultiShot / OneShot etc.
– Target: G-H-30 BLS 16.7

Additional Information

Weight & Size

Weight: 0.054kg
Size: 10cm x 5cm x 5cm

SKU: A0100132311 Category: Tag: Condition: New
