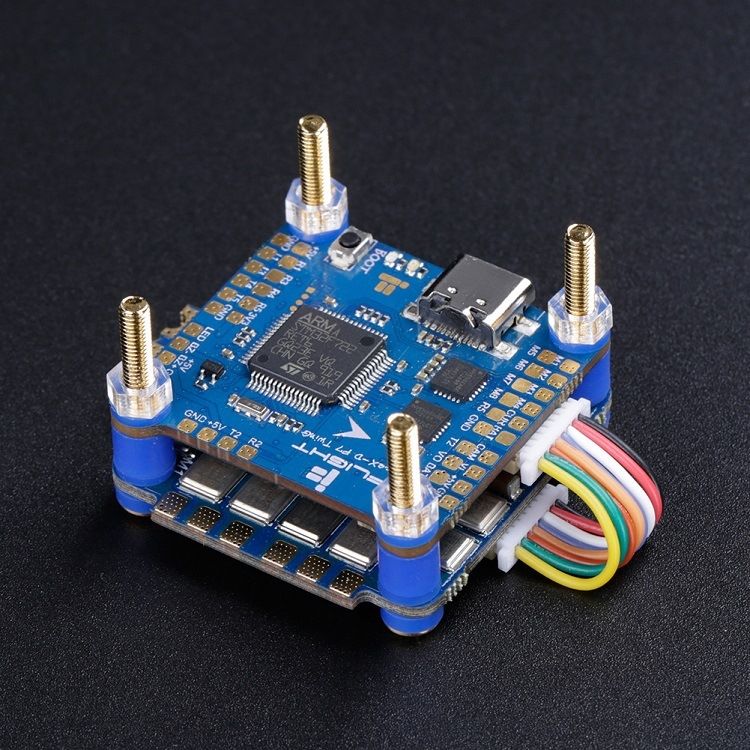

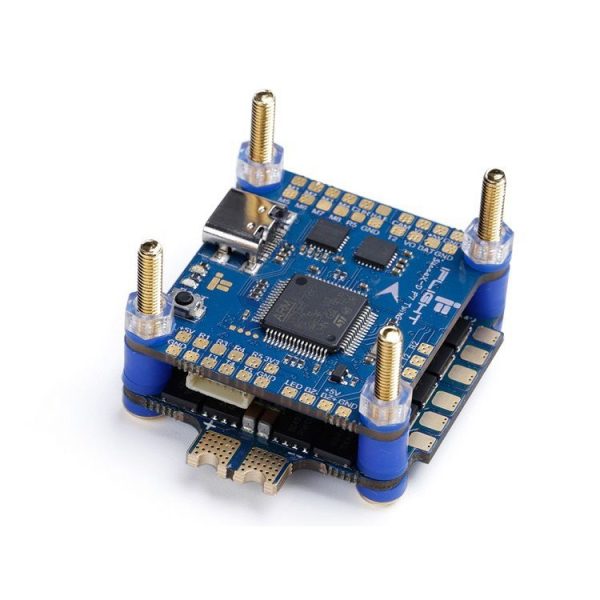

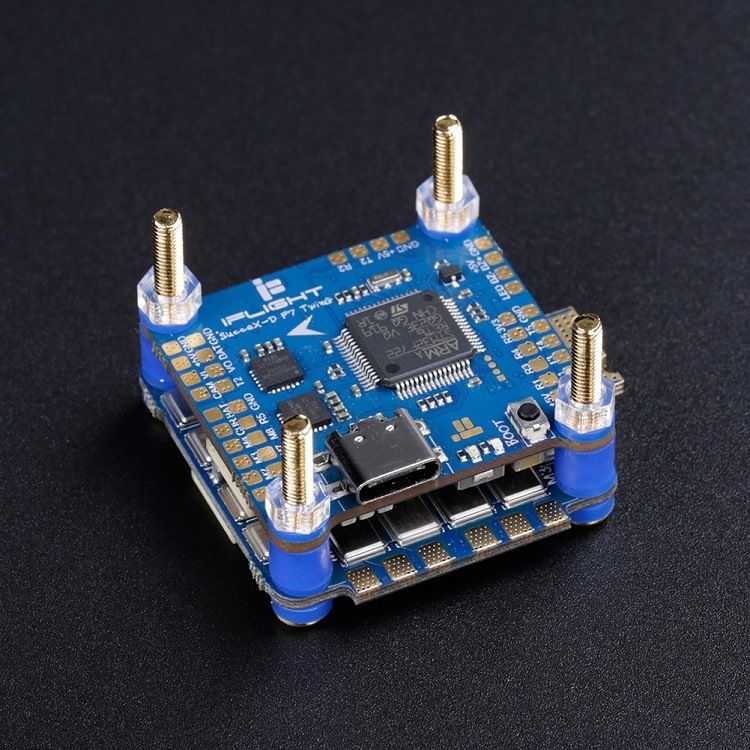

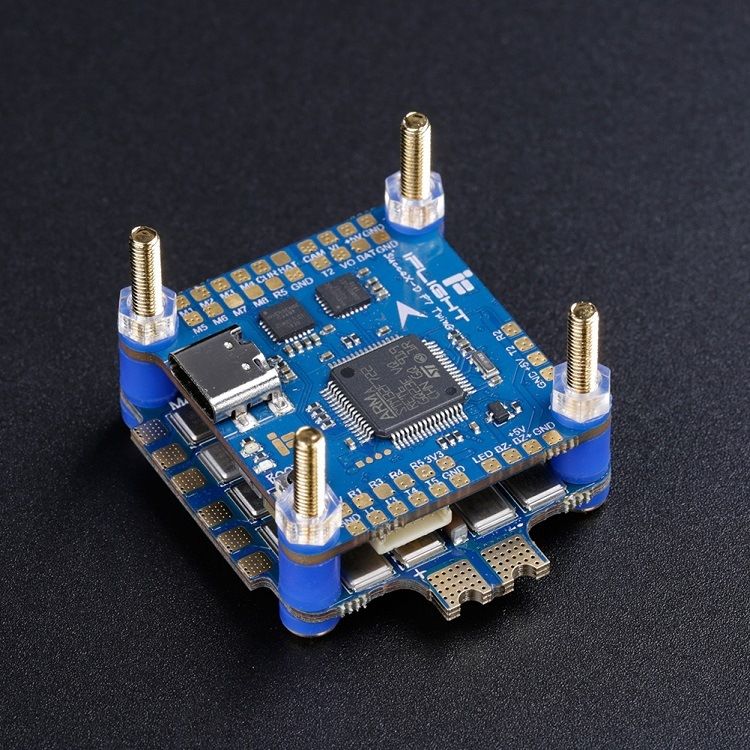

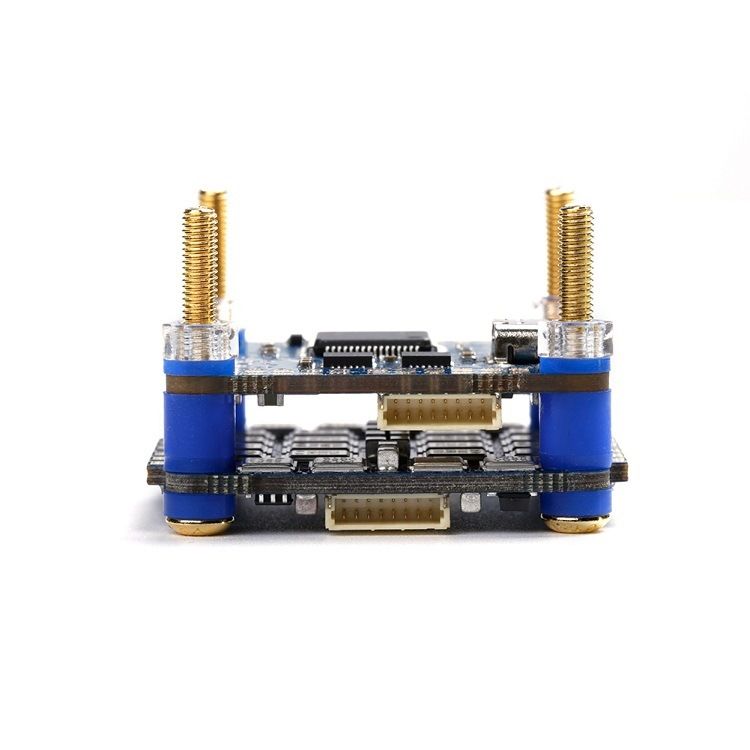

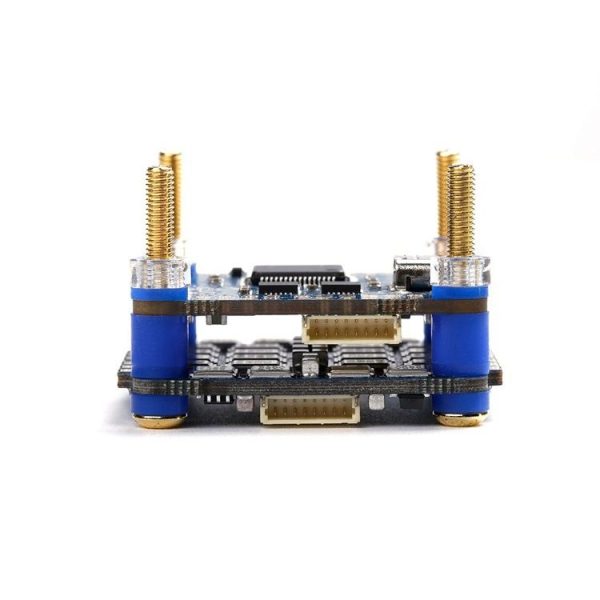

IFlight SucceX-D F7 TwinG V2.1 50A 2-6S Fly Tower


R1859

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1.FC
– MCU: 216MHz STM32F722
– Gyro: 2x ICM20689
– Baro: YES
– Blackbox: 32MB
– Betaflight OSD: YES
– BEC: 5V 2.5A / 9V 2.5A
– Current sensor scale: 100
– Inverter for SBUS input (UART2-RX)
– Smartaudio & Tramp VTX protocol supported
– Beeper pad: Yes
– RSSI input pad: No
– UARTs: 5
– Motor outputs: 8
– 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
– 6 pin port (R1, GND, R2, T2, GND, 9V)
– BLHeli32 Telemetry: RX5
– Input voltage: recommended 2-6S, MAX 8S
– Target: IFLIGHT_F722_TWING
– Mounting distance: 30.5 x 30.5mm
– Dimensions: 36 x 36mm
– Weight: 7.5g
– USB type-C
2. ESC
– 8 layers single-board stacking PCB board
– 4oz 1.6mm thick power board
– 32bit FO51K86 MCU, 48kHz maximum clock speed
– TDK MLCC Low ESR ceramic capacitors
– Top grade NTMFS5C430NL MOSFET
– MCU: STM32F051
– Up tp 48kHz PWM frequency
– Capacitance: 470uF/50V
– Current Sensor: Yes
– Input: 2-6S LIPO
– Constant: 50A / Burst: 60A
– BlHeli32 telemetry: Yes
– BEC: No
– Supports up to Dshot1200, Proshot, Oneshot, Multishot
– Target: iFlight-BL32-4IN1
– Weight:14.4g
– Mounting distance: 30.5 x 30.5mm
– Dimensions: 43 x 39mm

Additional Information

Weight & Size

Weight: 0.054kg
Size: 10cm x 5cm x 5cm

SKU: A0100132305 Category: Tag: Condition: New
