Overview
Brand Name:White Dolphin
Model Number:Vacuum Sealer Machine
Certification:RoHS,UR,UL,CE
With Vacuum Bag:Yes
Sealing Length:30cm
Power Source:Electric
Function:Vacuum Sealer
Specification:
Rated voltage: 110V/220V AC
Rated frequency: 220V/50Hz, 110V/60 Hz
Rated power: 80W
Vacuum Pressure: -60 kPa

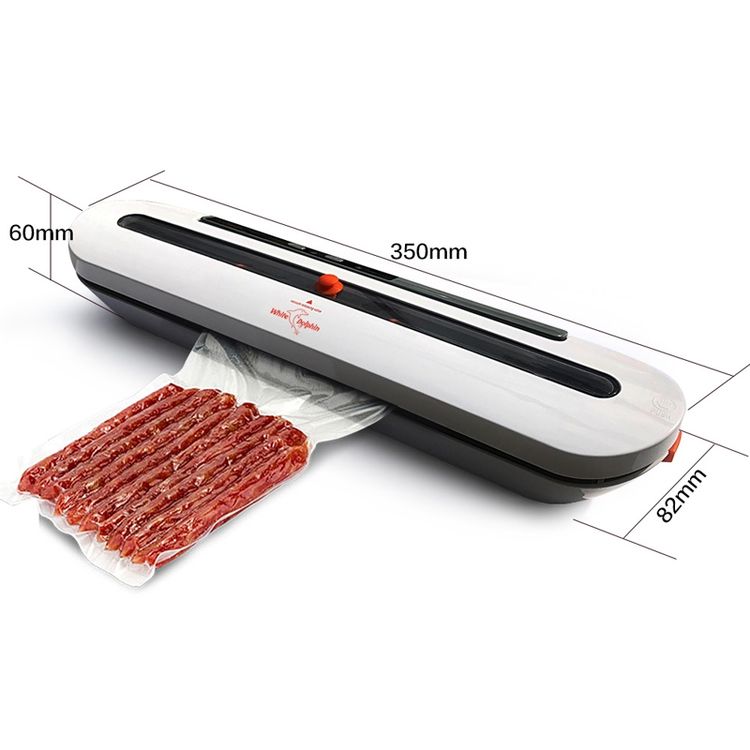

Dimension: 350x82x60mm
Weight: 570g(exclude power code)
Sealing length: 290mm
Package:
1 x Food Vacuum Sealer
10 x Bags ( Size: 5pcs 12cmx20cm, 5pcs 20cmx25cm )

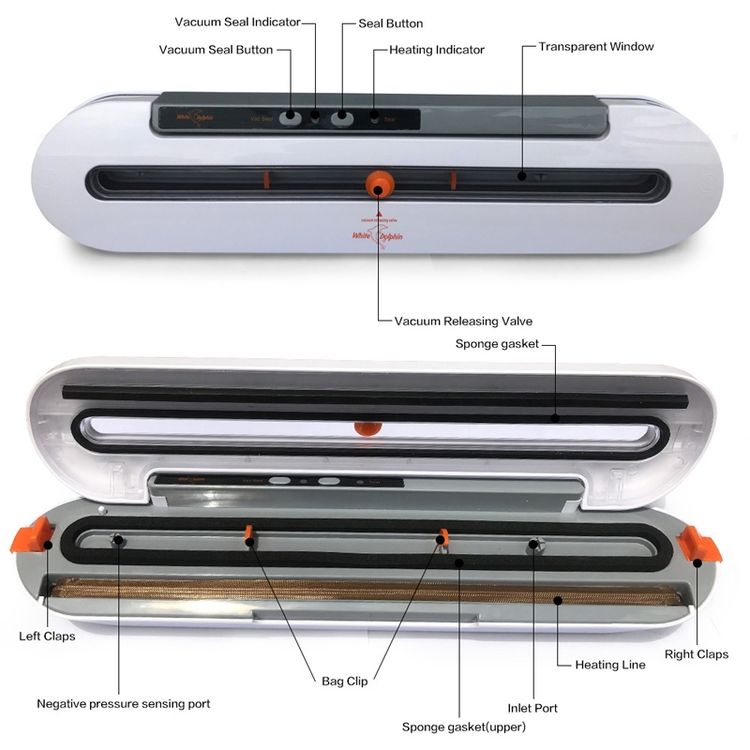

Function:
1. Vacuum Seal Button: for vacuum sealing and vacuum the canister
2. Vacuum Seal Indicator: when vacuum food saver bags
3. Seal Button: for sealing the food saver bags
4. Heating Indicator: light when sealing
5. Vacuum Releasing Valve: release the air open the machine after work
6. Transparent Window: observe if there is leak out of the food
7. Left Claps: lock the machine, press inward to open machine
8. Right Claps: lock the machine,press inward to open machine
9. Bag Clip: fix bags
10. Inlet Port:connect vacuum hose
11. Heating Line: for sealing
12. Sponge gasket(upper): closed the machine, could take out to clean
ATTENTION:
1. The package is not including connecting tube and wine bottle stopper.
2. Please kindly check and choose the right volts and plug for your country before order.
3. The machine should used with special bags when vacuum sealing, normal bags just could be sealed but not vacuumed.
4. To avoid the water come into the machine and hurt it, please don’t use the machine for liquid and food full of moisture, remove the moisture before vacuum sealing.

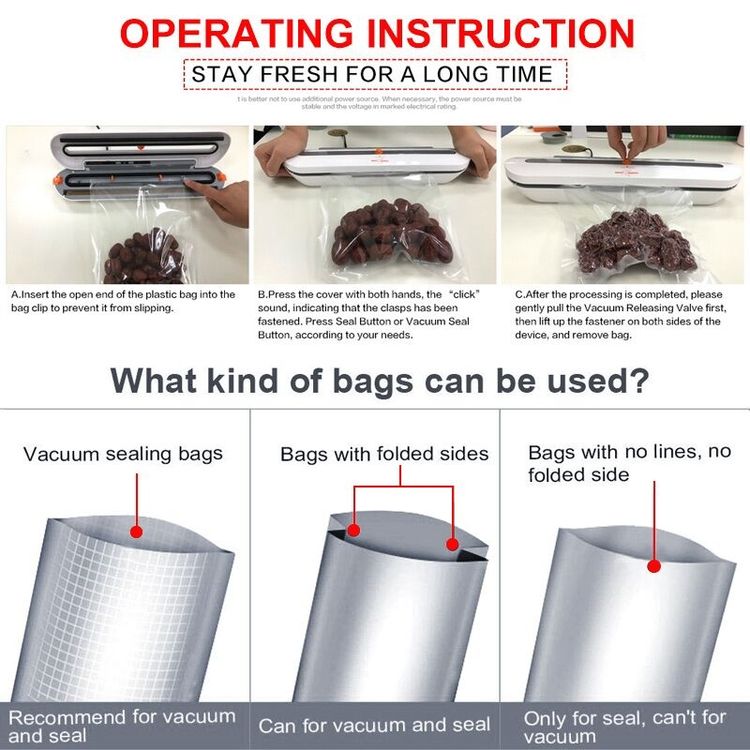

Operation Instruction
A. Insert the open end of the plastic bag into the bag clip to prevent it from slipping.
B. Press the cover with both hands, the “click”sound, indicating that the clasps has been fastened. Press Seal Button or Vacuum Seal Button, according to your needs.
C. After the processing is completed, please gently pull the Vacuum Releasing Valve first, then lift up the fastener on both sides of the device, and remove bag.
You can press any button to stop the device from working.
Important: When the machine not in use, please do not close the appliance.
Otherwise the sponge may be distorted which will affect the air extracting results.
Additional Information
Weight: 0.884kg
Size: 38cm x 11cm x 10cm
