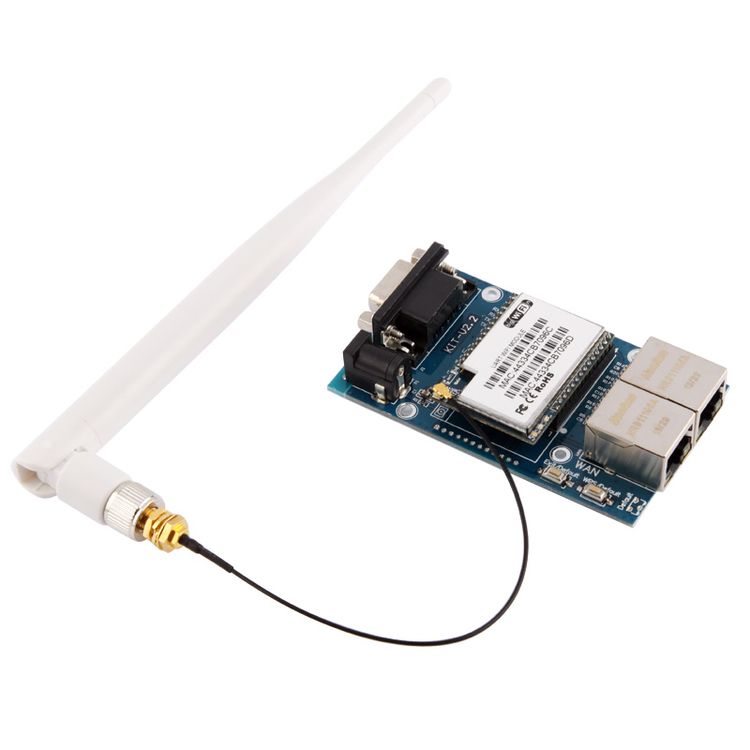

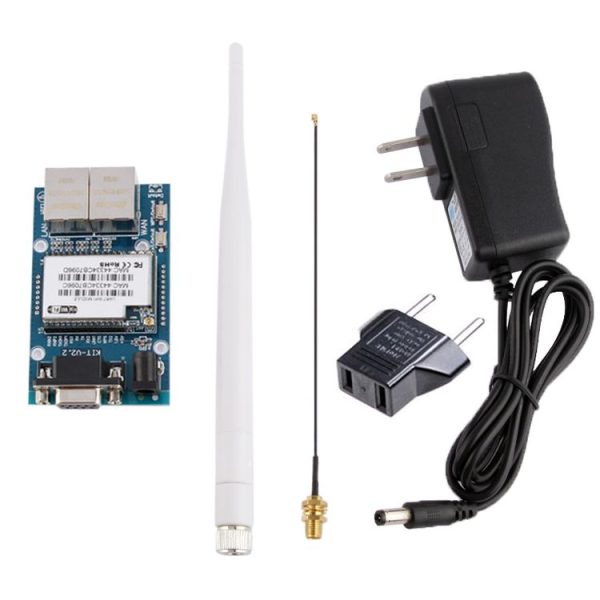

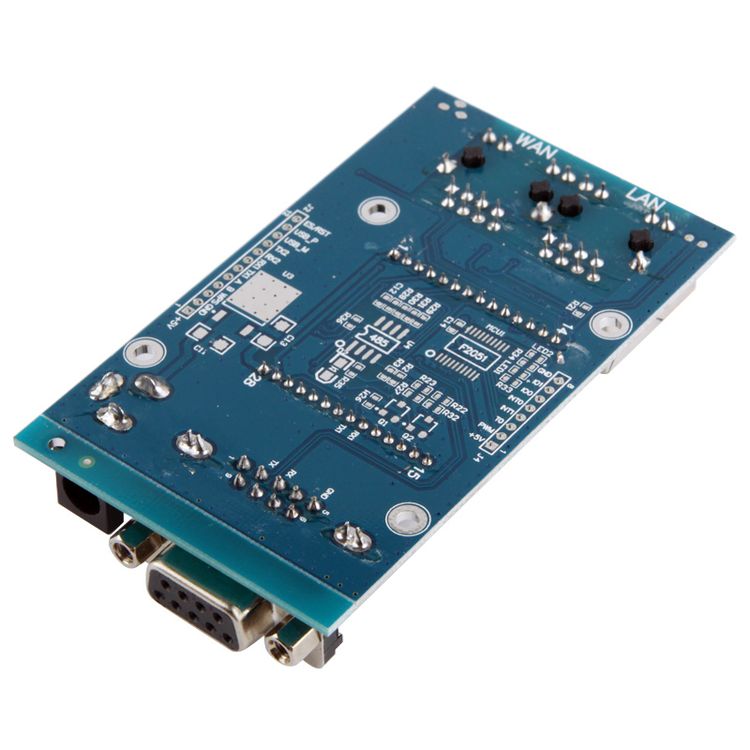

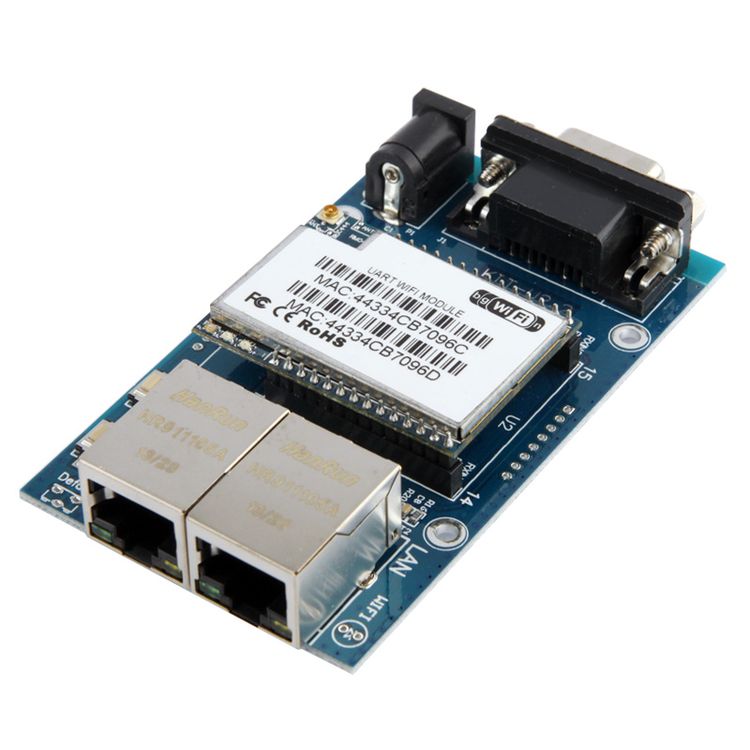

HLK-RM04 Embedded UART-ETH-WiFi Router Development Kit with Antenna


R638

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Serial to WIFI, Ethernet, Ethernet to Wifi multifunction Wifi module, transparent dual-way data transmission
2) Integrated 10/100M ethernet port, Max. baud ratio up to 230.4kbps
3) Adopts Ralink program, high quality material
4) Reliable system core suit safety and long-run system application
5) Working temperature: industrial class -25~75°C
6) Built-in 360M MIPS CUP, 16M RAM, 4M FLASH, wireless base band, RF front-end and multi peripheral bus
7) Support IEEE 802.11 b/g/n, transparent protocol data transmission mode
8) Support WIFI encryption and algorithm, WEP / WAP-PSK / WAP2-PSK / WAPI,encryption type WEP64 / WEP128 / TKIP / AES
9) Offer AT+ instruction set, offer friendly web configuration page
10) Built-in antenna or external antenna
11) Support AP and Station mode, AP support iPhone and android connect with WIFI, support AT, Station online simultaneously
12) TCP server/TCP Client/UDP work mode, support network protocol: TCP / UDP / ARP / ICMP / HTTP / DNS / DHCP
13) Support DHCP auto gain IP, support IP distribution at AP Mode
14) Serial speed ratio adjustable up to 320400
15) Offer technical support
16) Size: 8.5cm x 5cm x 1.5cm

Additional Information

Weight & Size

Weight: 0.200kg
Size: 16cm x 11cm x 3cm

SKU: A0100096056 Category: Condition: NewOrigin: CN
