Overview

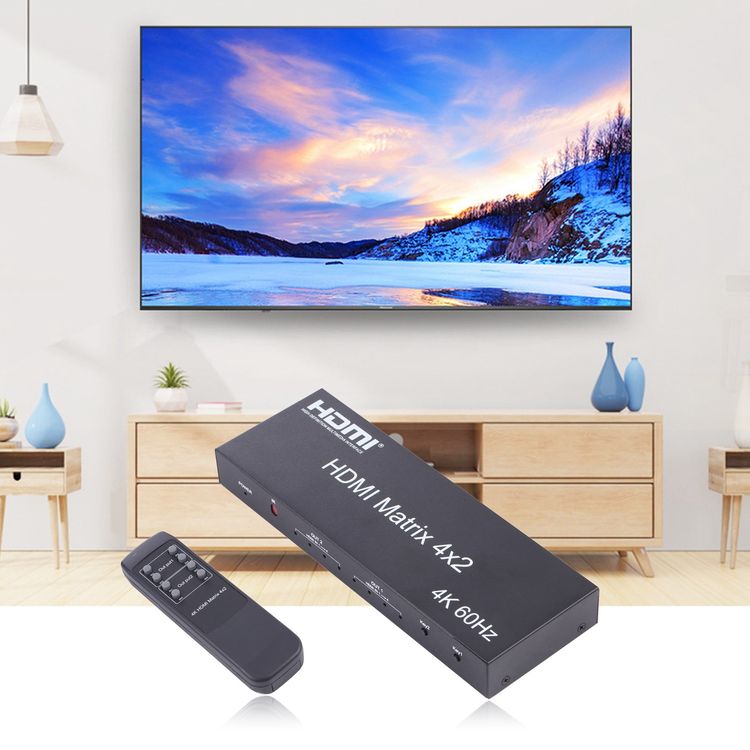

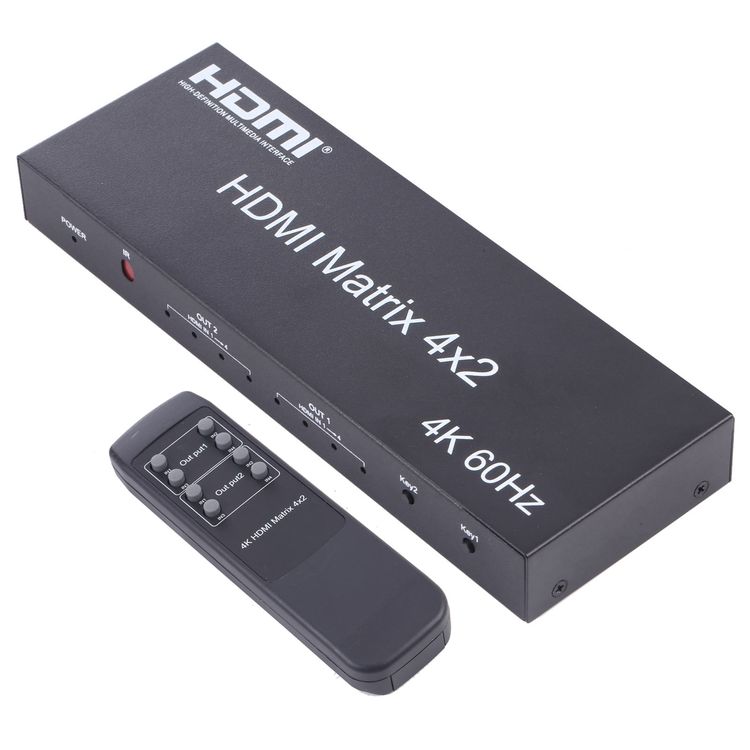

The HDMI 2.0 matrix 4×2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
1. Support 3D video format
2. Support for 4K (input) resolution 2K (output)(Down scaler)

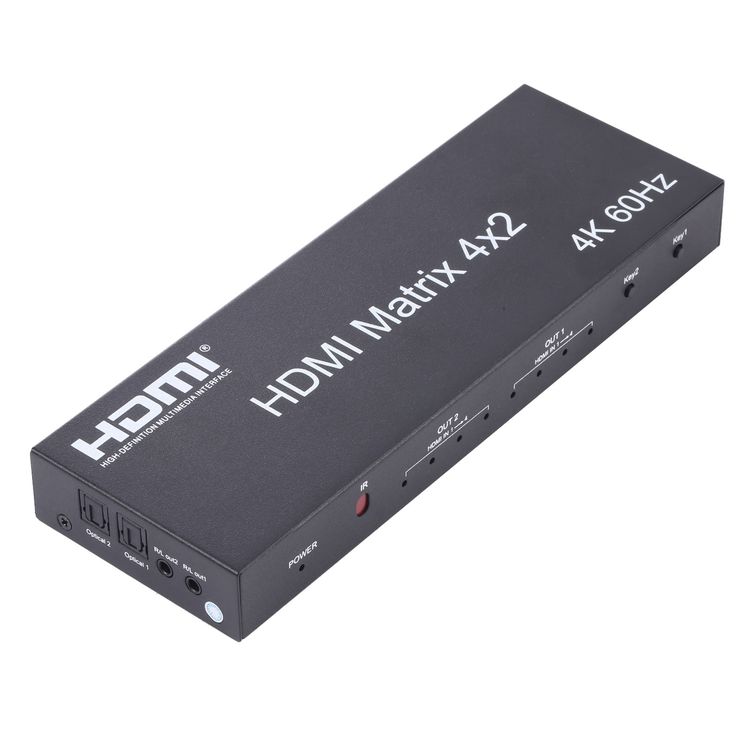

3. Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
4. 4 HDMI inputs switch and split to 2 HDMI displays.
5. Support LPCM/Dolby/DTS 5.1 channel.
Specification:
1. HDMI version: HDMI 2.0
2. HDMI resolution: up to 3840*2160/60Hz
3. Support video format: 8/10/12 bit deep color
4. Support audio format: LPCM/DTS/Dolby-AC3
5. Band width: 600MHz
6. Baud rate: 3x6Gbps
7. Input cable distance:
– 4K/30Hz less than or equal to 15M AWG26 HDMI standard cable
– 4K/60Hz less than or equal to 5M HDMI 2.0 standard cable
8. Output cable distance:
– 4K/30Hz less than or equal to 15M AWG26 HDMI standard cable
– 4K/60Hz less than or equal to 5M HDMI 2.0 standard cable
9. Working current: 600mA
10. Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
11. Operating Temperature range: (-15 to +45 degree C)
12. Operating Humidity range: 5 to 90%RH (No Condensation)
13. Dimension (LxWxH): 198 x 70 x 24(mm)
14. Housing Material: Metal
15. Weight: 300g
Additional Information
Types: HDMI Switch, Splitter
Material: Metal

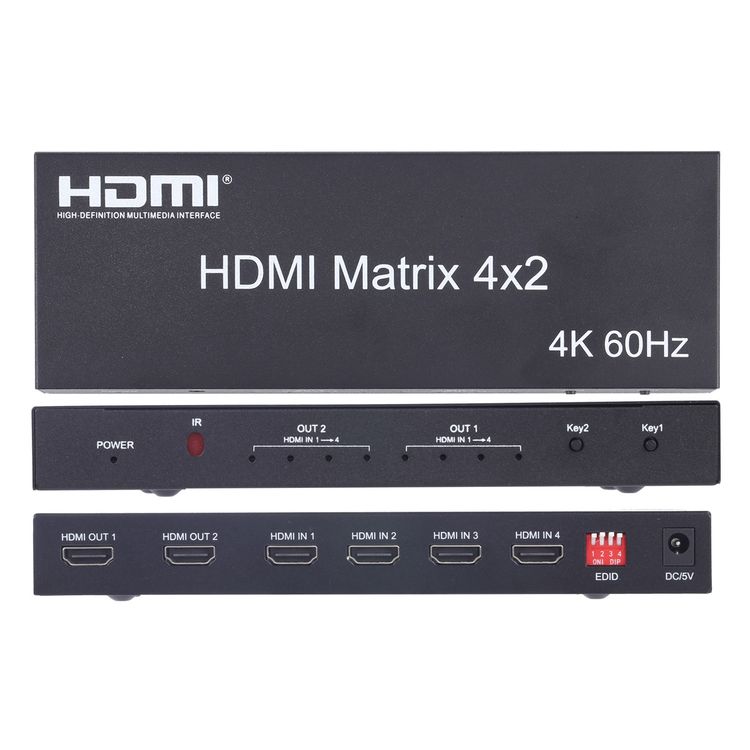

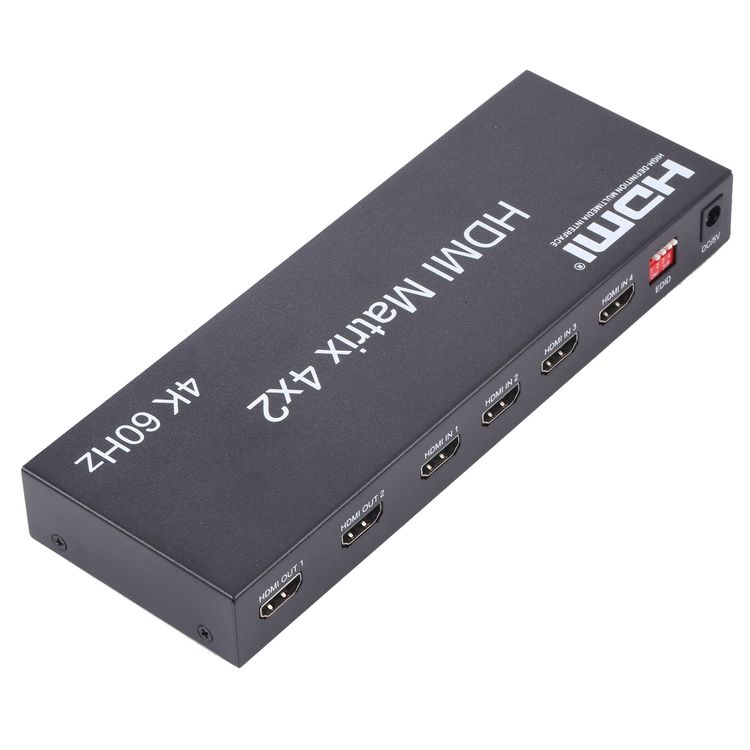

Input Port: 4*HDMI
Output Port: 2*HDMI
HDMI Resolution: 4096*2160@30Hz
HDMI Version: V1.4b
Power Supply: DC 5.0V / 2.0A
Transmission Rate: 3.2Gbps
HDMI Bandwidth: 320MHz
HDMI Audio Format: DTS-HD, Dolby-TrueHD, DTS, Dolby-AC3, DSD
Input Cable Distance: Less than 12-15m
Output Cable Distance: Less than 15-25m
Working Current: 1000mAh
Operating Temperature: -15-55 Degree Celsius
Operating Humidity: 5 ~ 90 Percent RH (No condensing)
ESD Protection Human Body Model: +-8kV (air-gap discharge), +-4kV (contact discharge)
Size: 18*7.1*2.1cm
Weight: 320g

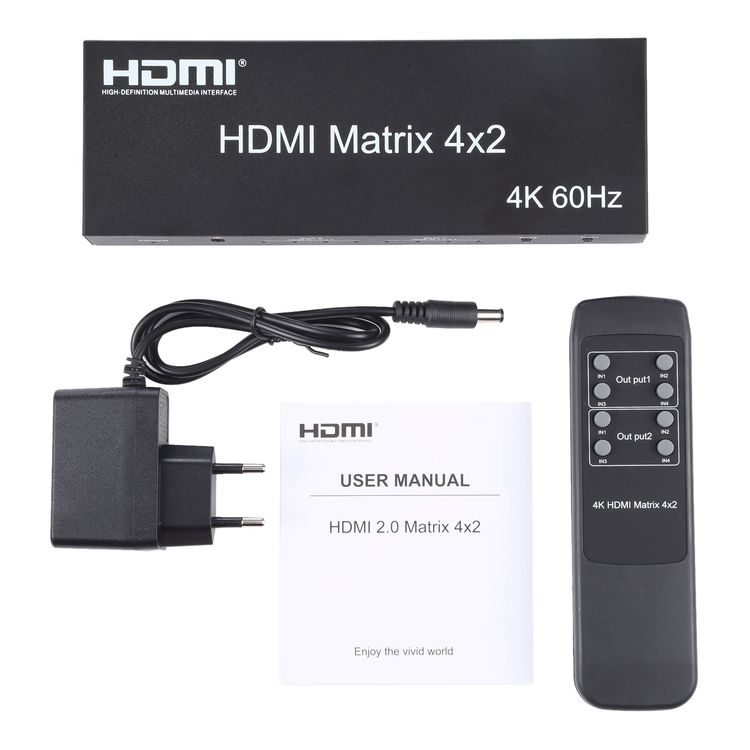

Package Contents: 1 x Power Adapter, 1 x User Manual, 1 x Remote Control, 1 x HDMI Splitter, 1 x Mounting Accessories Set
Weight: 0.582kg
Size: 22cm x 17cm x 5cm
