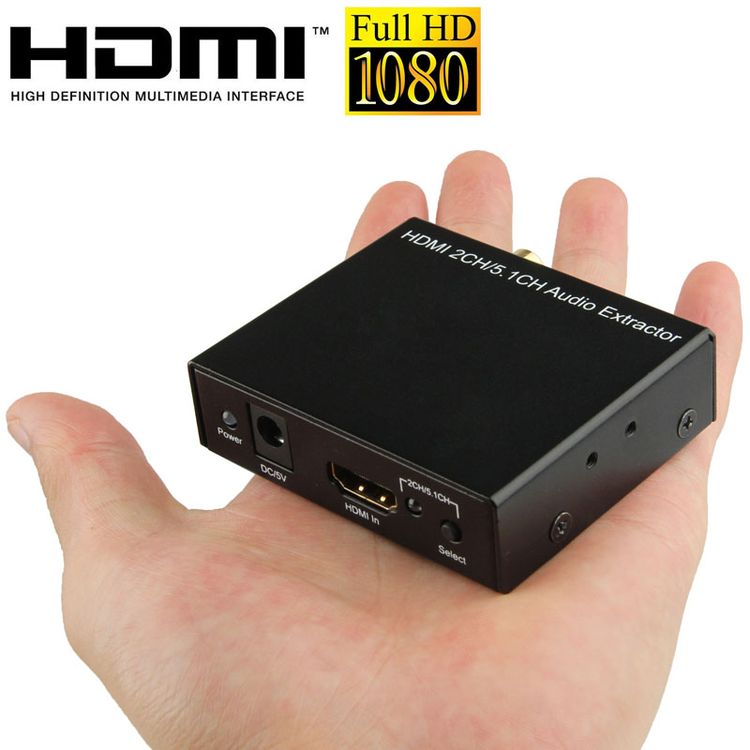

HDMI 2CH / 5.1CH Audio Extractor Splitter Fiber / Coaxial Digital Stereo Spdif Out, Model: PN3019


R909

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

It is known that the most benefit of the HDMI is to integrate the audio and video signals together. This integration makes all of us enjoy the high quality of the audio and video effect. However, the bad effect of the HDTV audio deprives the basic right of the enthusiasts, with this item, it can not only meet the ideal image of the HDTV but also meet the enthusiasts’ requirement for audio. It can extract the audio signal from the HDMI interface, then transmit audio to the Amplifier Receiver by SPDIF or Stereo.
Feature:
1) Supports audio output simultaneously: SPDIF and Stereo.
2) Supports 2.0CH/5.1CH audio switch.
3) Supports HDCP, the highest video resolution up to 1080p.
4) Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
5) Supports 12bit per channel (36bit all channel) deep color.
6) Supports uncompressed audio such as LPCM.
7) Supports compressed audio such as DTS Digital, Dolby Digital.
8) Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 2 25MHz.
Specification:

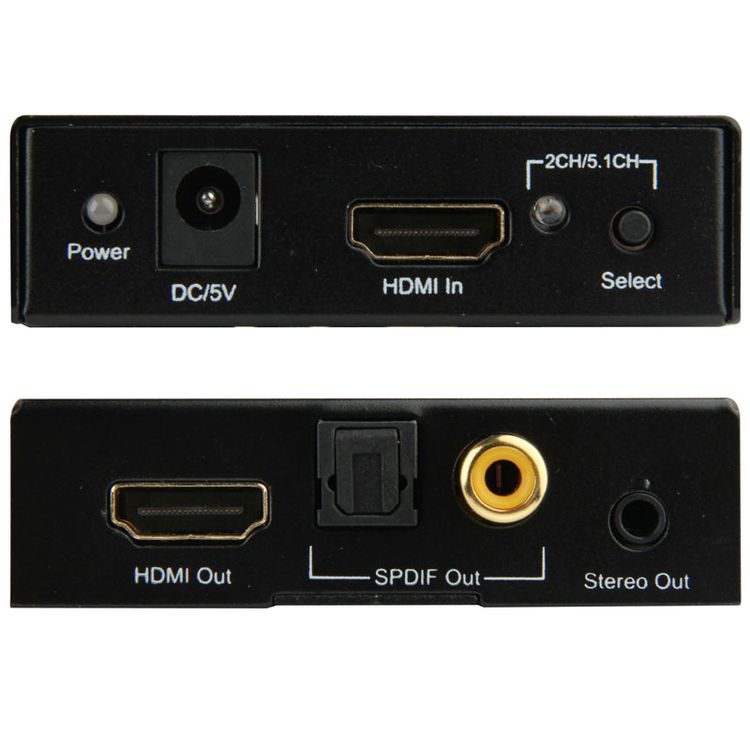

1) Inputs/Output Connector:

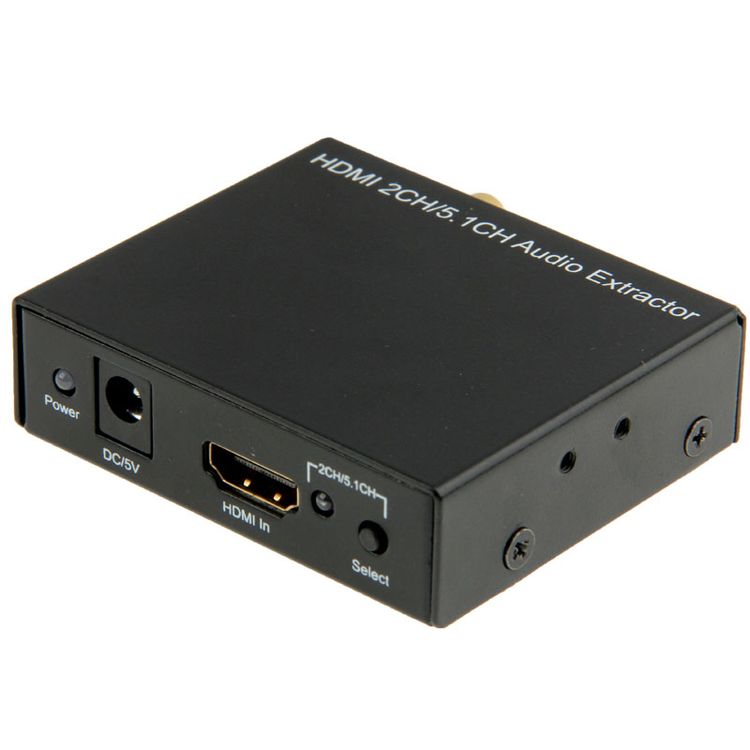

– Input Connector: HDMI Female

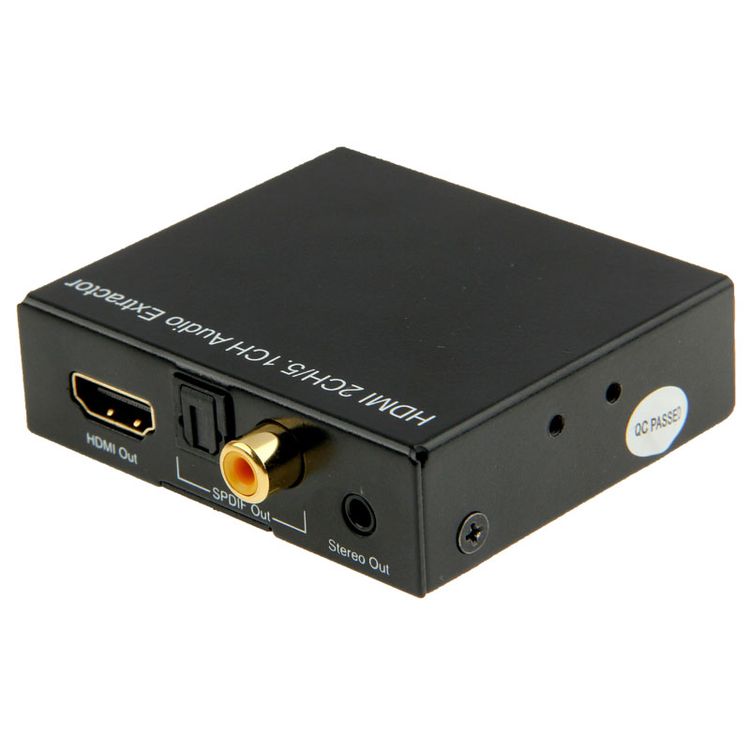

– Output Connector: HDMI Female, Toslink, Coaxial, 3.5mm Stereo
2) Operating Frequency:
– Vertical Frequency Range: 50/60Hz
– Video Amplifier Bandwidth: 2.25Gbps/225MHz
3) Resolutions(HDTV):
– Interlaced(50&60Hz): 480i,576i,1080i
– Progressive(50&60Hz): 480p,576p,720p,1080p
4) Warranty:
– Limited Warranty: 1 Year Parts and Labor
5) Environmental:
– Operating Temperature: 0℃ to +70℃
– Operating Humidity: 10% to 80 % RH (no condensation)
– Storage Temperature: -10℃ to +80℃
– Storage Humidity: 5% to 90 % RH (no condensation)
6) Power Requirement:
– External Power Supply: 5V DC @2A
– Power Consumption (max): 2.5W
7) Regulatory Approvals
– Converter Unit: FCC,CE,UL
– Power Supply: UL,CE,FCC

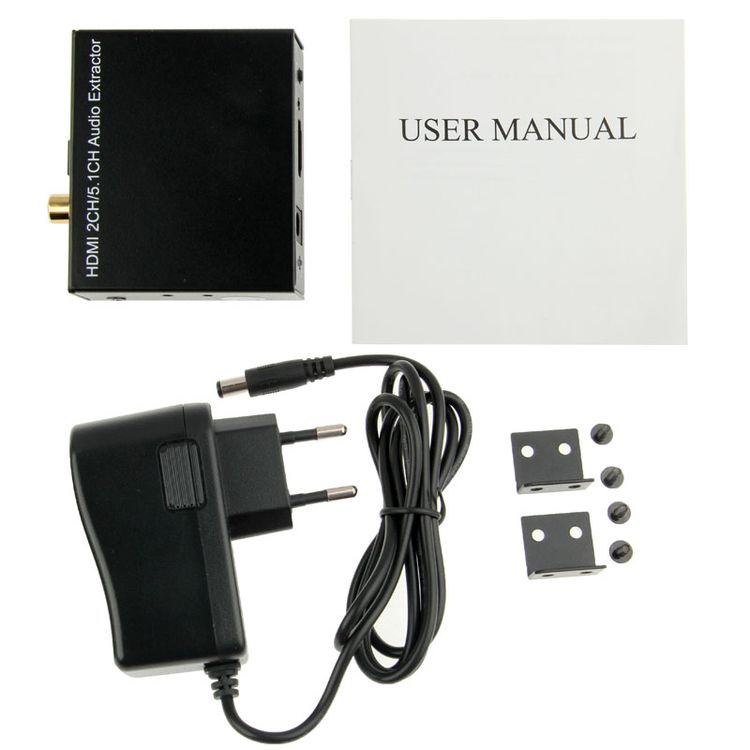

8) Accessories Adapter:
– AC Power Adapter: EU
– User Manual: in English

Additional Information

Weight & Size

Weight: 0.435kg
Size: 17cm x 12cm x 6cm

SKU: B0100041824 Category: Condition: NewOrigin: CN
