Overview
Introduction:

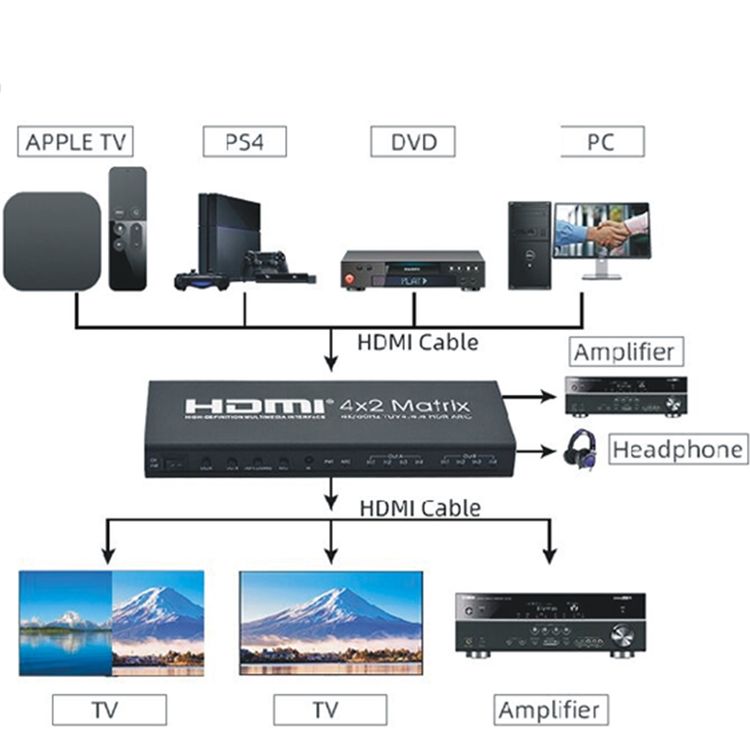

This 4X2 HDMI matrix can switch the input of four high-definition signal sources into two HDMI outputs, you can switch the two output interfaces to display different pictures, or you can display the same picture. Support one HDMI pure audio output, at the same time can support optical fiber, stereo headphone output (audio output can be switched between Out A or Out B). It can easily switch or distribute four HD signals on two HD signal compatible monitors or projectors. Our equipment provides solution control for noise, space and security issues, data centers, and is widely used in information distribution, conference room presentations, exhibition halls, schools and corporate training environments.
Features:
1. Support HDMI 2.0b.
2. Support HDR,ARC.
3. Support 3D video format.
4. Support highest resolution up to 4K/60Hz,YUV4:4:4.
5. Supports 600MHz/6Gbps per channel (18Gbps all channels) bandwidth.
6. Support deep color 8/10/12 bit.
7. Support 3.5mm stereo audio output and optical output.
8. Support four HDMI input to be switched or split to two HDMI output.
9. Support 1 HDMI pure audio output
10. Support selection of Out A or Out B audio separation channel via remote control.
11. Support DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD.
12. Support 5V-12V wide voltage input.
Specifications:
HDMI version.HDMI 2.0b
HDMI resolution.Up to 4K/60Hz
Support video format.8/10/12 bit deep color
Support audio format.DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth.600MHz
Max baud rate.6Gbps
Input cable distance.(4K/30Hz resolution)≤15m,(4K/60Hz resolution)≤5m AWG24 HDMI standard cable
Output cable distance.(4K/30Hz resolution)≤15m,(4K/60Hz resolution) ≤5m AWG24 HDMI standard cable
HDMI Input.4
HDMI Output.3
Max working current.700mA
Power adapter format.Input:AC (50HZ,60HZ) 100V-240V;Output: DC5V/1A
Operating temperature range.(-15 to +55℃)
Operating humidity range.5 to 90% RH (No Condensation)
Additional Information
Weight: 0.562kg
Size: 24cm x 17cm x 5cm
