Overview
Description:

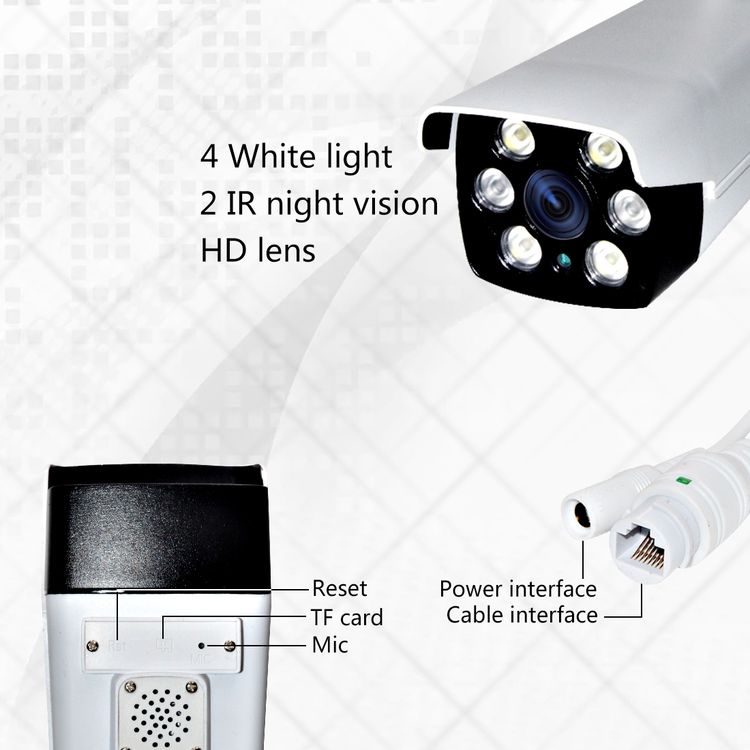

1. Dual light mode: 2 PCS infrared light and 4 PCS LED. As for the 4 PCS LED, you can select different working modes in the application on the mobile phone. When the motion detection alarm is activated, the 4 PCS LED will automatically turn on when it detects motion in the dark; in addition, in the night, the LED is still Can play a role in lighting, 24-hour monitoring.

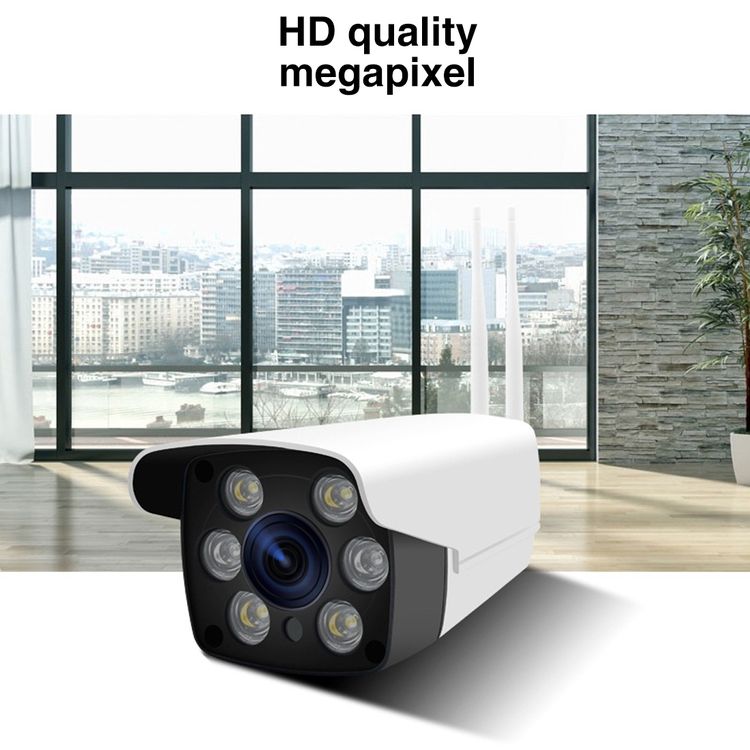

2. HD 1080p video. Provide high definition image quality.
3. Motion detection function. When the camera detects something moving, it pushes the notification to your mobile app.
4. With 2 PCS infrared lamps and 4 PCS LEDs, you can get clear images at night, with a night vision distance of up to 30 meters. Infrared dual filter. Automatically switch between day and night to restore clear, true colors.
5. P2P cloud function, point-to-point connection, no port mapping required. For Android/IOS mobile devices, you can view them remotely anytime, anywhere. IP 66 waterproof, can be used indoors and outdoors.
Specification:
1. Resolution: 1280×720, 1280×960, 1280×1080
2. Lens pixel: 100W, 200W
3. Lens: 3.6mm
4. PTZ adjustment angle: Electronic pan/tilt-level: 0 degree ~360 degree, vertical: -90 degree ~90 degree
5. Day and night conversion mode: IR-cut dual filter automatically switches
6. Minimum illumination: 0.1 Lux @(F2.0,AGC ON), 0 Lux with IR
7. Video compression standard: H.264
8. Video compression stream: High-definition (960P) smooth (VGA)
9. Audio source: Active microphone
10. Audio compression standard: G711A
11. Audio Compressed Stream: Code Stream Adaptive
12. Communication interface: 1 RJ45 10M/100M adaptive Ethernet port
13. Wireless Network Protocol: Wi-Fi (IEEE802.11b)
14. Storage function: Support Micro SD card (up to 128G)
15. Infrared lamp illumination distance: 5-10M (depending on the environment)
16. Power consumption: 3W (MAX)
17. Rated power supply: DC 12V
18. Working temperature: -10 degree Celsius -50 degree Celsius Temperature less than 95% (no condensation)
Additional Information
Model: WQ-007
Mount Types: Wall bracket
Allowable Voltage: DC 12V
Power Depletion: 3W
Performance: Motion detection
Memory: up to 128GB (not included)
Interface: RJ45, SD card slot
Network Interface: RJ45 (Base-10/100MB)
Wireless Distance: IEEE802.11b
Effective Pixel: 1280(H)×720(V) , 1280(H)×960(V)
Pixels: 1.0MP, 2.0MP
Lens: 3.6mm
Pan/Tilt-Horizontal Angle: 360 Degrees
Pan/Tilt-Vertical Angle: 90 degree
Minimum Illumination: 0.1LUX
Video Compression Format: H.264
Audio Compression Format: G711-A
Infrared Distance: 5~10m
Operate Temperature: -10 to 50 Degree Celsius
Working Humidity: Less than 95 percent
Weight: 0.720kg
Size: 23cm x 13cm x 13cm
