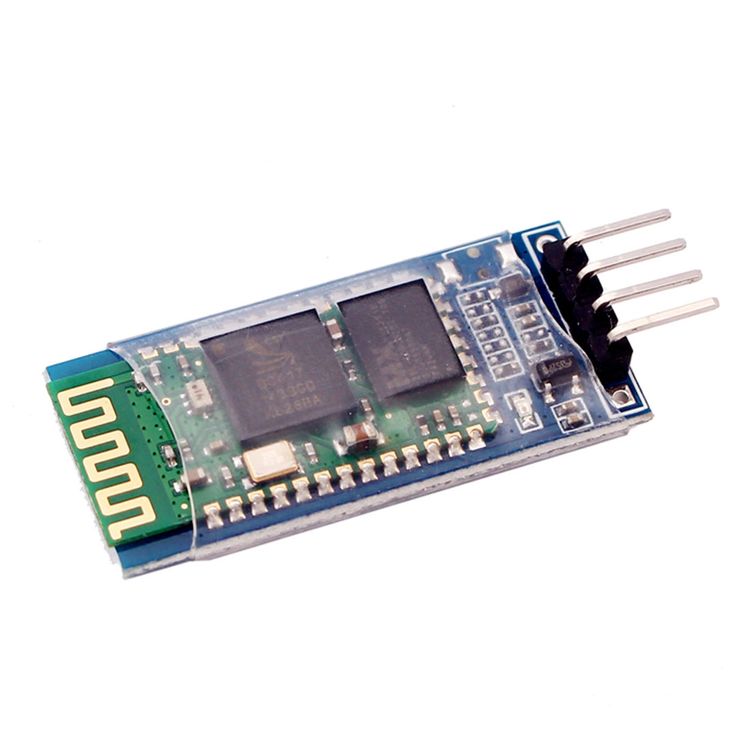

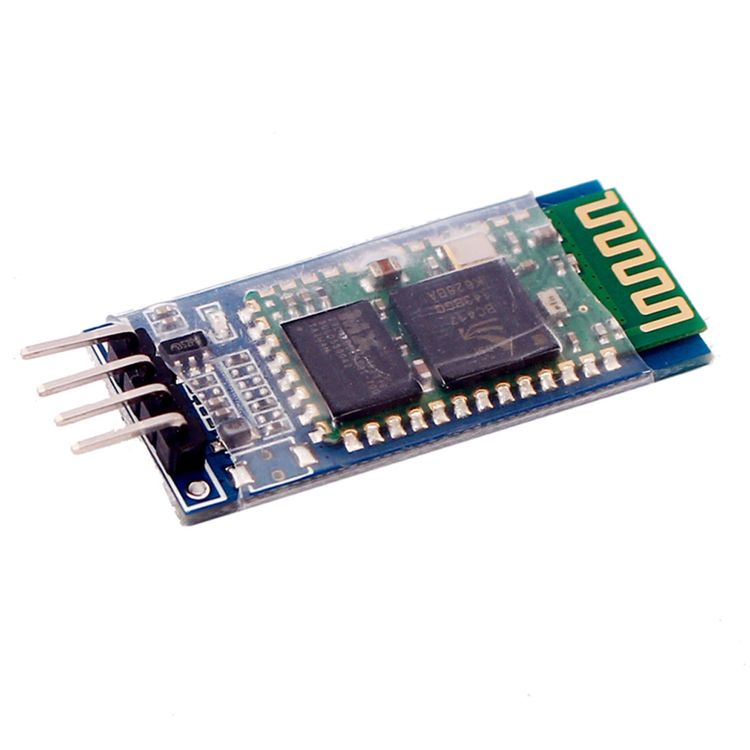

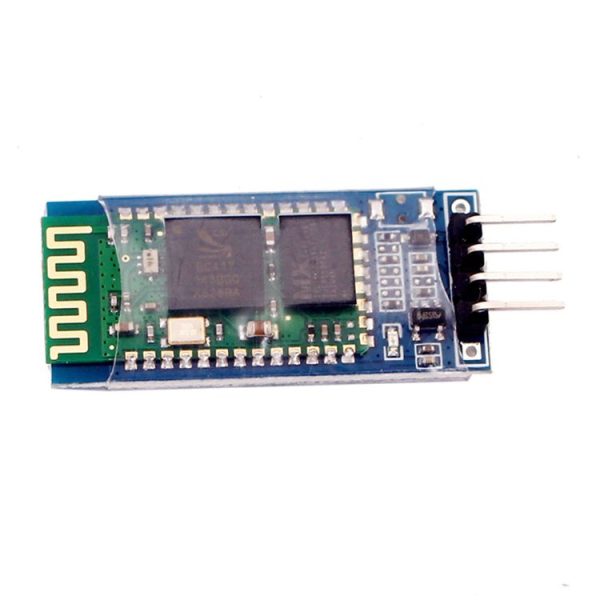

HC06 Slave Low Power Bluetooth Serial Port Module with Logic Level Translator


R307

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Main Features:
1. HC-06 slave module
2. Lead interface: VCC, GND, TXD,RXD, STATE, EN. EN can be disconnected from the module outwardly to reduce power consumption: <10uA current consumption; STATE is LED lead pin
3. LED: Bluetooth not paired when it flashes, paired when it is solid on; with inverse connection protection
4. Input voltage: 3.6 ~ 6V; 30mA when not paired, 10mA when paired
5. Input voltage should not be higher than 7V! 3V ~ 5V level change circuit to directly connect to all kinds of microcontroller (51, AVR, PIC, ARM, MSP430, etc)
6. Effective range: 10 meters in open field (Class 2 power)
7. Works as a full duplex serial port when paired and supports 1200bps ~ 1382400bps;
8. No Bluetooth protocol needed
9. Only supports 8 data bit, 1 stop bit communication. Baud rate setting, name, paring code can be set power down via AT command when Bluetooth is not working
10. Auto shift to unvarnished transmission mode when Bluetooth is paired
11. Compatible with PC, cell phone, PDA, PAS and other smart device with Bluetooth

Additional Information

General

Size: 7.0*4.0*2.0 cm
Weight: 95 g

Weight & Size

Weight: 0.103kg
Size: 7cm x 4cm x 2cm

SKU: A0100095903 Category: Condition: New
