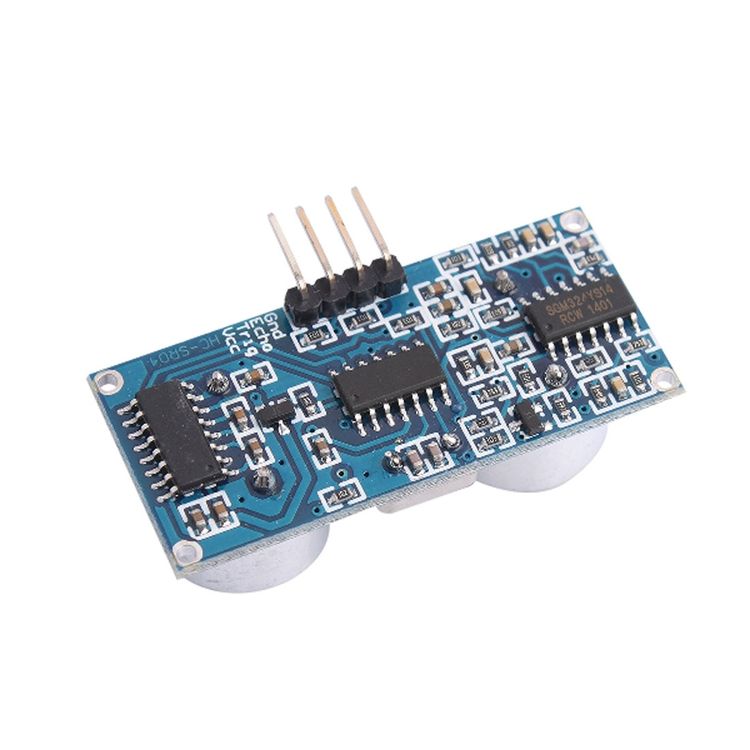

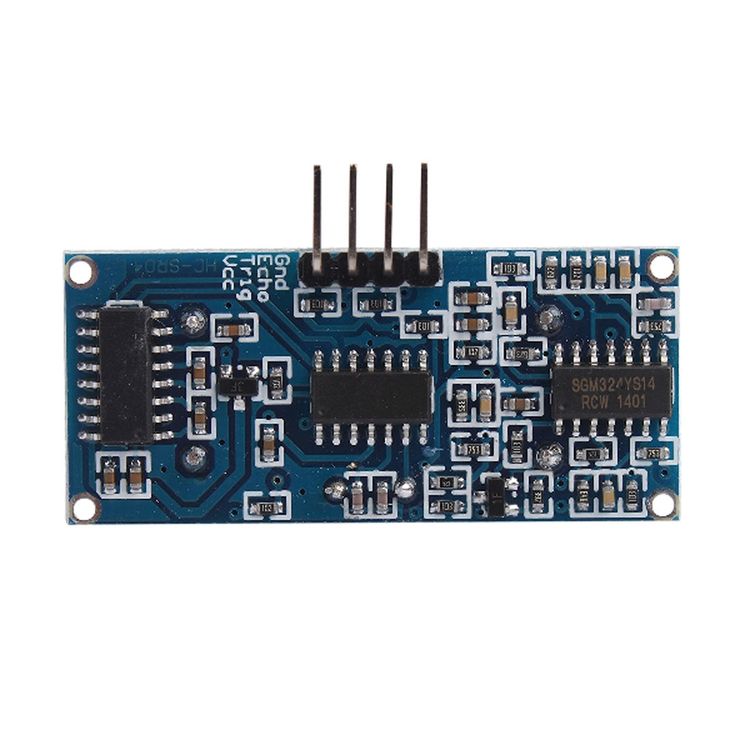

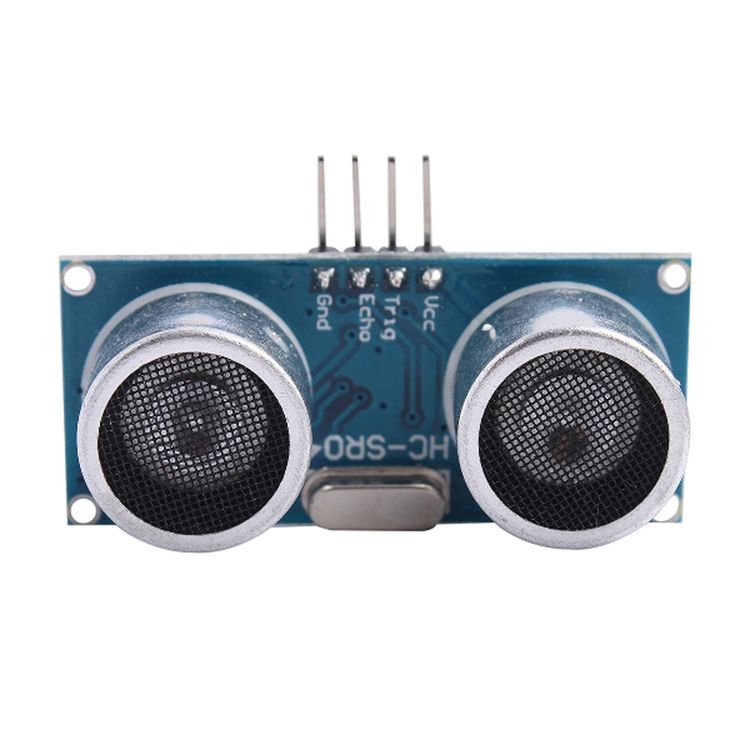

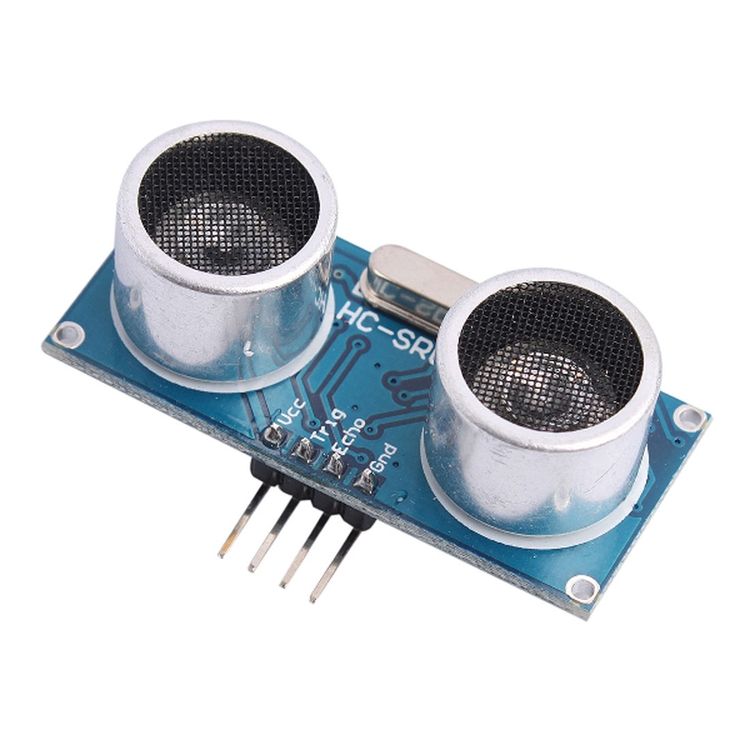

HC-SR04 Ultrasonic Sensor Distance Measuring Module for PICAXE Microcontroller Arduino UNO


R43

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Main Features:
1. Brand new Ultrasonic Sensor HC-SR04 Distance Measuring Module
2. Features 4-mode connections: VCC / trig (T) / echo(R) / GND
3. With electric frequency output signal from 0V to 5V
4. Has high precision up to 3mm
5. 5VDC power supply
6. Detecting distance is from 2cm to 450cm

Module Working Principle:
1. Adopt IO trigger through supplying at least 10us sequence of high level signal
2. The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal
3. If there is signal returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving

Additional Information

General

Model: HC-SR04
Types: Ultrasonic Distance measuring sensor module
Size: 6.0*4.0*3.0 cm
Weight: 70 g

Weight & Size

Weight: 0.078kg
Size: 6cm x 4cm x 3cm

SKU: A0100070593 Category: Condition: New
