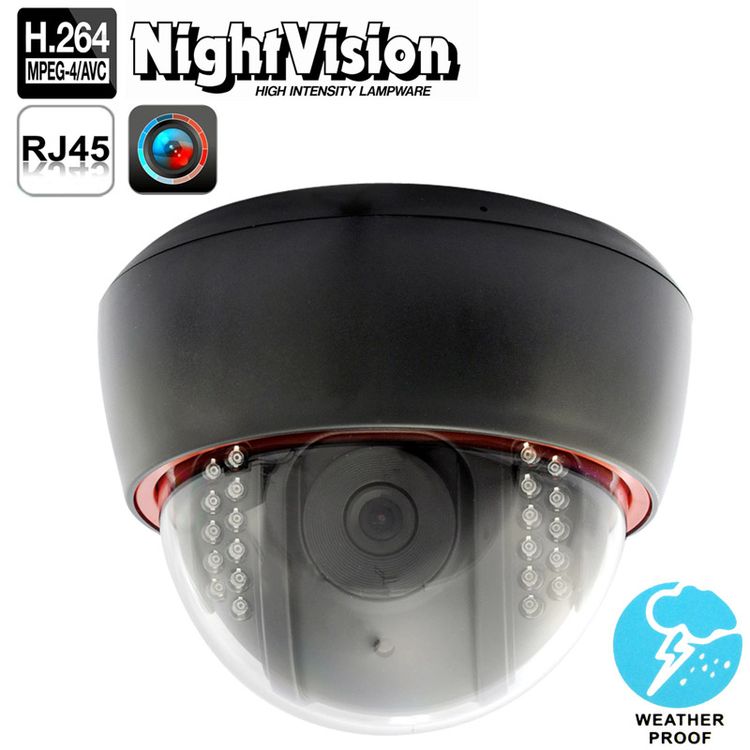

H.264 Wired Infrared Waterproof / Vandalproof IP Camera, 1 / 3 inch 4mm 1.3 Mega Pixels Fixed Lens, Motion Detection / Privacy Mask and 30m IR Night Vision, Support HD 720P (1280 x 720)


R1114

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) 1 / 3 inch 1.3 Megapixel CMOS Image sensor
2) Dual core TI Davinci 32 bits DSP.
3) Integrated 4 mm Megapixel lens.
4) Day and night application makes 30M IR view
5) H.264 video compression, support dual stream and AVI format.
6) 1.3 Megapixel 25FPS
7) Wide Dynamic, low illumination.
8) Offer open SDK
9) Onvif compliant
10) Remarks: 5 Mega Pixels=2592×1920; 3 Mega Pixels =2048×1536; 2 Mega Pixels =1920×1080 or 1600×1200; 1.3 Mega Pixels =1280×960; 1 Mega Pixels =1280×720
Specifications:
1) System Structure: Embedded LINUX RTOS, dual core 32 bits DSP (TI Davinci DM365); Pure hardware compression, watchdog, 32M Flash, 128M DDR2.
2) Image Sensor: 1/3 inch1.3 Megapixel CMOS Image sensors.
3) Lens: 4mm Mega pixels lens
4) Photo resistance Linkage: Support linkage between photo resistance input sign, image, IR-Cut and IR lamp. 1 photo resistance interface
5) Day & Night: IR cut filter with auto switch, IR sensor. 22pcs Φ5 LED IR
6) Video compression: H.264 compression, dual stream (0.1M-6Mpbs adjustable)
7) Frame Rate: 1.3 Megapixel 25FPS
8) Image Output: Main Stream: 1280×960,1024 × 768, 1280 × 720
9) Sub Stream: 960 x 540, 640 x 360, 480 x 272, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192

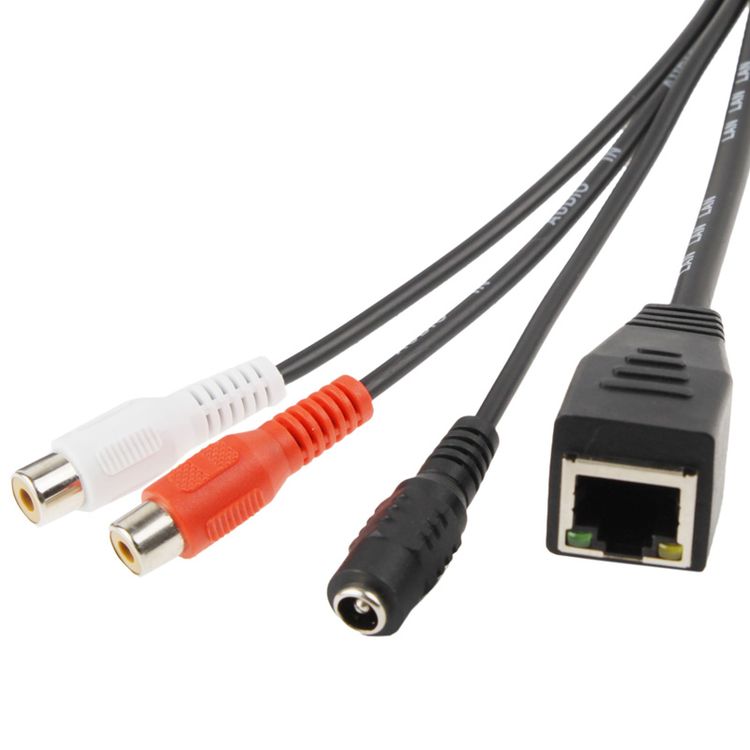

10) Network Interface: 1RJ45 Ethernet interface, 10/100M adaptation
11) Protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
12) Network Function: WEB Configure and OSD supported, real time recording, transmission and playback, download.
13) Free UC2 client software supported, VM6000 platform supported, SDK for customer software development
General Specifications
1) Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
2) Operating Humidity: 0% -85% RH
3) Power: DC12V 1.0A
4) Power Consumption: 3W (MAX)
5) Dimension: 150 mm (D) x 130 mm (H)
6) Weight: 520g
7) Certification: CE, FCC

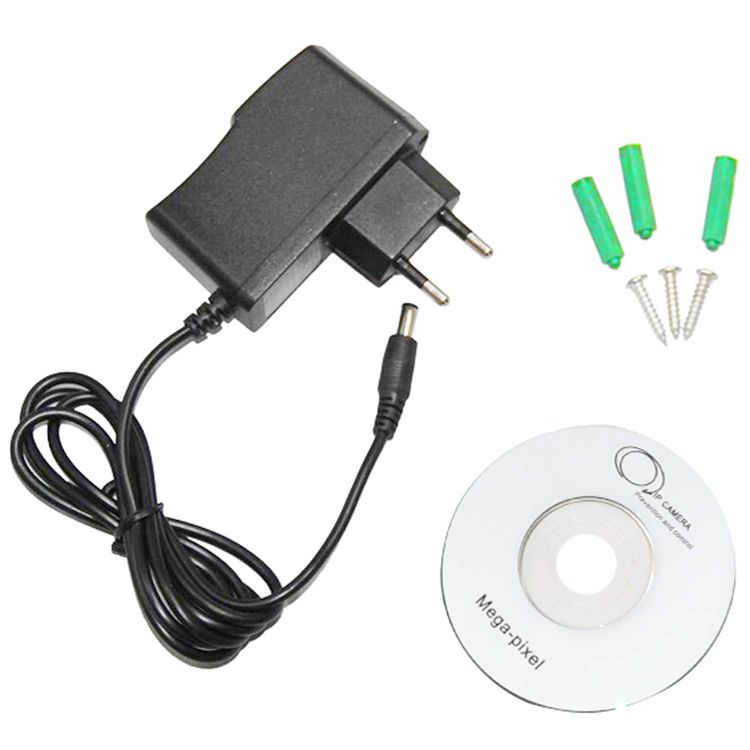

Package Contents
1) IP Camera
2) CD
3) Power Adapter
4) Screws

Additional Information

Weight & Size

Weight: 0.750kg
Size: 15cm x 15cm x 15cm

SKU: B0100022972 Category: Condition: New
