Overview

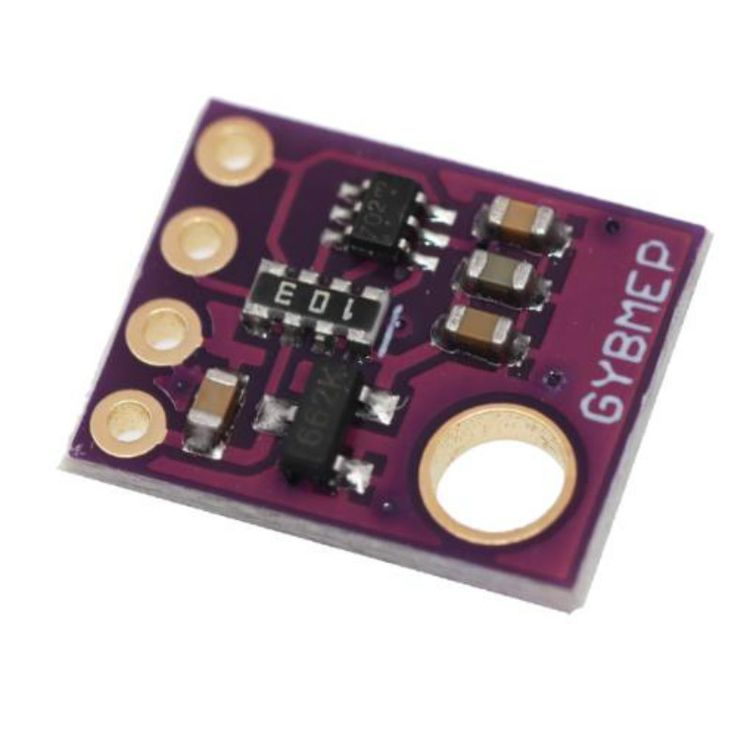

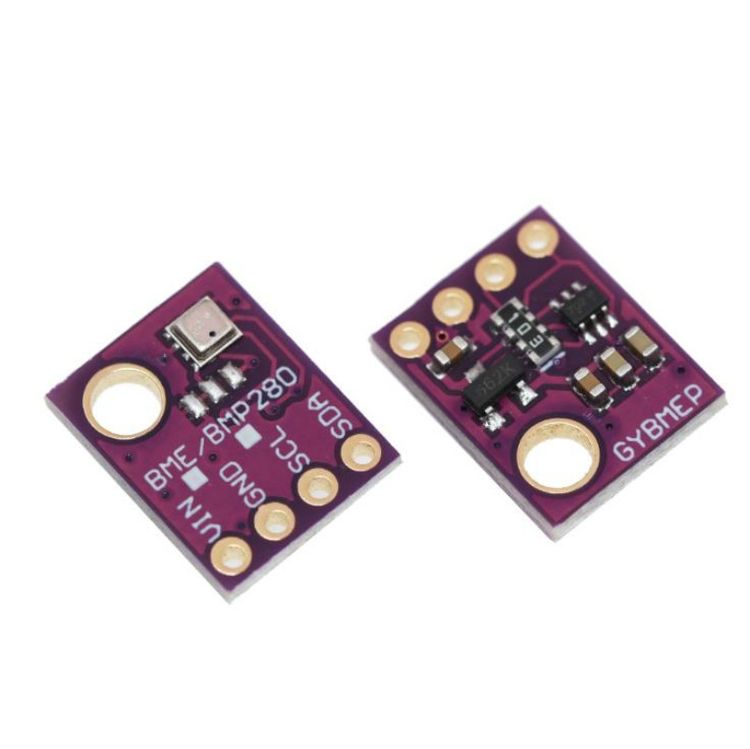

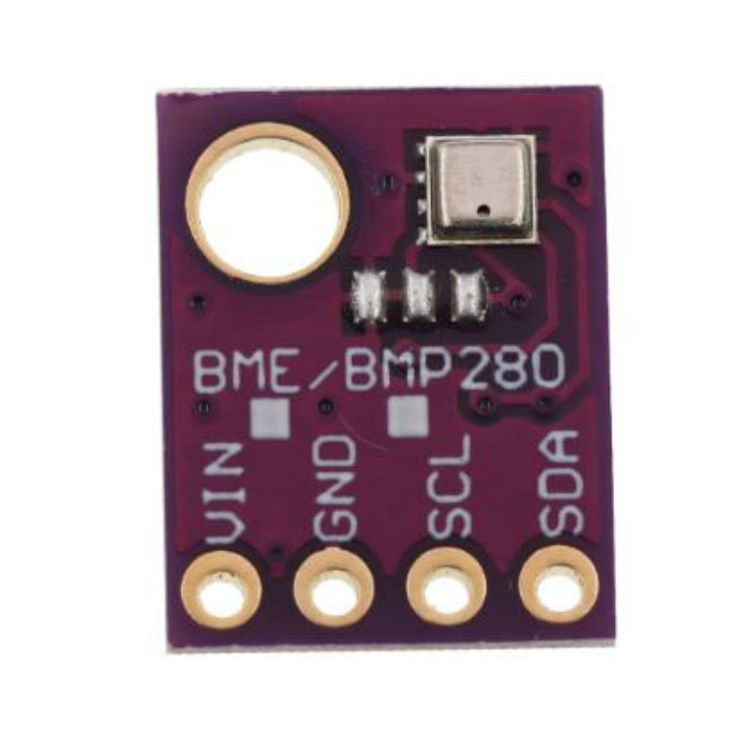

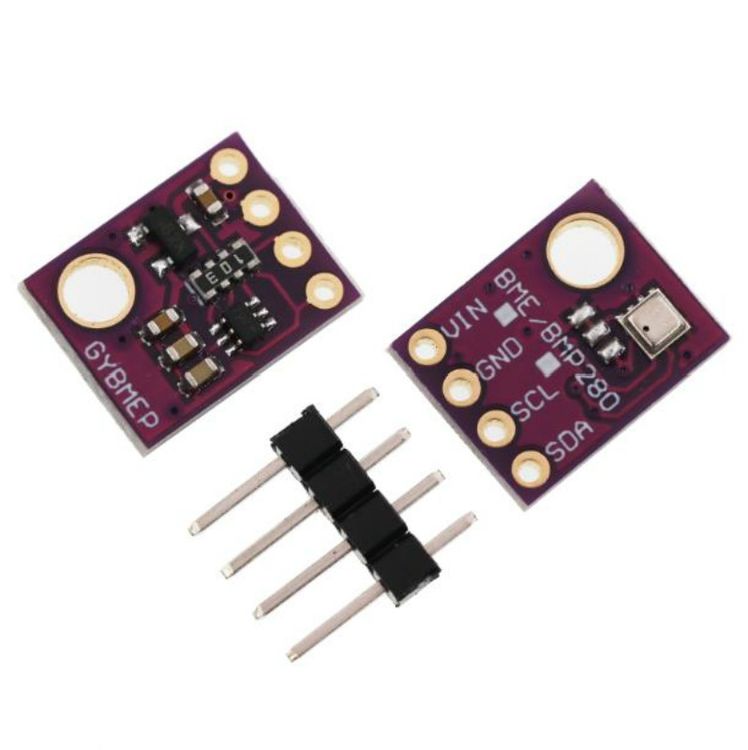

1. BME280, the precision sensor from, is soldered onto PCB.
2. Not only the pressure and the temperature, this sensor can measure humidity.
3. It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Specifications
1. Supply Voltage: 1.8 – 5V DC
2. Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
3. Operational Range:
– Temperature: -40 to +85 degree C
– Humidity: 0-100%
– Pressure: 300-1100 hPa
4. Resolution:
– Temperature: 0.01 degree C
– Humidity: 0.008%
– Pressure: 0.18Pa
5. Accuracy:
– Temperature: +-1 degree C
– Humidity: +/-3%
– Pressure: +-1Pa
6. I2C address
7. SDO LOW: 0x76
8. SDO HIGH: 0x77

Additional Information

Weight & Size

Weight: 0.114kg
Size: 25cm x 15cm x 5cm

SKU: A0100050835 Category: Condition: New
