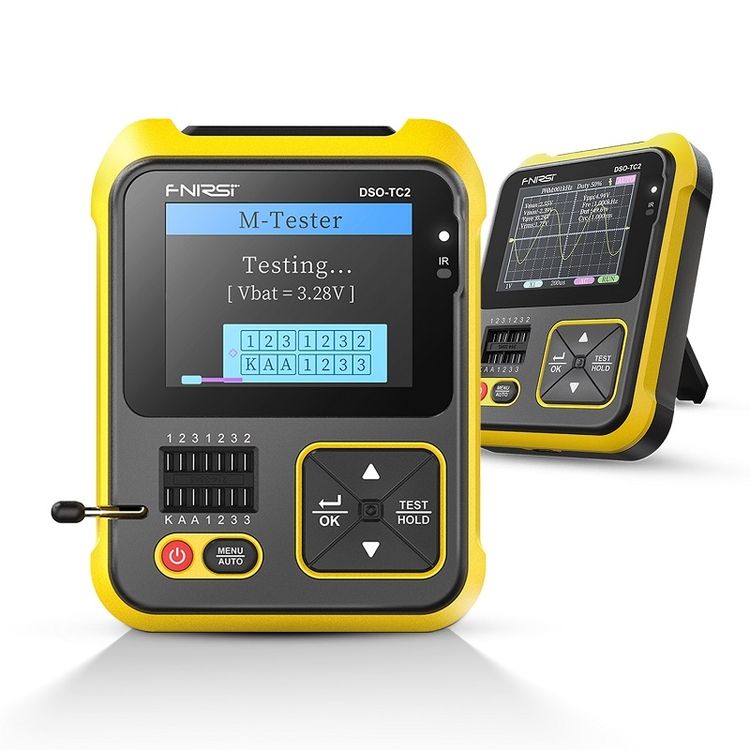

FNIRSI DSO-TC2 2 In 1 Handheld Digital Oscilloscope, Specification: Standard


R1315

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

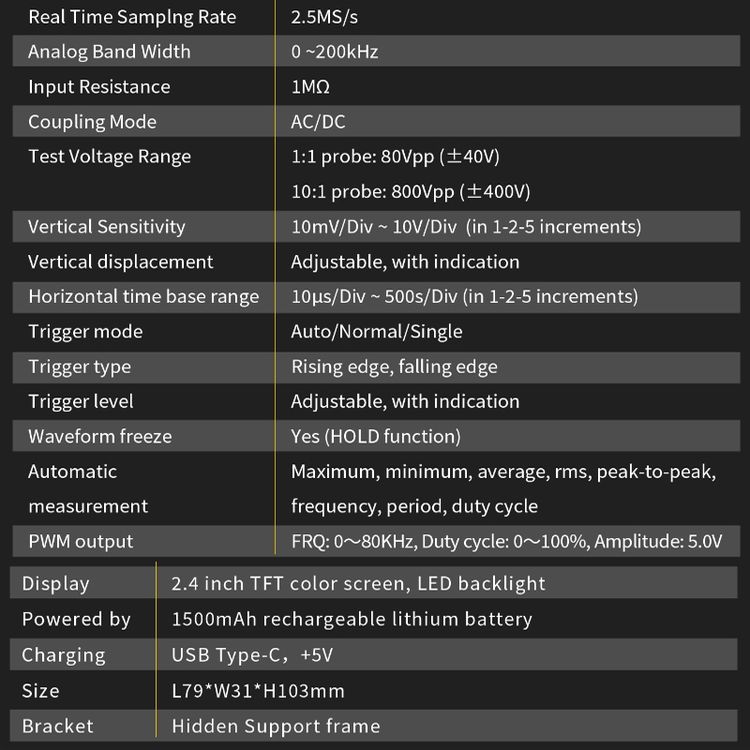

1. Real-time sampling rate 2.5MS/s, bandwidth 200kHz
2. With complete trigger function (single, normal, automatic)
3. With efficient one-button AUTO, the measured waveform can be displayed by simple adjustment
4. Built-in 80kHz/5.0V PWM wave test signal source with adjustable duty cycle

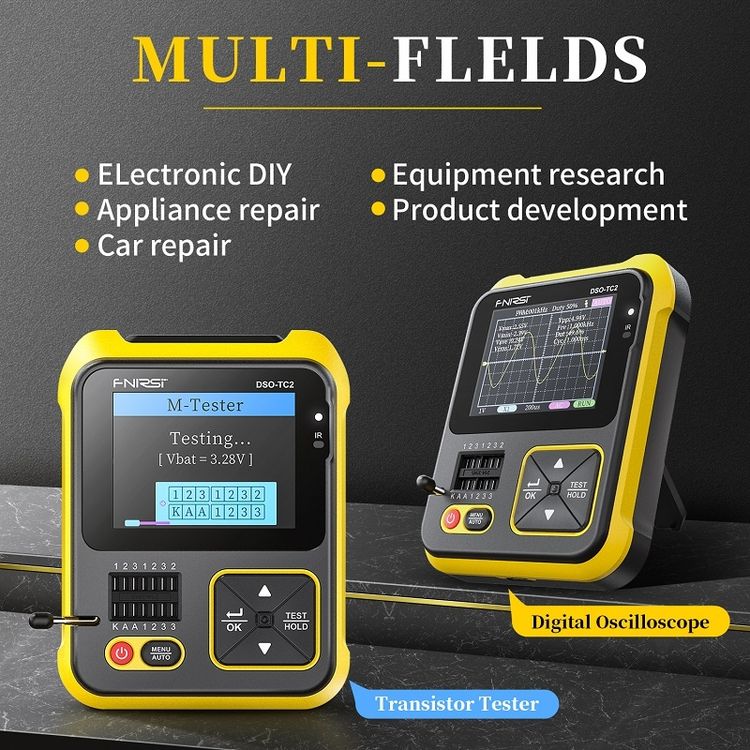

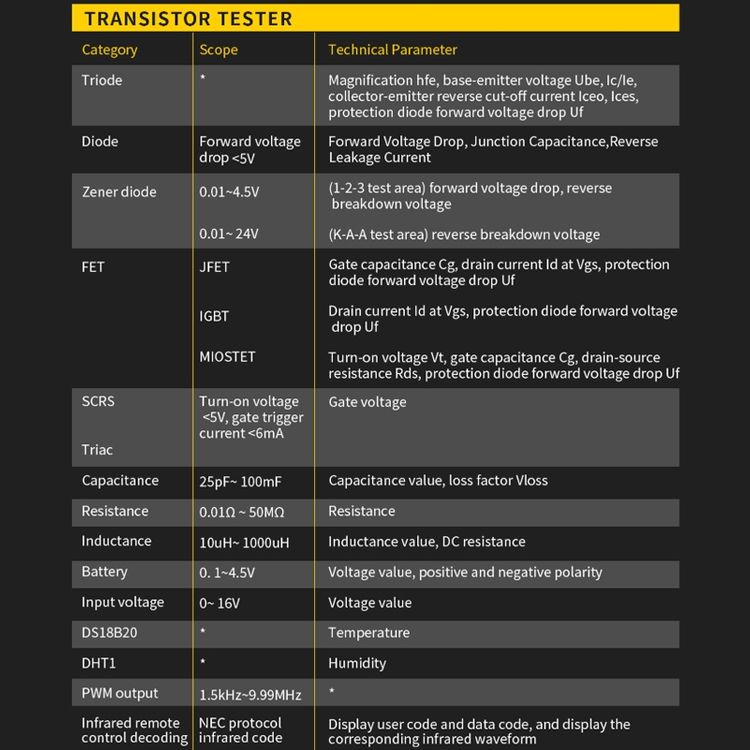

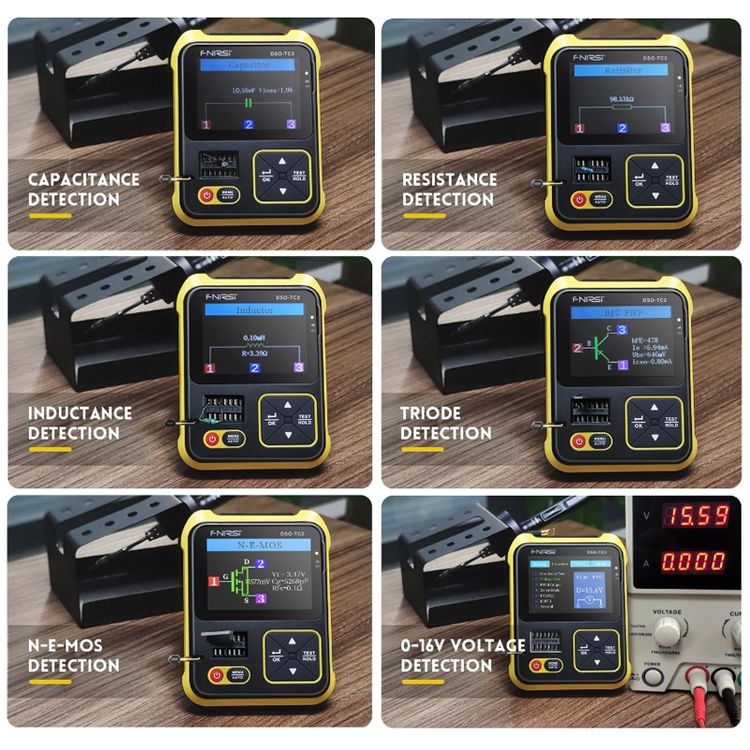

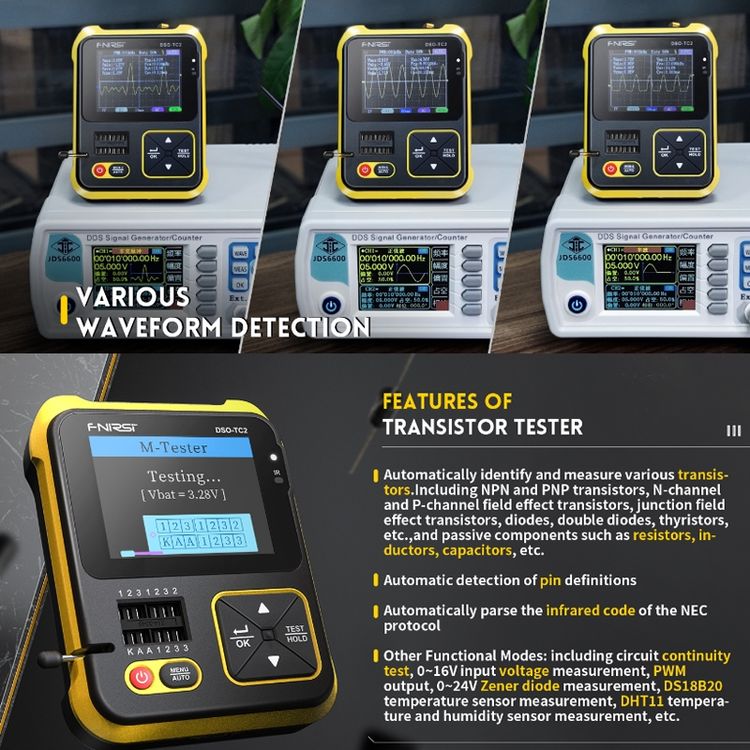

5. Automatically identify and test various transistors, including NPN and PNP transistors, trench and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, etc., as well as passives such as resistors, inductors, and capacitors element

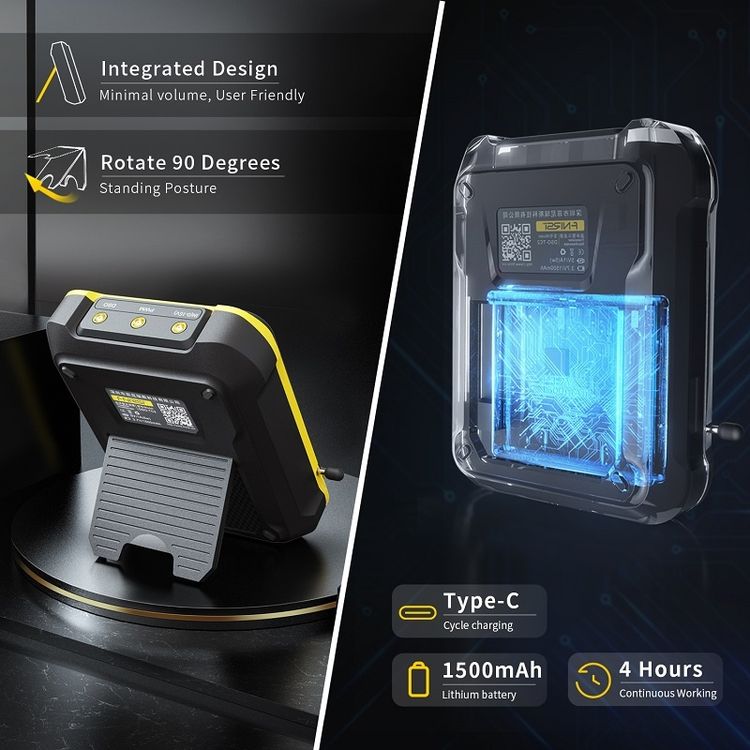

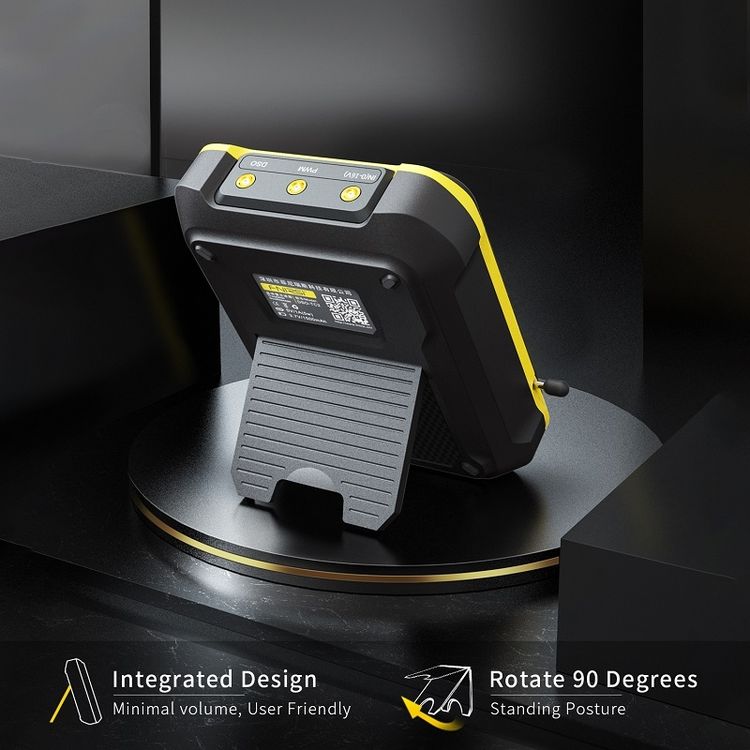

6. Hidden integrated bracket, telescopic and rotating freely, convenient and convenient

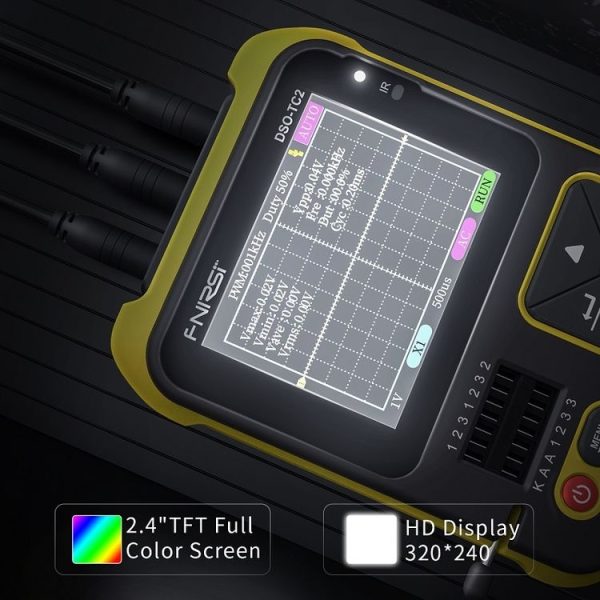

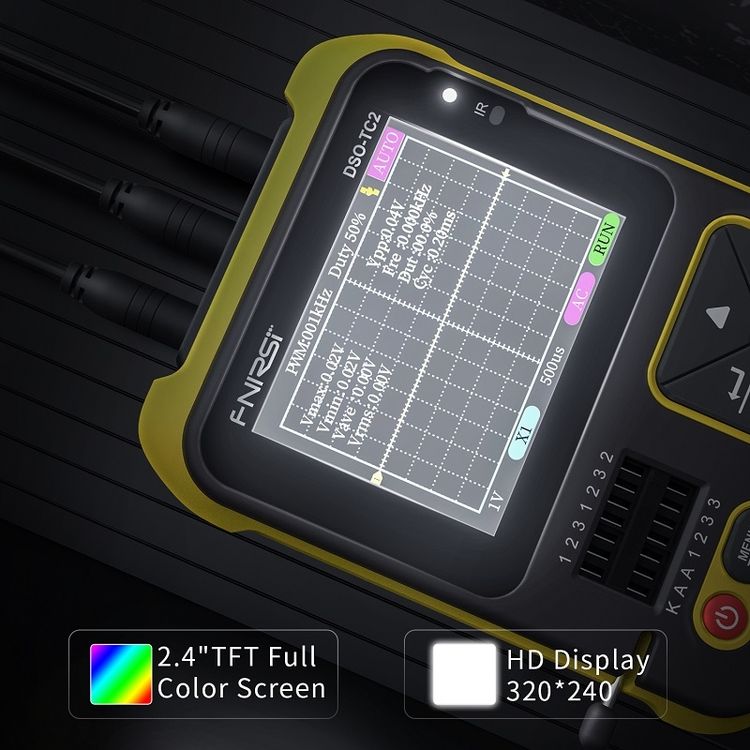

7. 2.4-inch high-definition color screen, curve data at a glance
8. 1500mAh lithium battery cell, 240 minutes continuous power supply

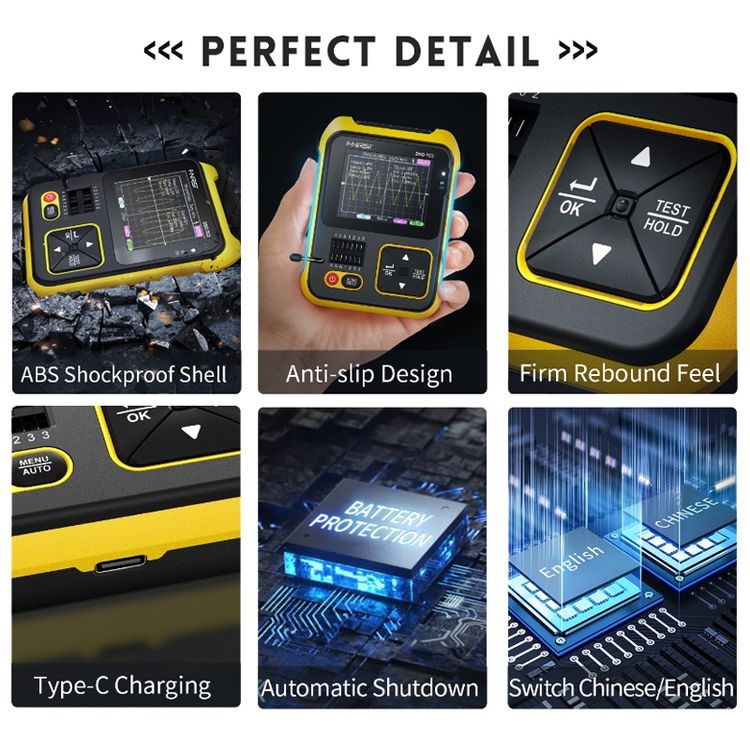

9. ABS anti-fall shell, concave anti-skid design

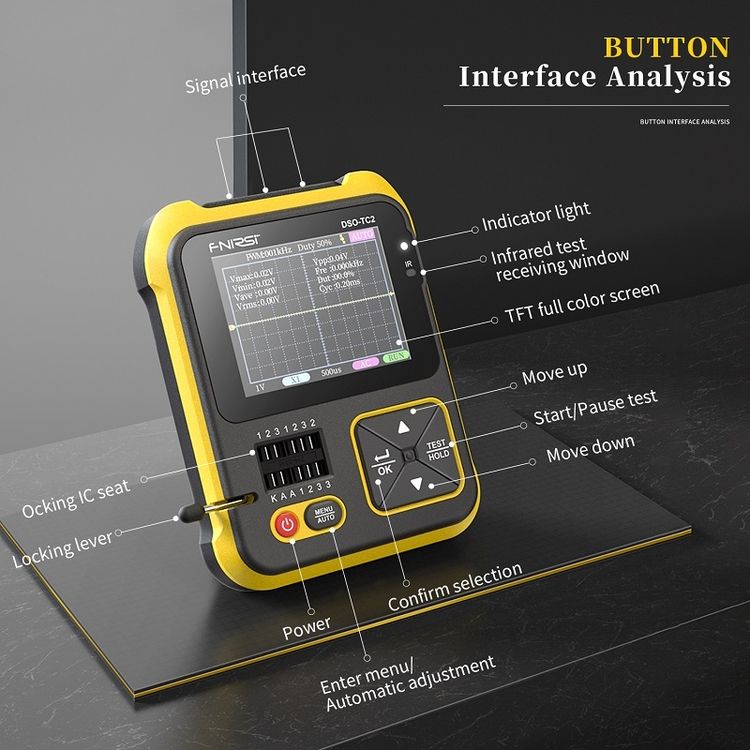

10. TYPE-C charging port, high-grade touch buttons
11. Automatic shutdown protection, Chinese and English can be switched

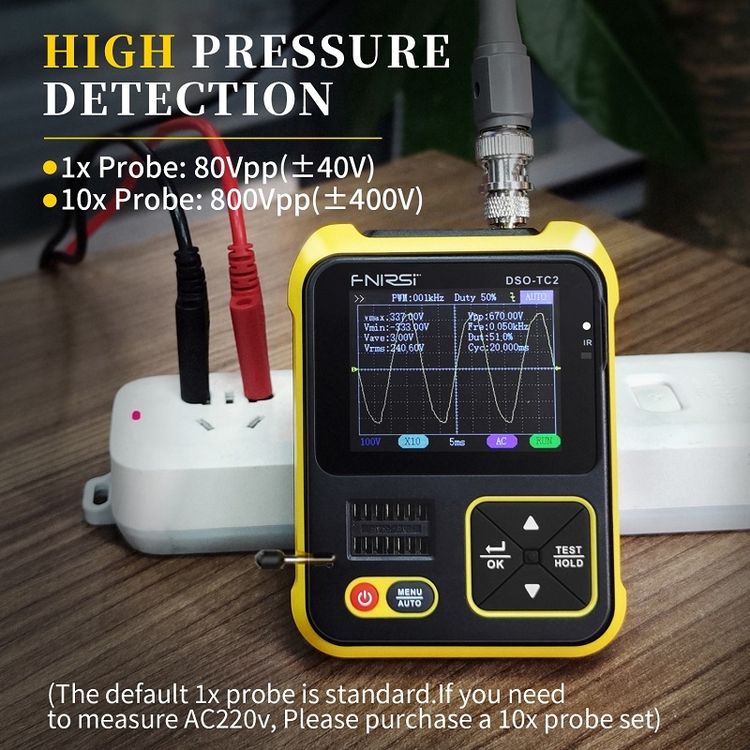

12. Input voltage: 0-16V
13. Dimensions: 103x79x31mm

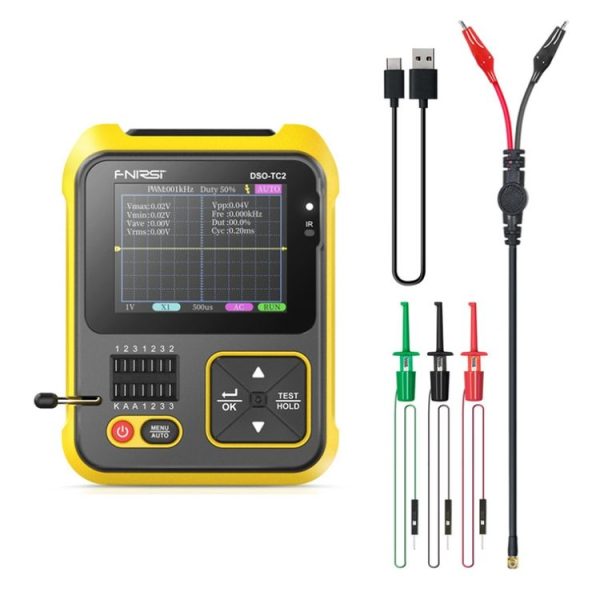

Standard packing list:
Tester x 1
TYPE-C charging cable x 1
Test hook x 3
Ordinary probe x 1
Upgraded packing list:
Tester x 1
TYPE-C charging cable x 1

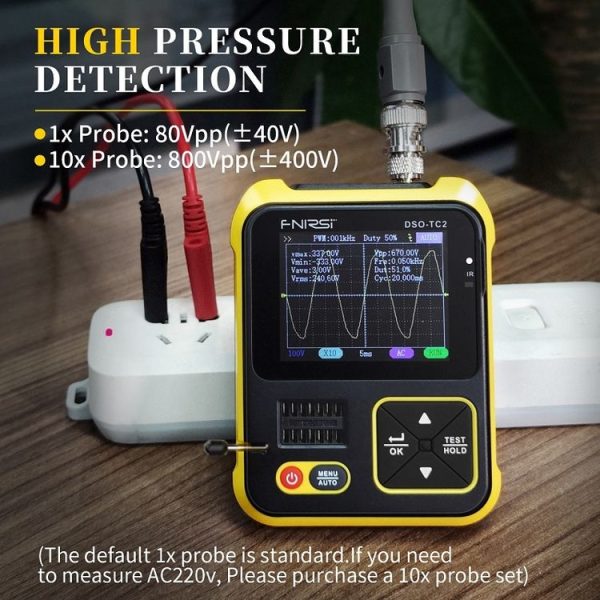

P6100 High Voltage Probe x 1
Adapter x 1
Test hook x 3
Ordinary probe x 1

Additional Information

Weight & Size

Weight: 0.366kg
Size: 19cm x 12cm x 8cm

SKU: B0100042132 Category: Condition: New
