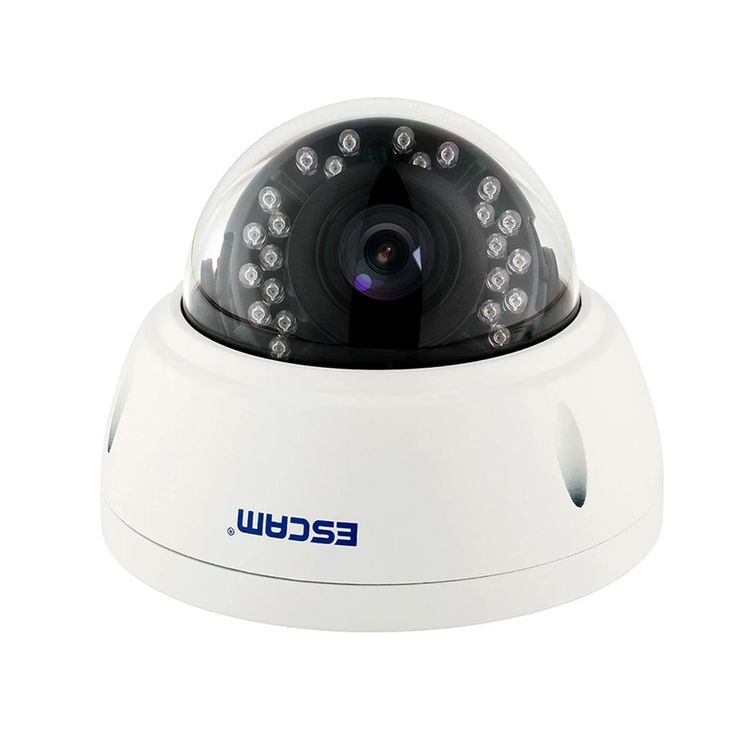

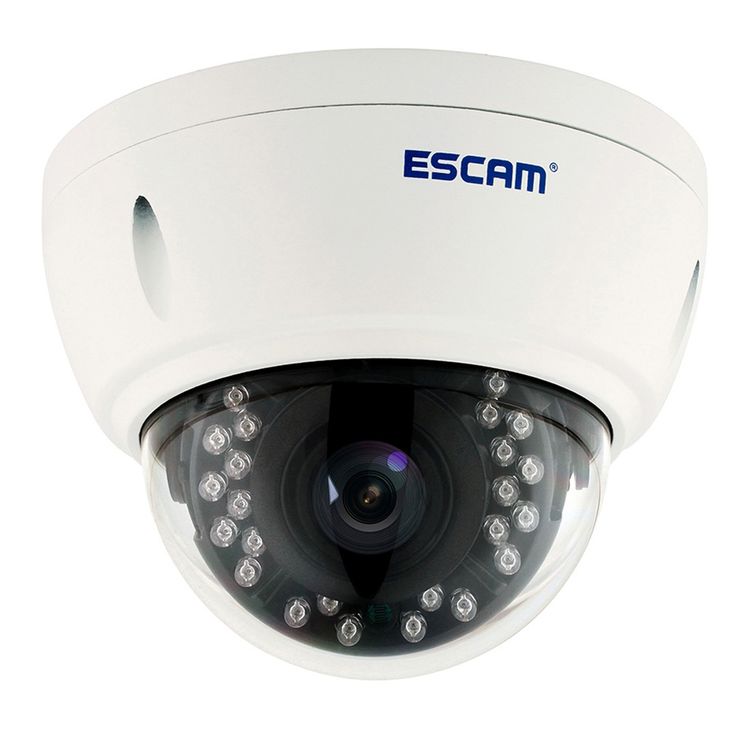

ESCAM Dome QD420 Waterproof 4.0MP Dome IP Camera, Support Motion Detection / Night Vision, IR Distance: 15m


R1817

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. 1/3 inch CMOS 4.0MP progressive scan CMOS, 3.6mm fixed lens
2. Effective pixels main stream: 4.0MP 2592*1520 18fps; 3.0MP 2048*1536 22fps
3. Effective pixels sub-stream: 704*576 25fps
4. Electronic shutter speed: Auto/Manual, 1/3~1/10000s
5. 5mm 36pcs IR LED, IR range 15m
6. Support digital wide dynamic
7. Frame Rate: Main Stream: 4MP 2592*1520 18fps, 3MP 2048*1536 22fps, 2MP (1920*1080) 25fps; Sub Stream: 1280*720, 704*576 25fps
8. Support 2D/3D noise reduction
9. Support ONVIF Ver. 2.0
10. With CE FCC RoHS

Additional Information

General

Model: Dome QD420
Shape: Dome
Mount Types: Ceiling Bracket
Power Depletion: <6W(Camera)
Output Voltage: DC 12V
Performance: Motion detection, Night Vision, Privacy Masking
Interface: RJ45, DC Jack
Privacy Masking Range: yes

Network

Network Interface: RJ45 (Base-10/100MB)
Protocol: DDNS, NTP, UDP, SMTP, UPNP, PPPOE, FTP, RTP, RTSP, HTTP, DNS, TCP/IP
Online Visitor (Max.): 10

System / Hardware

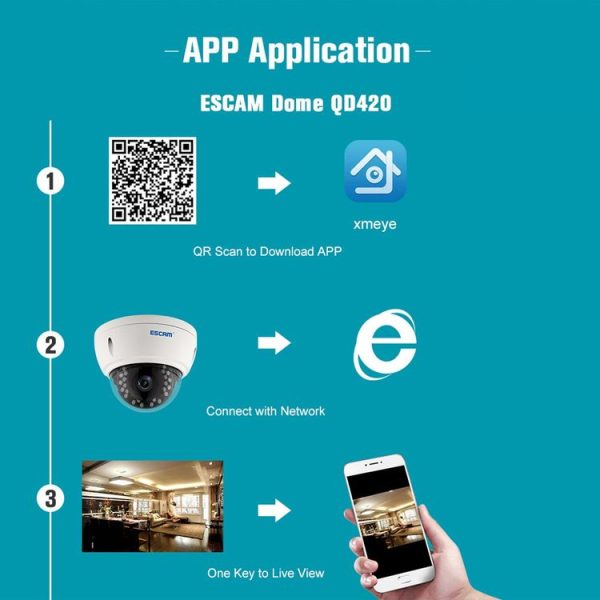

Mobile Access: Android, iPhone OS, iPad
Sensor Size: 1/3 inch Progressive Scan
Pixels: 4.0MP
Lens: 3.6mm, 75.7 Degree View Angle, F1.6
Electronic Shutter: Auto/Manual, 1/3~1/10000s
SNR: >50dB
Day/Night: Auto(ICR) / Color / B/W
Minimum Illumination: Color: 0.1Lux/F1.2, Color: 0.1Lux/F1.2, B/W 0.001Lux@F1.2
White Balance: Auto
Gain Control: Automatic

Media Format

Video Compression Format: H.264
Video Bit rate: CBR/VBR

Night Vision

Infrared Distance: 15m
IR LED: 24 pcs 5mm LEDs

Physical Environment

Environment: Outdoor, Indoor
Ingress Protection: IP66
Operate Temperature: -10 to 60 Degree Celsius
Working Humidity: 10 to 90 percent

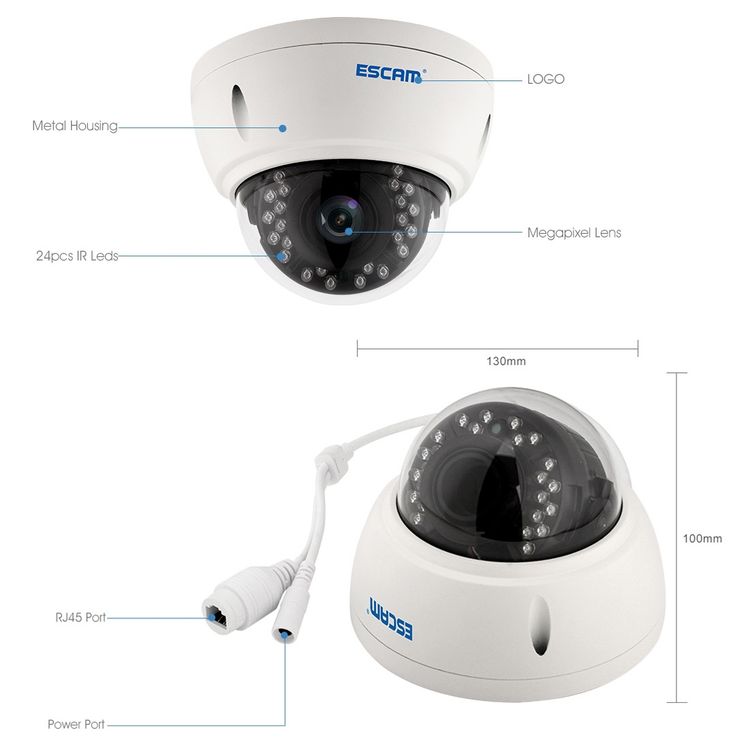

Dimensions

Size: 130mm* 130mm*100mm
Weight: 570g

Package Include

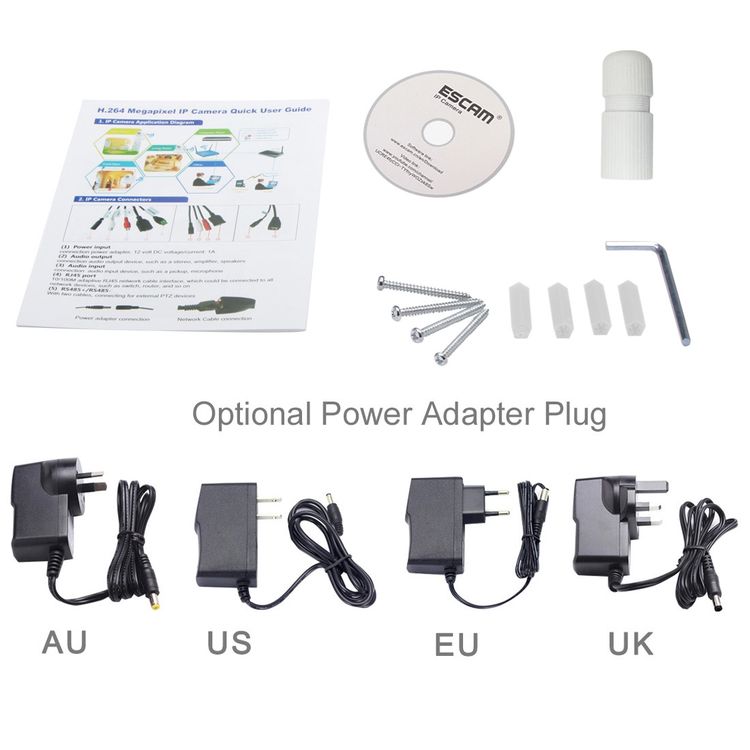

Package Contents: 1 x Camera, 1 x Mounting Accessories, 1 x Power Adapter (US, UK, EU, AU Optional), 1 x CD, 1 x User Manual

Weight & Size

Weight: 0.803kg
Size: 17cm x 17cm x 18cm
