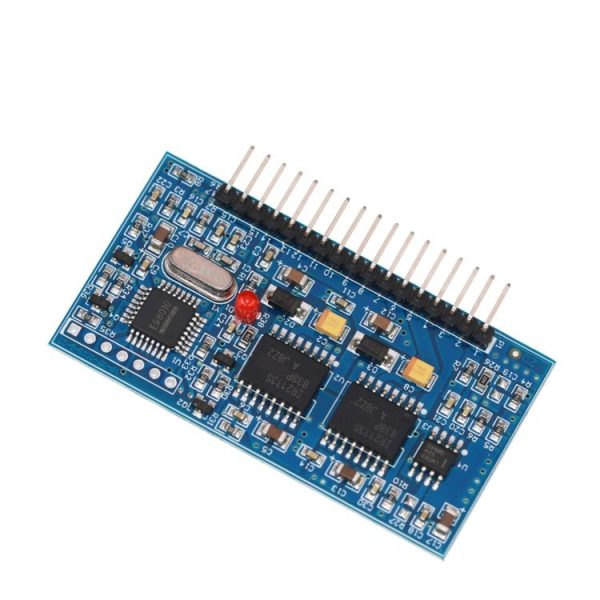

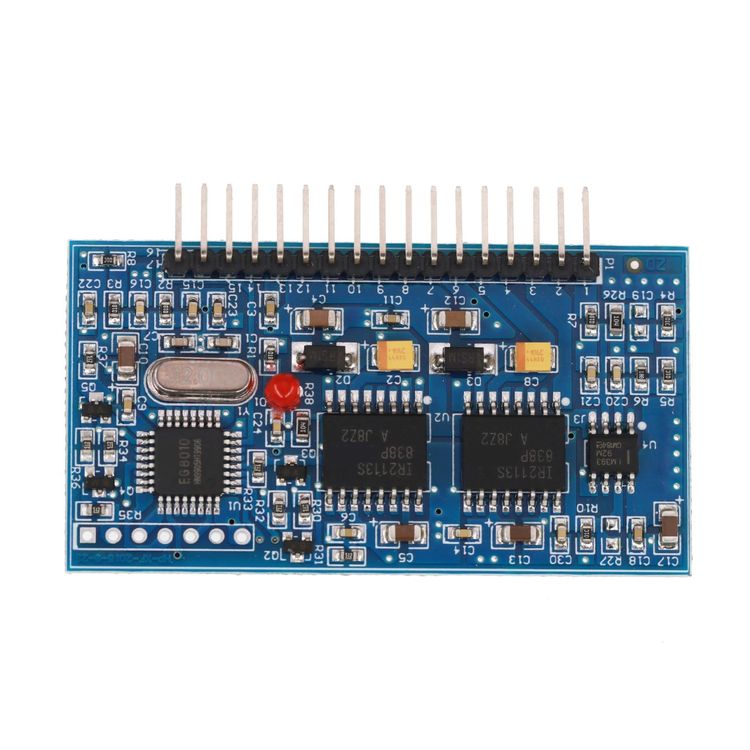

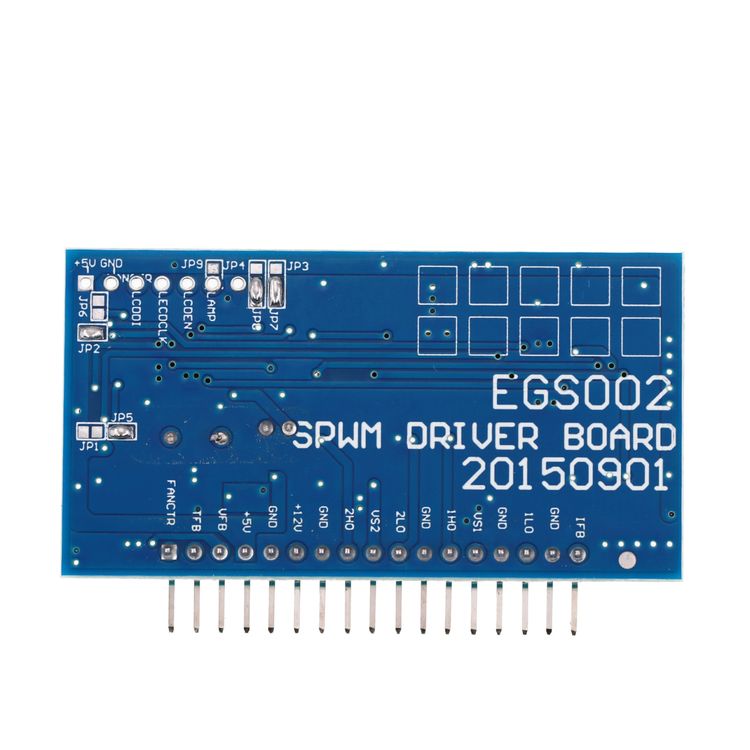

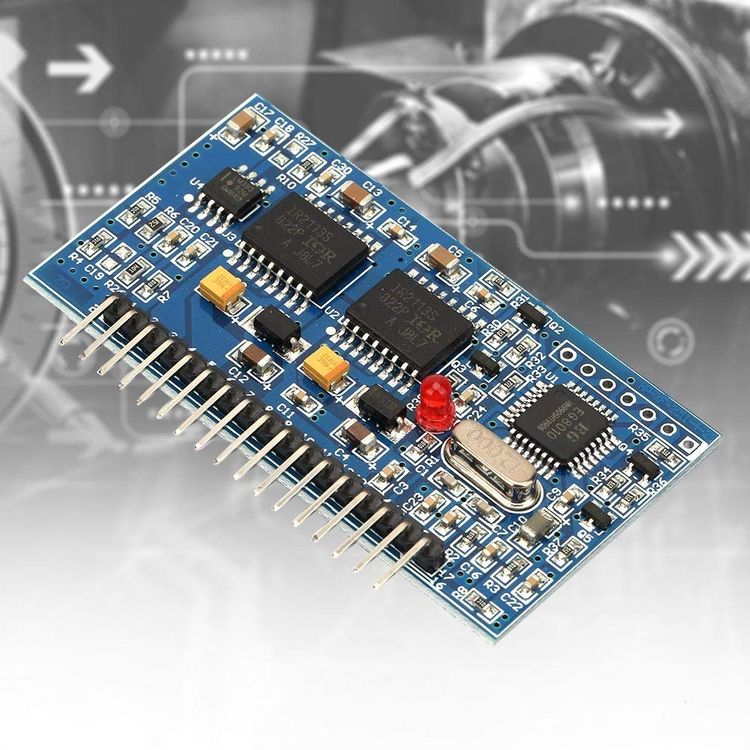

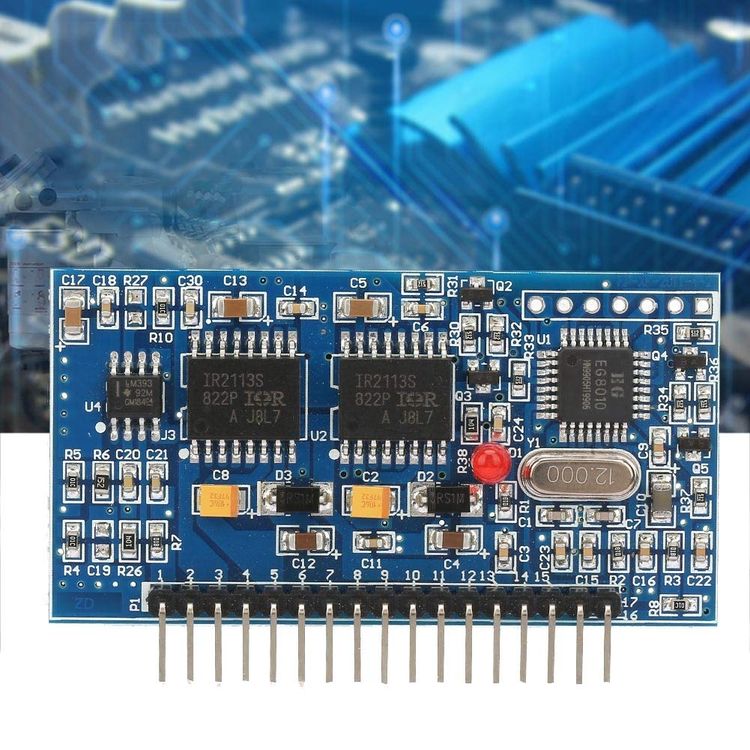

EGS002 Pure Sine Driver Inverter Driver Module


R124

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Purpose: suitable for DC-DC-AC two-stage power conversion architecture or DC-AC single-stage industrial frequency transformer boost converter
2. Frequency: 23.4KHz
3. External 12MHz crystal oscillator, can realize 50Hz or 60Hz pure sinusoidal inverter chip, with high precision, anti-interference and harmonic
4. CMOS technology, integrated SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module
5. Unipolar and bipolar modulation, real-time processing of voltage, current, temperature feedback
6. With deadband control, the pin can be set to 4 deadband
7. Pin setting soft start mode 1S response time
8. Serial communication to set the output voltage, frequency and other parameters

Additional Information

Weight & Size

Weight: 0.034kg
Size: 10cm x 6cm x 1cm

SKU: A0100024094 Category: Condition: New
