Overview
1. Image sensor: 1/2.9 HD CMOS, 2 million pixel CMOS sensor
2. Manual recording format: MP4 (1920 * 1080P, stored in mobile phone)
3. Video compression standard: H.264 (stored in TF card)
4. Video frame rate: maximum 25 frames
5. Video playback mode: mobile client

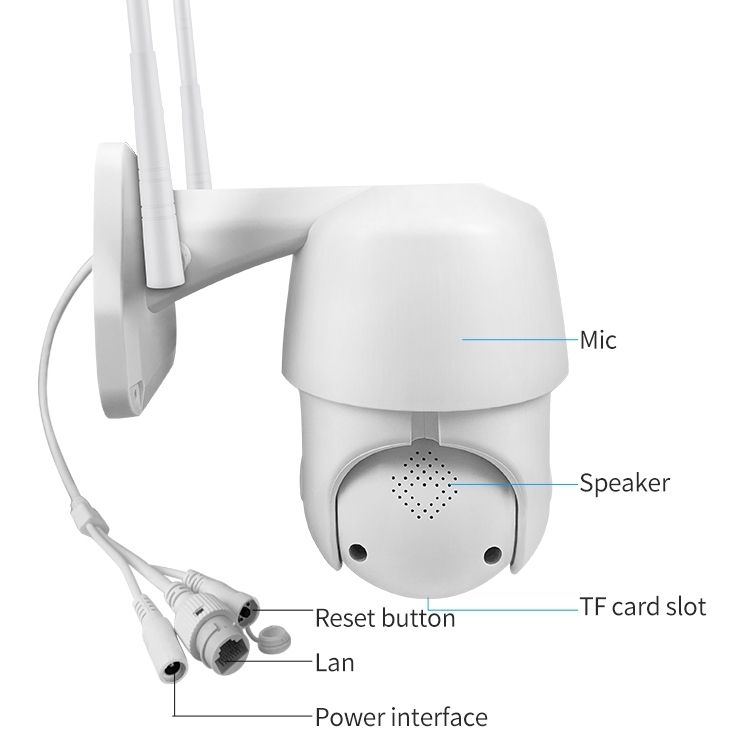

6. Audio input and output: input: built-in microphone; output: built-in speaker
7. Built-in lens: 3.6mm
8. Focusing method: manual
9. Night vision effect of infrared light: 2 infrared lights, power consumption 1W, infrared light switch and IR-CUT switch controlled by photoresistor
10. White light effect: 2 white lights, lighting, power consumption 1W
11. Focusing method: Manual

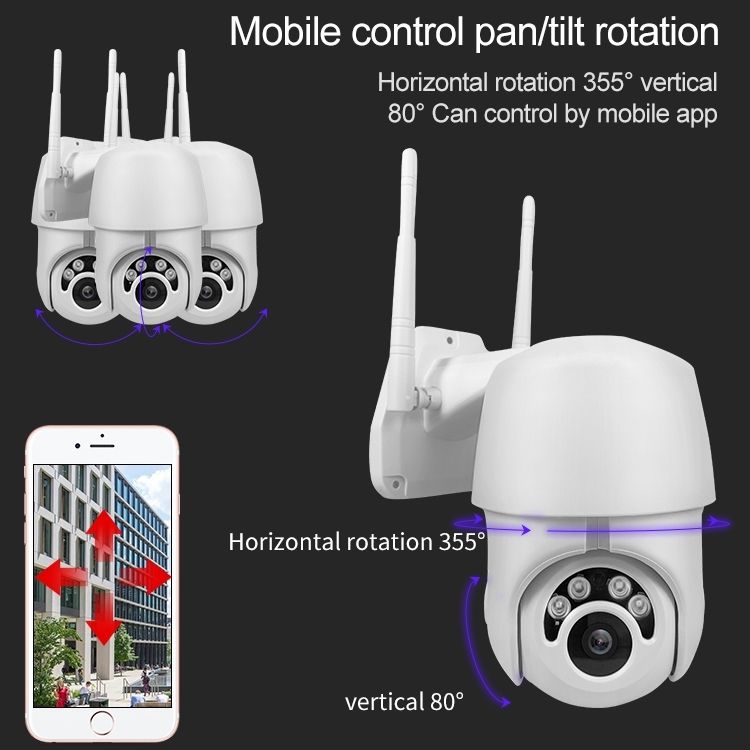

12. PTZ control: horizontal rotation 355 degrees, vertical 80 degrees
13. Local storage: Support 128GB MicroSD card, support 24 hours recording
14. Cloud storage: support
15. Support multiple protocols: TCP/UDP, IP, HTTP, SMTP, DHCP, DDNS, UPNP, NTP
16. WiFi: support IEEE 802.11b/g / n
17. Video control: support
18. Motion detection: support
19. Alarm action: push by mobile client
20. Firmware upgrade: can be upgraded remotely via the network
21. User settings: share up to 5 users
22. Working temperature: 0-60 Degrees Celsius
23. Working environment: outdoor
24. Size: 11x17x16cm
Additional Information

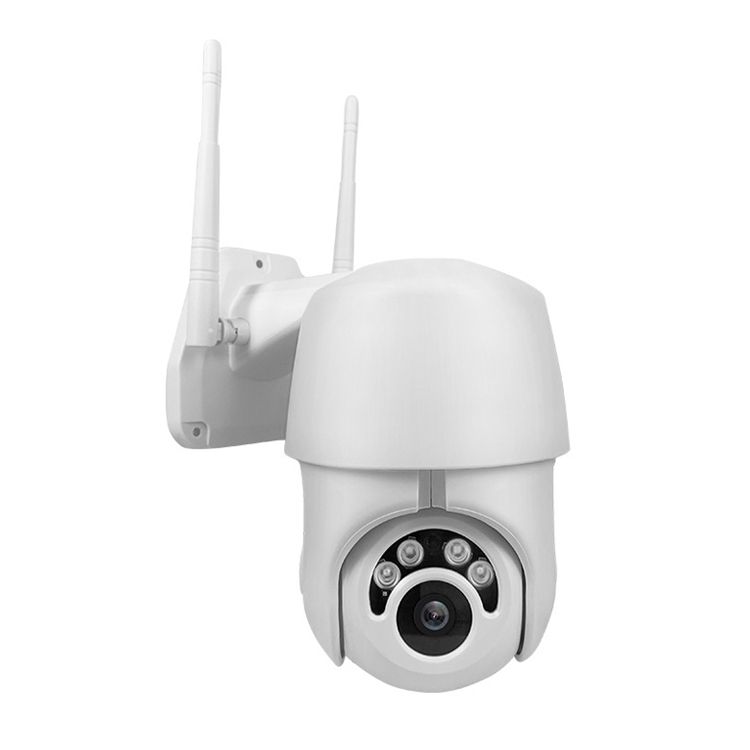

Model: EC76
Shape: Dome
Mount Types: Wall bracket
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision
Memory: TF Card, up to 128GB (not included)
Wireless: WiFi 802.11 b/g/n
Wireless Distance: 20m
Protocol: DDNS, NTP, UDP, SMTP, UPNP, TCP, DHCP, IP, HTTP
Online Visitor (Max.): 5
Image Sensor: CMOS
Sensor Size: 1/2.9 inch Progressive Scan
Pixels: 2.0MP
Lens: 3.6mm
Pan/Tilt-Horizontal Angle: 355 degrees
Pan/Tilt-Vertical Angle: 80 degree
Minimum Illumination: 0.01Lux
Video Compression Format: H.264
Frame Rate (FPS): 25fps
Infrared Distance: 10m
Configuration: 2 infrared LEDs
Operate Temperature: 0 to 60 Degree Celsius
Size: 11x17x16cm
Weight: 488g
Package Contents: 1 x Camera, 1 x User Manual, 1 x Screws Set
Weight: 0.799kg
Size: 22cm x 19cm x 13cm
