DUOYI DY207 Digital Display Smart Socket Tester RCD Switch Test Pen, EU Plug


R188

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

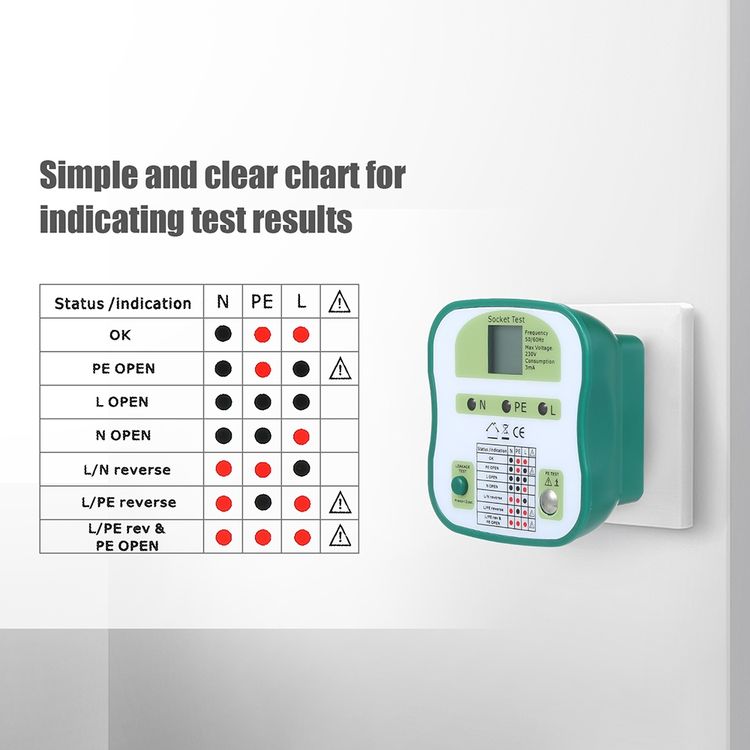

1. With a clear LED prompted socket wiring situation
2. Leakage switch detection, over-voltage protection: 300V (AC / DC)
3. Touch the contact electrode, through the LCD screen to quickly identify dangerous contact voltage protection on the ground,so as to ensure maximum safety
4. Unique style and ergonomic design requirements

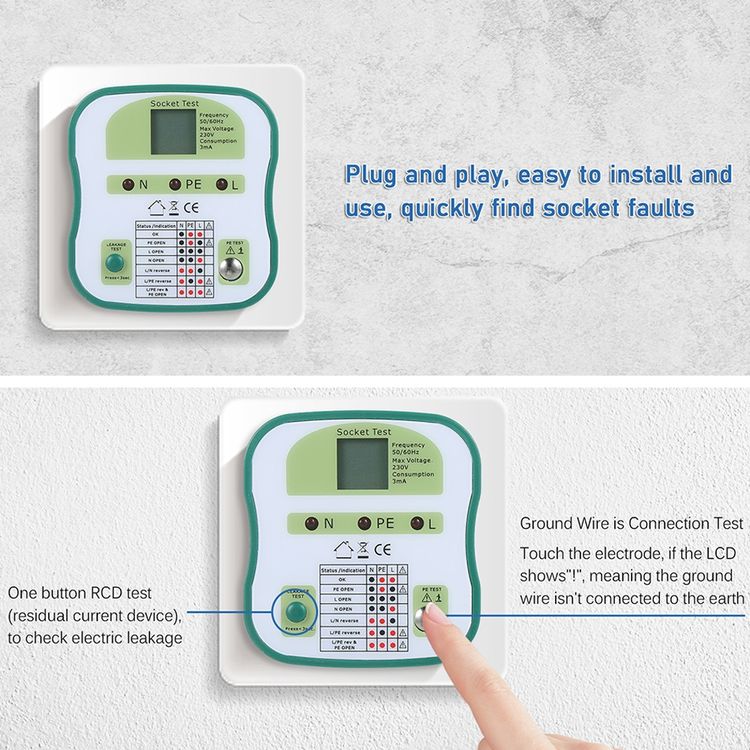

5. For safety testing of wall sockets and residual-current circuit bradkers(RCD)
6. Easy and quick to check the installation is correct or not

Specification

1. Rated AC voltage: AC 230V + / – 10%
2. Frequency range: 50-60Hz
3. Power consumption: about 3mA
4. Overvoltage protection: AC / DC 300V
5. Temperature range: 0~40 Celsius degree
6. Humidity: less than 80%
7. Leakage Protection Detection: 30mA
8. Protective ground fault detection
9. Reaction limits: less thanAC 50V (ground)
10. Size: 72 x 78 x 60mm
11. Weight: about 40g

Additional Information

Weight & Size

Weight: 0.076kg
Size: 15cm x 10cm x 7cm

SKU: A0100118589 Category: Condition: New
