Dual Passive Infrared Detector, Frequency: 433MHZ (Using in S-MDC-0210A / 0211 / 0213 / 0214 / 0224 / 0225 / 0253 / 0401 / 0402) (White)


R149

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

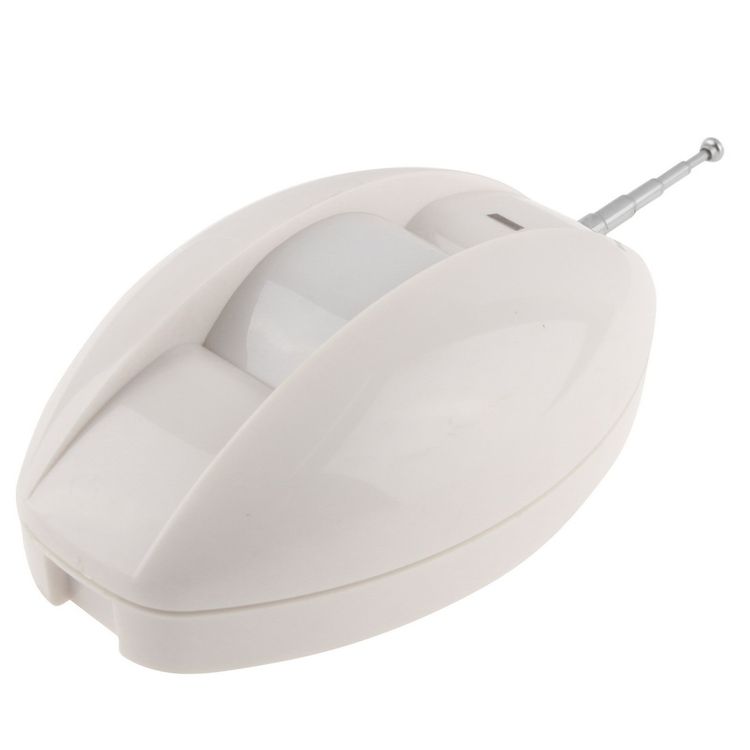

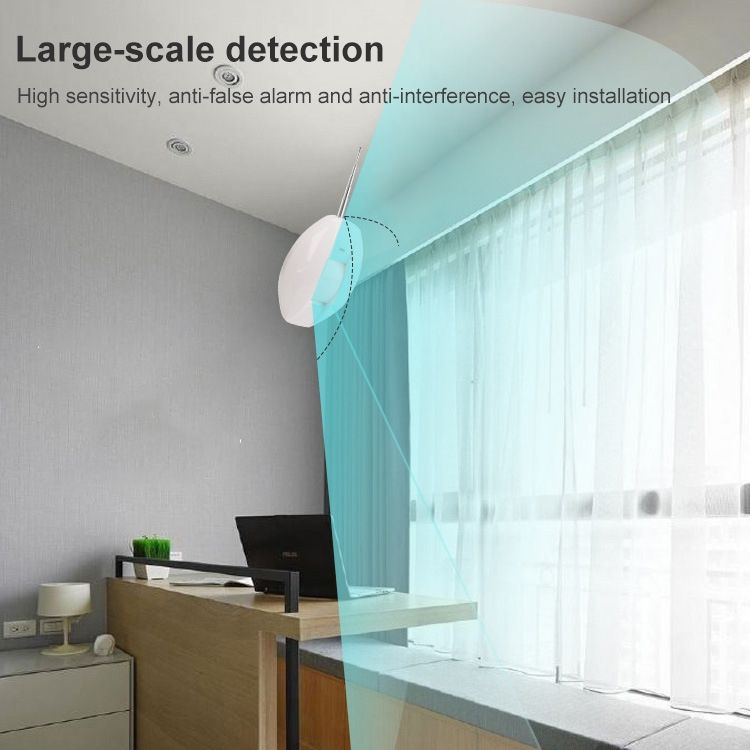

The product is wireless curtain PIR detector. It adopts advanced technology in signal processing, provided super high detection ability. From the design, it is can guarantee the stability of the product. When an intrude pass through the detected area, it will detect the movement and send out alarm signal to alarm host automatically. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

Technical specification:
1. Working voltage: DC 3V (2*AA battery)
2. Static current: <= 25Ua
3. Alarm current: <=10Ma
4. Battery life: 1 year
5. Detecting distance: optional(2m, 4m, 9m)
6. Detecting angle: 15 degrees
7. Test time: 30s
8. Alarm indicator: red LED
9. Low battery indicator: yellow LED
10. Operating temperature: -10 Degrees Celsius ~ +50 Degrees Celsius
11. Environment humidity: <=95% RH (no cancelation)
12. Installation height: 1.7 to 2.5m
13. Anti RF interference: 315MHz-433MHz
14. Radio distance: 200m(open area)
15. Outline Size: 110*69.5*40mm

Installation:
1. Avoid to installation at outdoor area, air-condition nearby, direct sunshine, heat source and under the rotating objects should be avoided.
2. Surface of installation should be firm with no vibration.
3. Installing the detector in the place where intruder pass easily.

Additional Information

Weight & Size

Weight: 0.010kg

SKU: A0100043413 Category: Tag: Condition: New
