Dual DC Current 12V / 24V Solar Controller LCD PWM Photovoltaic Power Generation Controller (30A)


R380

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Parameter
1. System voltage: 12V/24V automatic adaptation
2. Rated charging current: 30A
3. Rated discharge current: 10A
4. Photovoltaic voltage: 23V for 12V battery; 46V for 24V battery
5. Boost charging voltage: 14.4V
6. Float voltage: 13.7V (default, adjustable)
7. Discharge cut-off voltage: 10.7V (default value, adjustable)
8. Discharge recovery voltage: 12.6V (default value, adjustable)
9. Charging recovery voltage: 13V
10. Photovoltaic panel: 8V for light-controlled light-on threshold (the light-controlled light has a delay)
11. Photovoltaic panel: 8V for light-controlled turn-off threshold (there is a delay for light-control turn-off)
12. USB output: 2 USB outputs, 5V/2.5A
13. Standby current: less than 10mA
14. Working temperature: -35 to 60 degrees Celsius
15. Size: 125x112x34mm
16. Weight: 179g

Features
1. Adopt industrial-grade main control chip

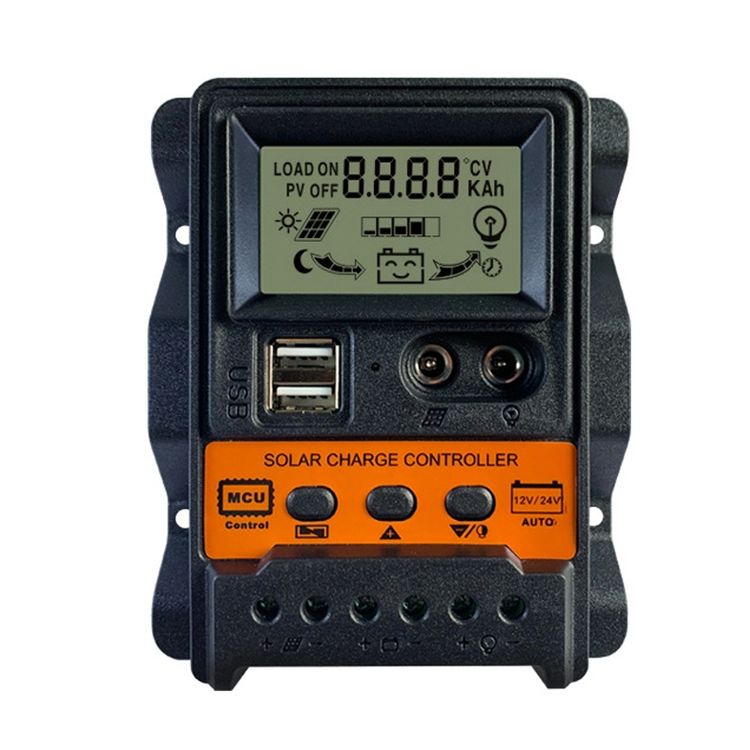

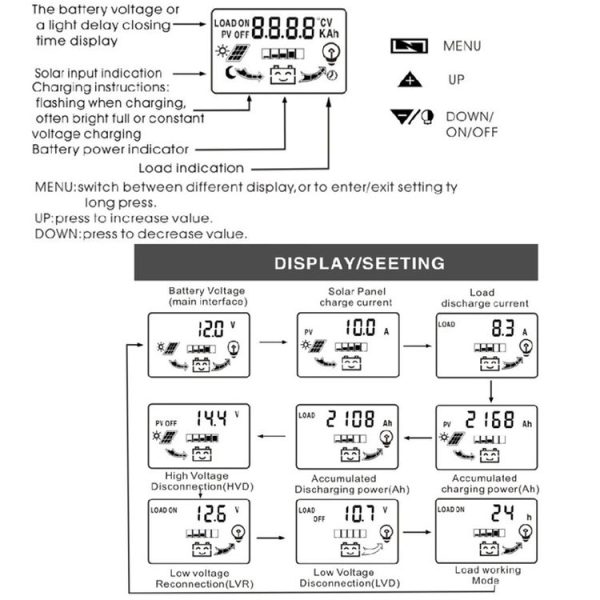

2. Large-screen LCD display; charging and discharging current display; cumulative power generation and discharge power query; temperature display; light control + delay control; adjustable charging and discharging parameters; with power-off memory and other functions
3. Dual USB output, current up to 2.5A, support Apple mobile phone charging
4. Complete 3-stage charging management
5. Built-in over-current, short-circuit protection, open-circuit protection, and reverse connection protection, all of which are self-recovery and will not damage the controller
6. Anti-backflow circuit, ultra-low heat generation.

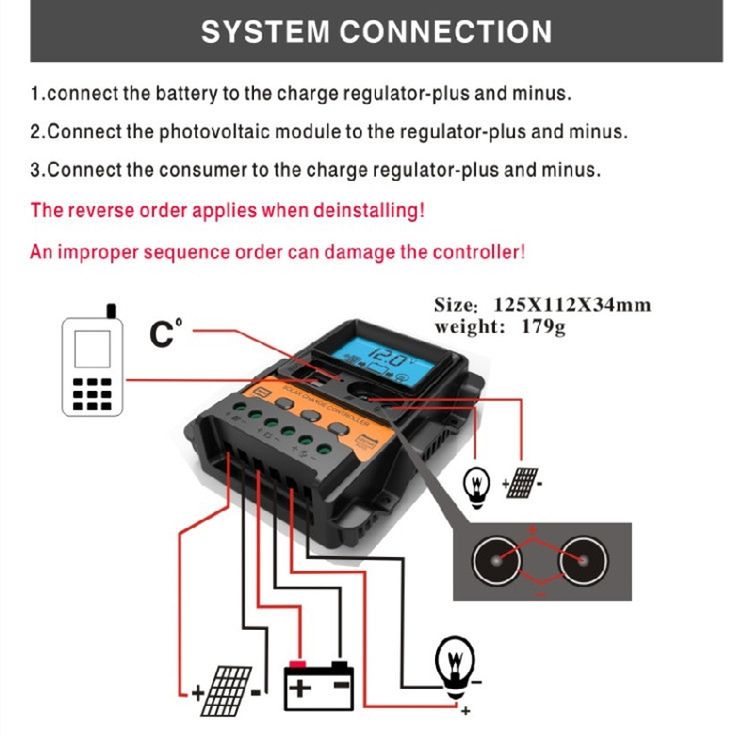

System connection
1. Connect the positive and negative poles of the battery to the controller as shown in the figure, and the controller will automatically detect the battery voltage
2. Connect the positive and negative poles of the load to the controller according to the diagram, and be careful not to reverse them
3. Connect the solar panel to the controller according to the picture

Safe use advice
1. The controller is 12V/24V automatic recognition, when installing for the first time, please make sure the battery has enough voltage so that the controller can recognize the correct battery type
2. Install the controller as close to the battery as possible to avoid voltage drop caused by too long wires and affect normal voltage judgment
3. This controller is only suitable for various lead-acid batteries (including open, sealed, gel, etc.)
4. This controller can only use photovoltaic panels as the charging source, do not use DC or other power sources as the charging source
5. The controller will generate heat during operation, please pay attention to install the controller on a flat and well-ventilated surface
