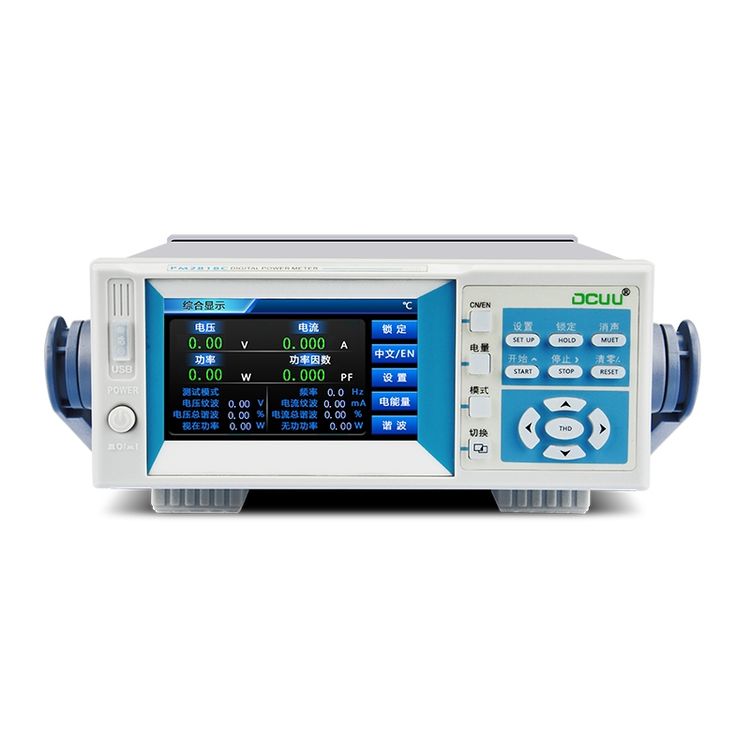

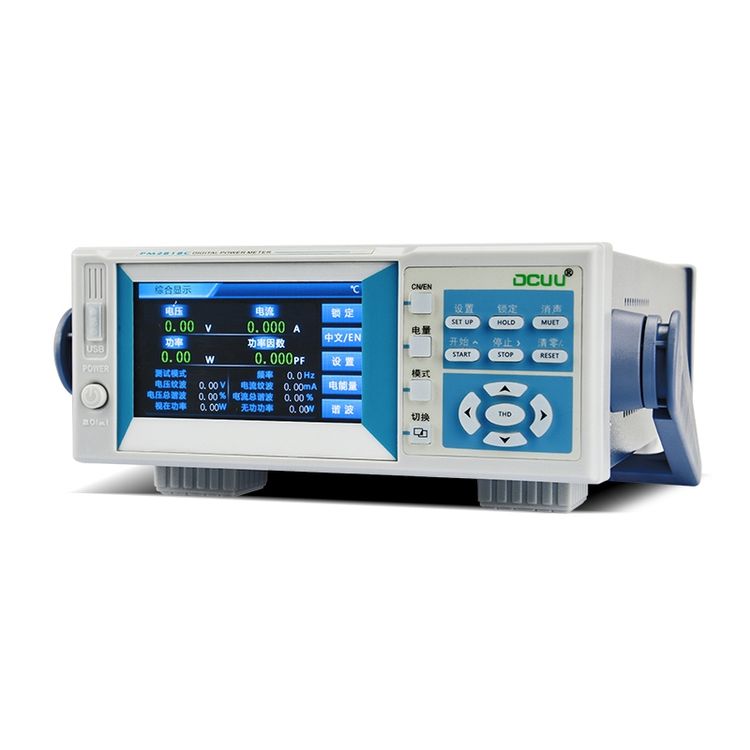

DCUU PM2818C AC / DC 40A Intelligent Electrical Parameters Measuring Instrument (EU Plug)


R8213

In Stock at Supplier

Get 10% off your order by using the promo code YOINK10 at checkout!

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Specifications

1. Display mode: 4.3-inch color liquid crystal display
2. Measurement data: voltage, current, power, power factor, frequency, harmonics, electric energy, voltage ripple, current ripple, apparent power, reactive power, peak voltage, peak current, apparent power, reactive power, average power
3. Input voltage: 3.0V~600V
4. Current range: 5mA~40A

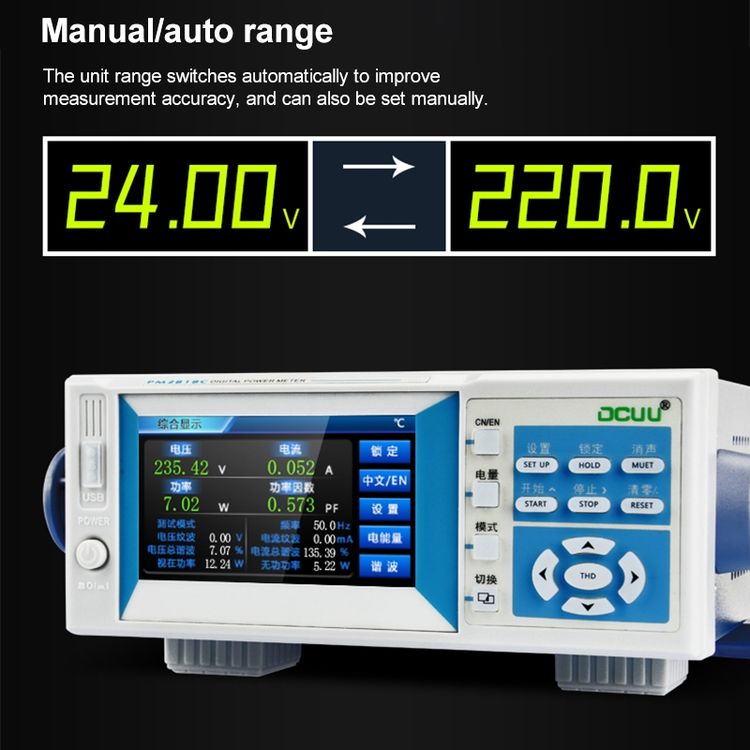

5. Range switching: automatic
6. Measurement mode: AC+DC
7. Power factor: -1.000~1.000
8. Frequency range: AC: 45Hz~65Hz, bandwidth 5Khz

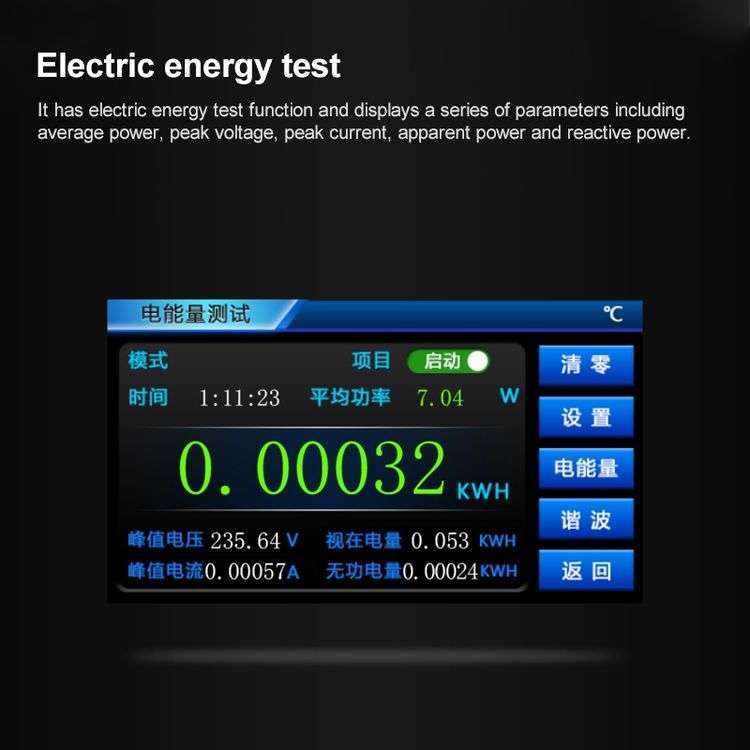

9. Electric energy: +/-0-999.999kWh

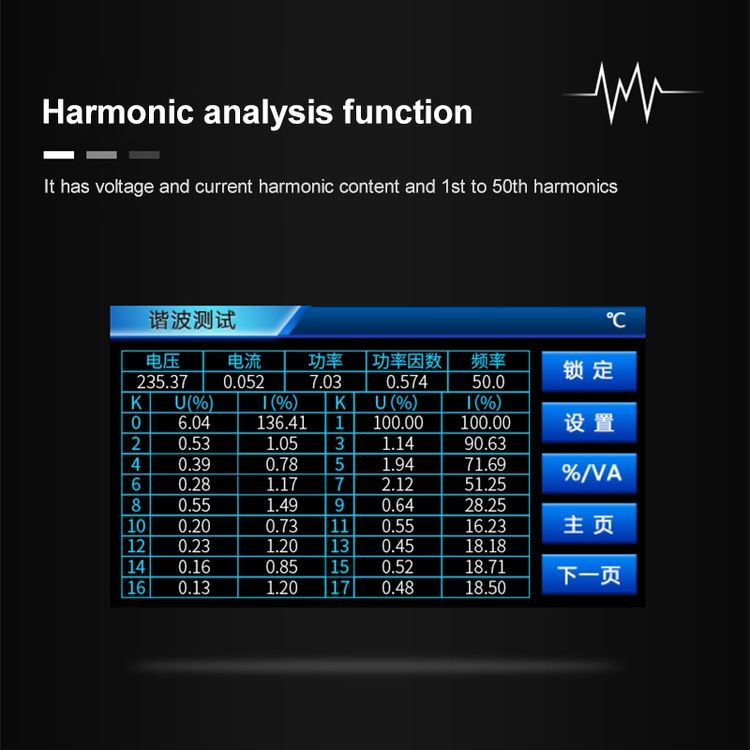

10. Harmonic analysis function: can display total harmonics and 2~50th harmonic components
11. Measurement accuracy: +/- (0.4% reading + 0.1% range + 1 word)

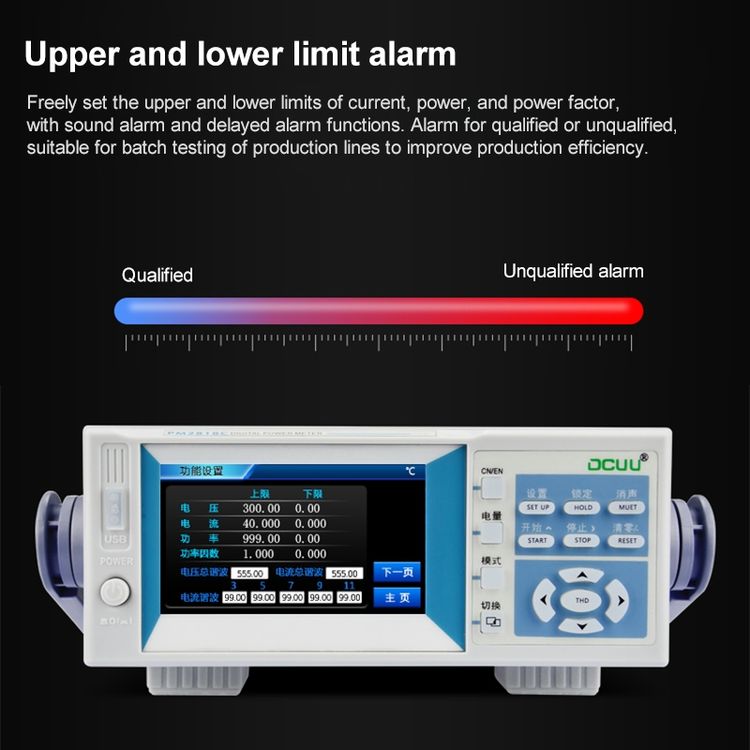

12. Upper and lower limit judgment function: With current and power upper and lower limit setting, judgment and alarm functions
13. Latch function: Use data fluctuations for easy reading
14. Measurement speed: 5 times/second
15. Volume/weight: Width x height x depth: 213 x 104 x 470mm; 3KG

Package List

1. Host x 1
2. Power cord x 1
3. Product manual x 1
4. Product certificate x 1

Additional Information

Weight & Size

Weight: 3.100kg
Size: 47cm x 32cm x 19cm

SKU: C0100003681 Category: Condition: NewOrigin: CN
