DC 12V 4CH RF Wireless Remote Control Radio Switch Transmitter Receiver


R316

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Feature

1. Wireless control, easy to install
2. Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances with AC220V, AC85V-260V or DC12V.
3. You can turn on / off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
4. This switch can learn different coding remote controls (such as 2262, 1527)
5. One / several transmitters can control one / several receivers simultaneously.
6. If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it will not affect each other.
7. The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

About Learning and clearing Me

1. Learning: Press the learning key, it means the controller putting in the learning state when the indicator OFF, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times, which means successfully studied.
2. After pressing any buttons of the remote control to transmit signal, the indicator did not flash, 10 seconds later it still recovers to normally on, it means study unsuccessfully.
3. Cleaning: Hold press learning button about 8 seconds, indicator from OFF to ON, then press remote, receiver did not work, it means cleaning code successful.

Pay attention

1. The default setting of output way is Momentary. If you need other output way can leave a message to change it for you before the delivery.
2. Here is the 4 Channel switch and 4 buttons remote control. You can choose the working way as you need.
3. The theoretical distance is 20-100m, which shall be operated in an open ground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the external extend antenna or transponder on the receiver to extend the range.

Additional Information

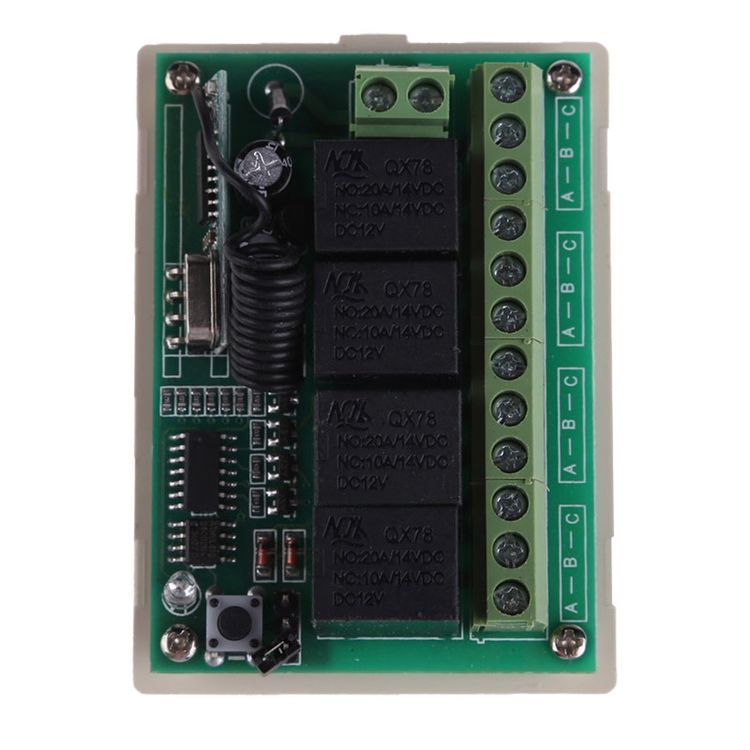

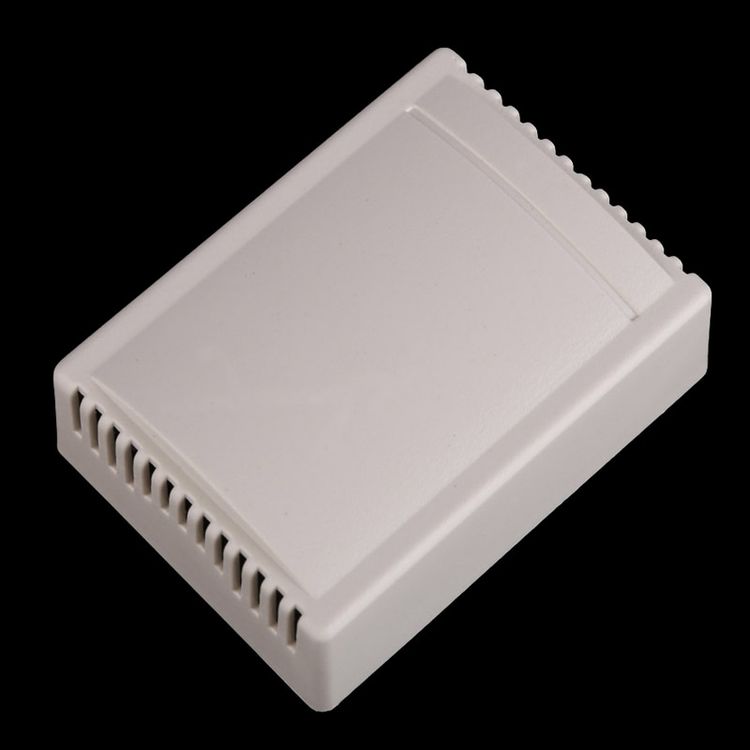

Receiver (Switch)

Receiver Model: AK-RK04S-12-B
Channel: 4 CH
Working Voltage: DC 12V
Max load current: 10A
Working Frequency: 315MHZ
Code Type: Learning Code

Remote Control (Transmitter)

Transmitter Model: AK-FS04A
Buttons: 4 Buttons
Operating Voltage: DC6V (CR2016 battery included)
Operating Frequency: 315MHz
Frequency Distance: 20-100m
Encoding type: learning code, Fixed code by soldering

Package Include

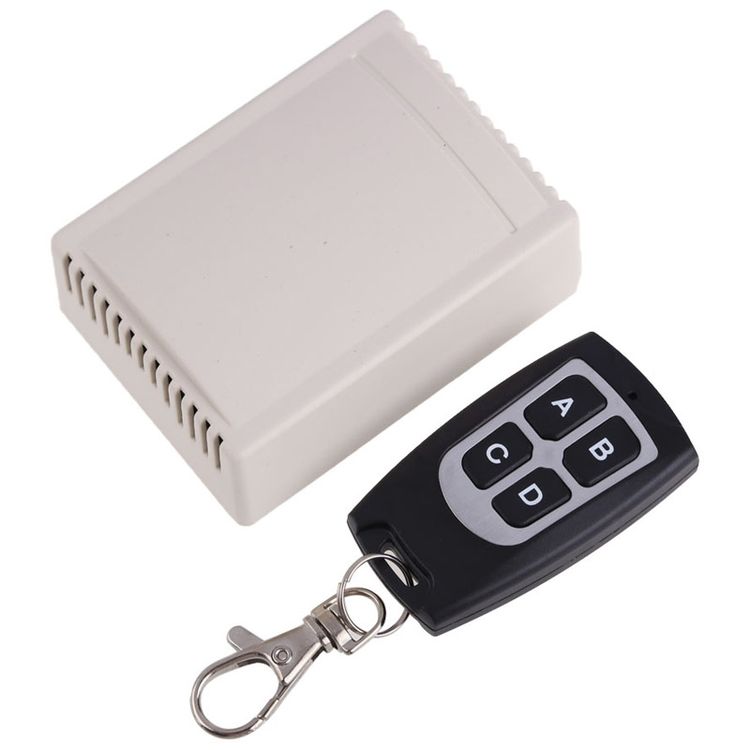

Package Contents: 1 x Wireless Receiver, 1 x Transmitter

Weight & Size

Weight: 0.118kg
Size: 7cm x 5cm x 3cm

SKU: A0100096037 Category: Tag: Condition: New
