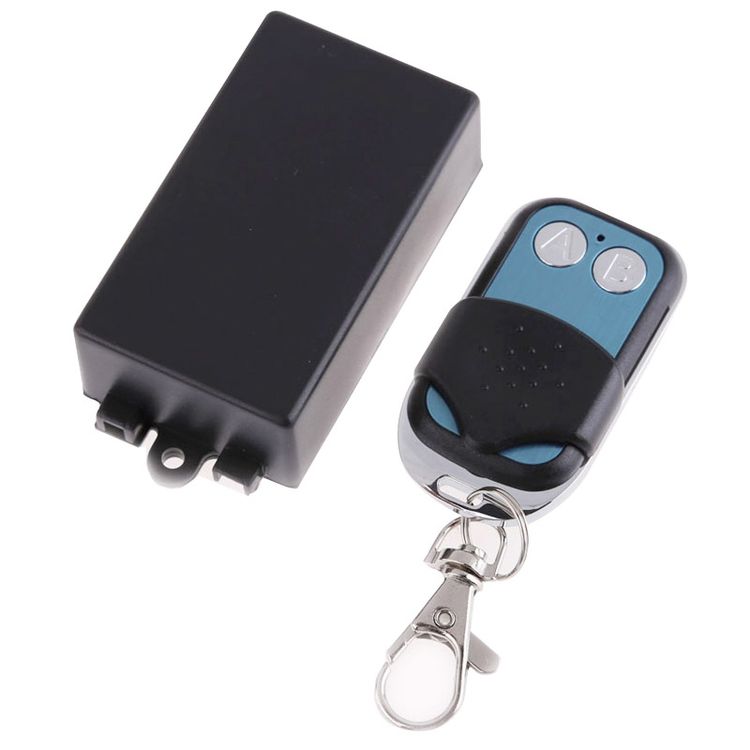

DC 12V 2CH Channel Wireless RF Remote Control Switch Transmitter + Receiver


R172

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

About the product

1. 100% Brand new and high quality
2. Lightweight and portable
3. Easy to install and use

Working / output way

1. Jog: Press one button is ON. Loosen your finger on the same button is OFF.
2. Self-lock: Press one button for one time is ON. Press the same button again is OFF.

Learning and remove method

1. Press the first learning code. The indicator flash, loosen your finger, press first button of the remote control, the indicator flash 2 times and off. Press the second learning code. The indicator flash, loosen your finger, press second button of the remote control, the indicator flash 2 times and off. It means you learn it successfully.
2. Remove / clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.

Applications

1. Remote control switches, wireless remote control products.
2. Remote control of opening door; Card locks; Access control power supply box.
3. Wireless security alarm.
4. Remote control of the curtains.
5. Lighting remote control receiver.
6. Wireless industrial controller.

Additional Information

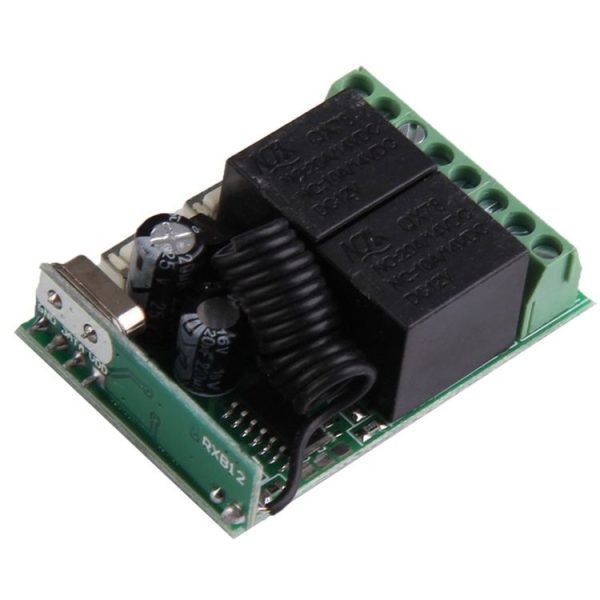

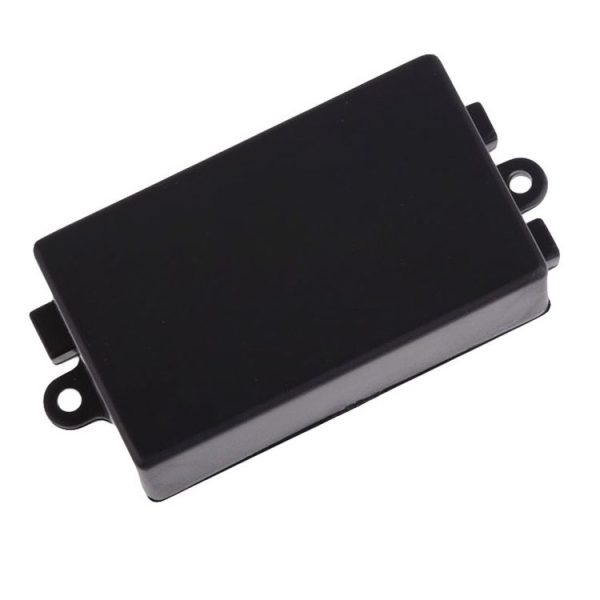

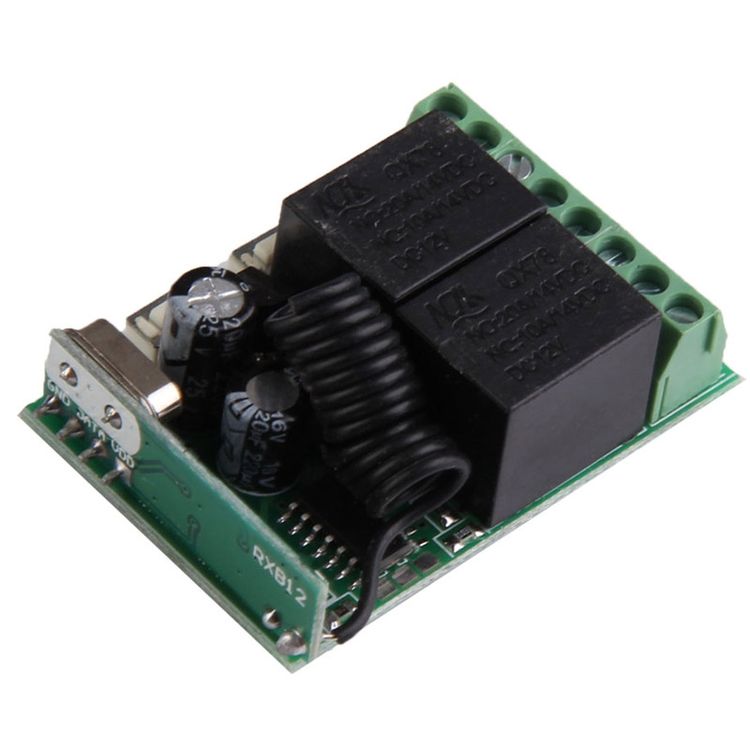

Receiver (Switch)

Working Voltage: DC 12V
Working Frequency: 315MHZ
Receiver Sensitivity: -105dBm
Output way: Jog, Self-lock
Code Type: Fixed Code, Pad Code
Contact Capacity: ≤ 10A / 250V AC, 10A / 30V DC
Product Size: 55cm x 40cm x 20cm

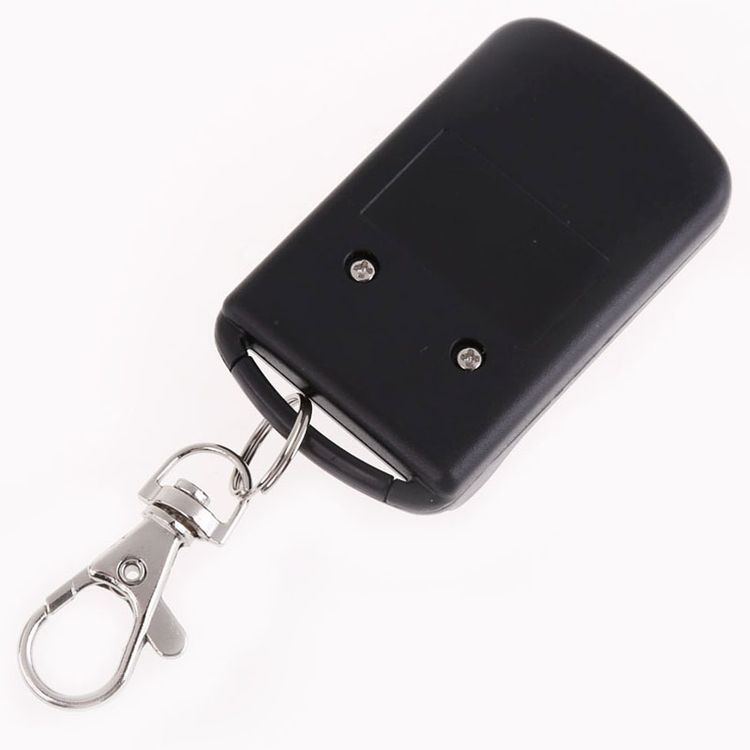

Remote Control (Transmitter)

Operating Voltage: DC 12V
Operating Current: ≤10mA
Operating Frequency: 315MHz
Frequency Distance: 50-100m (open place)
Encoding type: fixed code, Pad Code
Battery Type: Button Cell (2 PCS)
Oscillation Resistance: 4.7M
Dimensions: 51cm x 39cm x 13.5cm

Package Include

Package Contents: 1 x Wireless Receiver, 1 x Transmitter

Weight & Size

Weight: 0.079kg
Size: 8cm x 3cm x 2cm

SKU: A0100113260 Category: Tag: Condition: New
