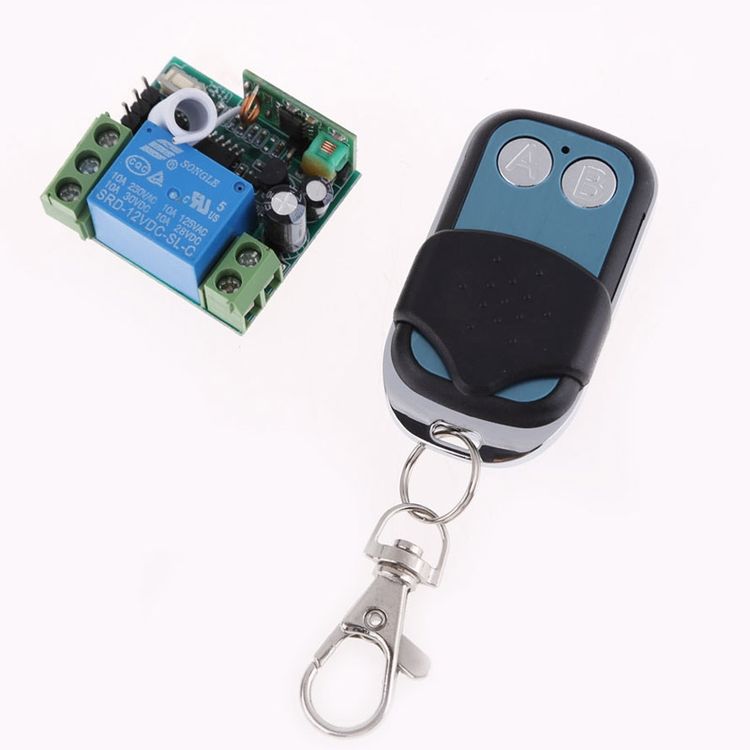

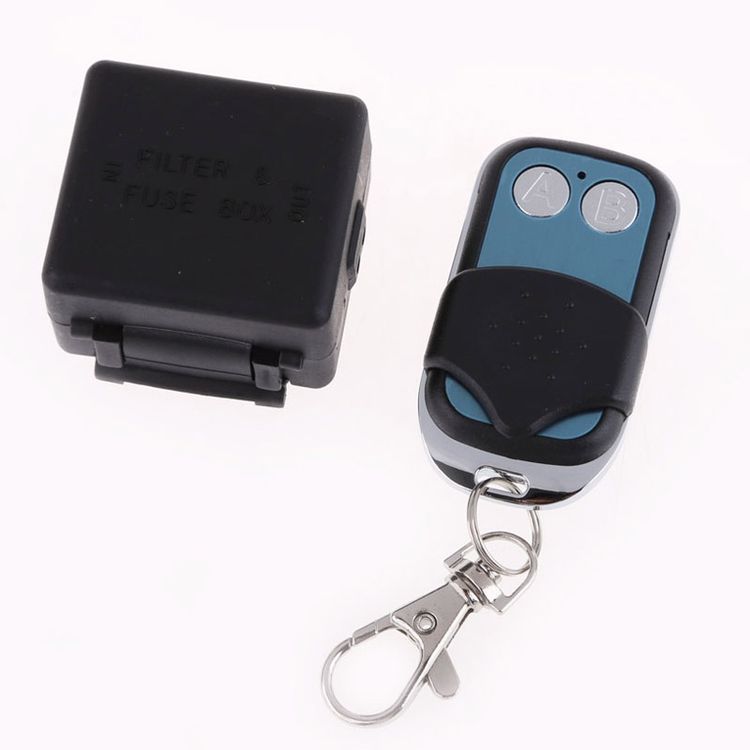

DC 12V 10A 1CH Wireless RF Remote Control Switch Transmitter + Receiver


R605

In Stock at Supplier

Get 10% off your order by using the promo code YOINK10 at checkout!

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

About the product
1. This is a high quality wireless control, and it is easy to install.
2. You can turn on or turn off the receiver with transmitter (remote control) from any place within a reliable distance.
3. The wireless signal can pass through walls, floors and doors.
4. There is a slidable cover on the remote control.
5. There is also a hook on the remote control. It is easy for you to carry.
6. It uses fixed coding, stable and reliable.

Features
1. The receiver with the IC socket, the working way L4 / M4 / T4 can be change as required.
2. It also mean the output way is adjustable, it can control the motor running in positive and reverse directions directly with the voltage output, it can output 2 CH independent switch signal,
3. The pin can be adjusted, it can meet the need of all the fixed code remote control design, the remote control can control 2 switches.
4. The wireless remote control switch it is the widely use wireless remote control controller parts, it use the mini Processor control something intelligently.

Application range
Garage door wireless remote control system, lamp / light wireless remote control, wireless remote control curtain and so on, it is easy to install and easy to use, safe and reliable.

Working / output way
1. Jog: Press one button is working. Loosen your finger on the same button is stop. (Need one channel switch and one buttons remote control)
2. Self-lock: Press one button for one time is working. Press the same button again is stop. (Need one channel switch and one buttons remote control)
3. Inter-lock: Press one button is working, press another button is stop. (Need one channel switch and 2 buttons remote control)

Please notice
1. Here is 1CH and 2 buttons wireless remote control. You can choose the inter-lock working / output way, so all the buttons have been used, button A is open, button B is close.
2. Please tell us the working way that you want after you buy it, if you are not the professional person, we would set the working way as your requirement before we ship.

Additional Information

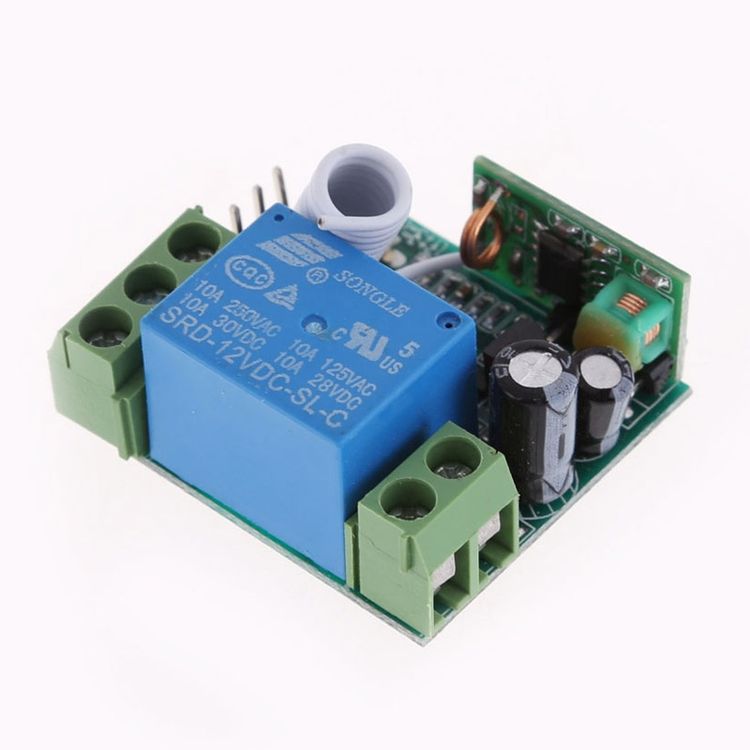

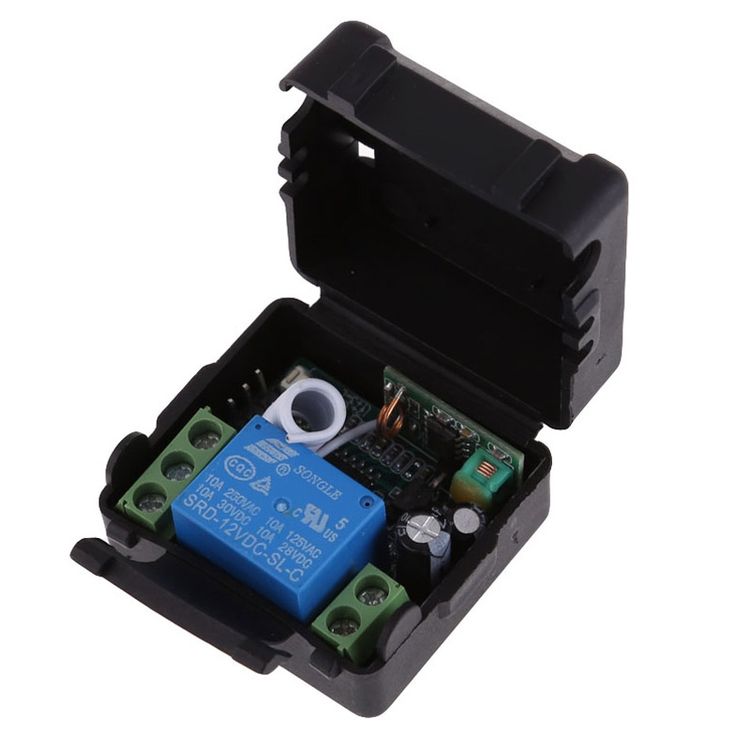

Receiver (Switch)

Channel: 1 CH
Working Voltage: DC 12V
Max load current: 10A
Working Frequency: 315MHZ
Receiver Sensitivity: -105dBm
Code Type: Fixed Code
Product Size: 35mm x 32mm x 17mm

Remote Control (Transmitter)

Buttons: 2 Buttons
Dimensions: 55mm x 30mm x 13mm

Package Include

Package Contents: 1 x Receiver, 1 x Transmitter

Weight & Size

Weight: 0.700kg
Size: 4cm x 3cm x 2cm

SKU: B0100034017 Category: Tag: Condition: NewOrigin: CN
