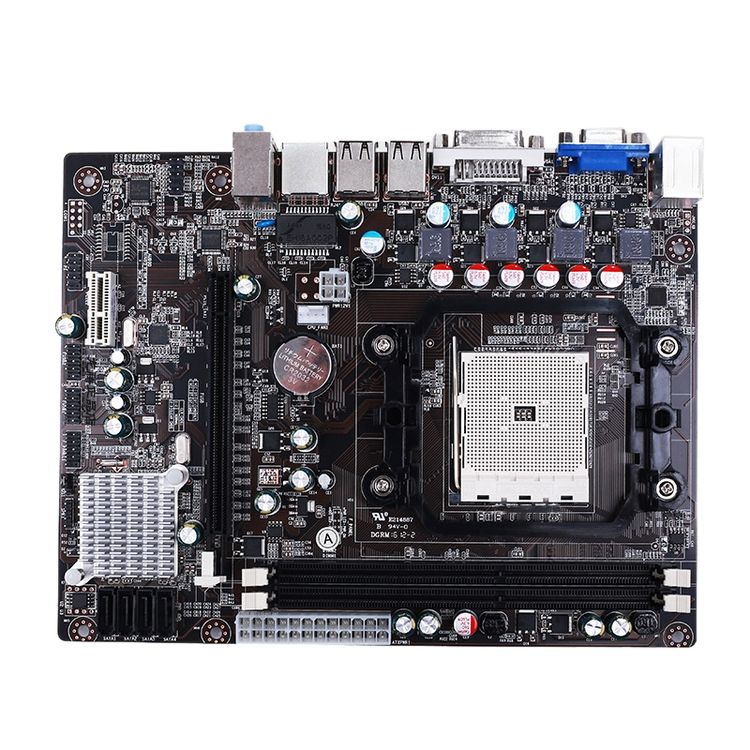

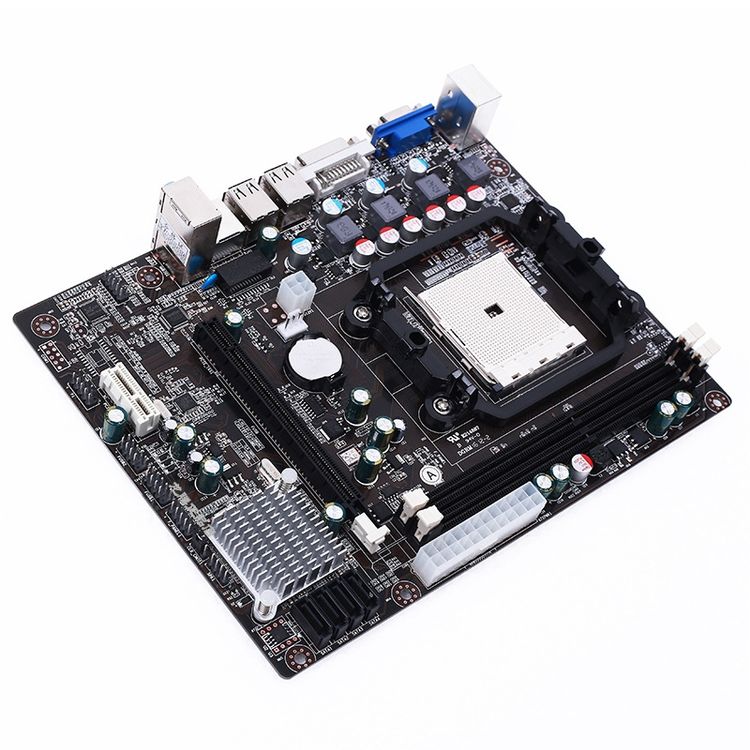

Computer Motherboard AMD A55 FM1 DDR3 Supports X4 631 / 641 A / E Series with Graphics Interface


R1153

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. AMD A55 main chipset, AMD A55 FCH (Hudson D2) chipset.

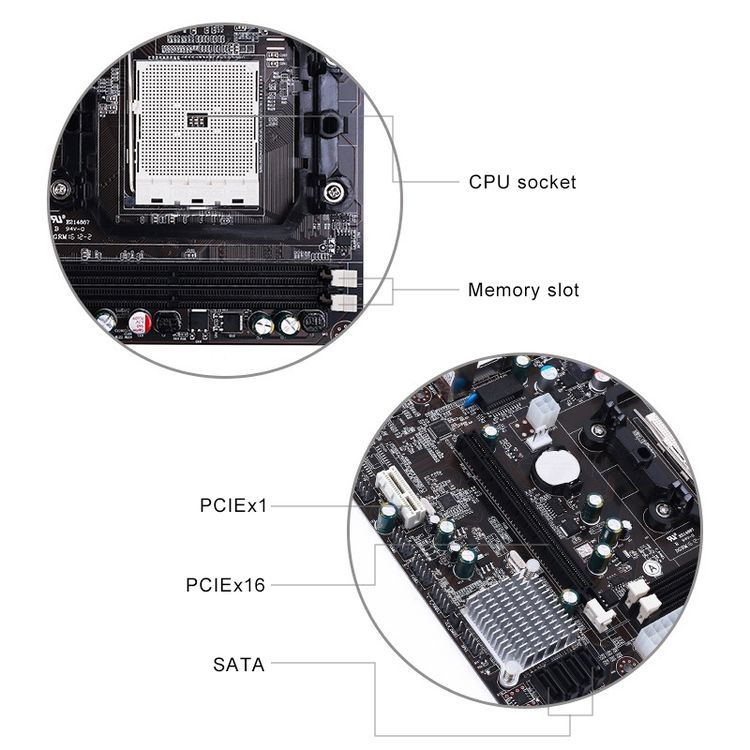

2. Number of CPU slots: 1, CPU slot type: Socket FM1.
3. Support for AMD A8/A6/A4/E2 CPUs.
4. HT3.0 bus.
5. Memory type: DDR3, dual channel DDR3 1066/1333/1600 memory.
6. Integrated chip: graphics card / sound card / network card.
7. Audio chip: integrated six-channel audio chip.
8. Graphics chip: CPU built-in display chip (requires CPU support).
9. NIC chip: Onboard 100M NIC.
10. 8 USB ports, 4 rear and 4 front.
11. 1 x PCI-E X16 graphics card slot.
12. One PCI-E X1 slot.
13. No PCI slot, no IDE slot.
14. PS/2 interface: PS/2 mouse, PS/2 keyboard interface.

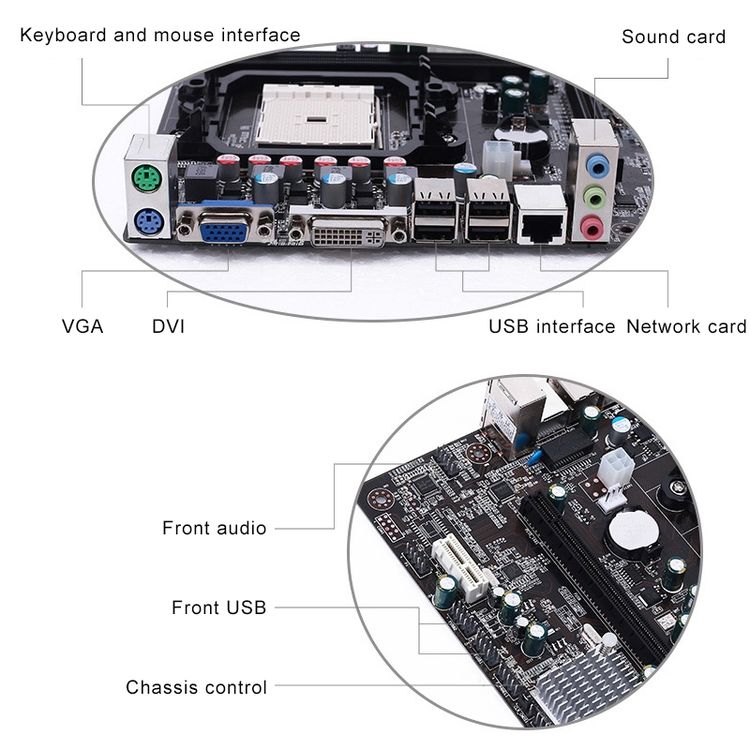

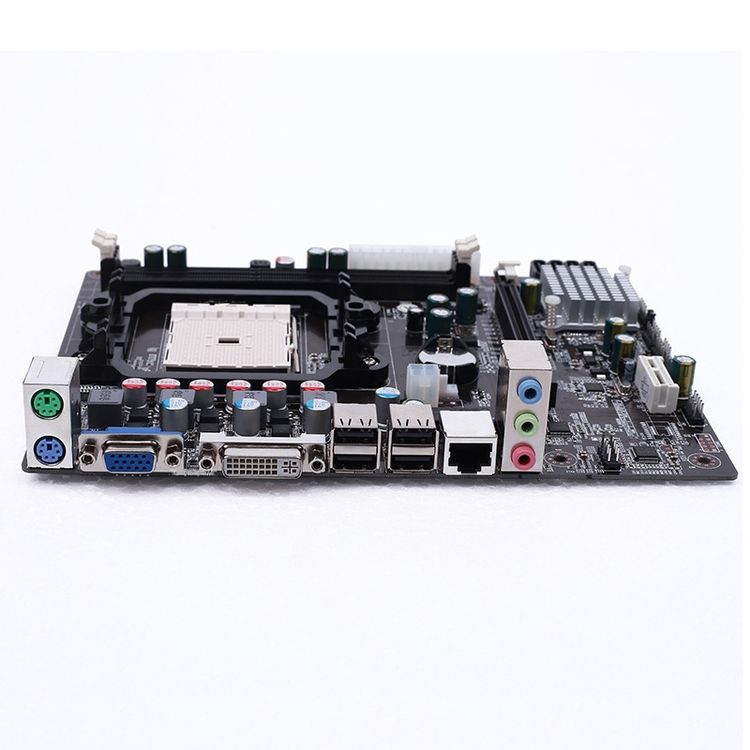

15. External port: audio interface / VGA interface / DVI interface / network card / USB interface.
16. Four SATAII interfaces.
17. Memory slot: 2 x DDR3 DIMM.
18. Micro ATX form factor.
19. Power socket: one 4-pin, one 24-pin.

Note:
You should not put the case on the chassis, no screws. In order to prevent the goods from meeting your needs, you can also return the goods. When testing the installation, you need to gently screw up.

Additional Information

Weight & Size

Weight: 0.908kg
Size: 24cm x 20cm x 4cm

SKU: B0100033299 Category: Condition: New
