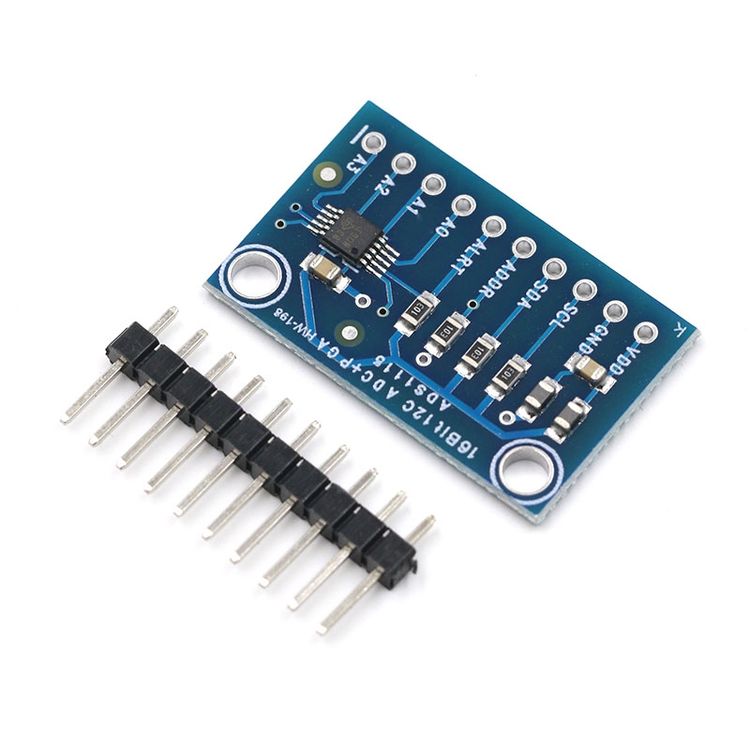

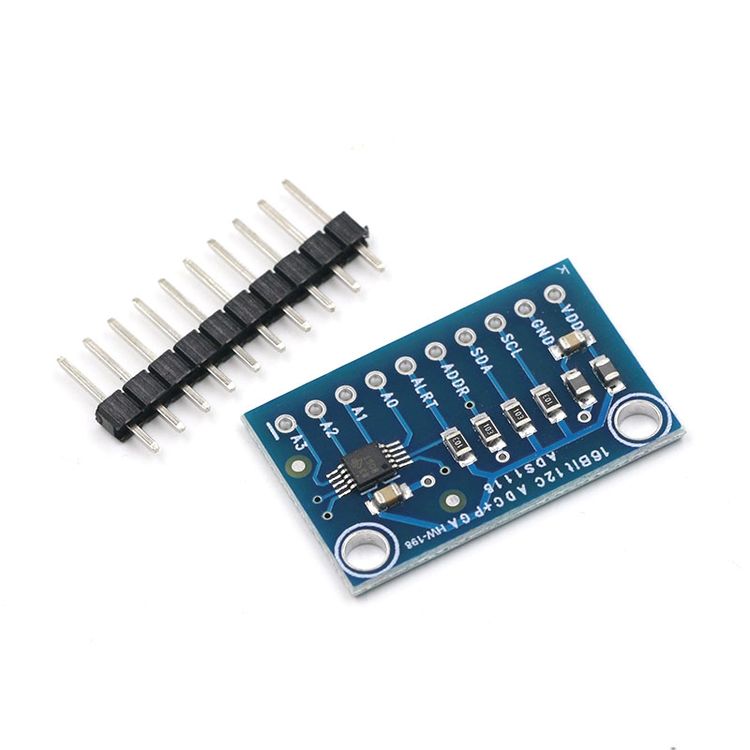

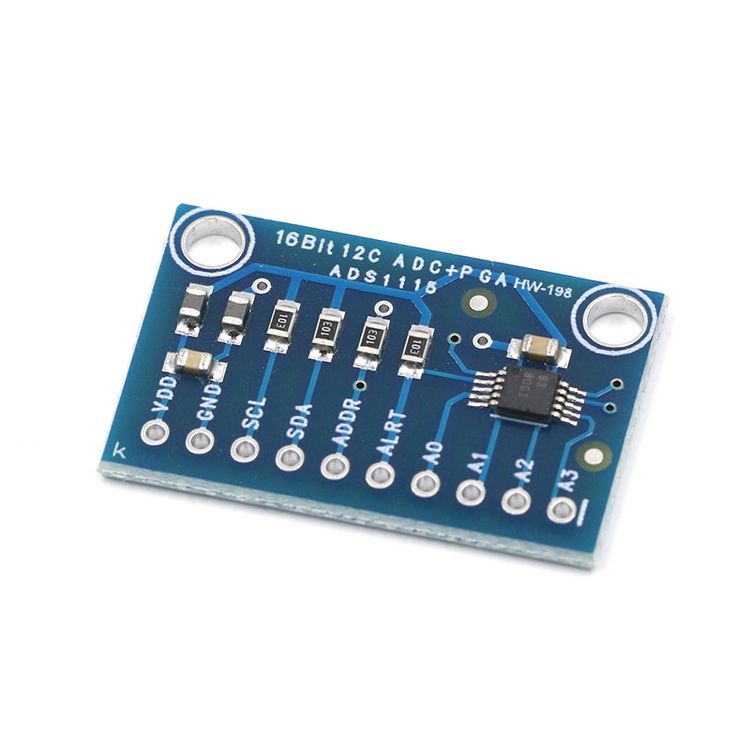

CJMCU-ADS1115 16-Bit Precision Analog-To-Digital Converter AdC 4-Channel Development Board Module


R61

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. The portable instrument is automatically powered off after conversion and greatly reduces current consumption during idle periods
2. Features: easy to implement, high precision, low current consumption, multi-mode conversion

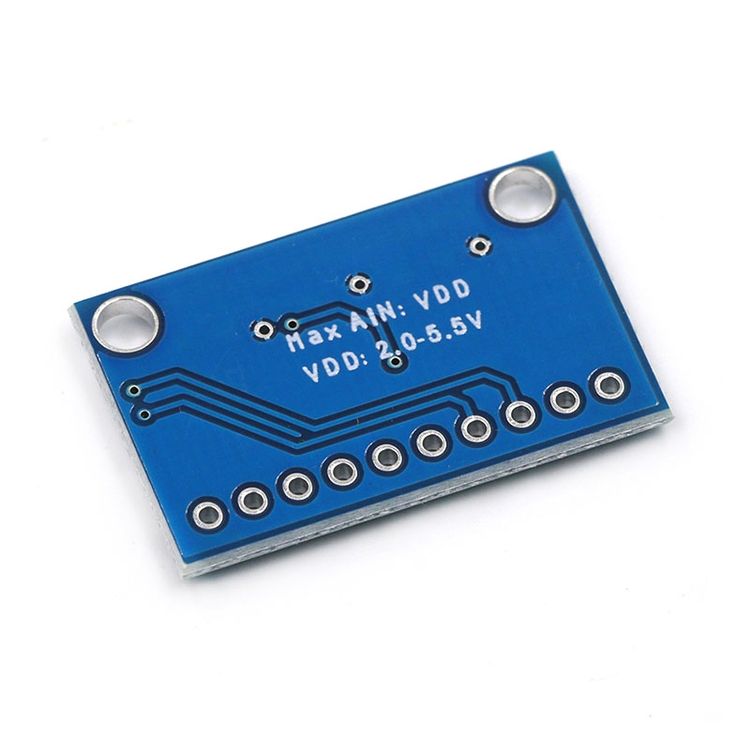

3. Power supply voltage: 2-5.5v
4. Working temperature: -40 to 125 degrees celsius
5. Programmable data rate: Transmission via I2C compatible serial interface
6. Single mode: Automatic shutdown with onboard reference and oscillator

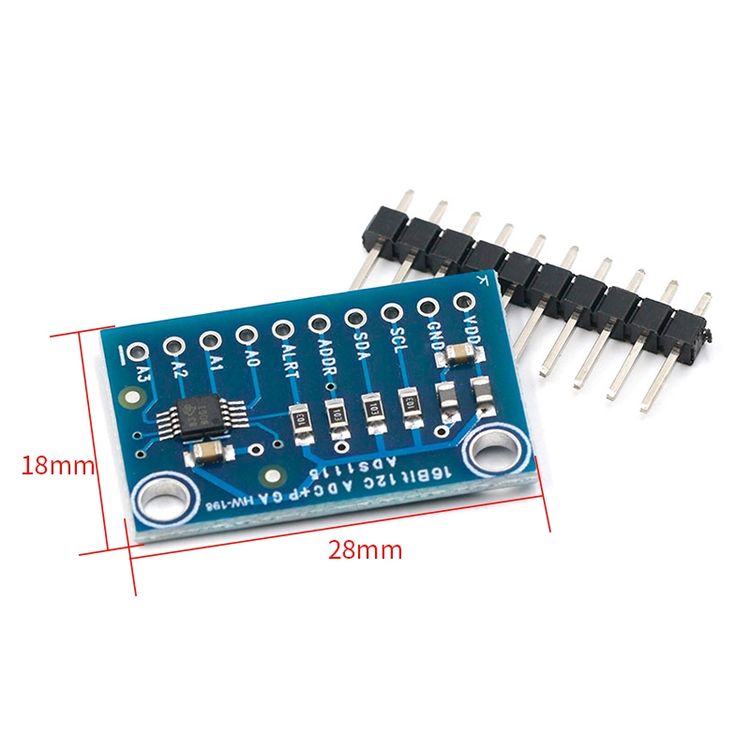

7. Size: about 16 x 28mm
8. Weight: about 2.5g

Additional Information

Weight & Size

Weight: 0.030kg
Size: 6cm x 6cm x 2cm

SKU: A0100024437 Category: Condition: New
