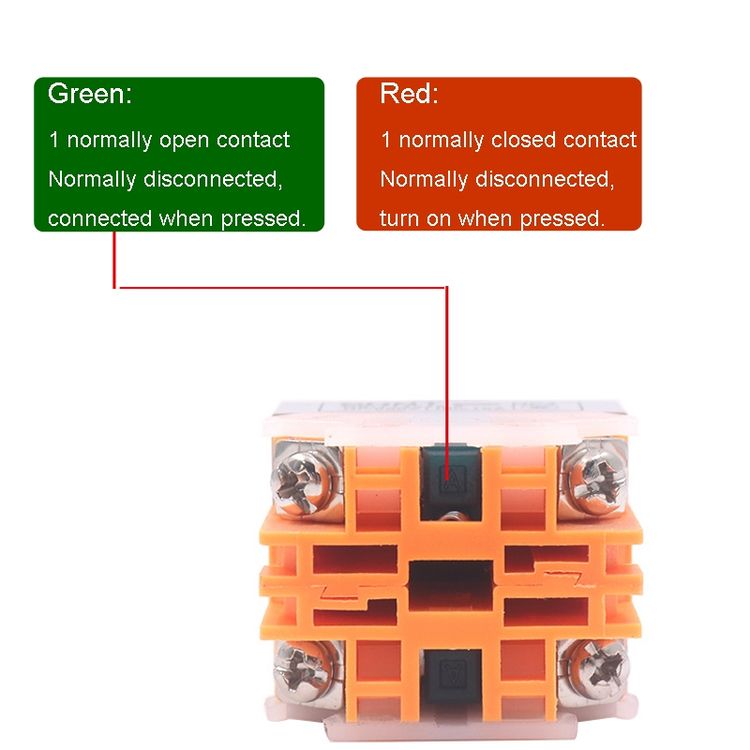

CHNT NP4-20X / 31 Rotary Button 3-Position Self-Locking Transfer Switch Contacts 2 Normally Open


R63

In Stock at Supplier

Get 10% off your order by using the promo code YOINK10 at checkout!

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

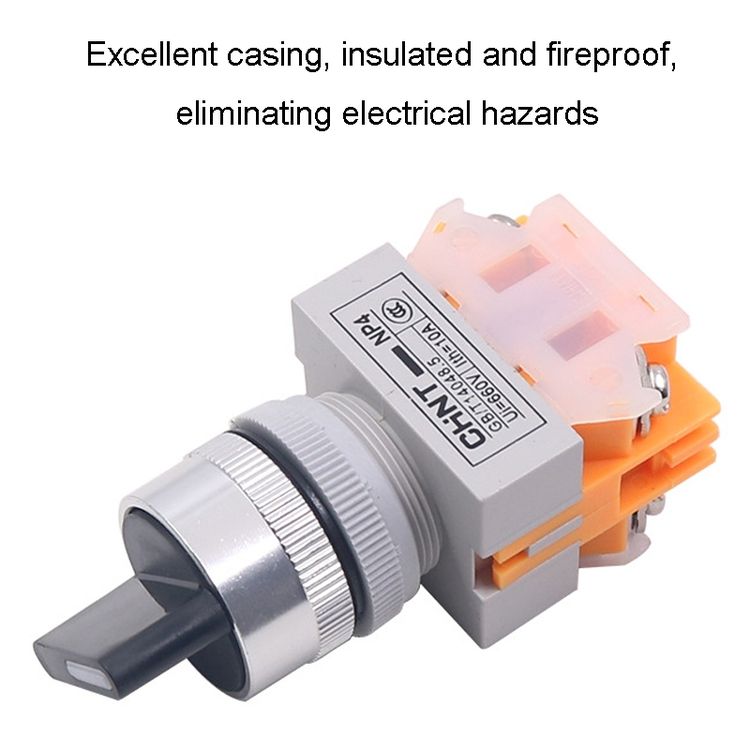

1. Selection of shell materials, insulation and fire prevention, to eliminate hidden dangers of electricity, impact resistance, oxidation resistance

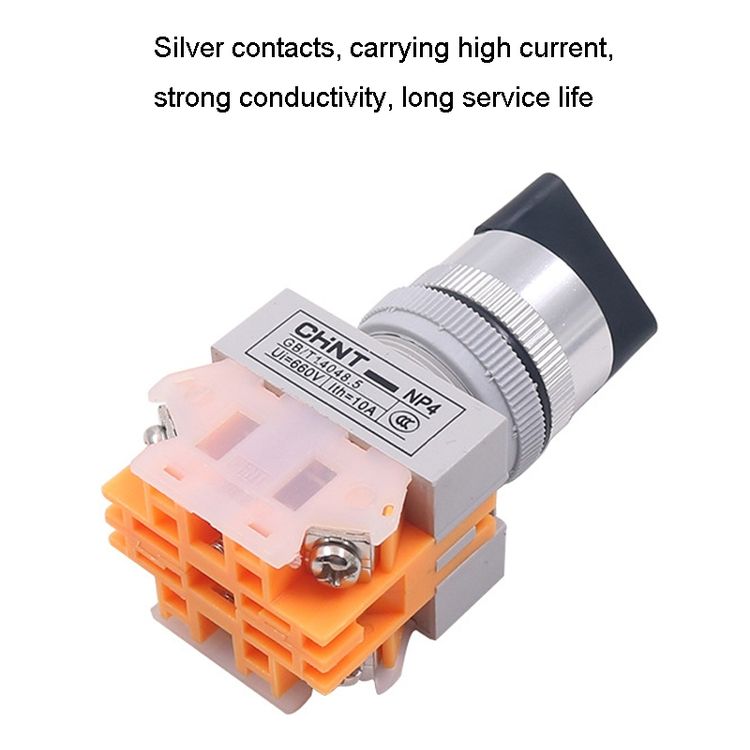

2. Silver contacts, carrying high current, strong conductivity, long service life
3. Simple design, flexible rotation, simple design of the operating rod, do not need to use force to turn, more humanized design
4. Scope of application: NP4 series buttons are suitable for AC 50Hz or 60Hz, voltage up to 380V DC operating voltage up to 220V circuit control system; as electromagnetic starter, contactors, relays and other electrical circuit control; with indicator buttons are also suitable for light signaling occasions; in line with the standard GB 14048.5

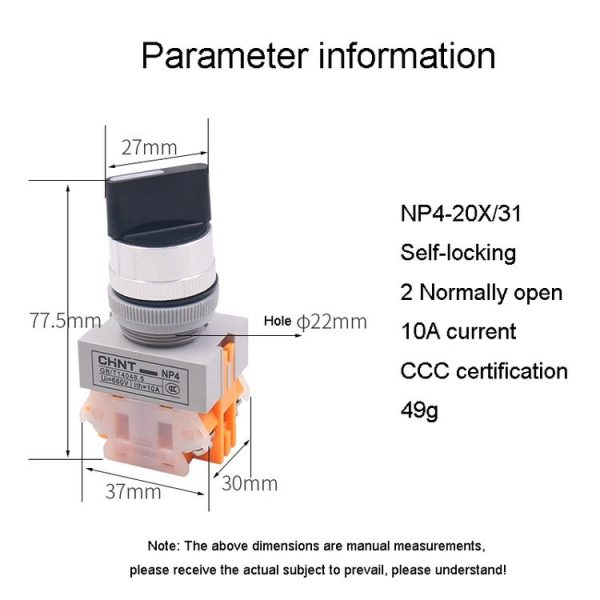

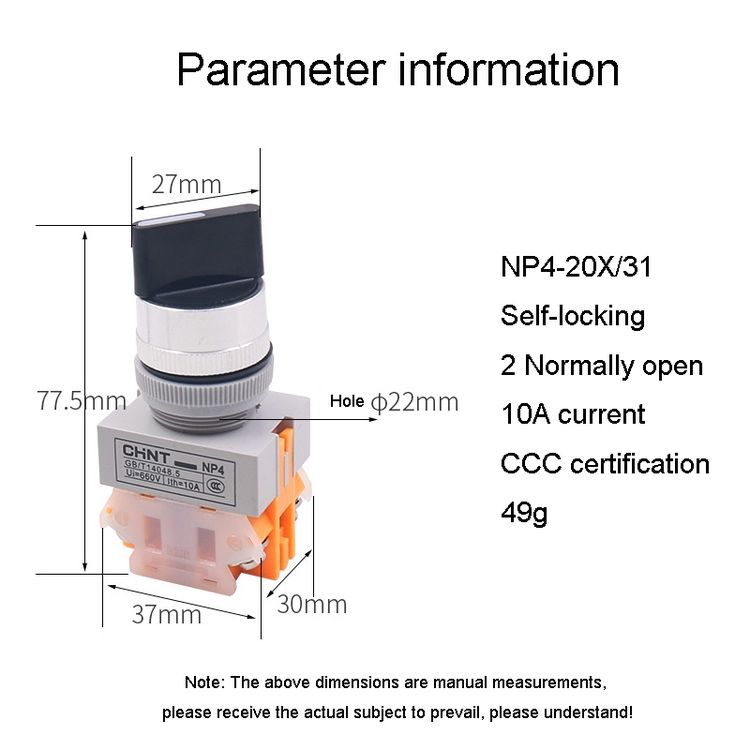

5. Current: 10A, rated voltage: below 220V
6. Gear: 3 gears self-locking

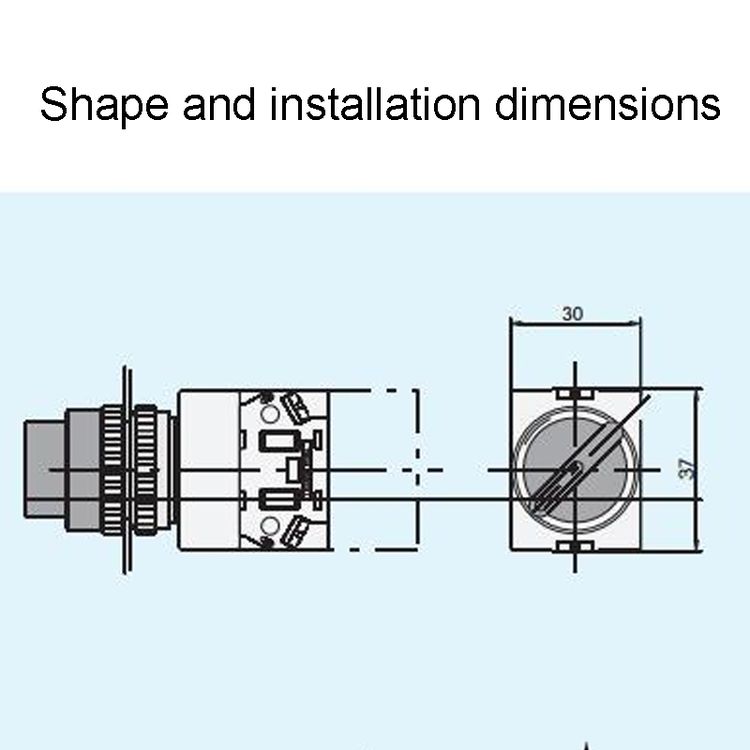

7. Open hole size: about 22mm
8. Weight: about 49g

Additional Information

Weight & Size

Weight: 0.064kg
Size: 10cm x 6cm x 6cm

SKU: A0100079451 Category: Condition: NewOrigin: CN
