CHINT LW32-20 / D202 / 2 Small Universal Combination Power Switching Changeover Switch


R133

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Gear: 3 gears
2. Heating current: 20A
3. Rated voltage: AC380V DC220V
4. Simple structure, rigorous manufacturing process, beautiful appearance, strong shell, wear-resistant and durable, long service life
5. Precision workmanship, quality as one, strict control of every detail, simple operation, side labeling product information, electricity safety, more convenient

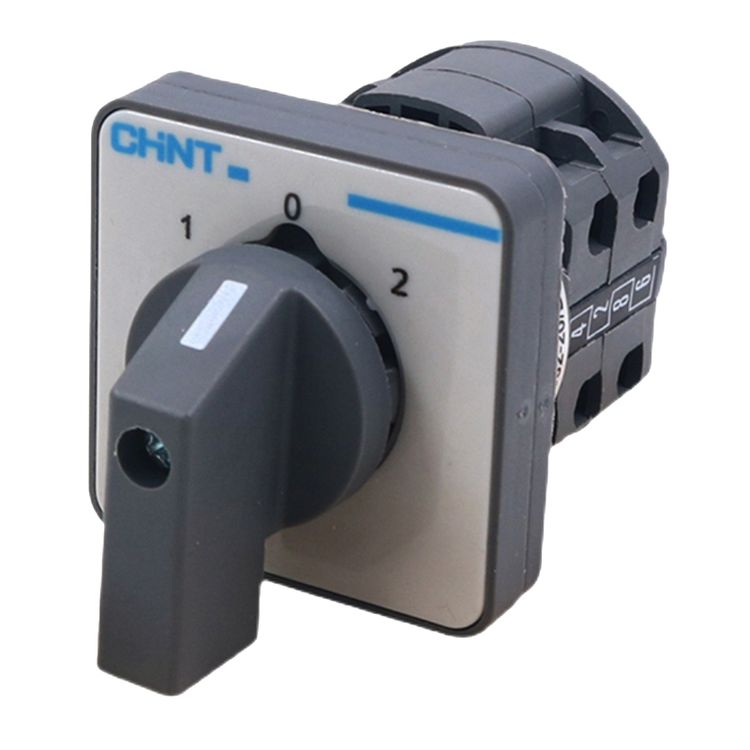

6. Easy to operate, panel 3 gear conversion adjustment, button operation, 45 degrees conversion angle
7. The switch has 3 gears: in 1 gear, 3-4 on, 7-8 on; in 2 gears: 1-2 on, 6-5 on; in 0 gear, all off
8. Application: LW32 series universal changeover switch can replace (CA10, LW26) changeover switch, mainly used for AC 50Hz or 60Hz, rated working voltage 380V and below, DC voltage 220V and below control line for the main command control, but also can be used to directly control the small-capacity motor
9. Standard: GB/T 14048.5 IEC 60947-5-1
10. Weight: about 78 g

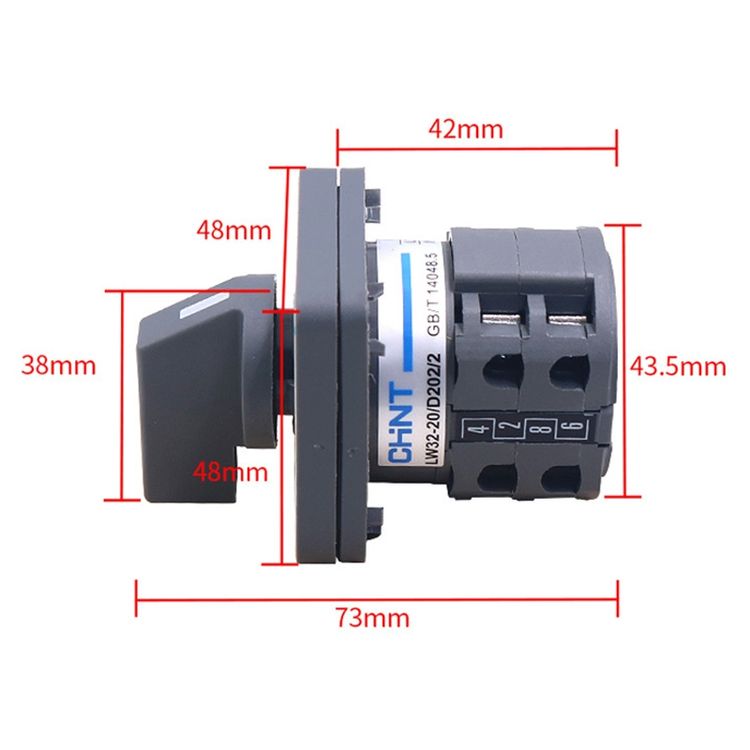

11. Size: length of about 7.3 cm

Additional Information

Weight & Size

Weight: 0.094kg
Size: 12cm x 12cm x 10cm

SKU: A0100073217 Category: Condition: New
