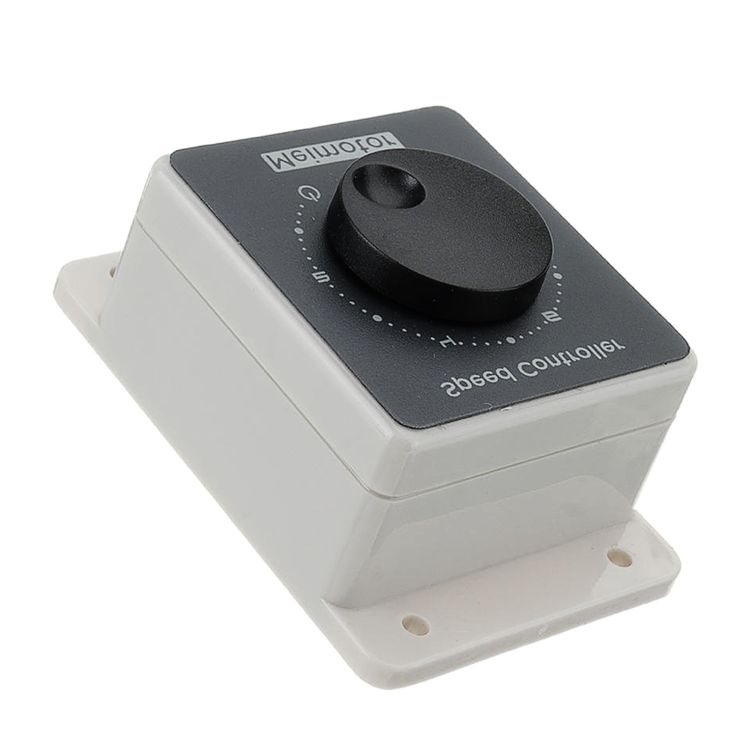

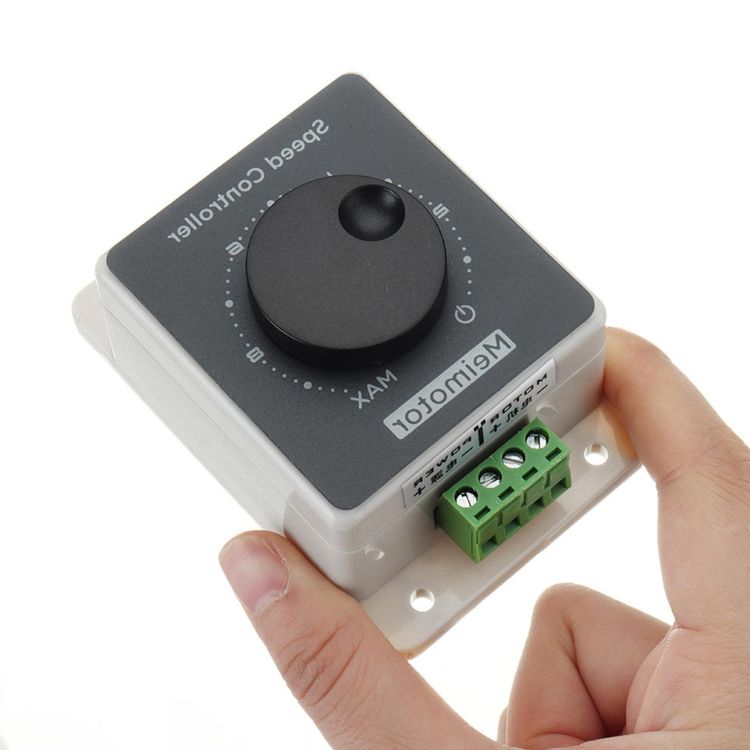

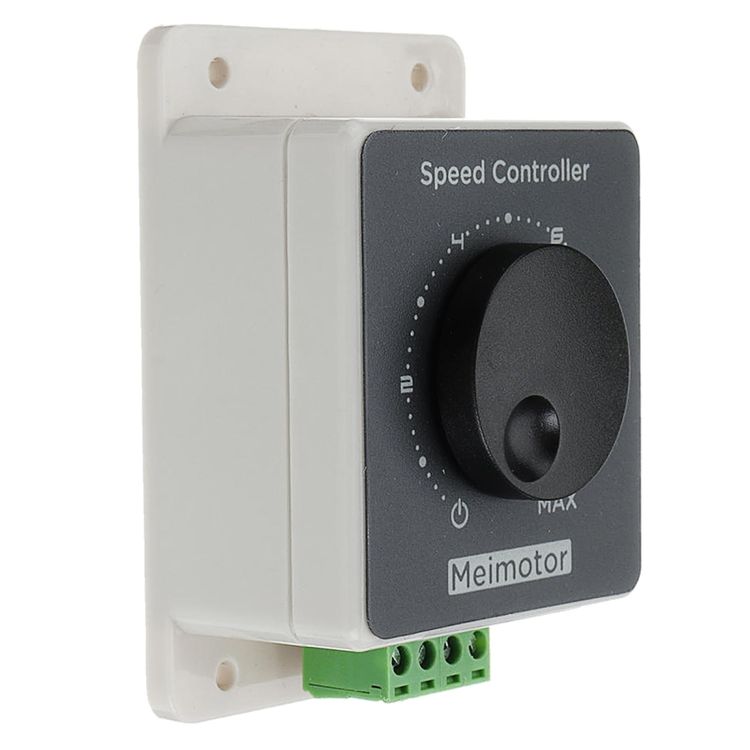

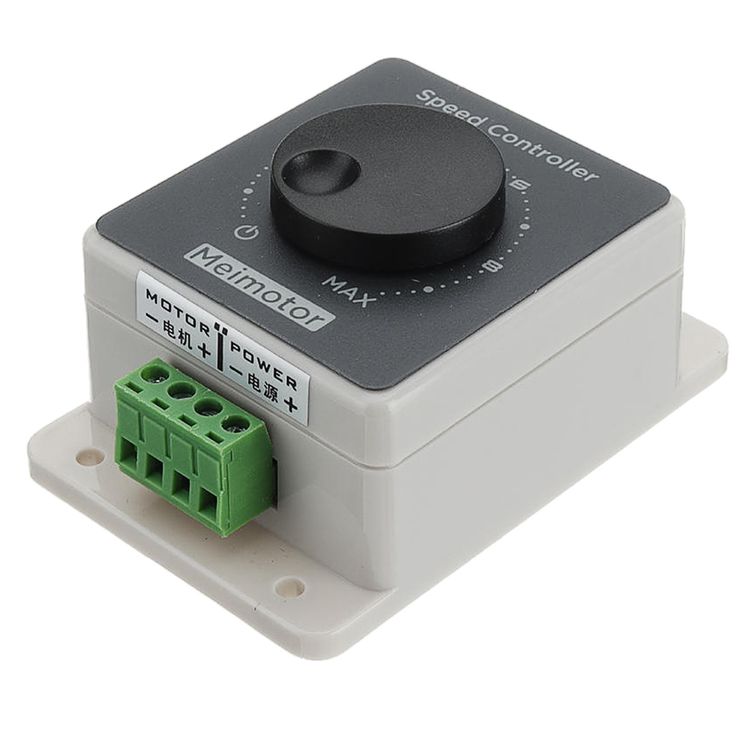

CCM96SK DC 12V 24V 36V 48V PWM DC 10A High Power Motor Speed Controller with Housing (White)


R229

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Technical Parameters
1. Model: LDTR-WG0267
2. Potentiometer: Resistance B100K; opening 8mm
3. Input voltage: DC10-60V
4. Output voltage: 0-100% of input voltage
5. Control power: 12V*10A=120W, 24V*10A=240W,.
6. Rated current: 10A
7. Maximum current: 20A
8. Speed range: 5%-100%
9. Size: 88mm*59mm*35mm
10. PWM frequency: 25kHz
11. Package included: 1 x DC 12V 24V 36V 48V PWM DC Motor Speed Controller
Precautions and instructions for use
1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out

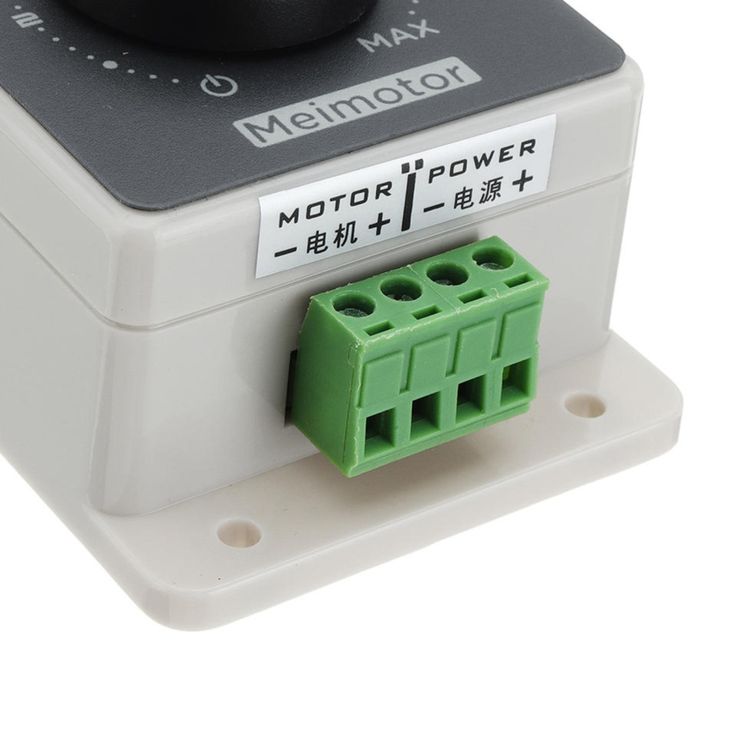

2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged.
3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,
4. the direction can be changed by adjusting the line sequence.

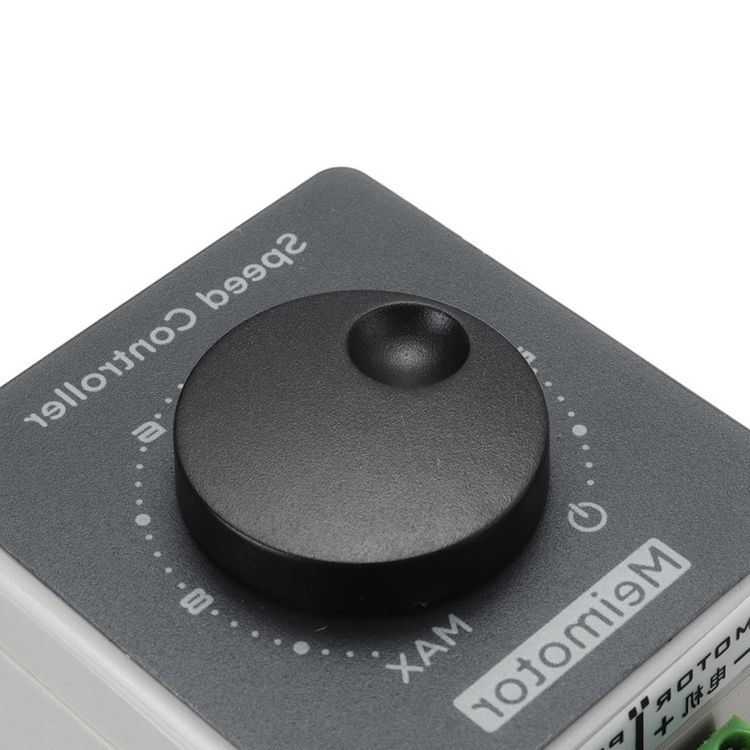

5. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.

Additional Information

Weight & Size

Weight: 0.105kg
Size: 10cm x 7cm x 4cm

SKU: A0100002118 Category: Condition: New
