Overview

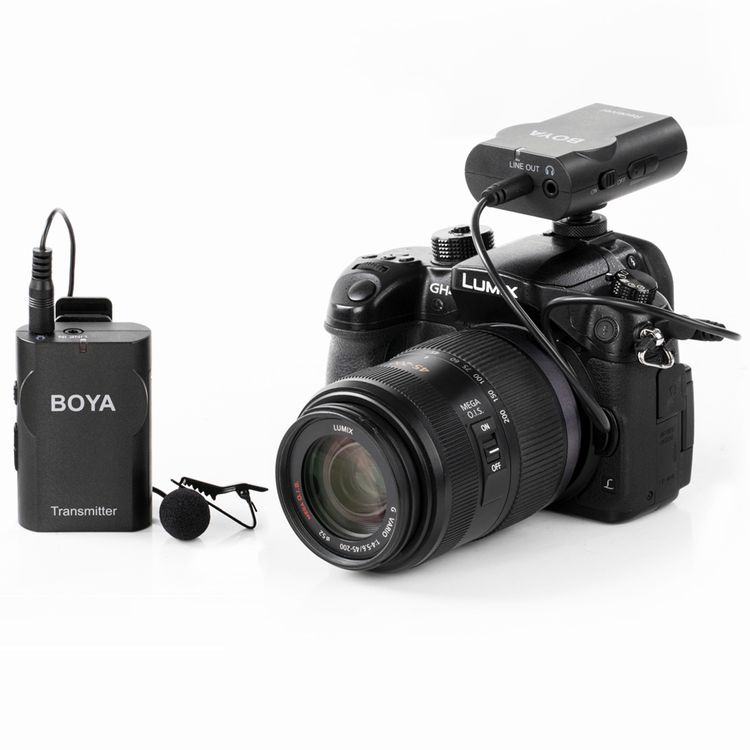

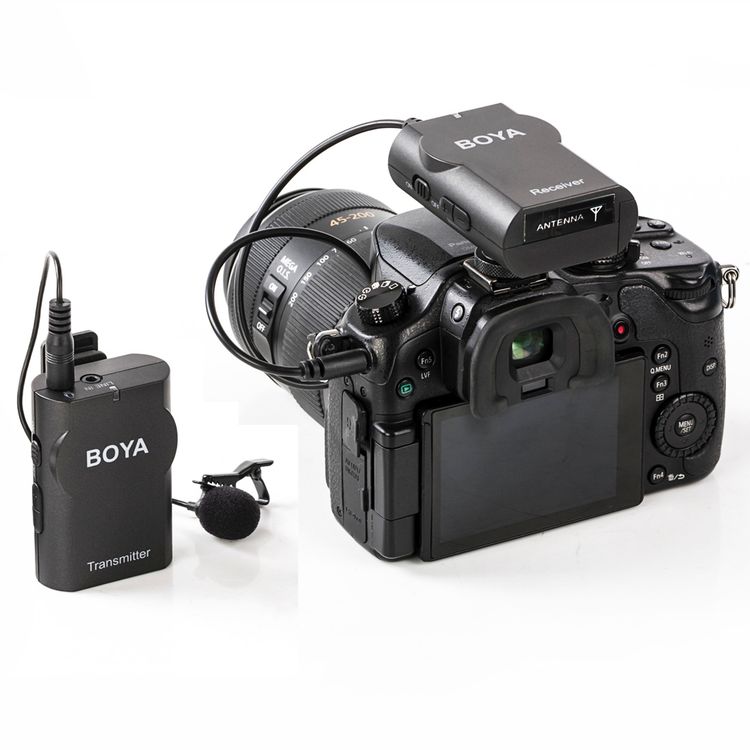

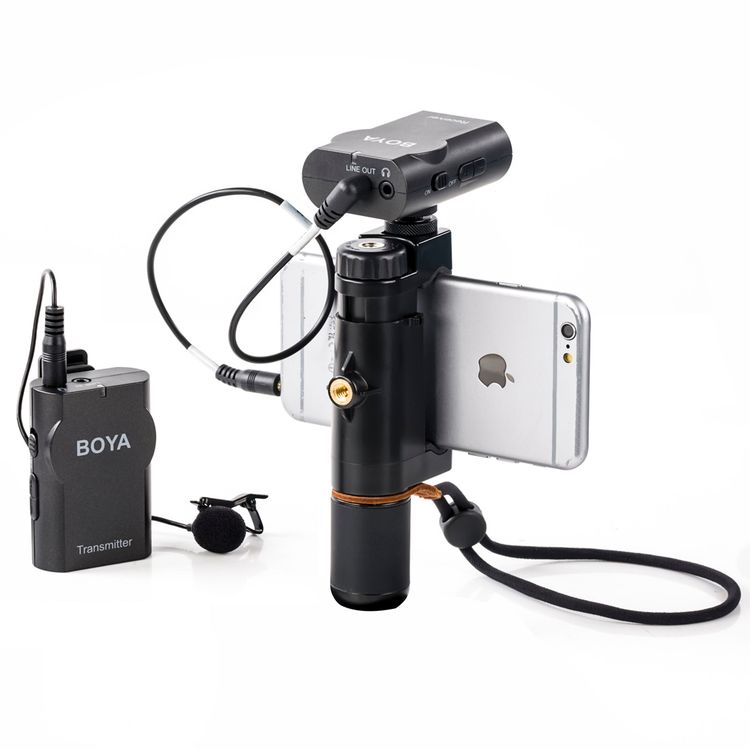

1. The BOYA BY-WM4 is a 2.4 GHz wireless system, specially designed for iPhone, iPad and most of Android devices, tablets, but also can work with DSLR camera, Camcorder, PC etc.

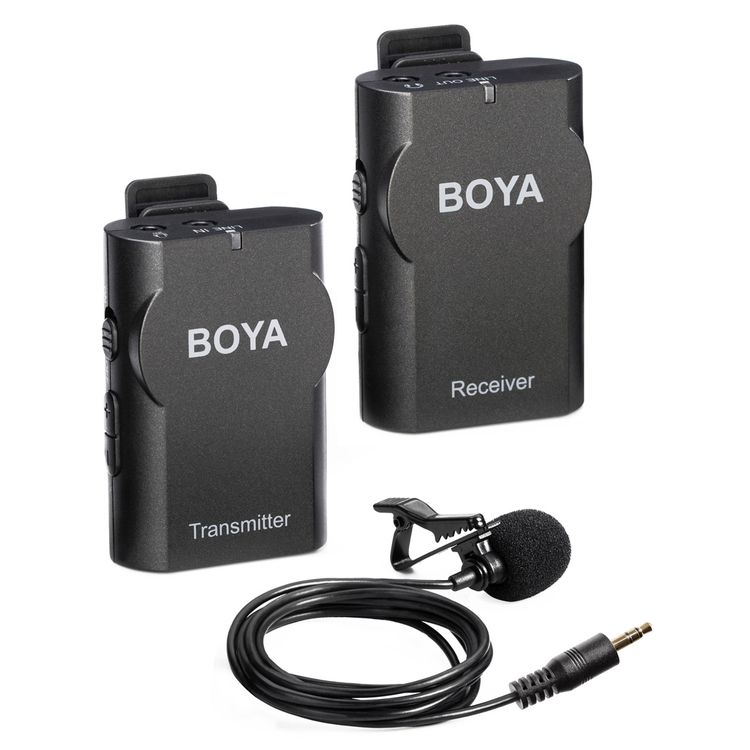

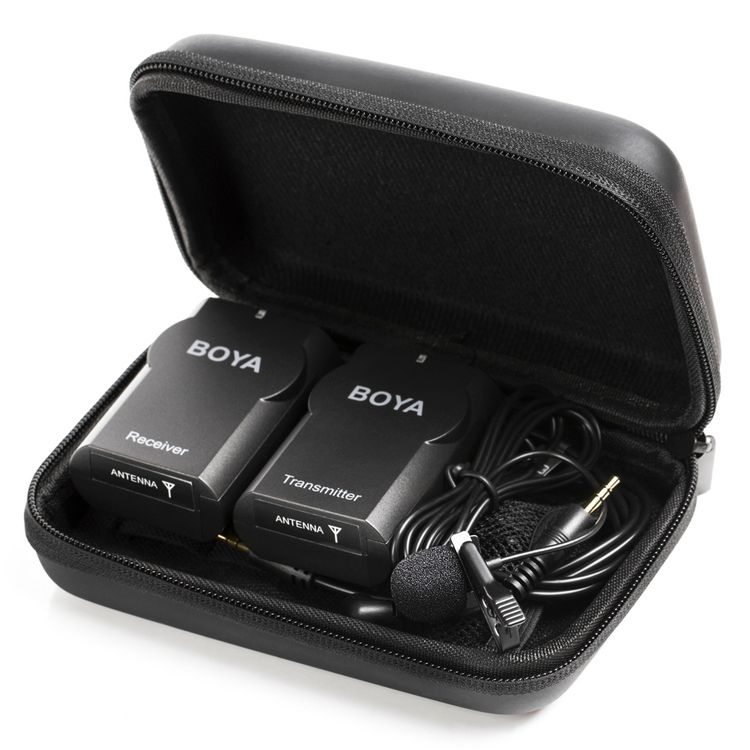

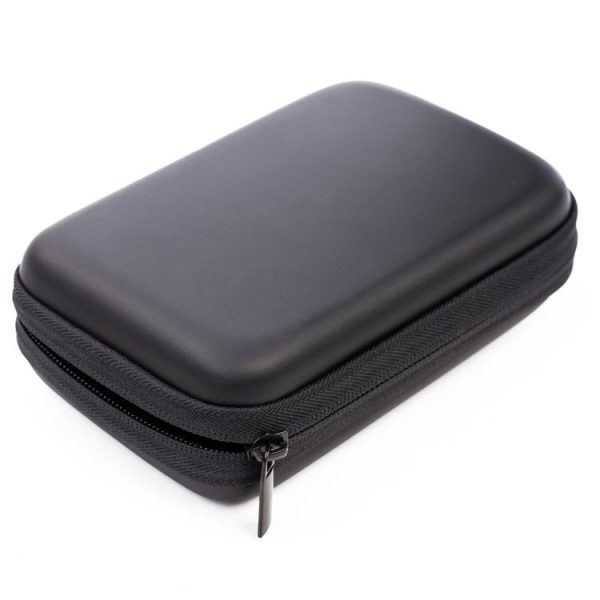

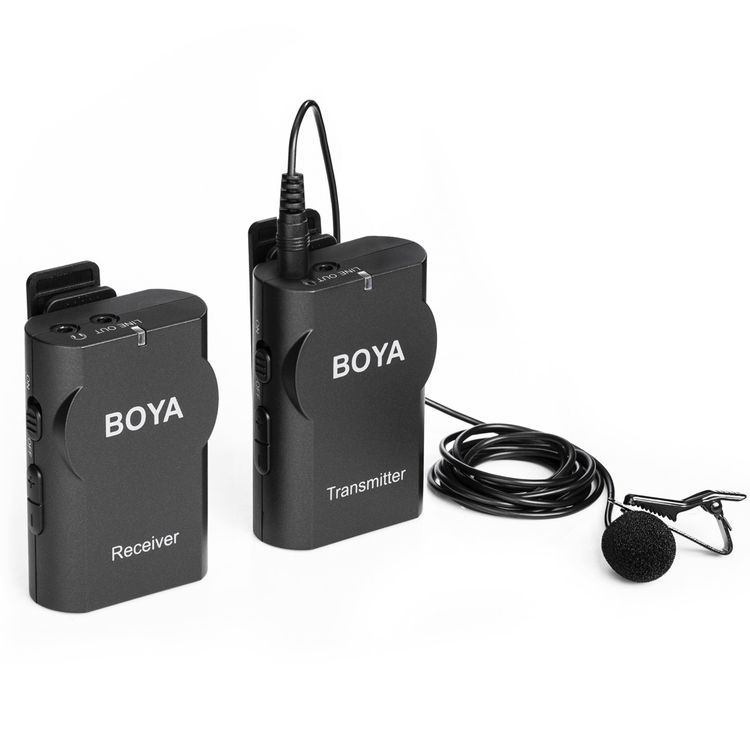

2. It consists of a bodypack transmitter, a camera-mountable wireless receiver, an omnidirectional lavalier microphone, a camera shoe mount, 3.5mm (1/8 inch) TRS connector, 3.5mm(1/8 inch) TRRS connector, a carrying case, foam windscreen and microphone clip.
3. The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.
1. Electret condenser, omnidirectional lavalier microphone.
2. Compact and lightweight bodypack transmitter and receiver.
3. Easy pairing for fast set up.
4. The operation range is 15m (49ft) can use under many situations.
5. Compatible with most of Audio/Video equipments, such as Smartphone, tablet, DSLR, small recorder, Audio Recorder, PC etc.
6. Powered by one AA battery for both transmitter and receiver.
7. Include: An omnidirectional Lavalier Mic, a carrying case, 3.5mm(1/8 inch) TRS connector, 3.5mm(1/8 inch) TRRS connector.
1. RF Modulation: GFSK (Gauss frequency Shift Keying).
2. Frequency band: 2.4GHz (2405-2478MHz).
3. Distortion: 0.1% or less (32 ohm,1 KHz, 65mW output).
4. RF output level: =< 2mW.
5. Earphone output level: 32ohm, 65mW.
6. Audio input connector: 3.5mm mini jack.
7. Operation range: 15m (49ft.).
8. Power requirements: 1.5V DC (One AA size battery, not included).
9. Consumption power: Transmitter: 1.5V/120 mA; Receiver: 1.5V/120 mA.
10. Battery life: Transmitter: Approx. 3.0 hours; Receiver: Approx. 3.0 hours.
Additional Information
Model: BY-WM4
Material: Aluminum alloy
Battery: AA battery (not included)
Voltage: DC 1.5V
Product Size: Transmitter: 60*86*28mm, Receiver: 60*86*41mm
Weight: Transmitter: 136g, Receiver: 152g, without battery
Polar Pattern: Omni-directional
Frequency Range: 35Hz-14KHz
Sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz
S/N Ratio: 76dB or more
Weight: 0.305kg
Size: 12cm x 18cm x 5cm
