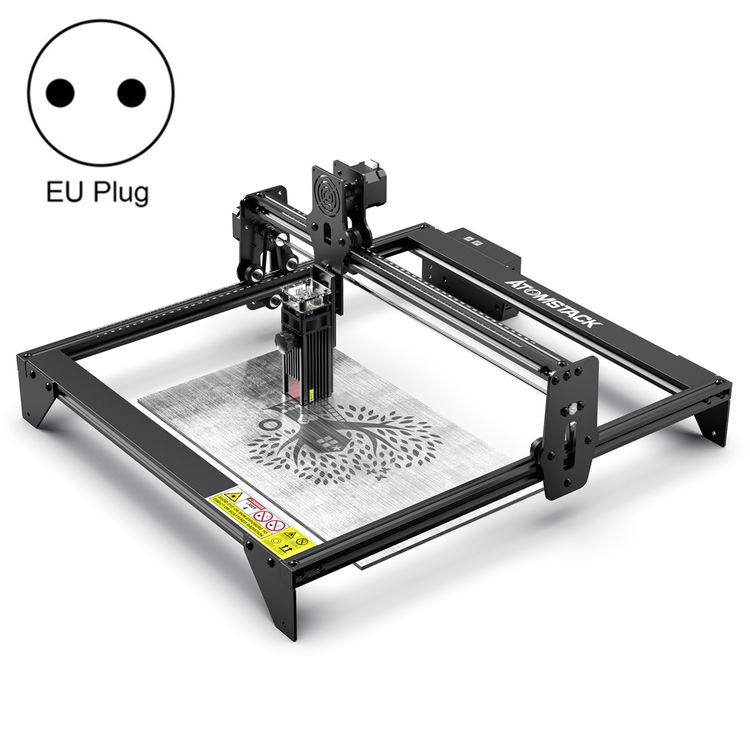

Atomstack A5 20W 410x400mm Laser Engraver Full-metal Structure Fixed-focus Eye Protection (EU Plug)


R9408

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

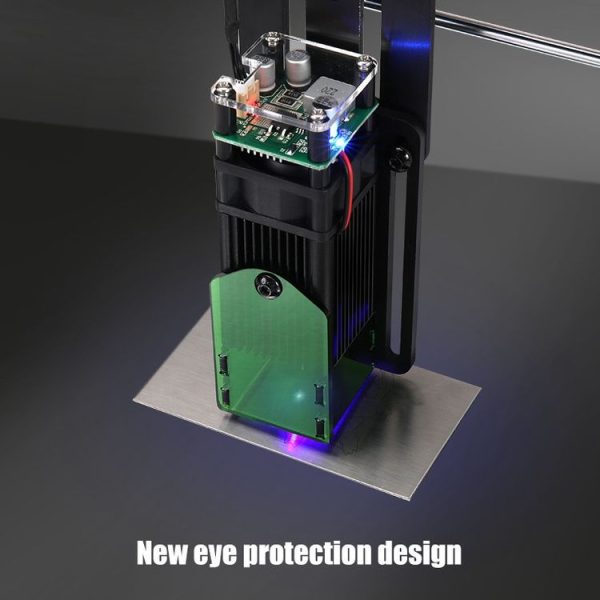

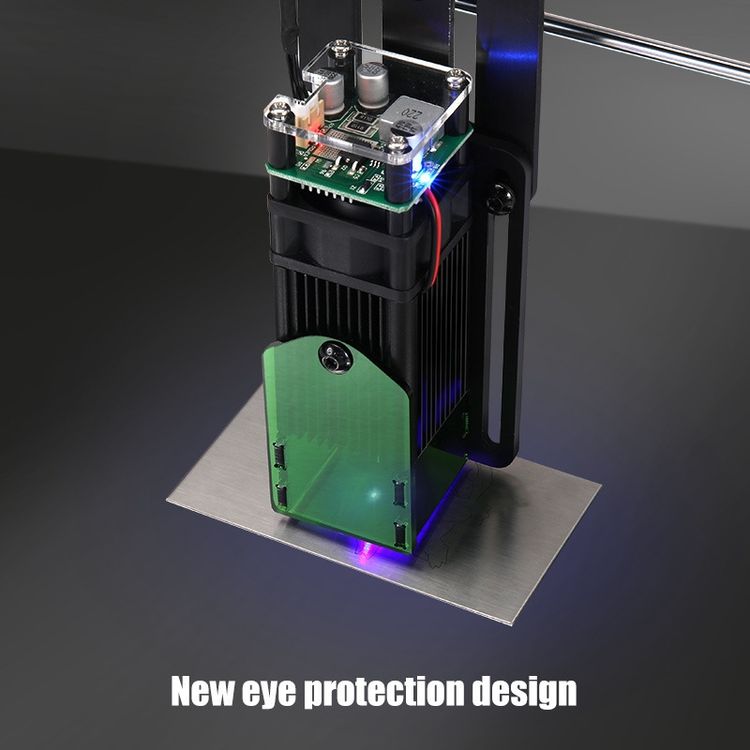

1. Eye protection design: The laser protection shield provides good protection for your eyes and filters 97% of UV light, so you and people around you can watch the laser engraving without wearing goggles.

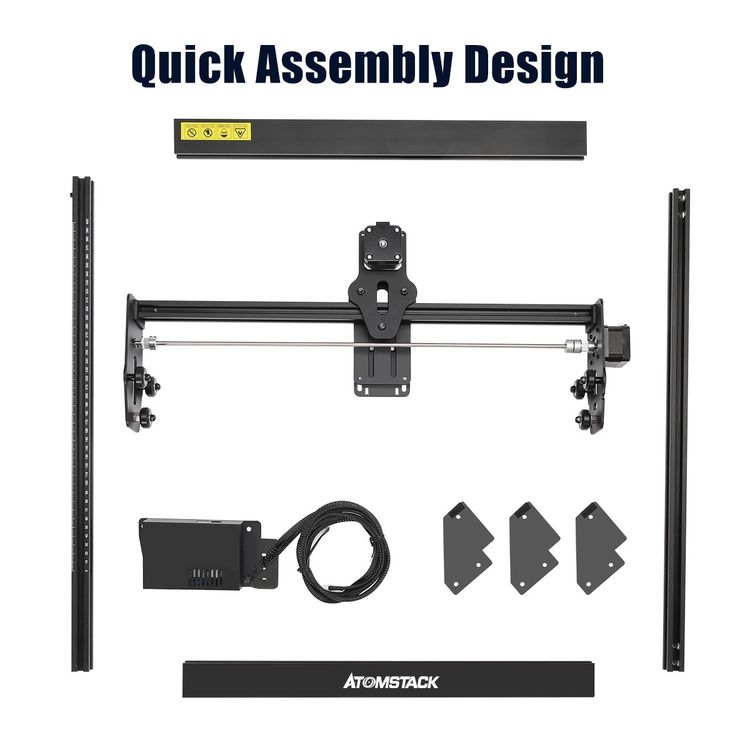

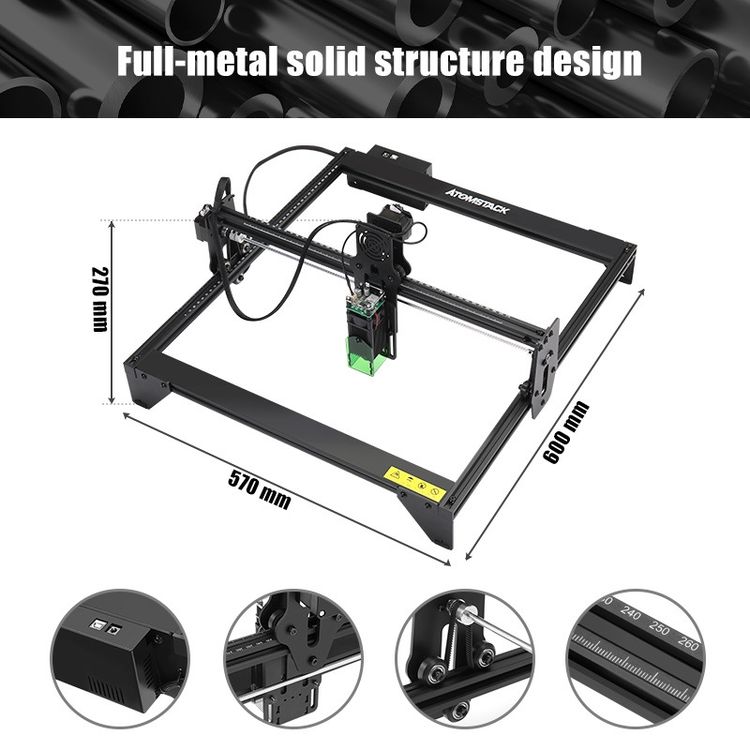

2. Sturdy and easy-to-install structure design: The all-metal structure design makes the machine more solid and durable, and will improve the accuracy of engraving at the same time. The whole structure has been designed for quick installation, generally 10-20min can be installed.

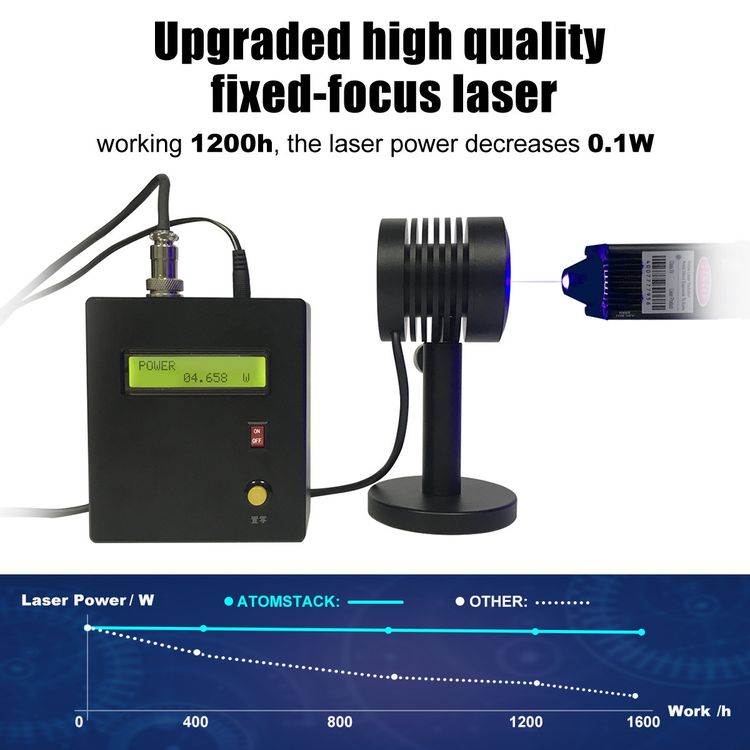

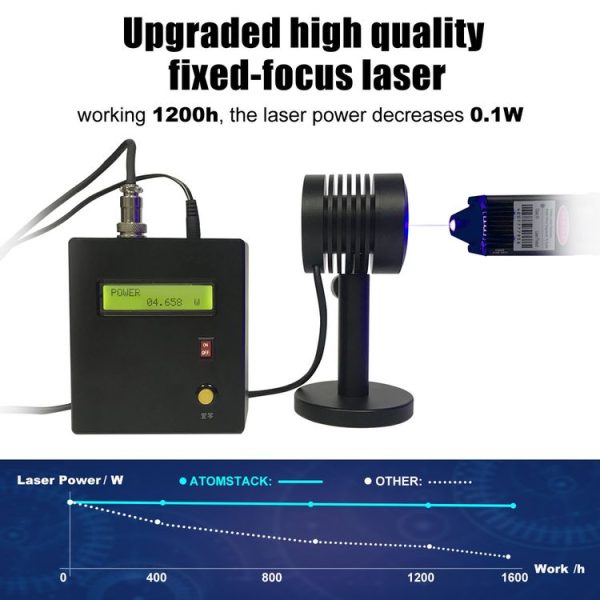

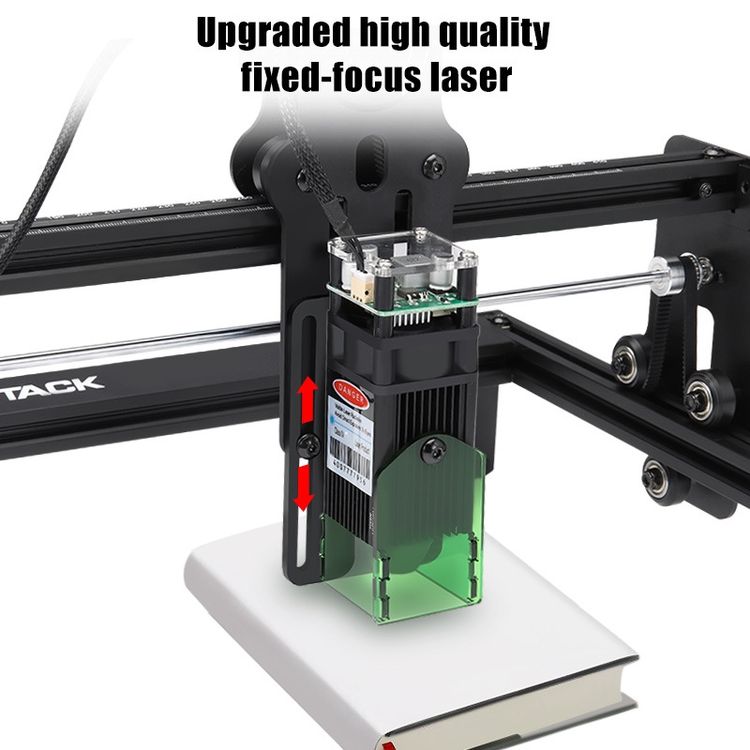

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus to engrave; the laser focus spot area is 50% smaller than other ordinary lasers.Can simultaneously take into account precision engraving and high energy cutting. At the same time, the laser power of fixed-focus laser is more stable than the laser power of zoom laser.
4. Wide compatibility: the machine can be compatible with all kinds of mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, also support LightBurn, engraving file format support NC, BMP, JPG, PNG, DXF, etc.
5. Precision scale line axis: X-axis and Y-axis contain precision scale line, which is convenient for you to make quick length measurement. 410x400mm large area engraving area can meet your various engraving needs.
Parameters.
1. Engraving size: 410 x 400mm
2. Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plating and lacquer layer metal
3. Cuttable materials: cardboard, non-woven fabrics, thin wood panels, acrylic materials, certain thin plastic panels.
4. Laser electrical power: 20W
5. Laser output optical power: 4.5-5.5W
6. Laser wavelength: 455 + / -5nm
7. Engraving accuracy: 0.01mm
8. Focus mode: fixed-focus laser, no focus
9. Operation software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
10. Supported file formats: NC, BMP, JPG, PNG, DXF,
11. Data transfer method: USB connection
12. Power supply: 100-240V AC, 50/60HZ
13. Output: 12V 5A
14. Device net weight: 4.0kg
15. Device size: 570 x 600 x 270mm
Caution.
1. When operating the laser engraving machine, please install the laser protection cover; you need to wear goggles when it is not installed.
2. Please do not touch the laser with your hands, otherwise your hands may be burned.
3. Please avoid strong impact to the machine.
4. Children under 14 years old are prohibited from using this product; children over 14 years old need adult supervision.
5. Do not apply the laser directly to any mirror reflecting object, this may cause injury to the operator or burn the laser.

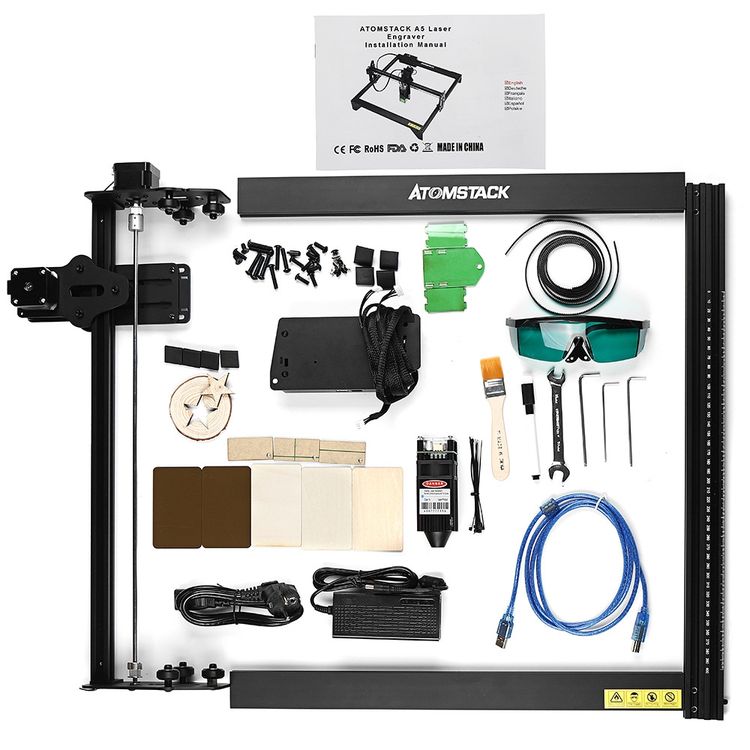

Package List
1 × X-axis assembly
2 × Profile 57CM
2 × Profile 48CM
1 × Control box
3 × support feet
1 × Laser goggles
1 × laser
1 × 24V2A power adapter
1 × Power cord
1 × USB connection cable
Step 1~5 installation kit
1 × M5 hexagonal wrench
10 × rolling tape
3 × small wood piece
1 × Fixed focus piece
1 × M3 hexagonal wrench
1 × Marker
1 × Brush
3 × acrylic sheet

Additional Information

Weight & Size

Weight: 5.604kg
Size: 62cm x 35cm x 13cm
